Dash Lights Brightness Controller Connector End View
Dash Lights Brightness Controller Connector End View

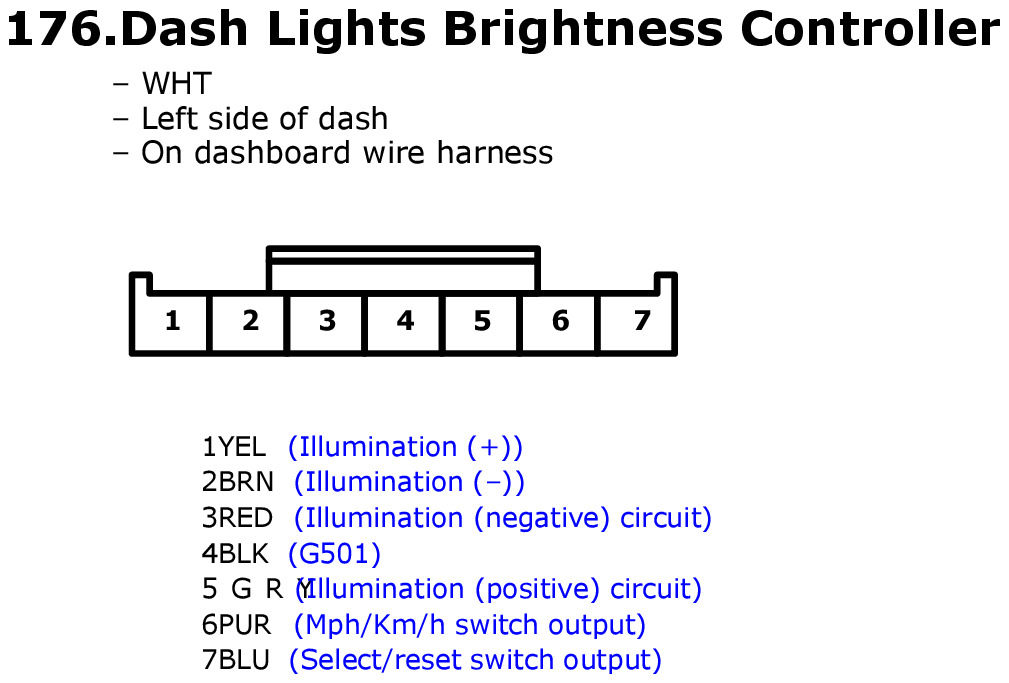

Fig 1: Dash Lights Brightness Controller Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

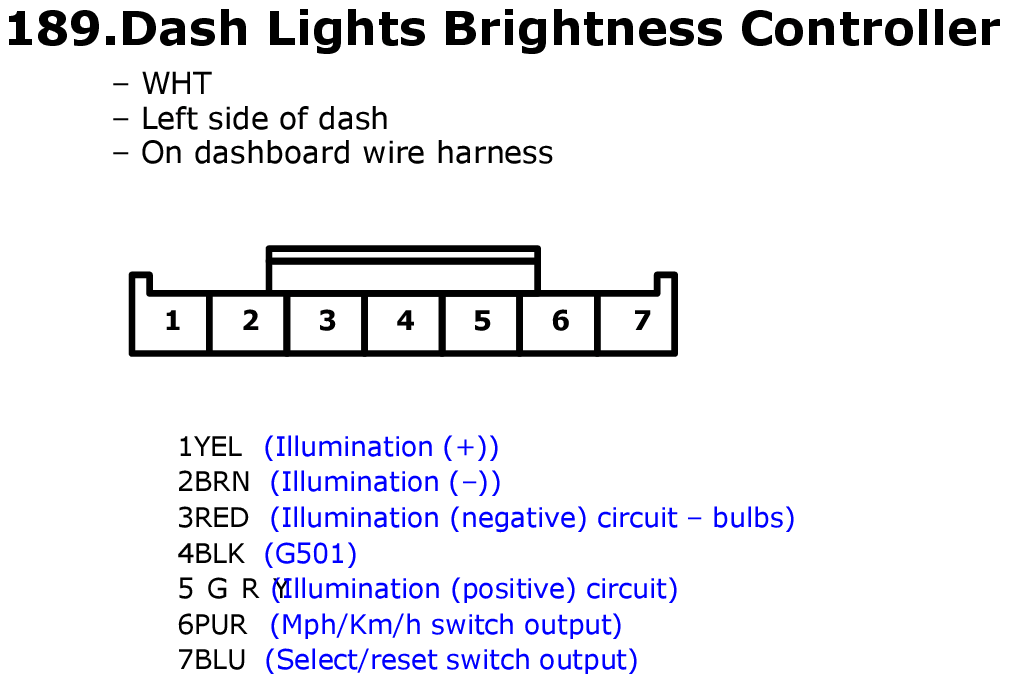

Fig 1: Dash Lights Brightness Controller Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

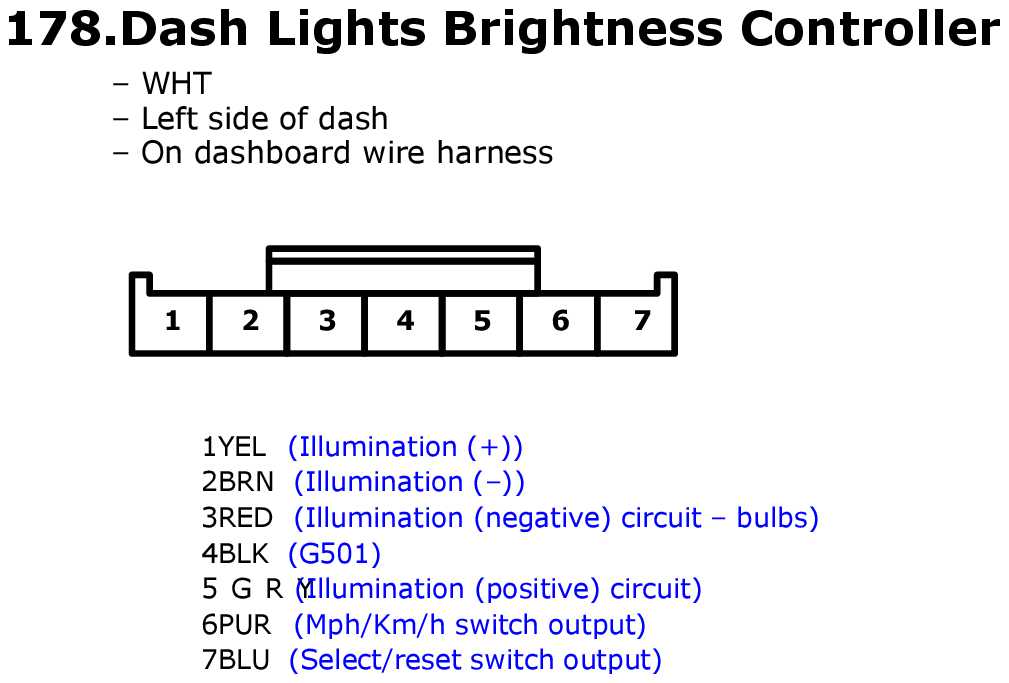

Fig 1: Dash Lights Brightness Controller Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Dash Lights Brightness Controller Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
