DLC Connector End View

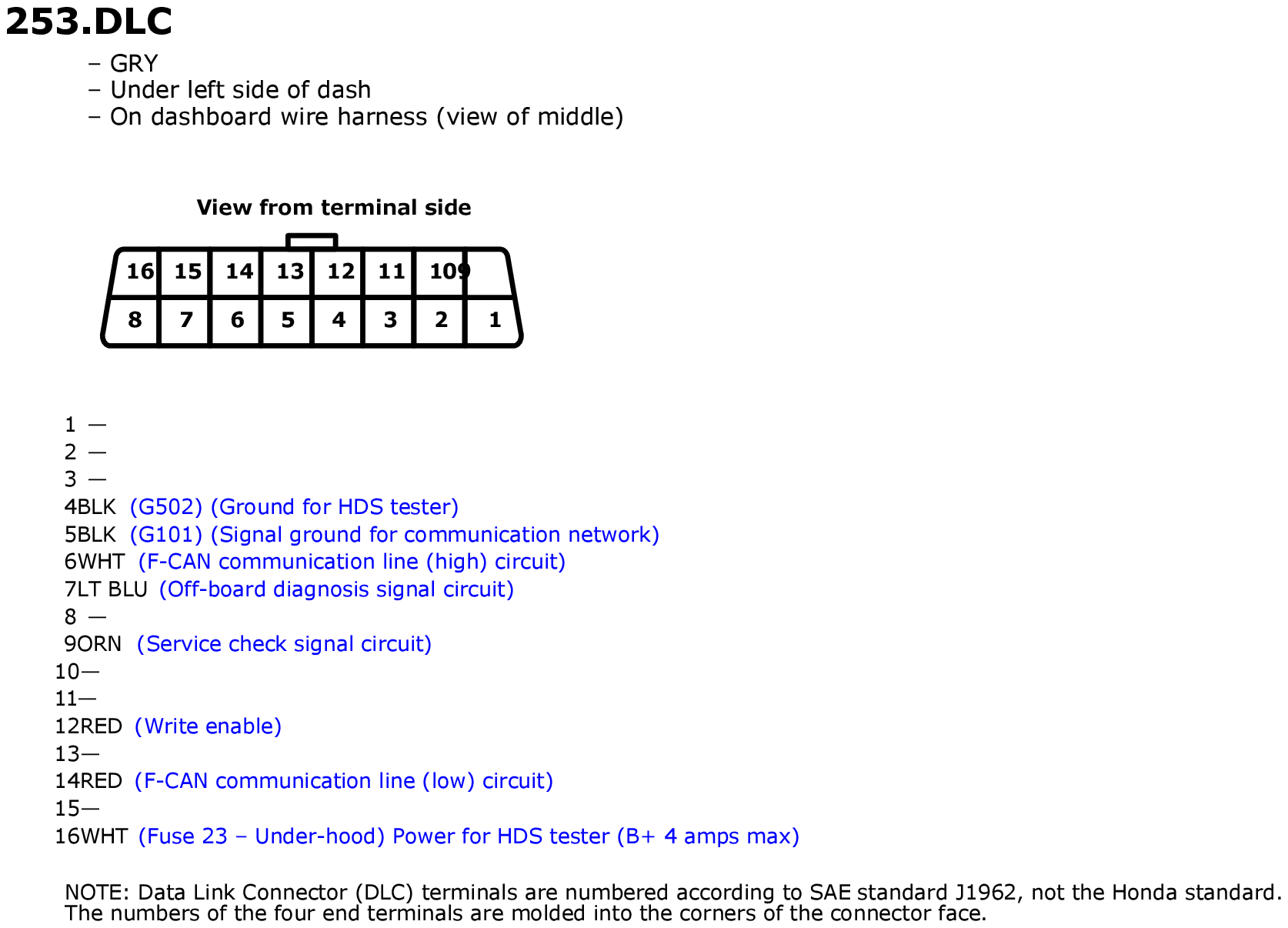

Fig 1: DLC Connector End View
GHHW2031Courtesy of AMERICAN HONDA MOTOR CO., INC.

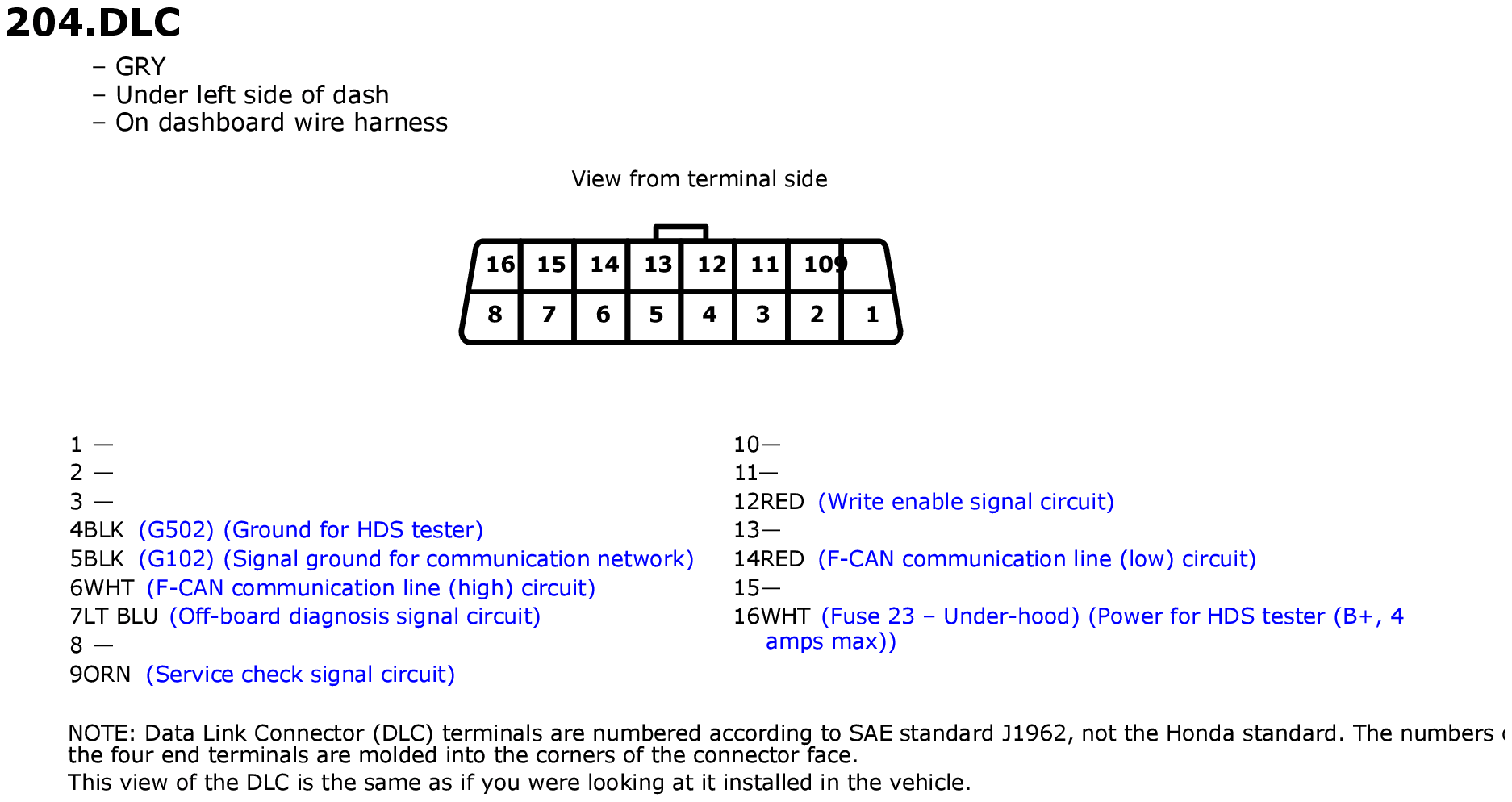

Fig 1: DLC Connector End View
GHHW2292Courtesy of AMERICAN HONDA MOTOR CO., INC.

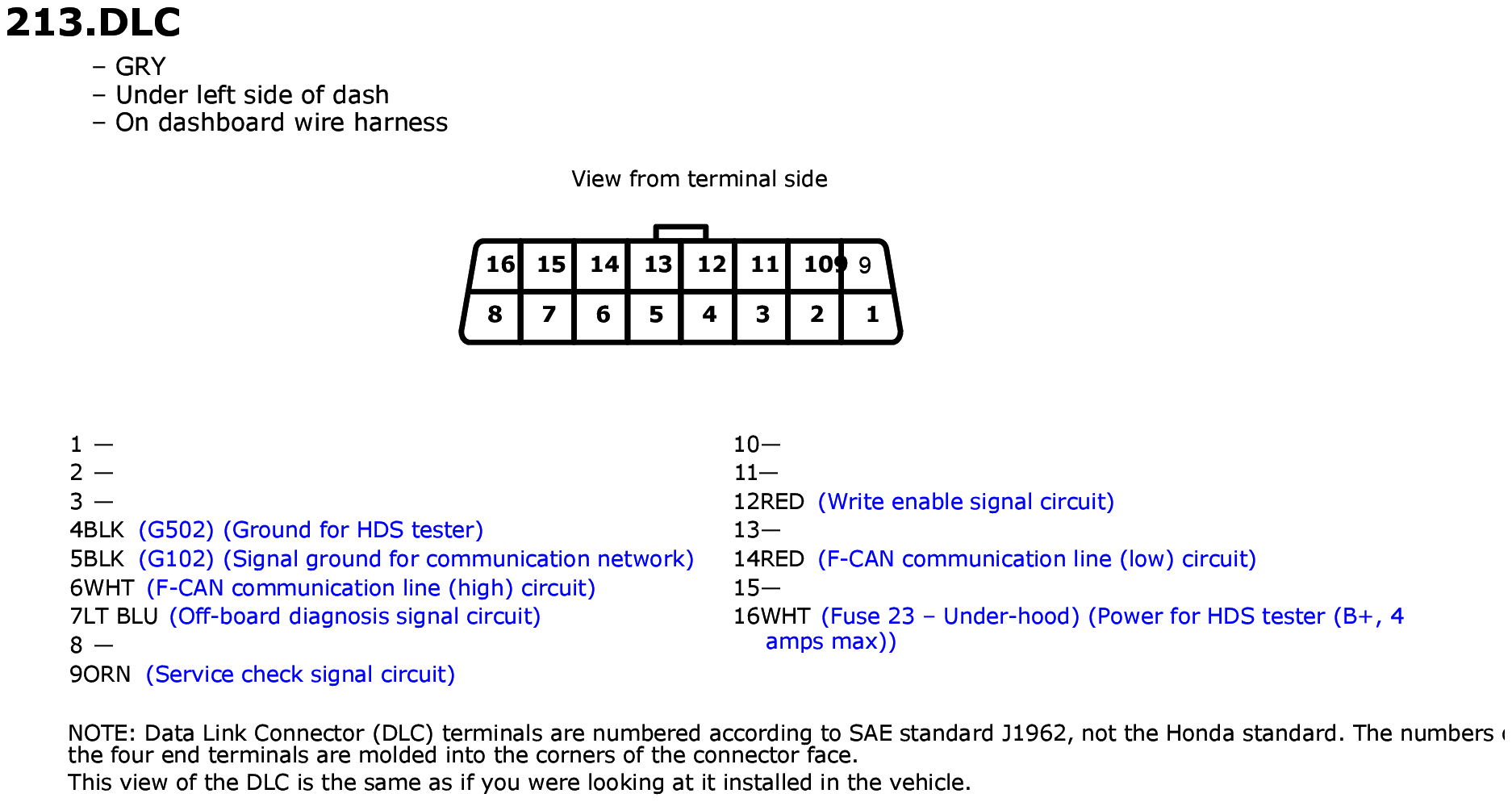

Fig 1: DLC Connector End View
GHHW2552Courtesy of AMERICAN HONDA MOTOR CO., INC.
