CMP Sensor (Si) Connector End View
CMP Sensor (Si) Connector End View

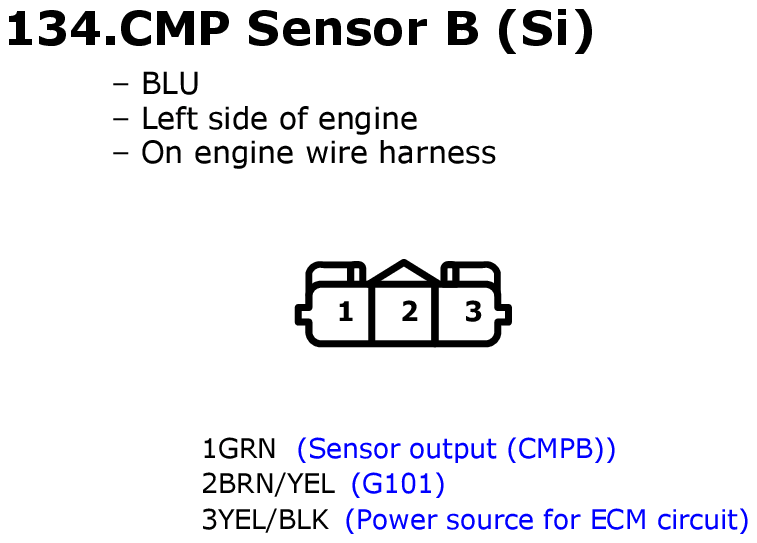

Fig 1: CMP Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

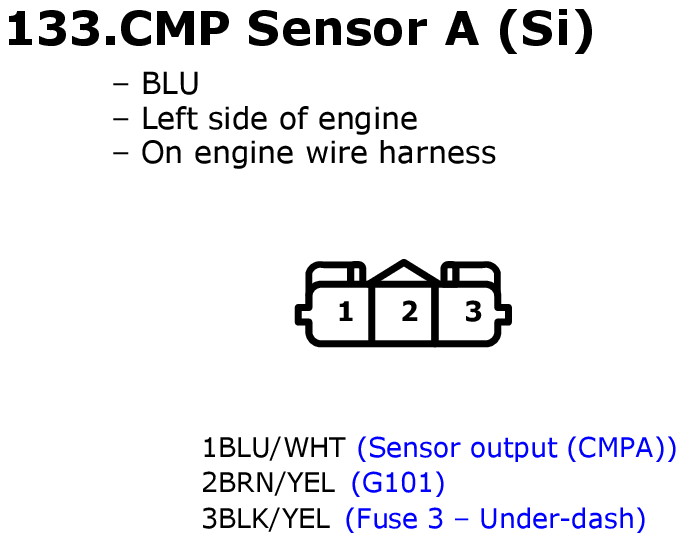

Fig 1: CMP Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: CMP Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: CMP Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
