C801 Connector End View

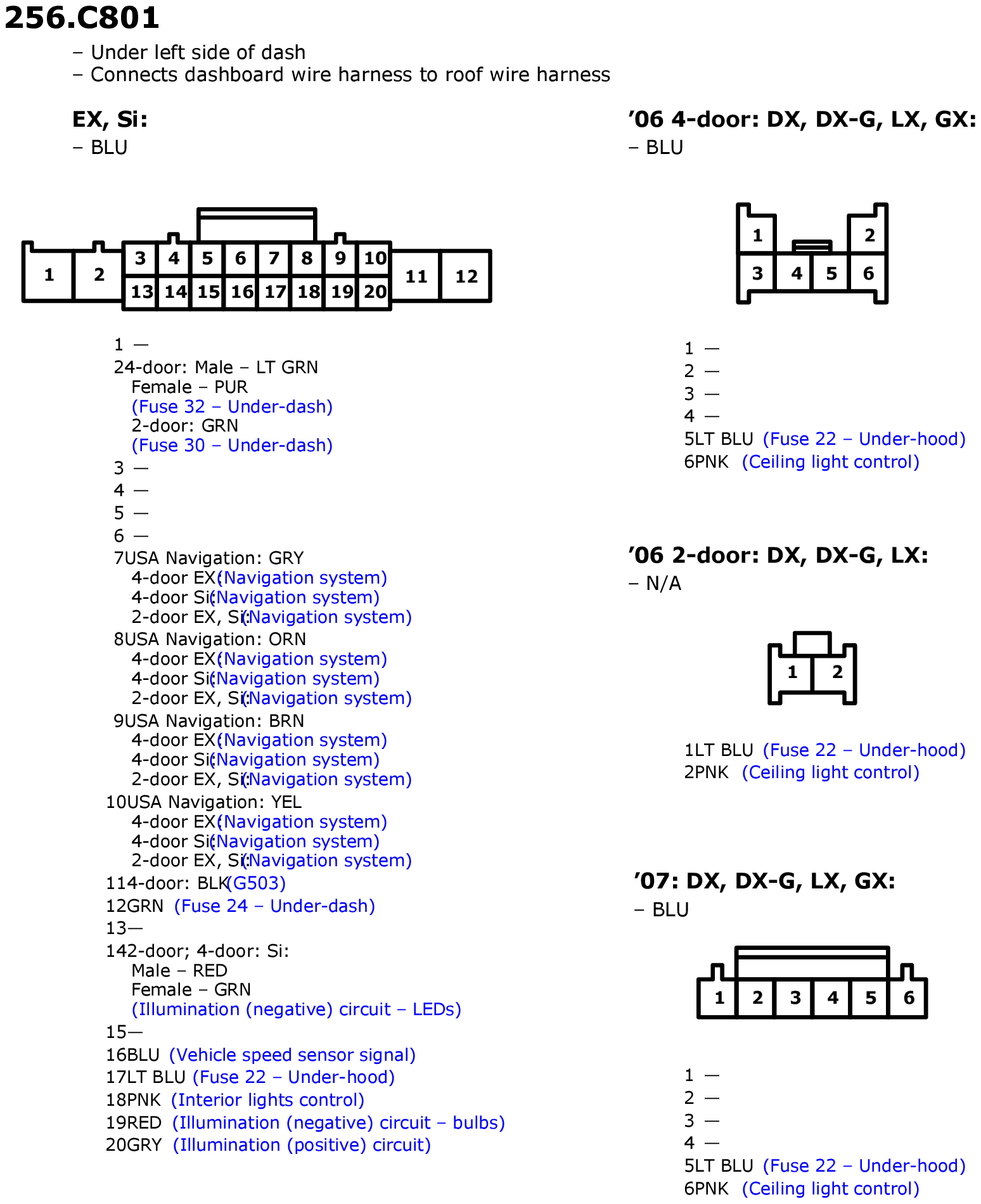

Fig 1: C801 Connector End View
GHHW1175Courtesy of AMERICAN HONDA MOTOR CO., INC.

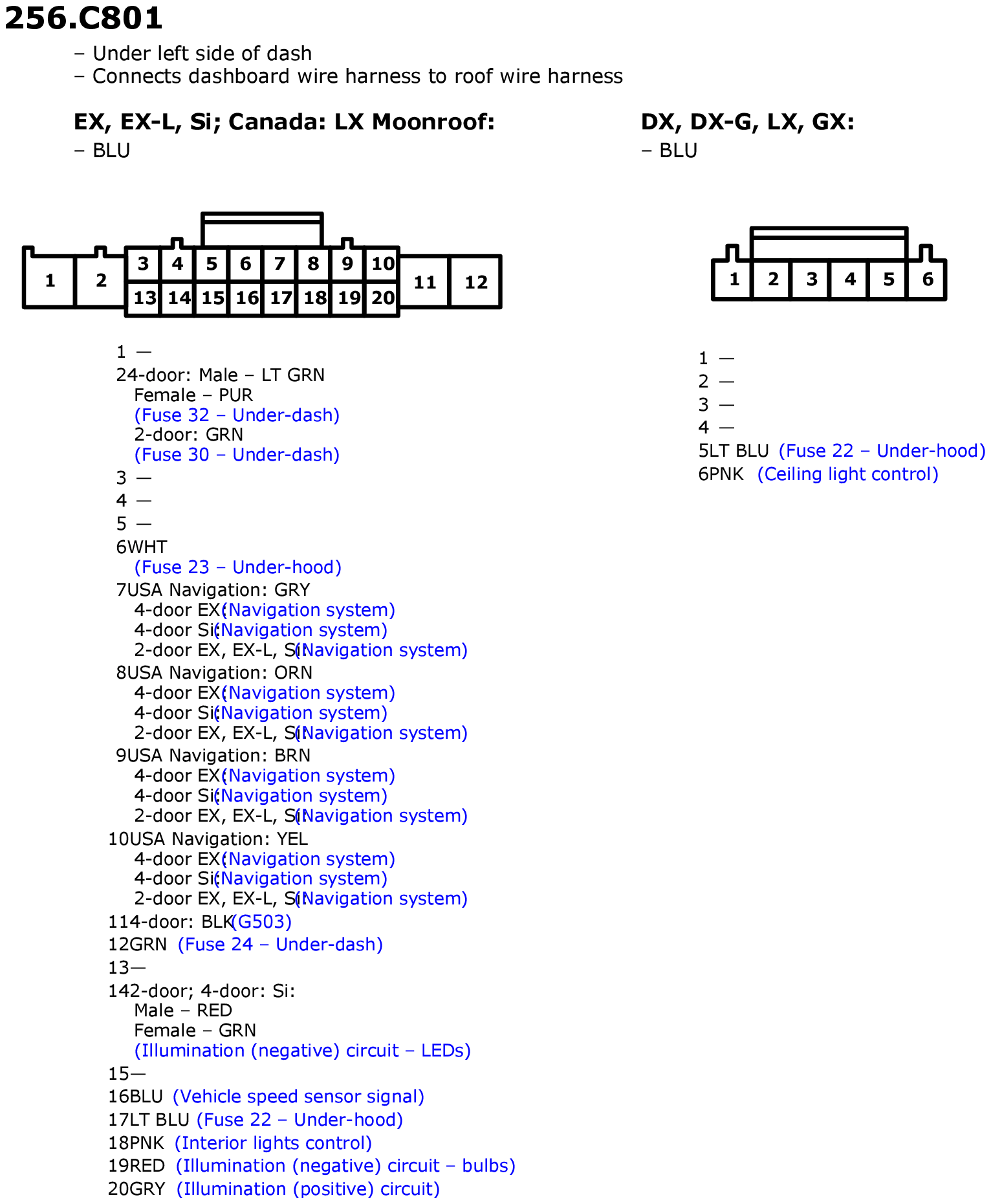

Fig 1: C801 Connector End View
GHHW1452Courtesy of AMERICAN HONDA MOTOR CO., INC.

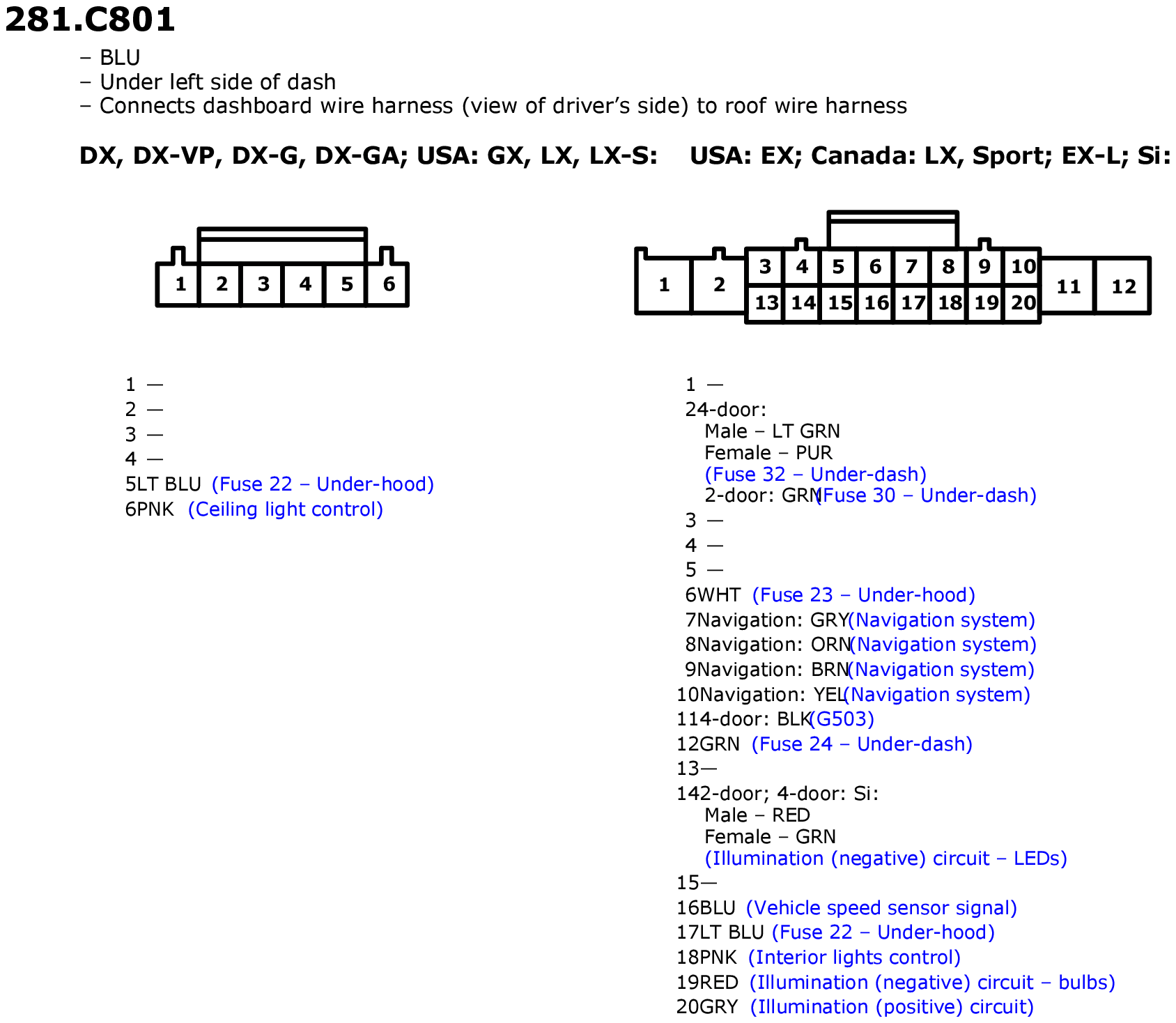

Fig 1: C801 Connector End View
GHHW1755Courtesy of AMERICAN HONDA MOTOR CO., INC.

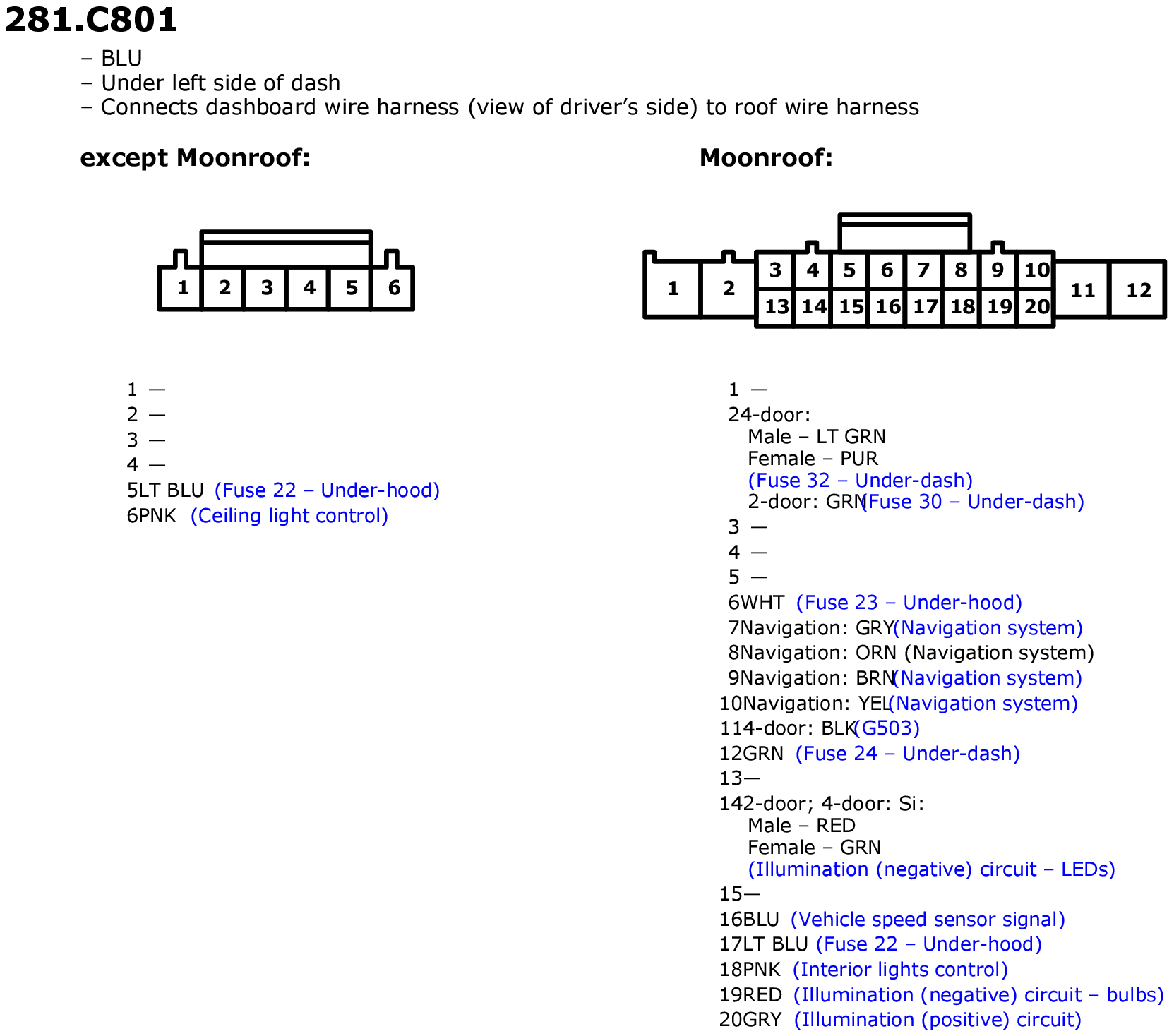

Fig 1: C801 Connector End View
GHHW2059Courtesy of AMERICAN HONDA MOTOR CO., INC.

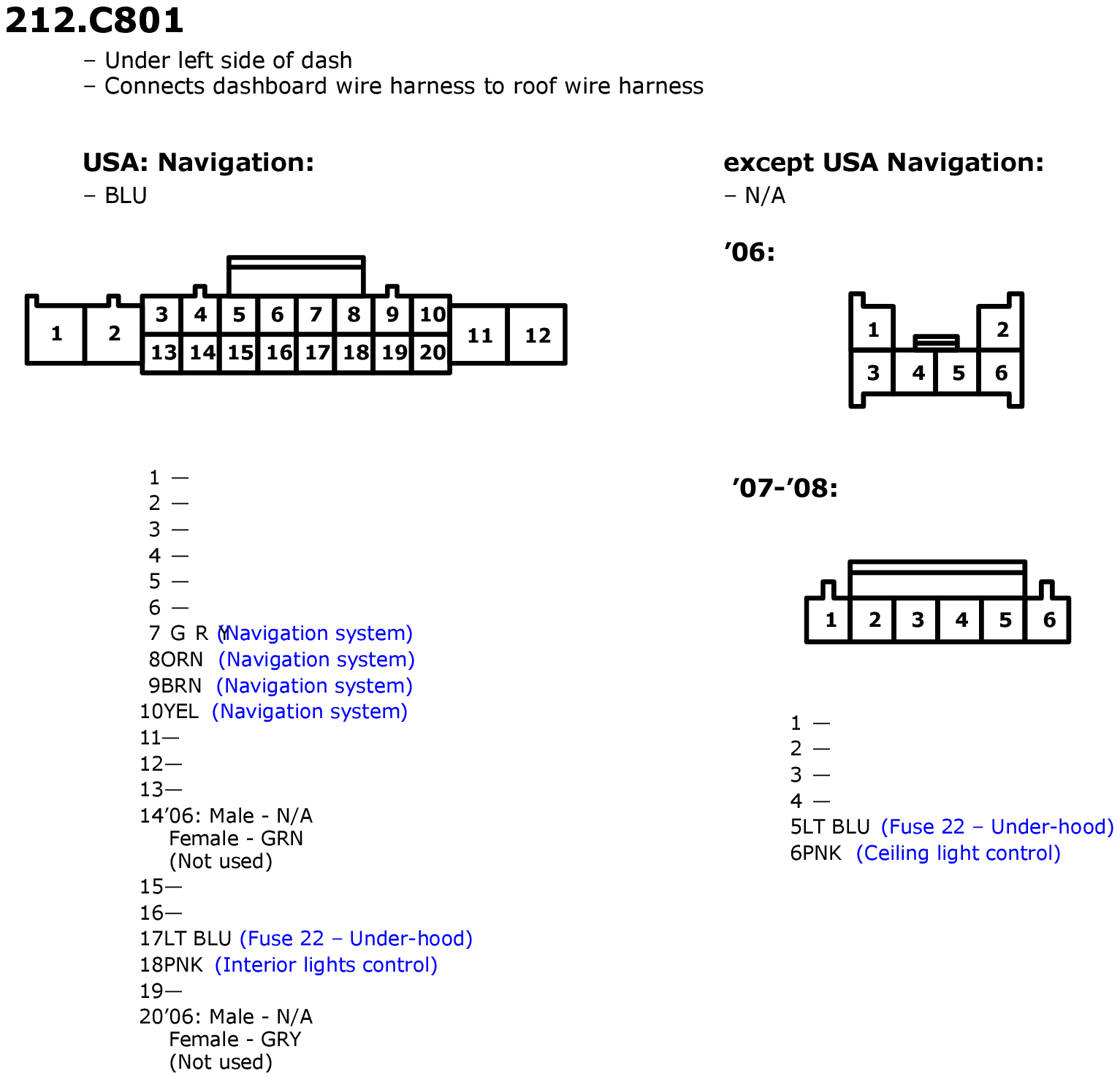

Fig 1: C801 Connector End View
GHHW2300Courtesy of AMERICAN HONDA MOTOR CO., INC.

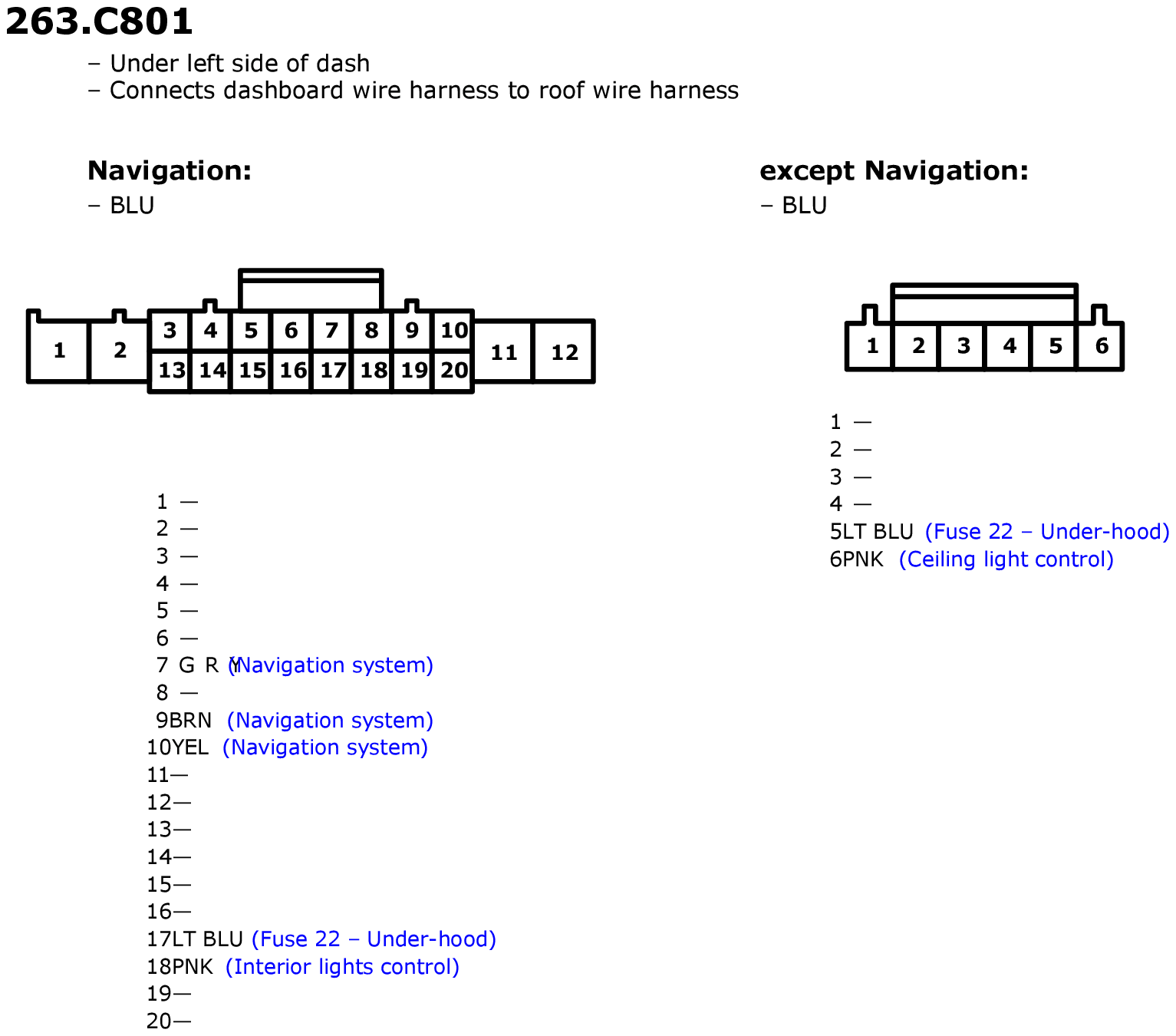

Fig 1: C801 Connector End View
GHHW2601Courtesy of AMERICAN HONDA MOTOR CO., INC.
