C782 Connector End View

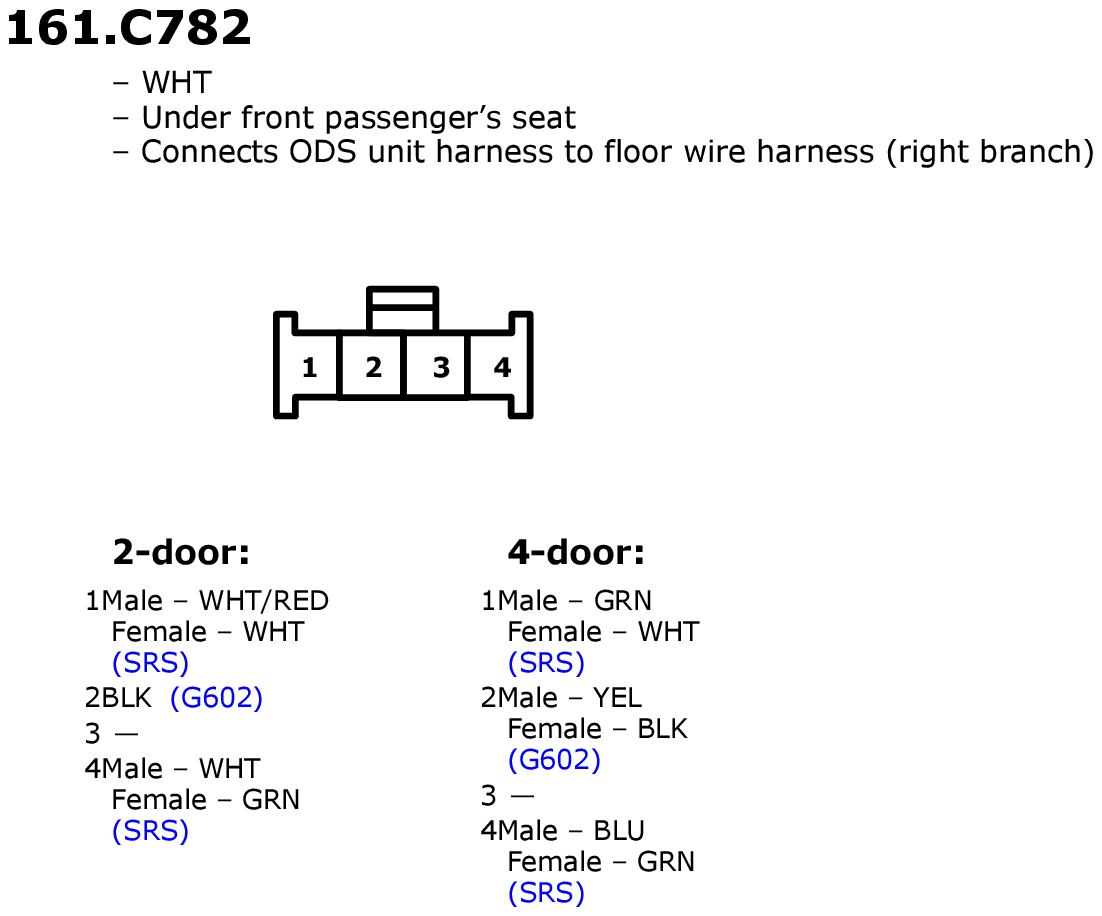

Fig 1: C782 Connector End View
GHHW1083Courtesy of AMERICAN HONDA MOTOR CO., INC.

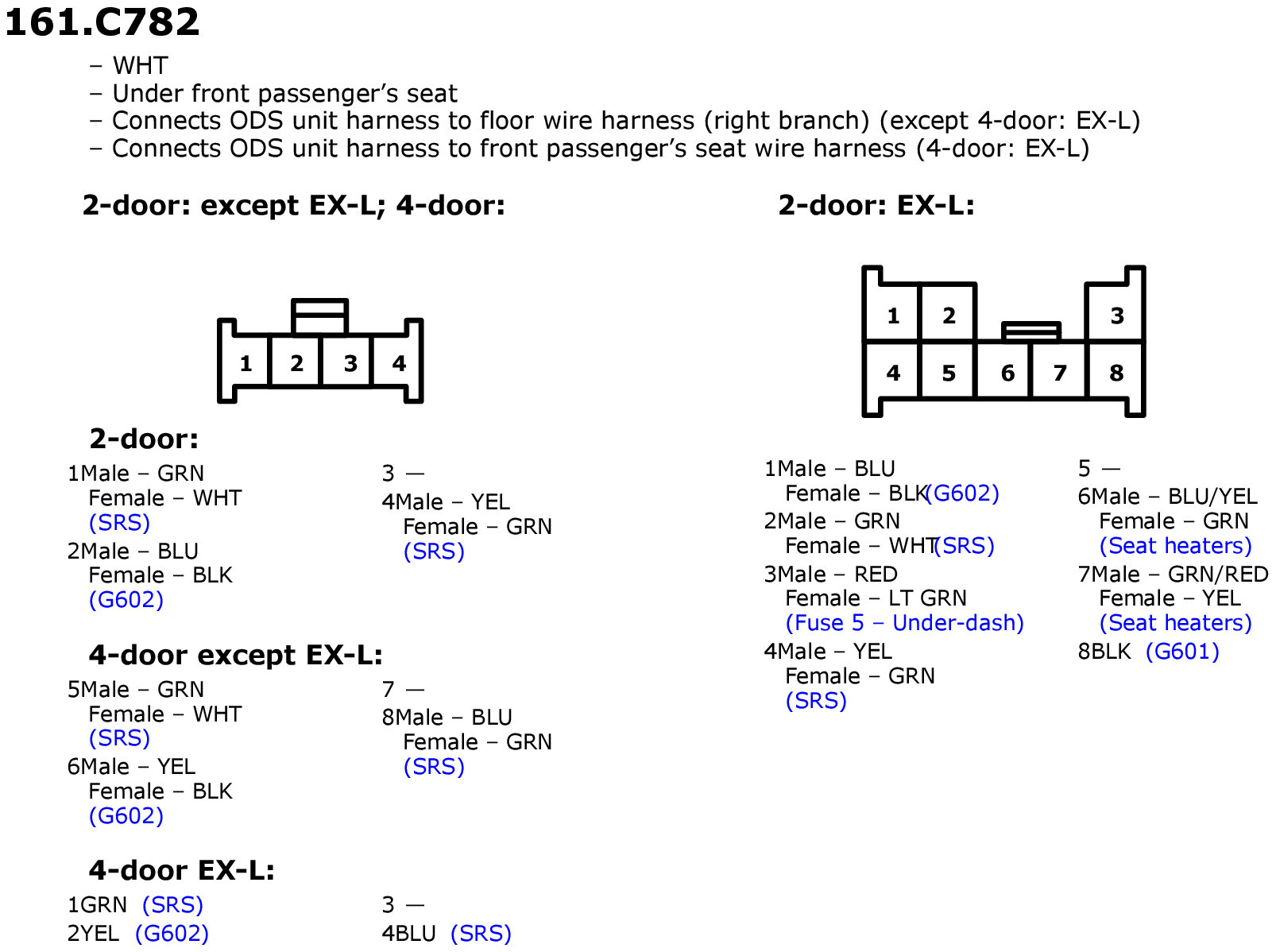

Fig 1: C782 Connector End View
GHHW1357Courtesy of AMERICAN HONDA MOTOR CO., INC.

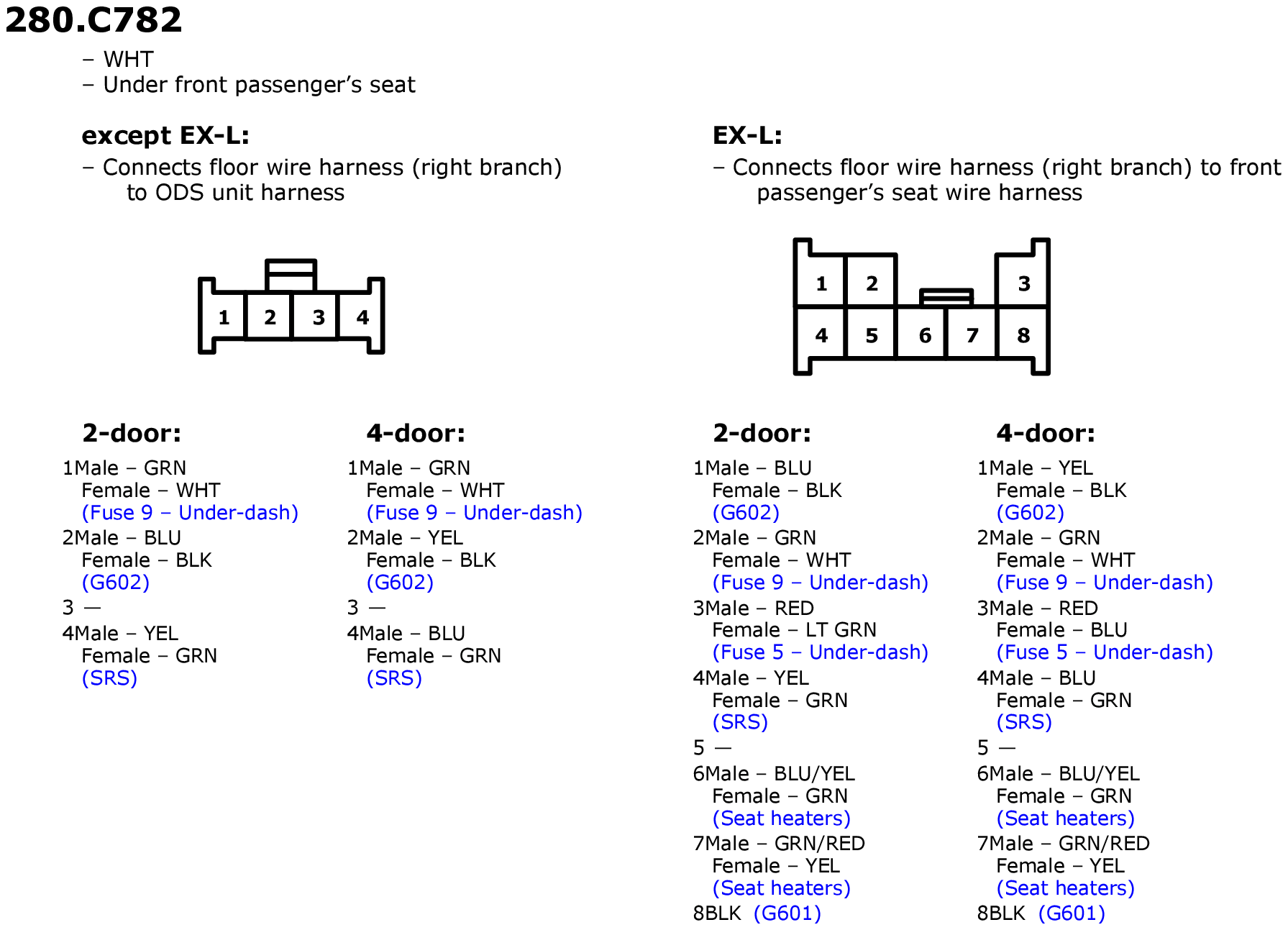

Fig 1: C782 Connector End View
GHHW1754Courtesy of AMERICAN HONDA MOTOR CO., INC.

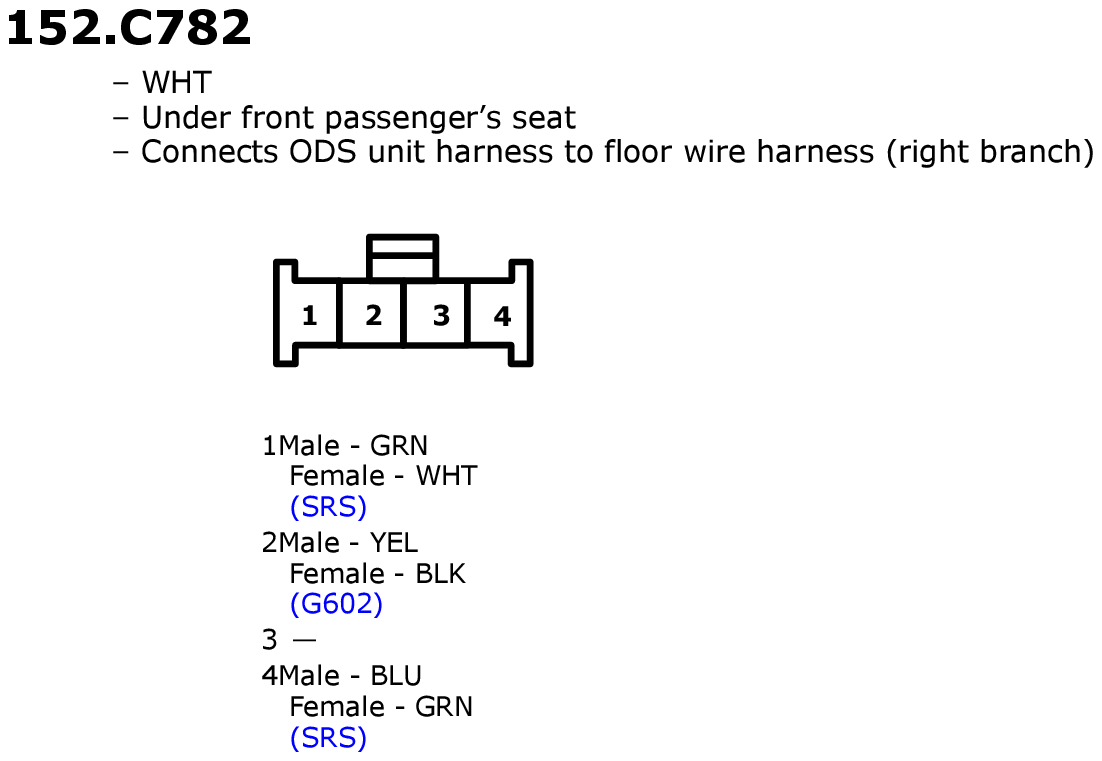

Fig 1: C782 Connector End View
GHHW2240Courtesy of AMERICAN HONDA MOTOR CO., INC.

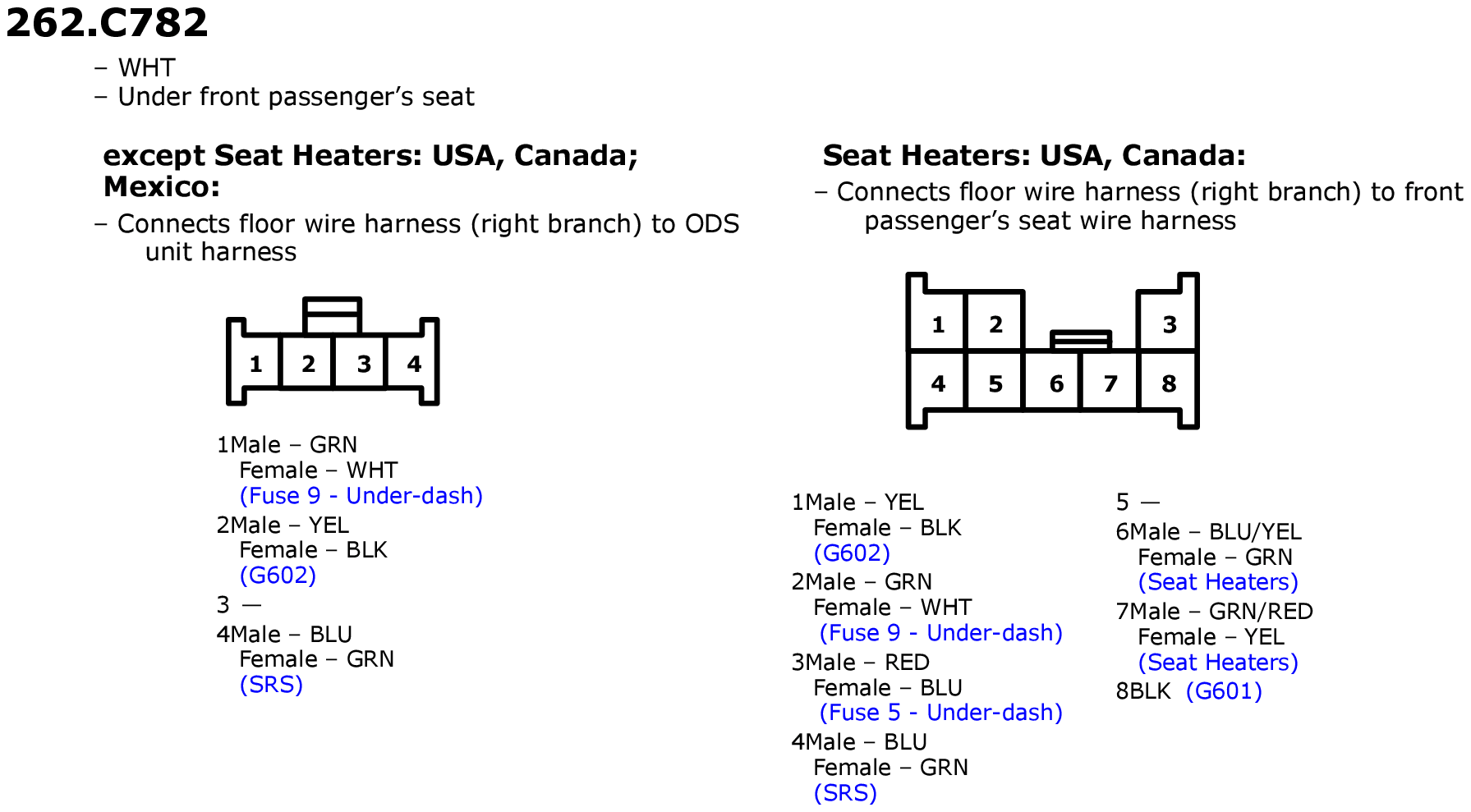

Fig 1: C782 Connector End View
GHHW2600Courtesy of AMERICAN HONDA MOTOR CO., INC.
