C762 Connector End View

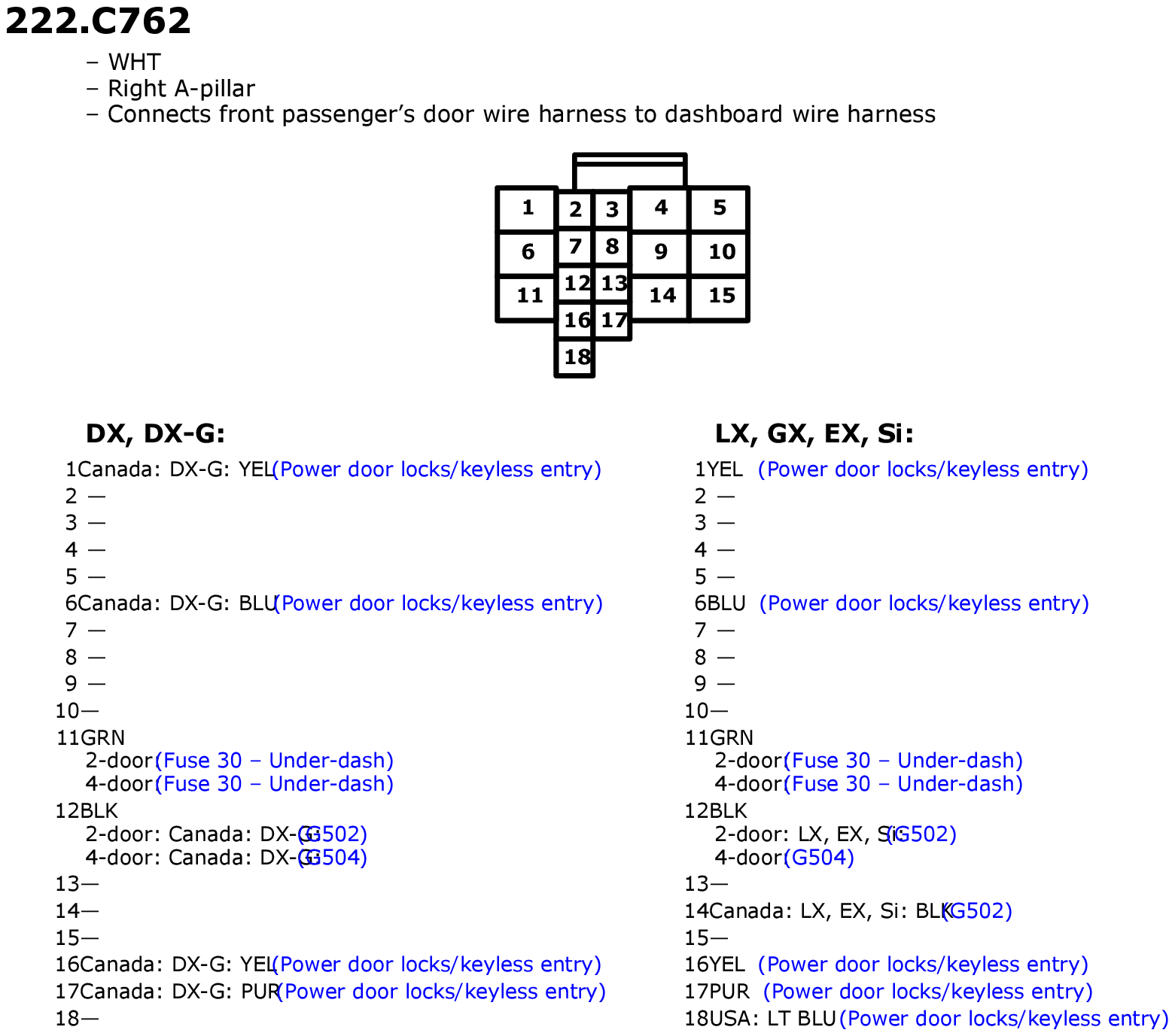

Fig 1: C762 Connector End View
GHHW1141Courtesy of AMERICAN HONDA MOTOR CO., INC.

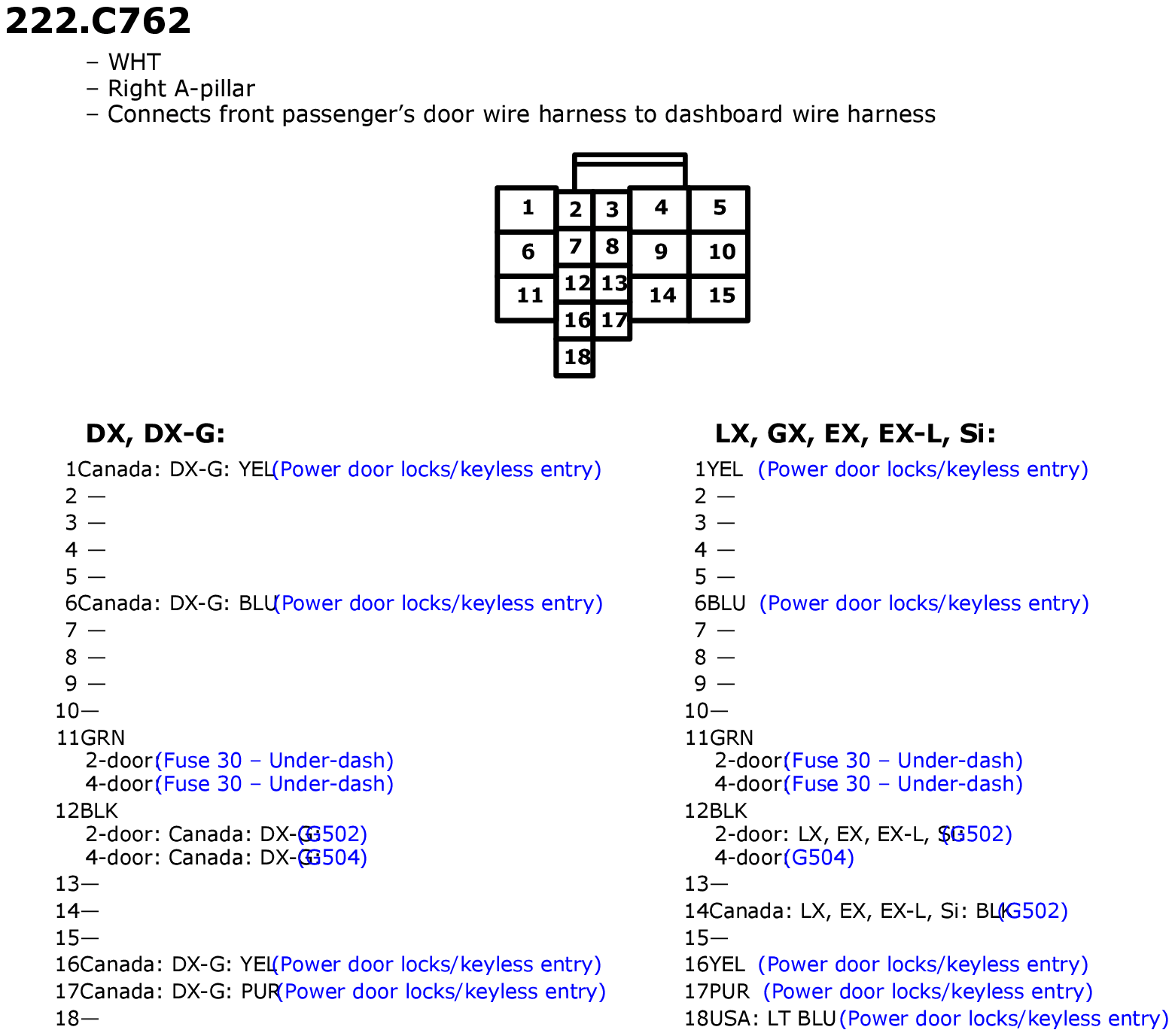

Fig 1: C762 Connector End View
GHHW1418Courtesy of AMERICAN HONDA MOTOR CO., INC.

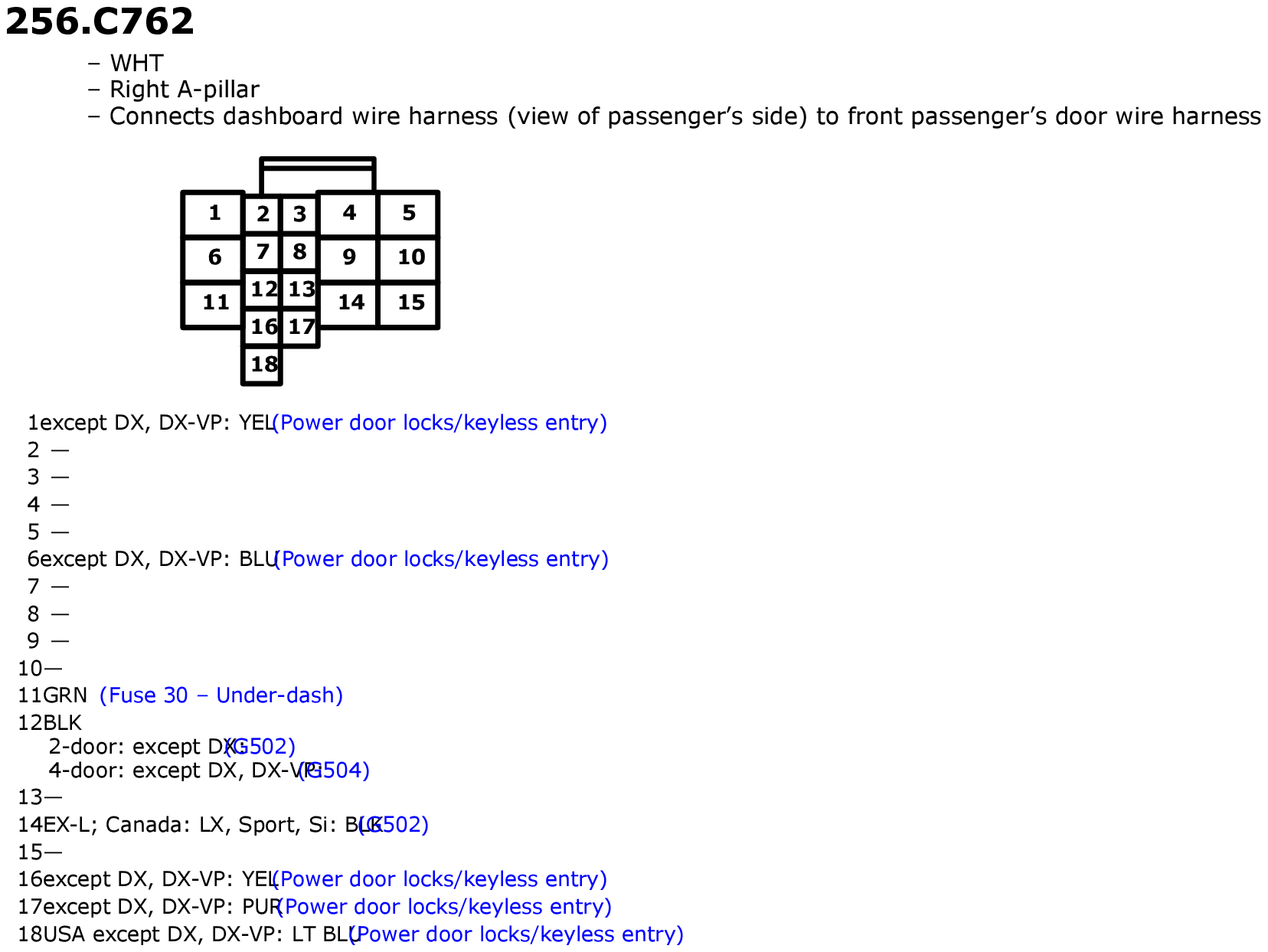

Fig 1: C762 Connector End View
GHHW1730Courtesy of AMERICAN HONDA MOTOR CO., INC.

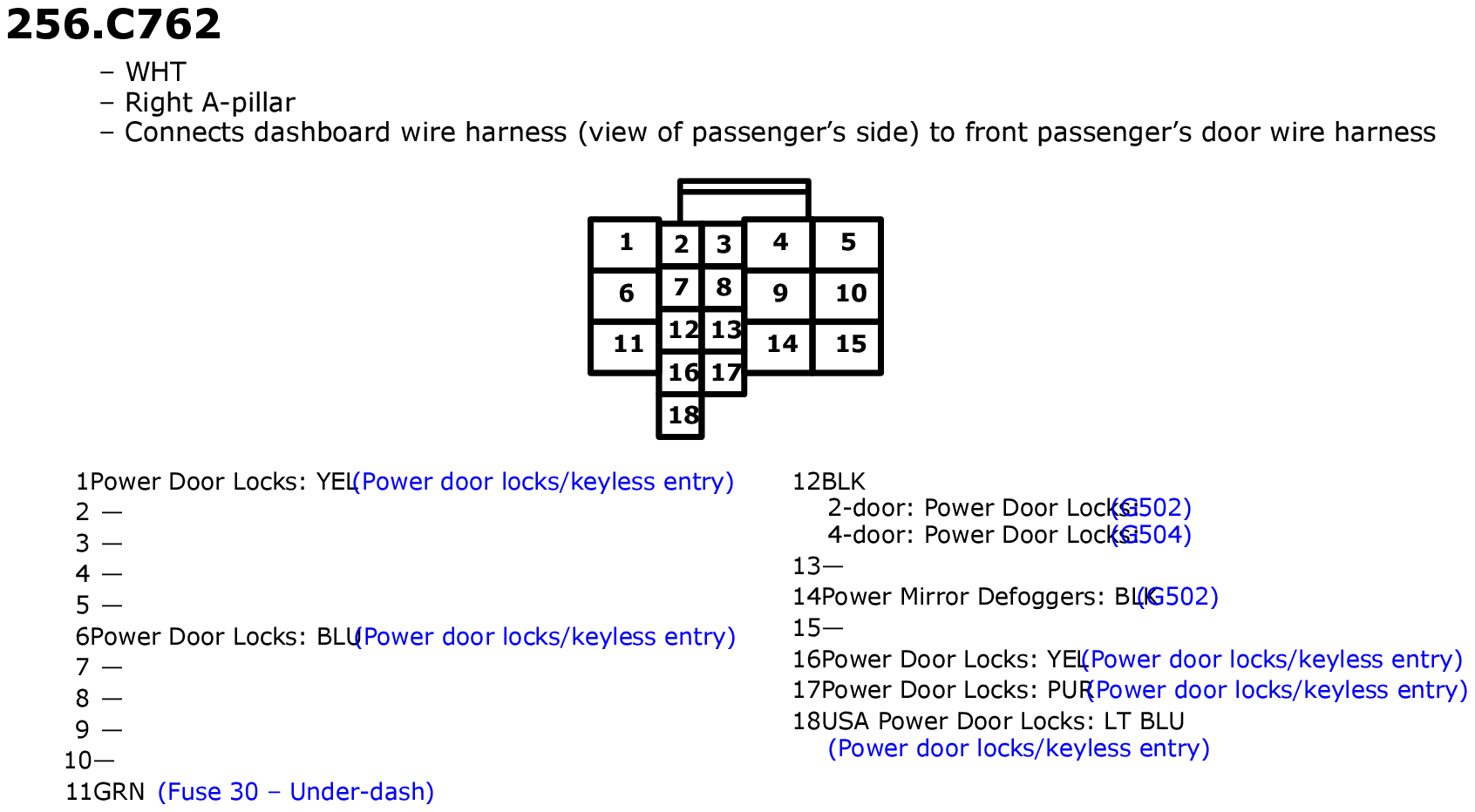

Fig 1: C762 Connector End View
GHHW2034Courtesy of AMERICAN HONDA MOTOR CO., INC.

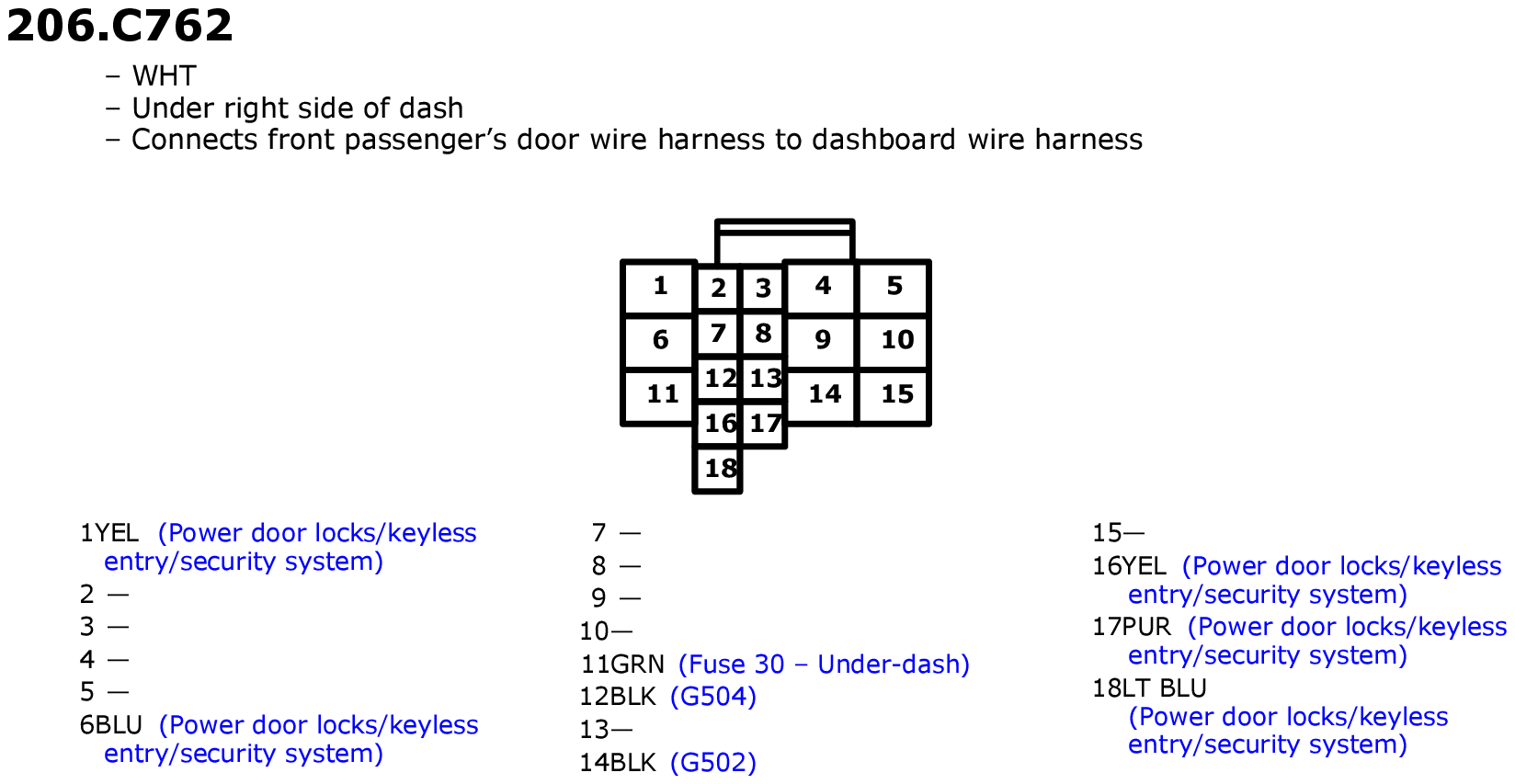

Fig 1: C762 Connector End View
GHHW2294Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: C762 Connector End View
GHHW2555Courtesy of AMERICAN HONDA MOTOR CO., INC.
