C761 Connector End View

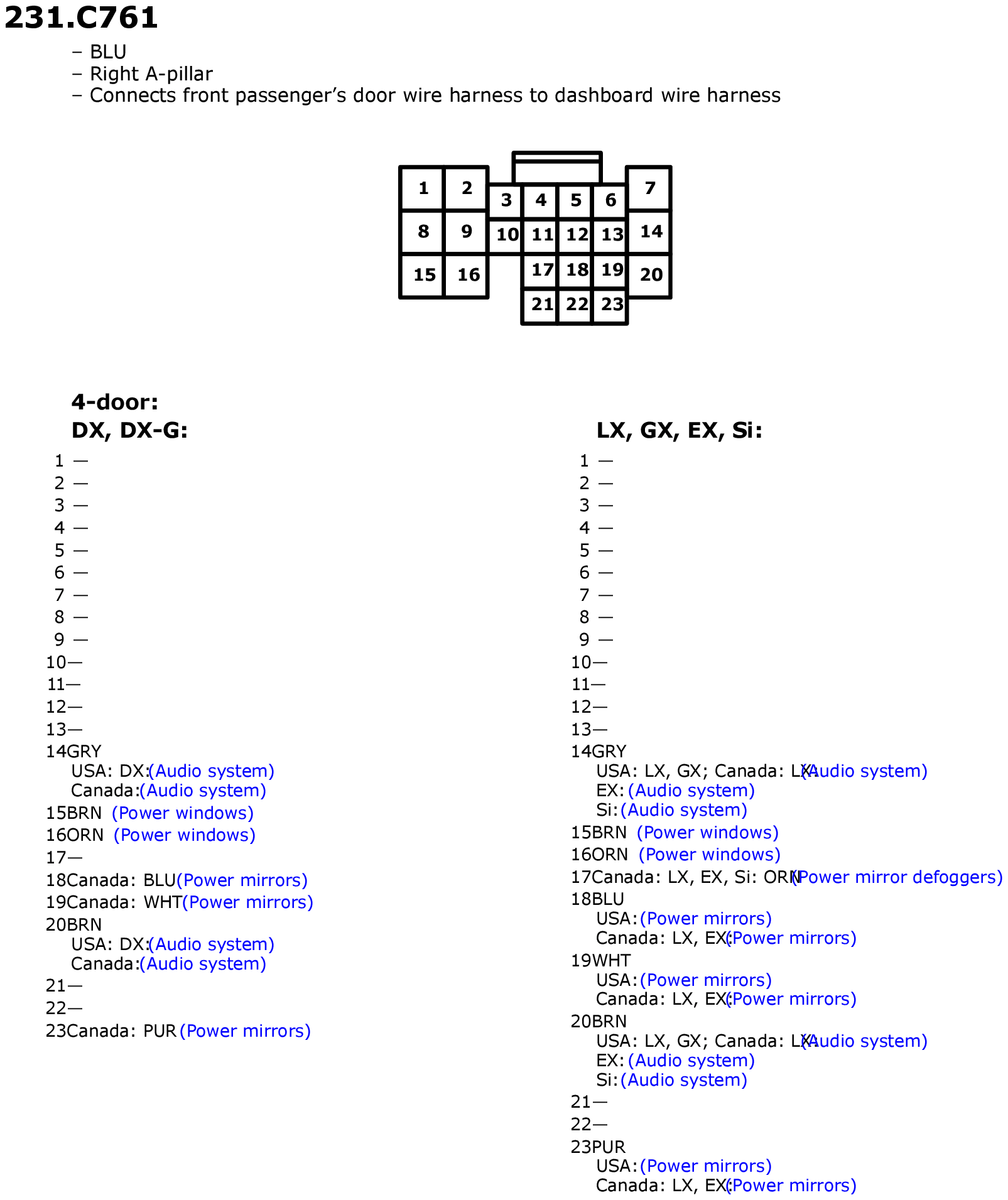

Fig 1: C761 Connector End View
GHHW1150Courtesy of AMERICAN HONDA MOTOR CO., INC.

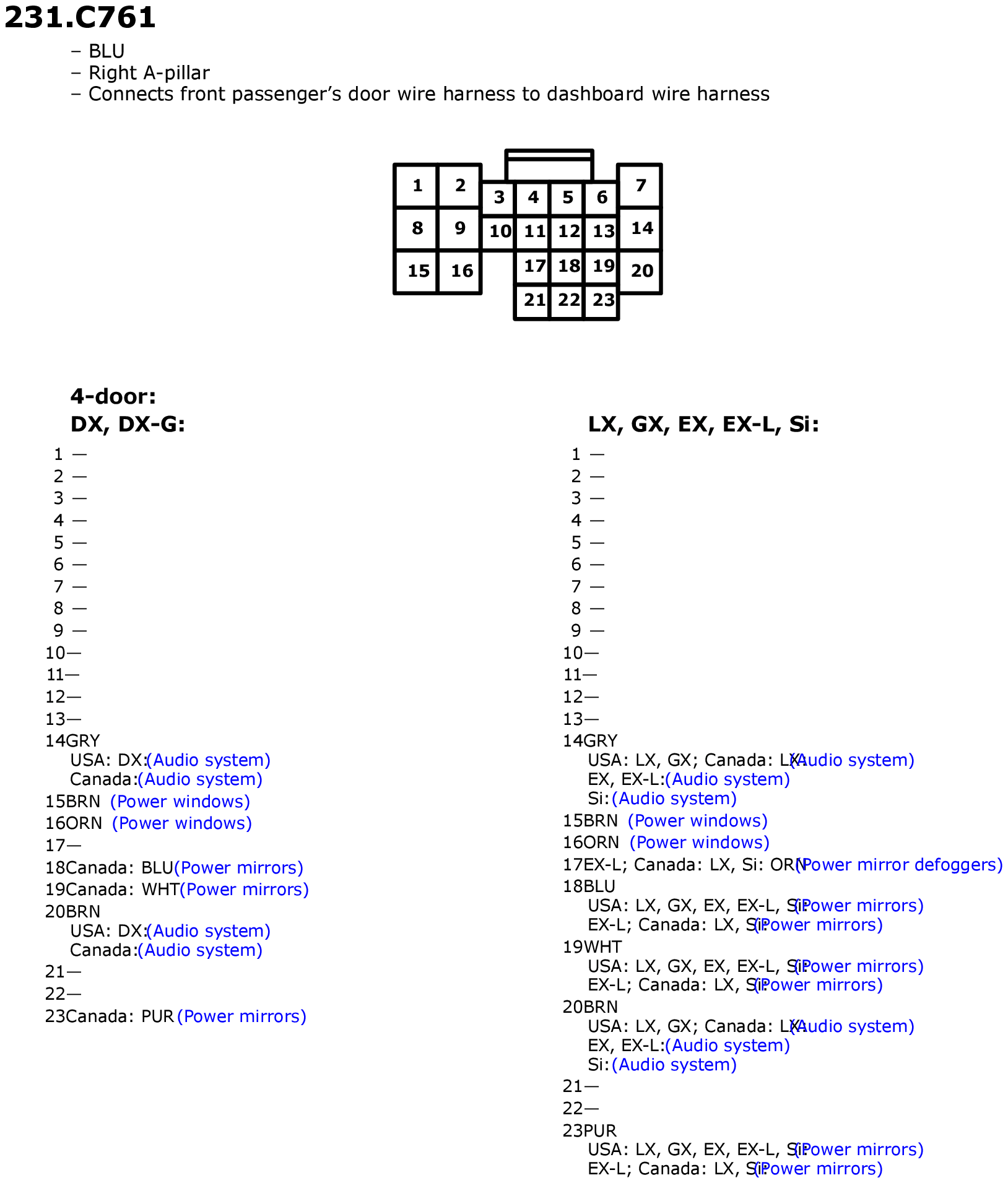

Fig 1: C761 Connector End View
GHHW1427Courtesy of AMERICAN HONDA MOTOR CO., INC.

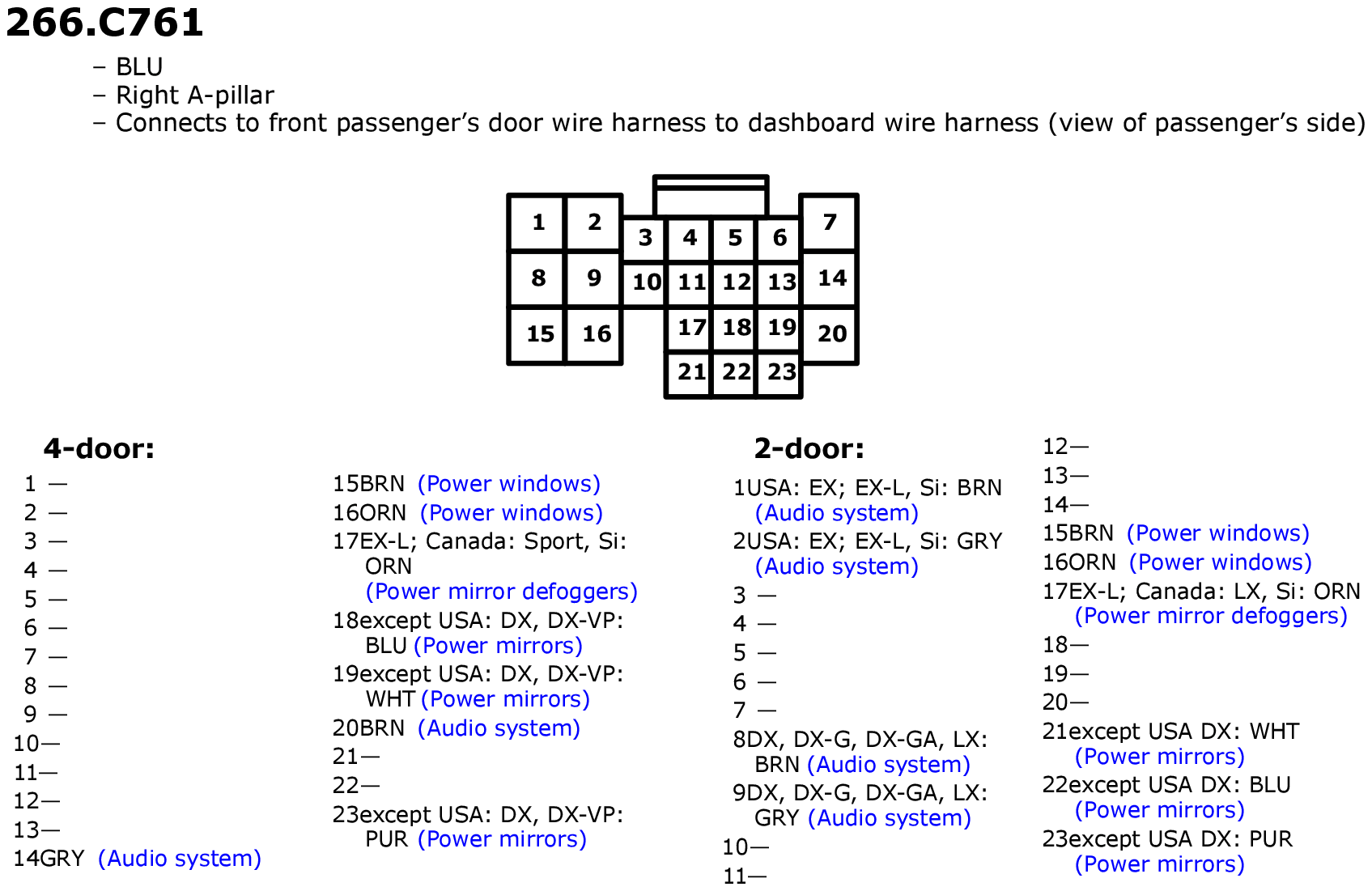

Fig 1: C761 Connector End View
GHHW1740Courtesy of AMERICAN HONDA MOTOR CO., INC.

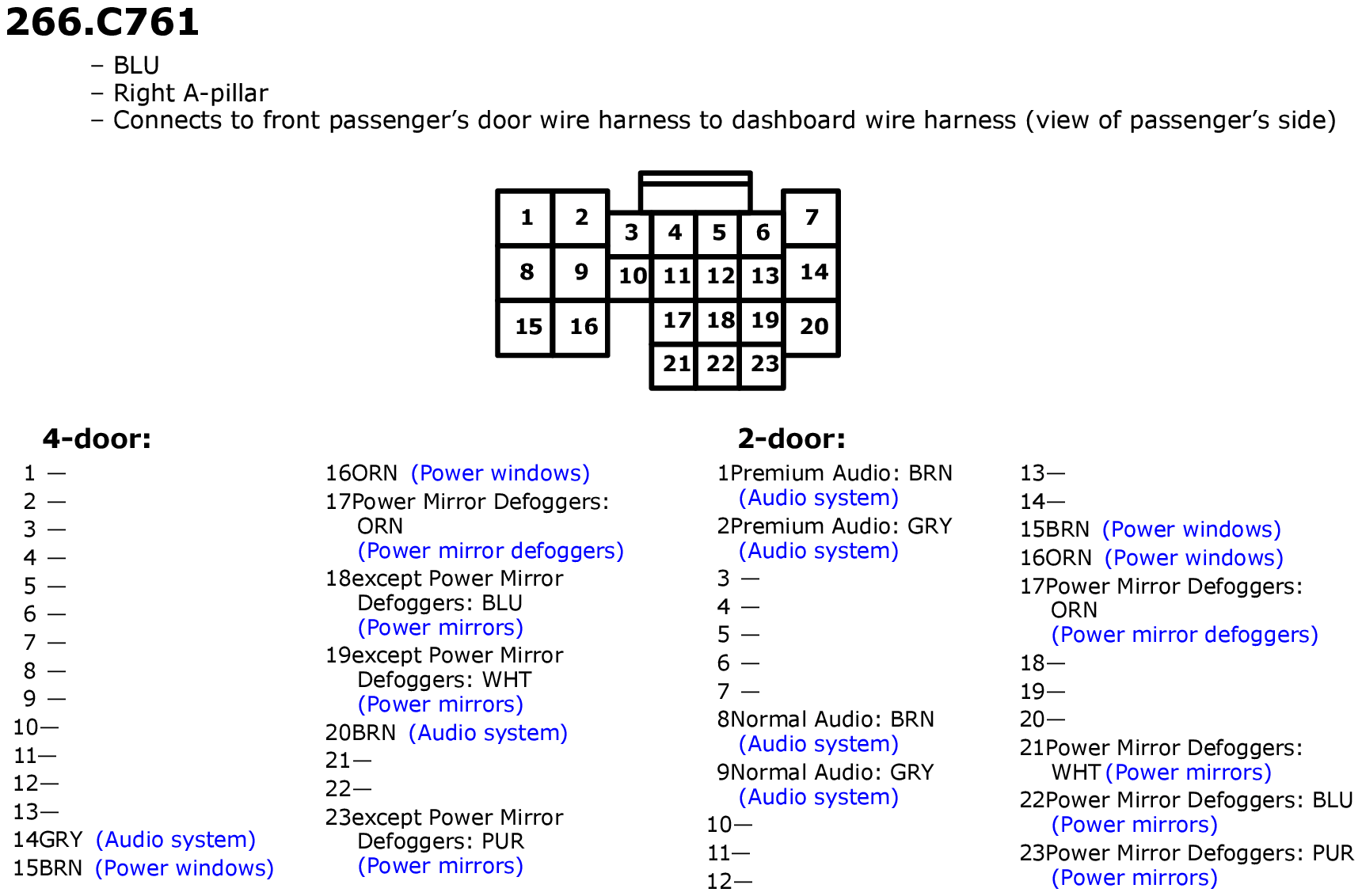

Fig 1: C761 Connector End View
GHHW2044Courtesy of AMERICAN HONDA MOTOR CO., INC.

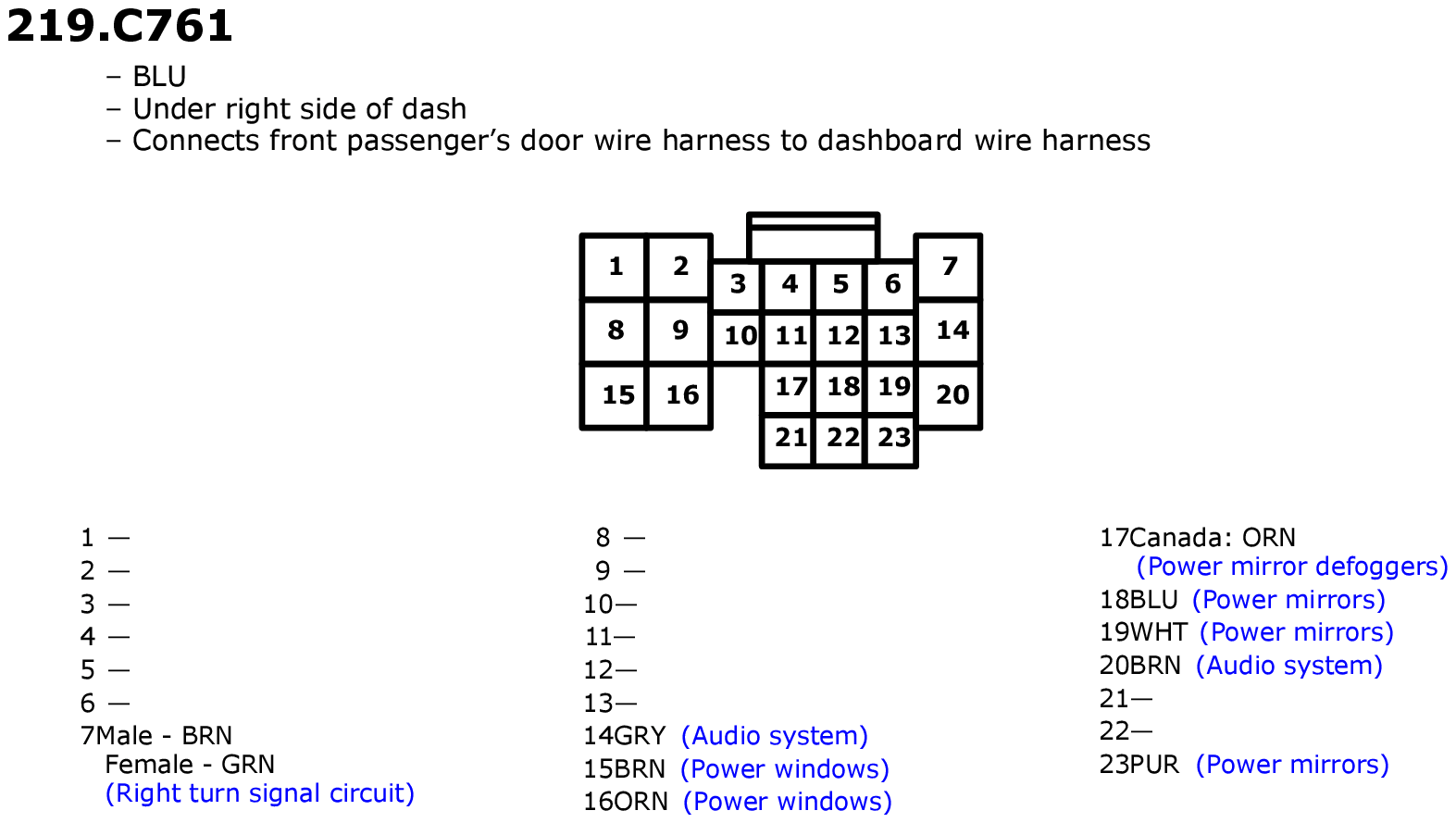

Fig 1: C761 Connector End View
GHHW2307Courtesy of AMERICAN HONDA MOTOR CO., INC.

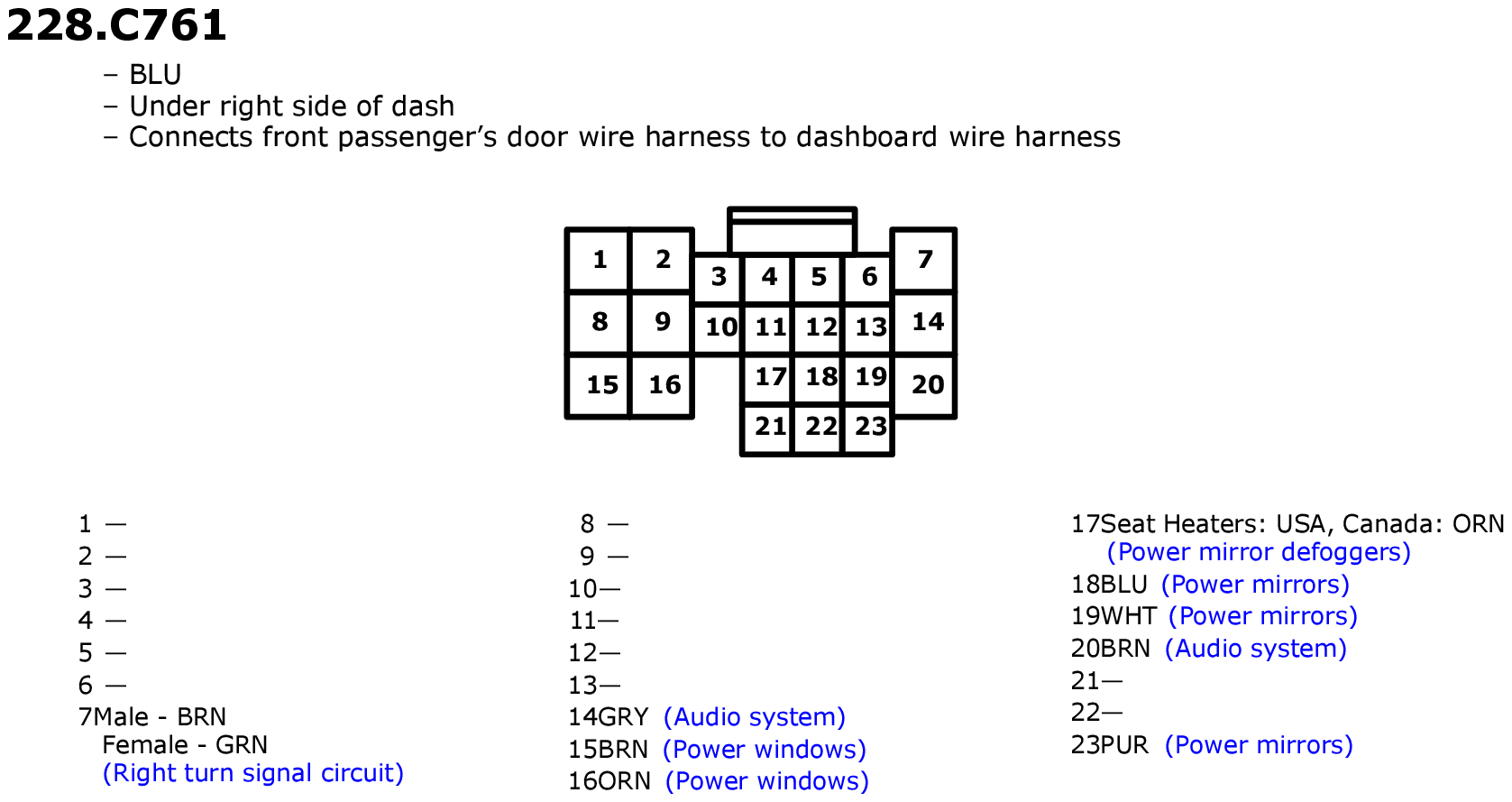

Fig 1: C761 Connector End View
GHHW2567Courtesy of AMERICAN HONDA MOTOR CO., INC.
