C751 Connector End View

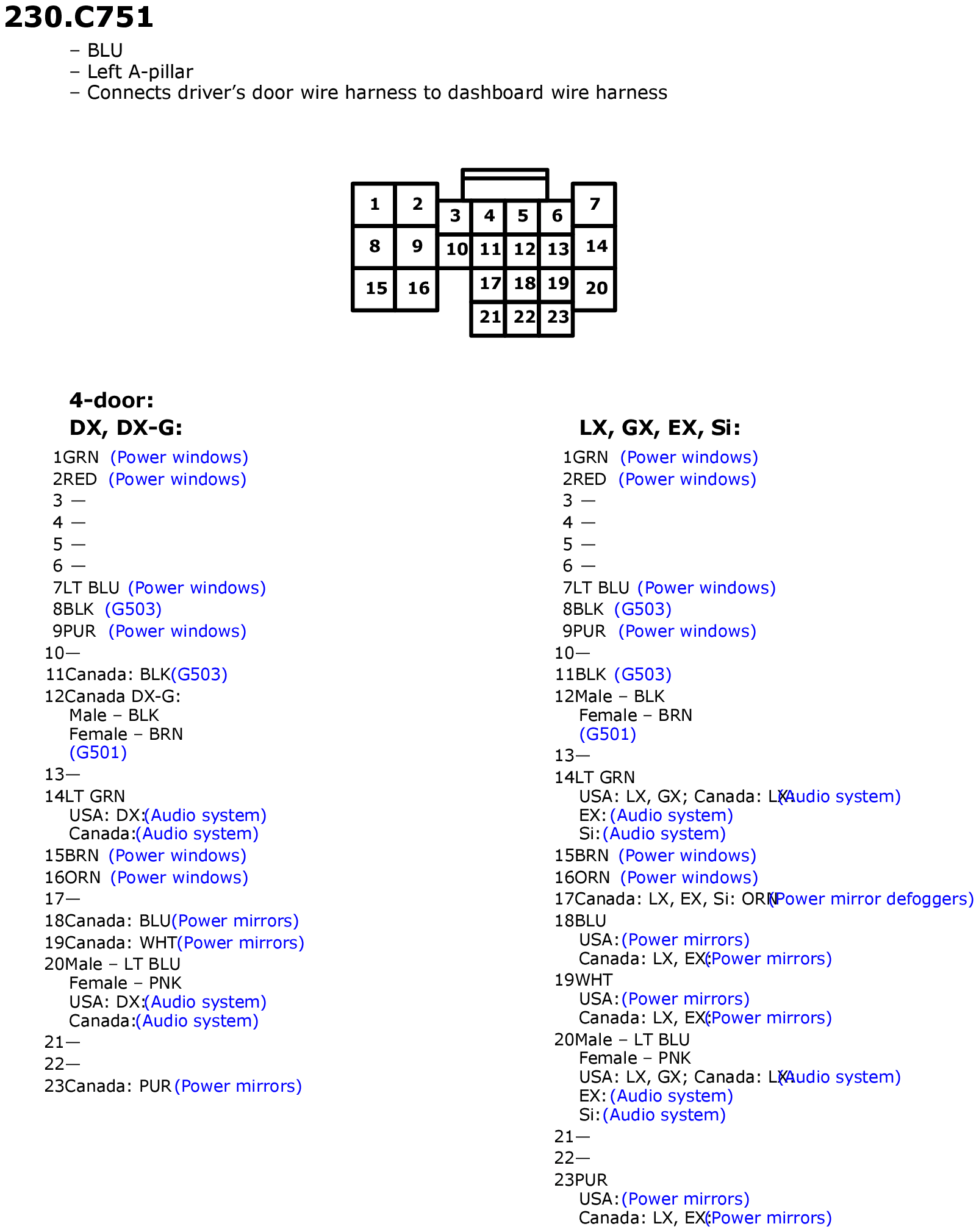

Fig 1: C751 Connector End View
GHHW1149Courtesy of AMERICAN HONDA MOTOR CO., INC.

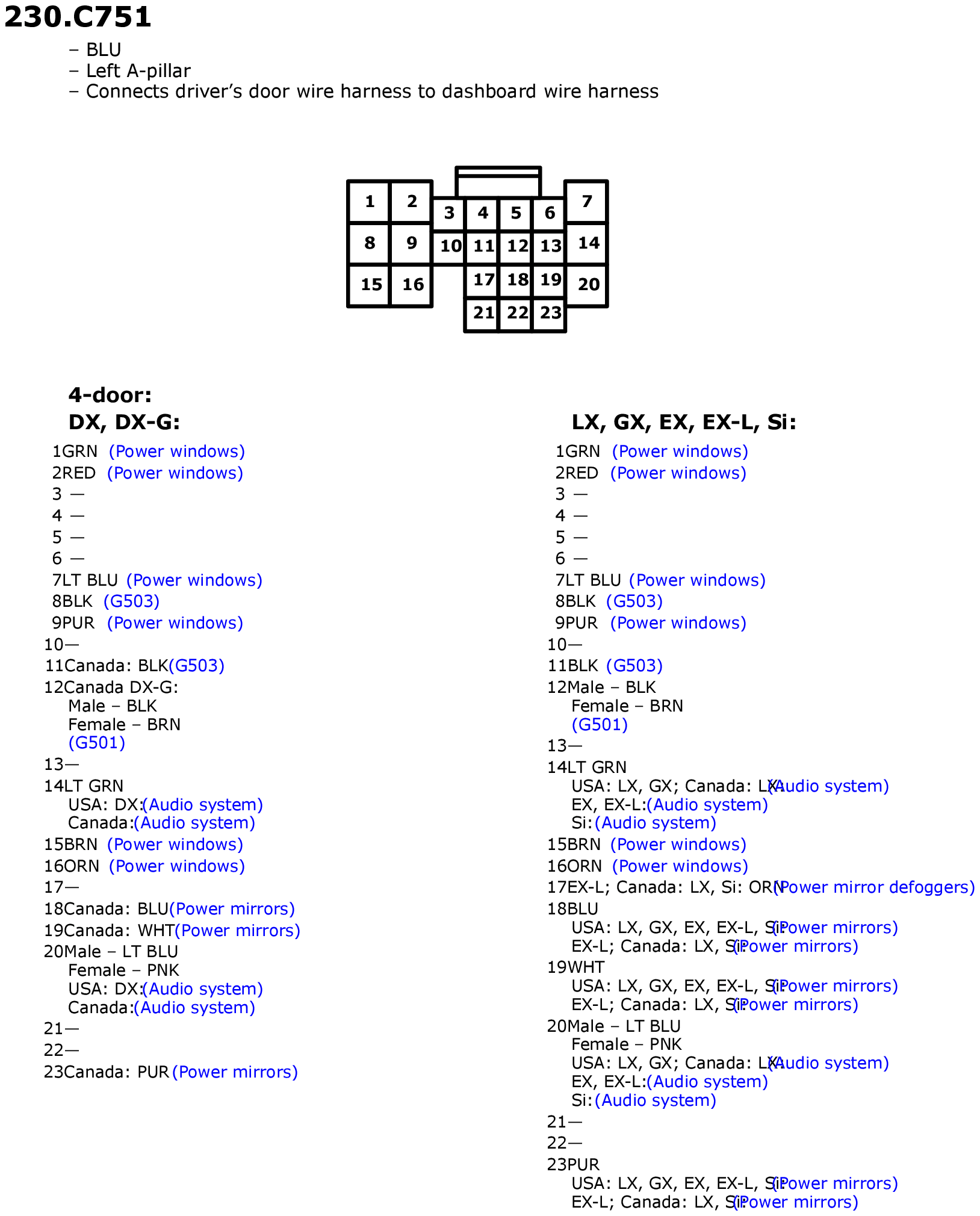

Fig 1: C751 Connector End View
GHHW1426Courtesy of AMERICAN HONDA MOTOR CO., INC.

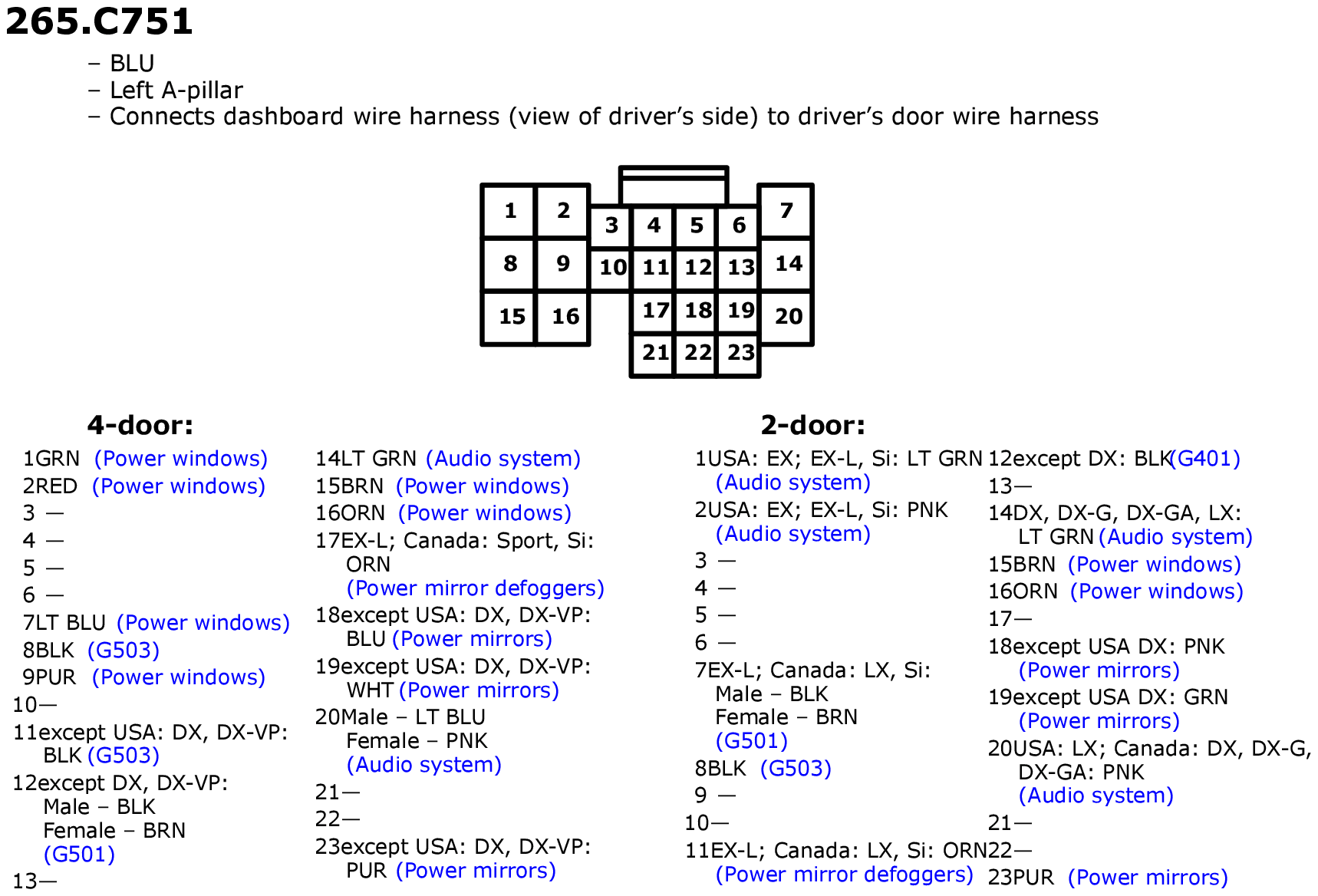

Fig 1: C751 Connector End View
GHHW1739Courtesy of AMERICAN HONDA MOTOR CO., INC.

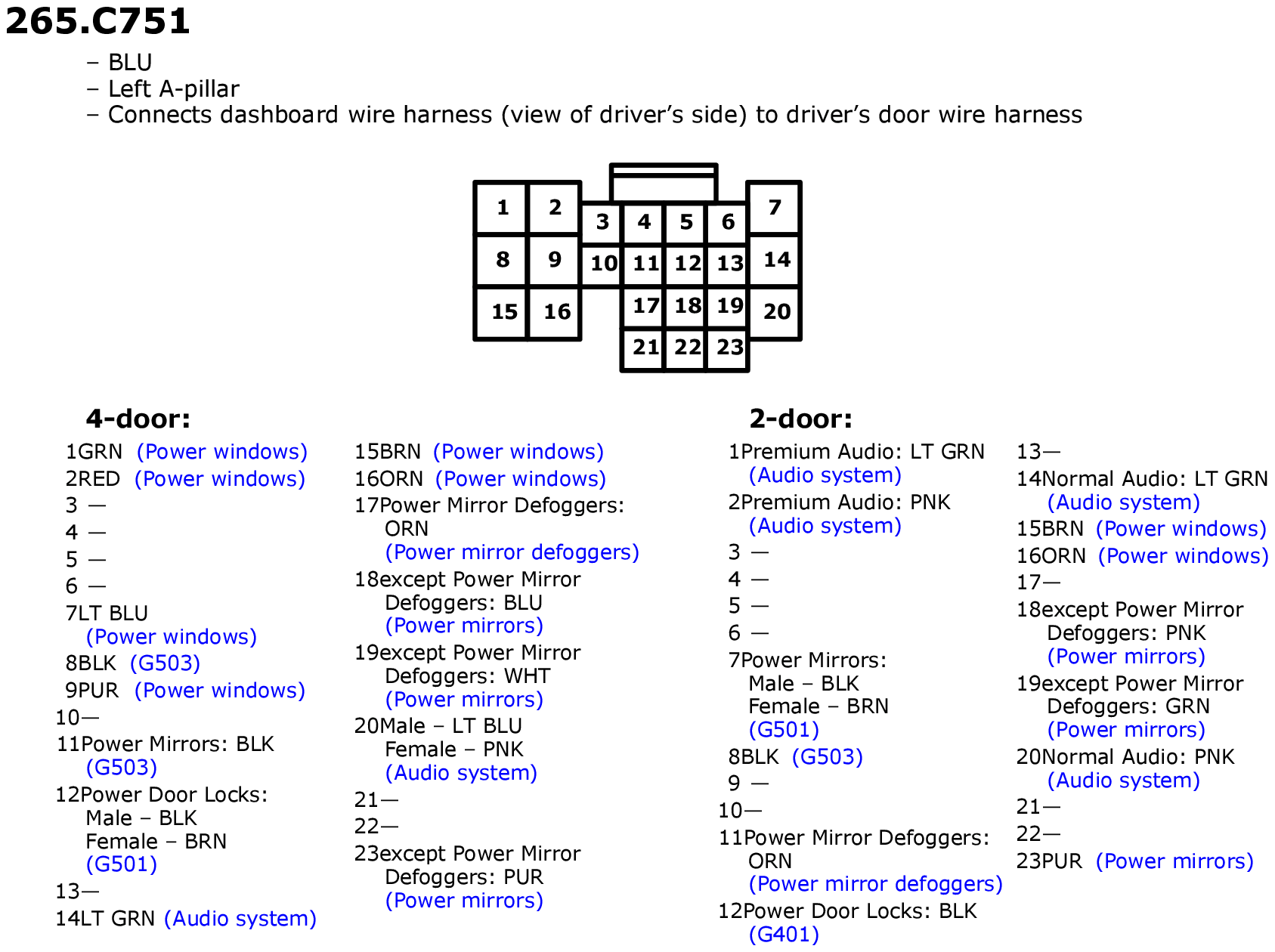

Fig 1: C751 Connector End View
GHHW2043Courtesy of AMERICAN HONDA MOTOR CO., INC.

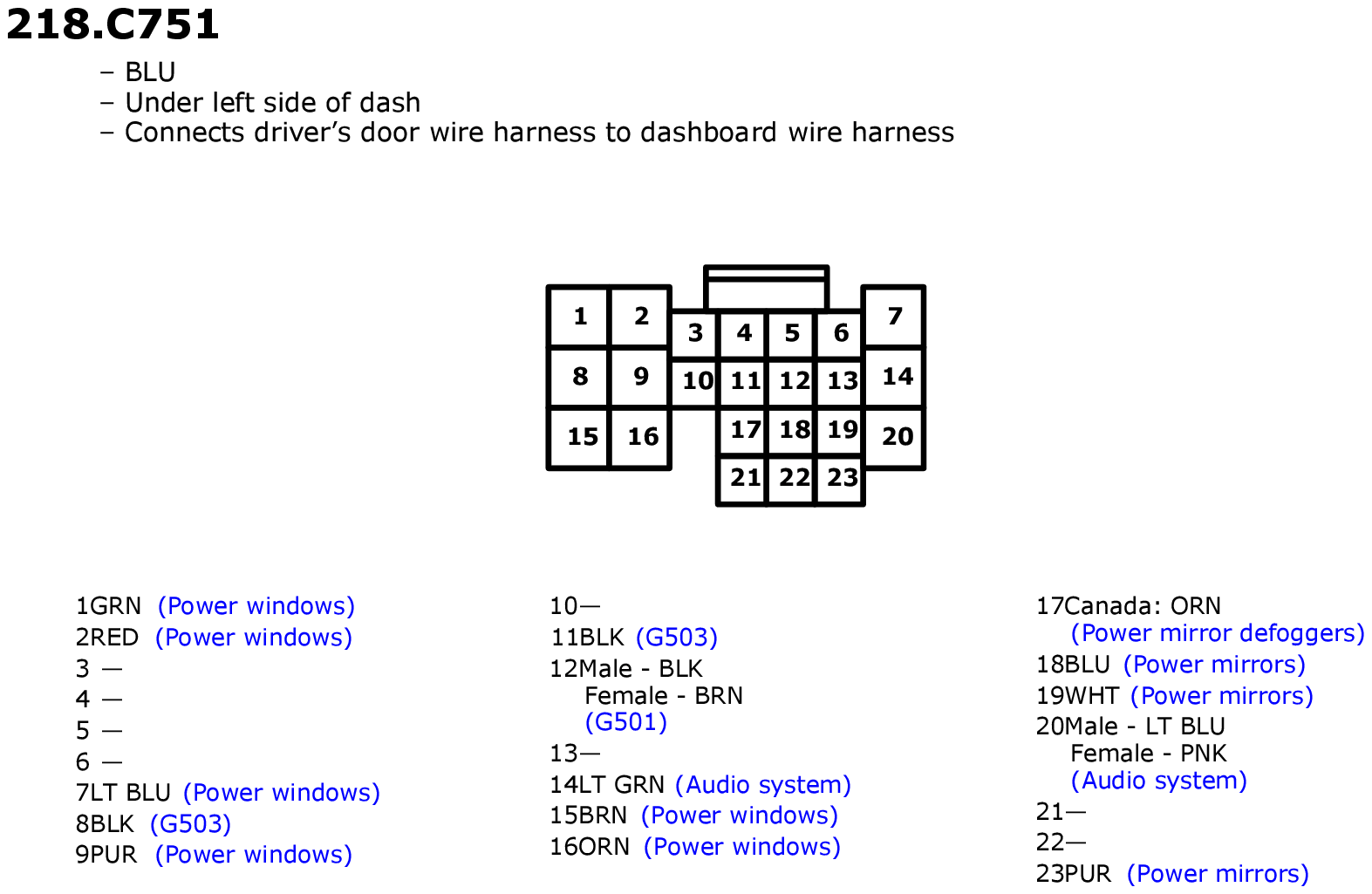

Fig 1: C751 Connector End View
GHHW2306Courtesy of AMERICAN HONDA MOTOR CO., INC.

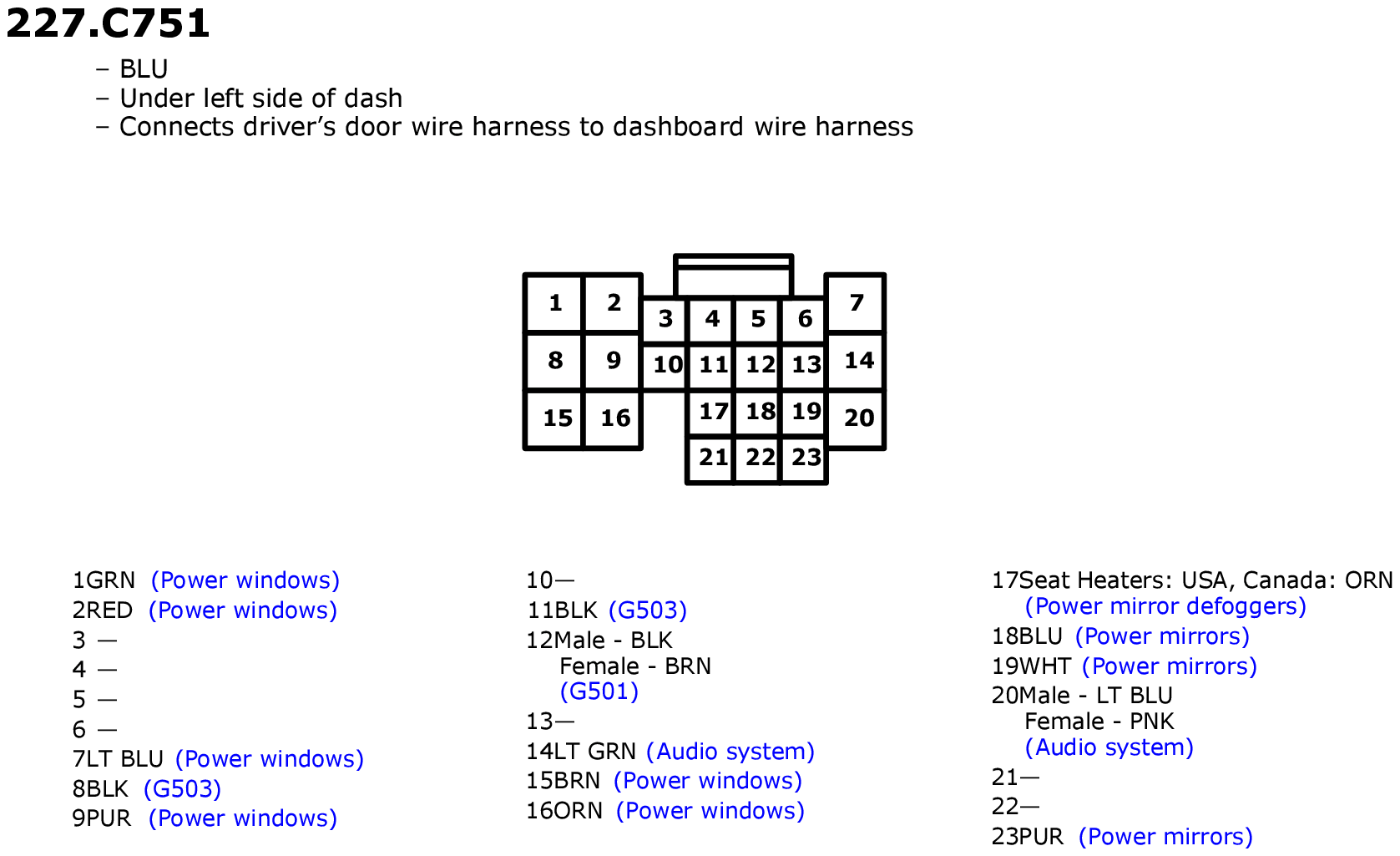

Fig 1: C751 Connector End View
GHHW2566Courtesy of AMERICAN HONDA MOTOR CO., INC.
