C701 Connector End View

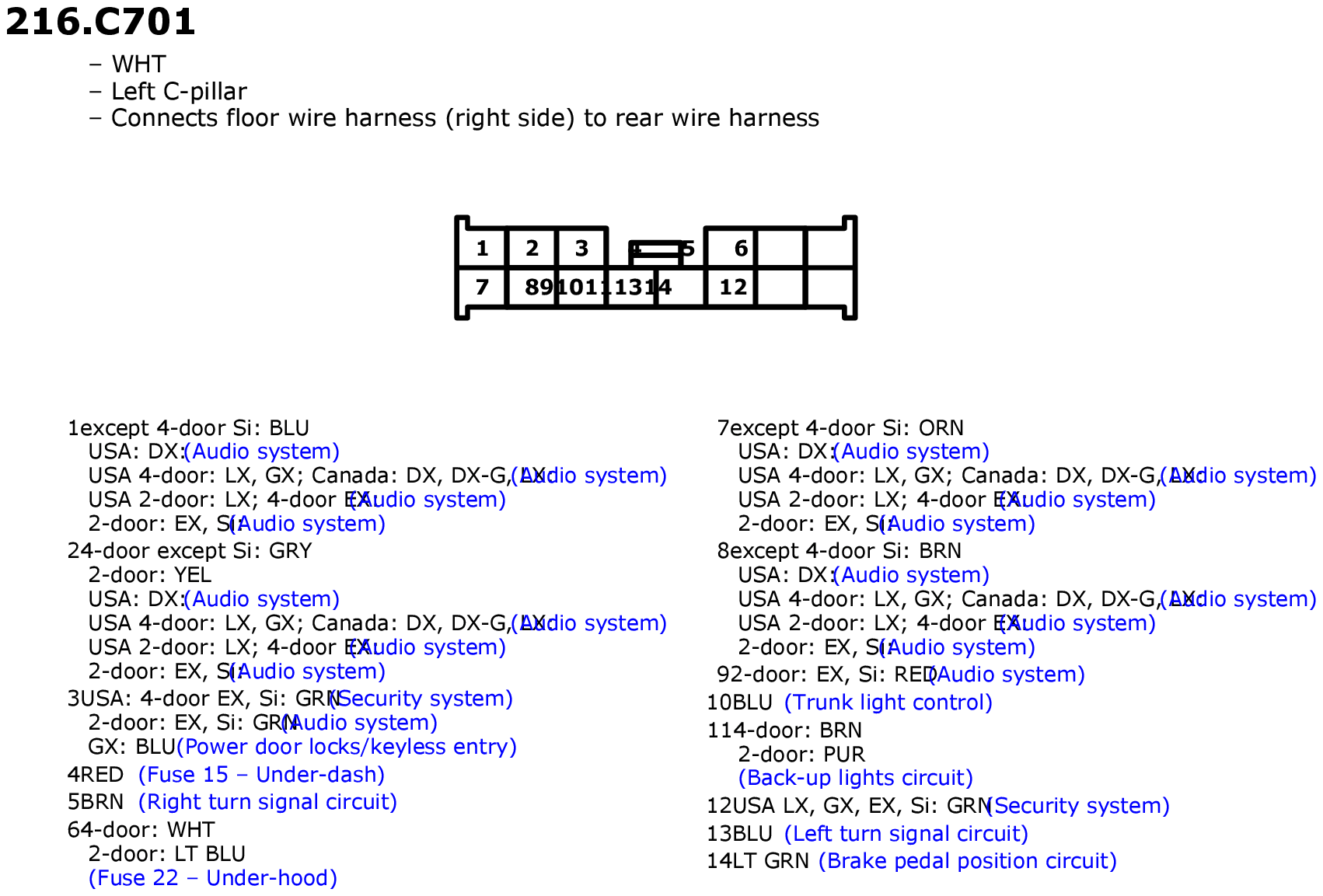

Fig 1: C701 Connector End View
GHHW1136Courtesy of AMERICAN HONDA MOTOR CO., INC.

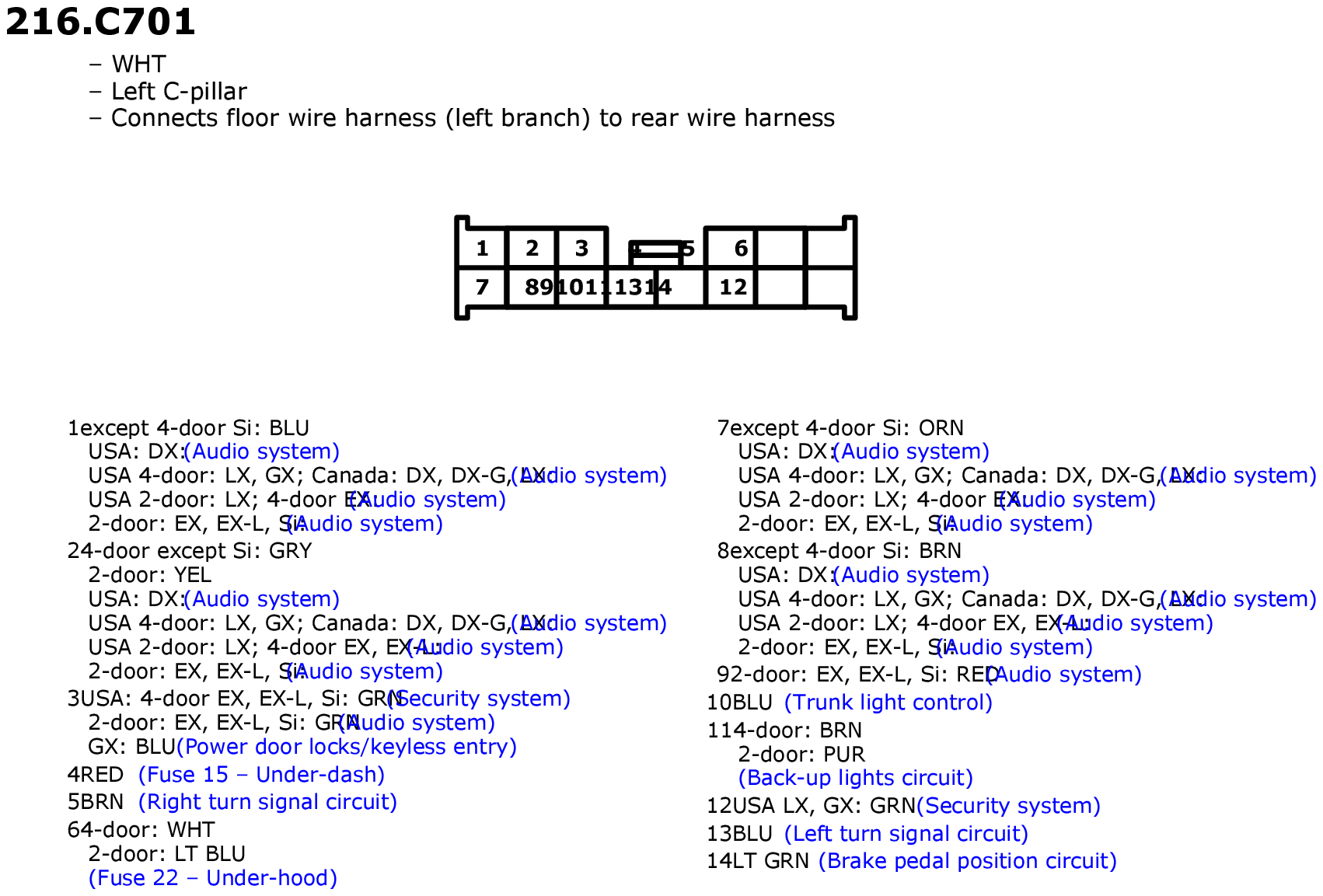

Fig 1: C701 Connector End View
GHHW1412Courtesy of AMERICAN HONDA MOTOR CO., INC.

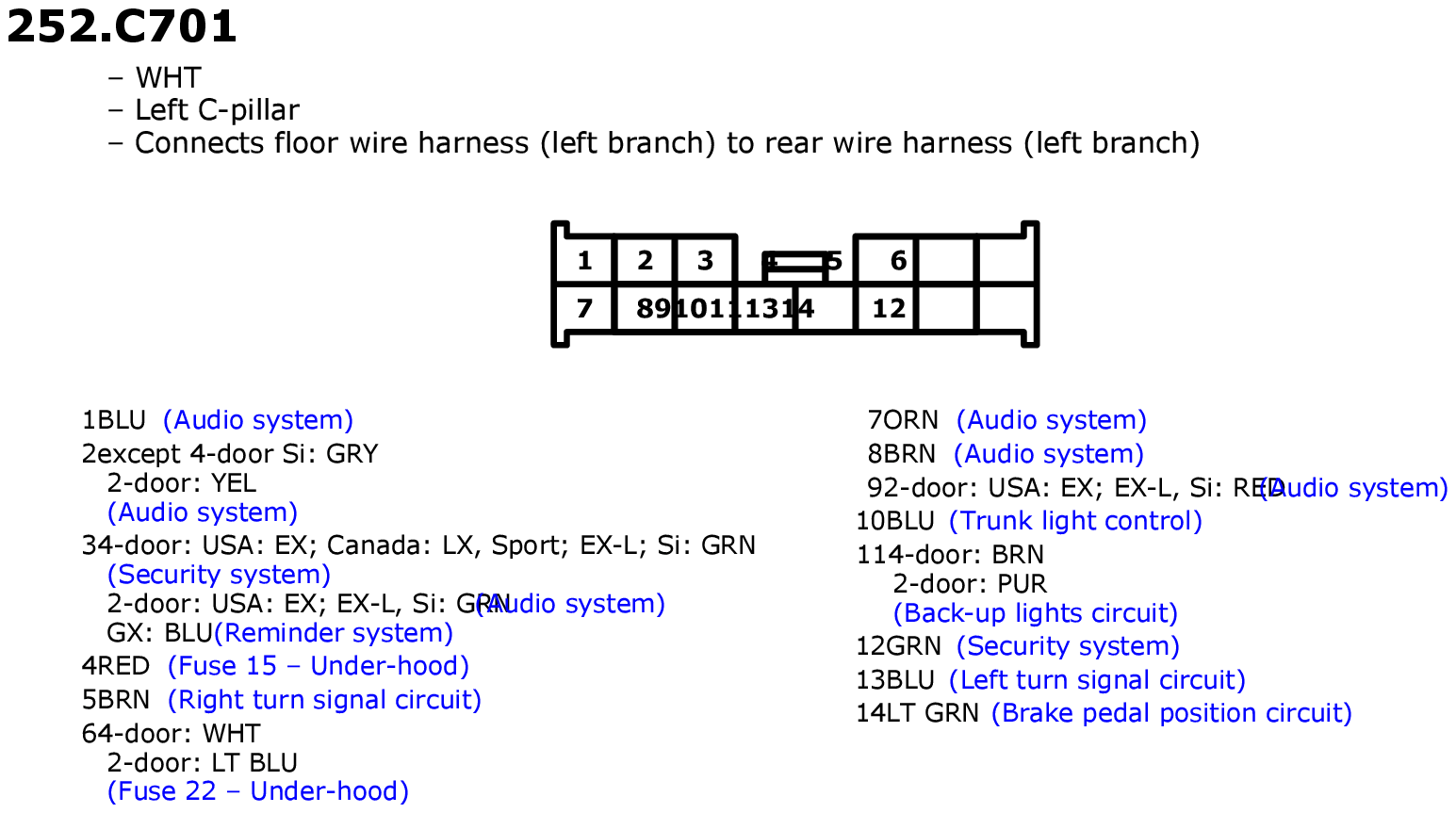

Fig 1: C701 Connector End View
GHHW1726Courtesy of AMERICAN HONDA MOTOR CO., INC.

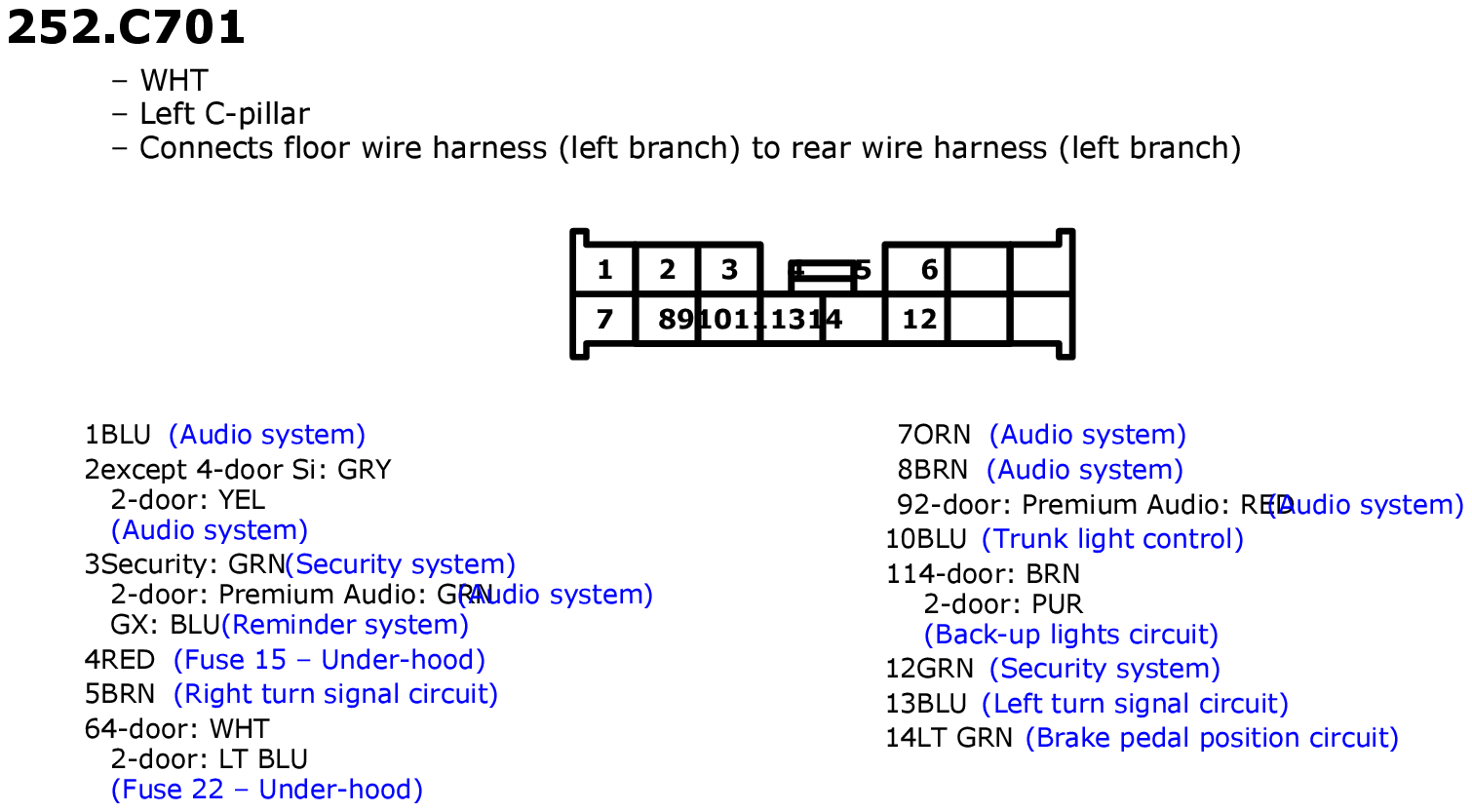

Fig 1: C701 Connector End View
GHHW2030Courtesy of AMERICAN HONDA MOTOR CO., INC.

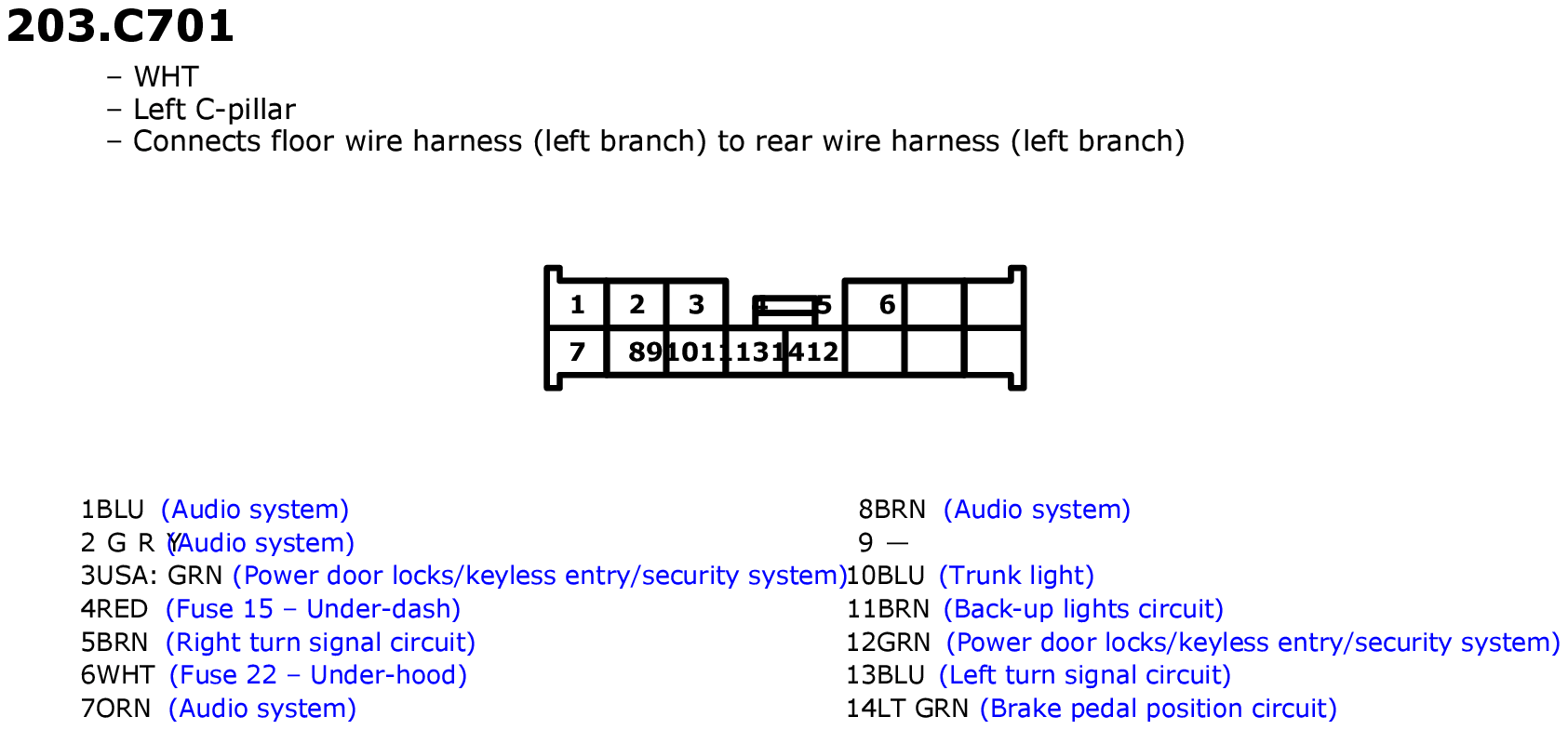

Fig 1: C701 Connector End View
GHHW2291Courtesy of AMERICAN HONDA MOTOR CO., INC.

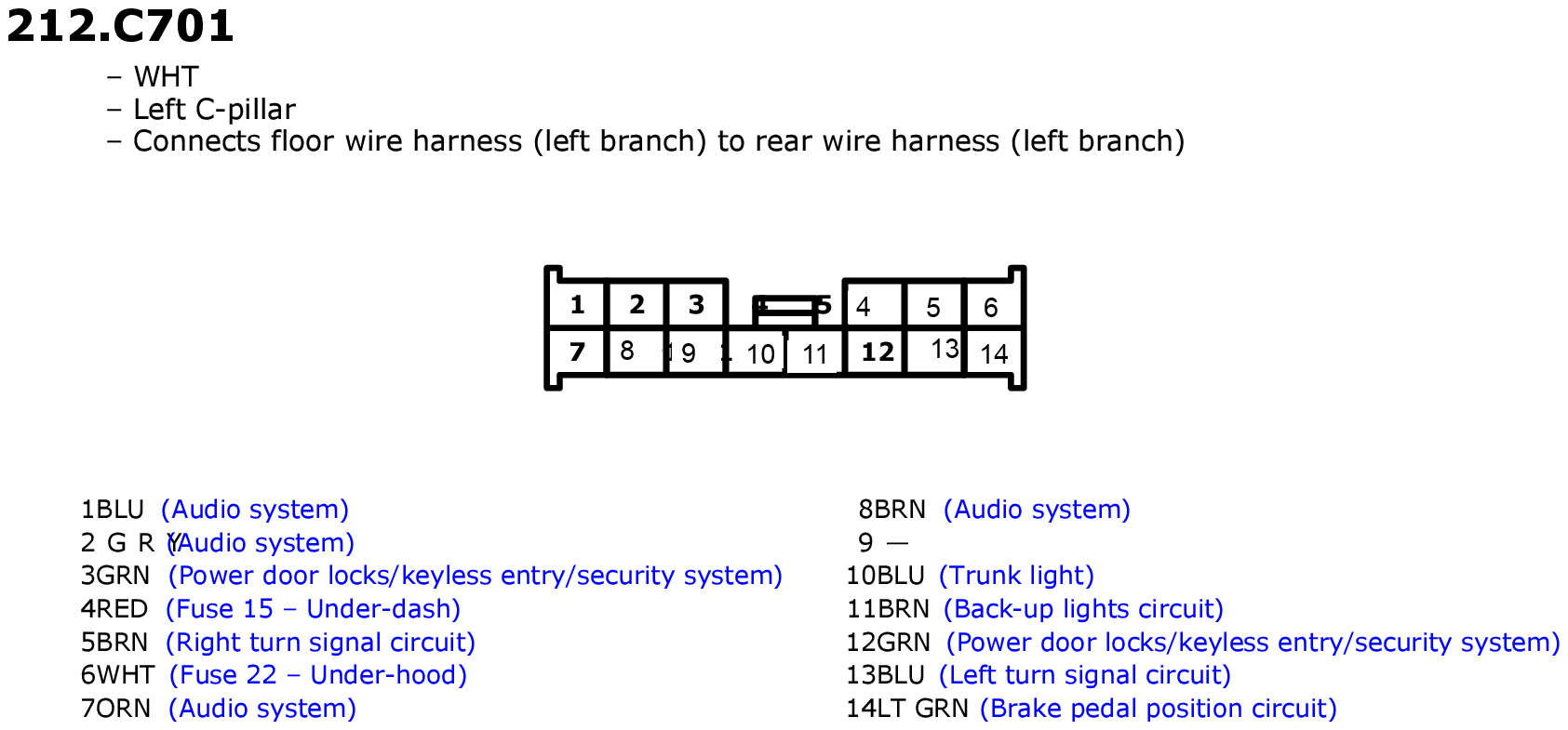

Fig 1: C701 Connector End View
GHHW2551Courtesy of AMERICAN HONDA MOTOR CO., INC.
