C602 Connector End View

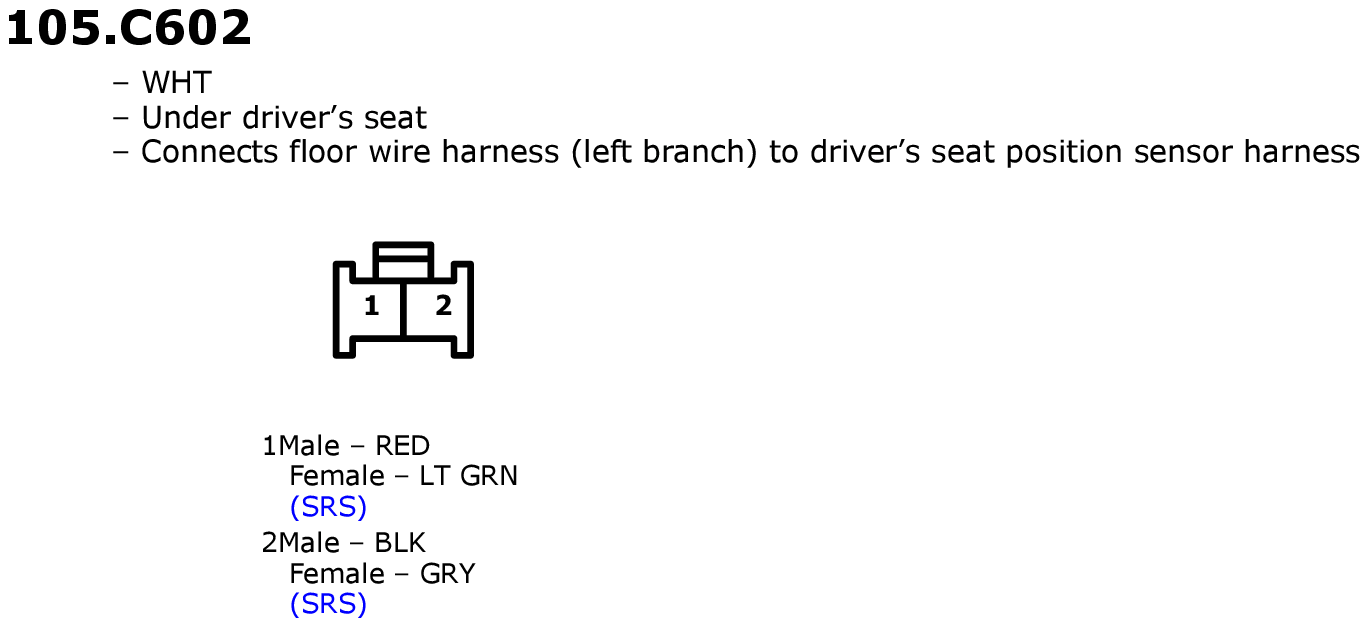

Fig 1: C602 Connector End View
GHHW1027Courtesy of AMERICAN HONDA MOTOR CO., INC.

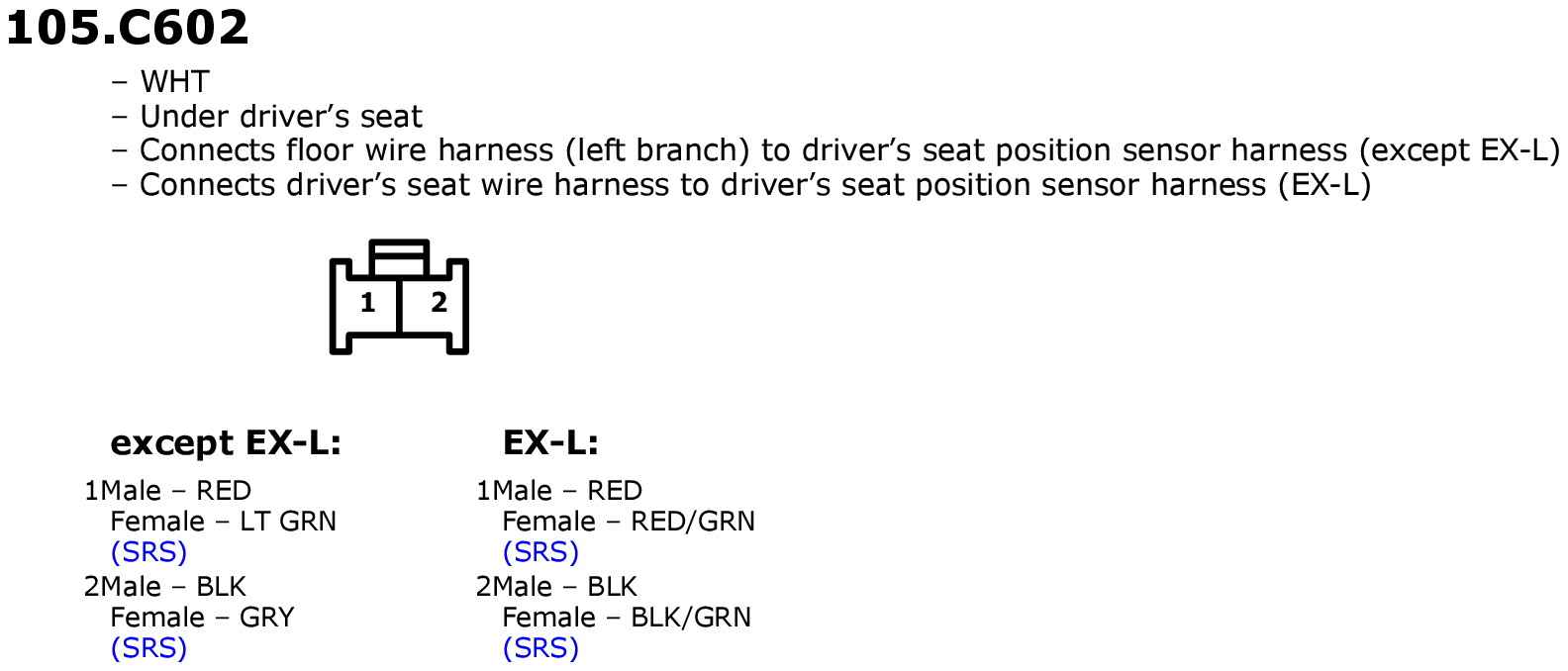

Fig 1: C602 Connector End View
GHHW1301Courtesy of AMERICAN HONDA MOTOR CO., INC.

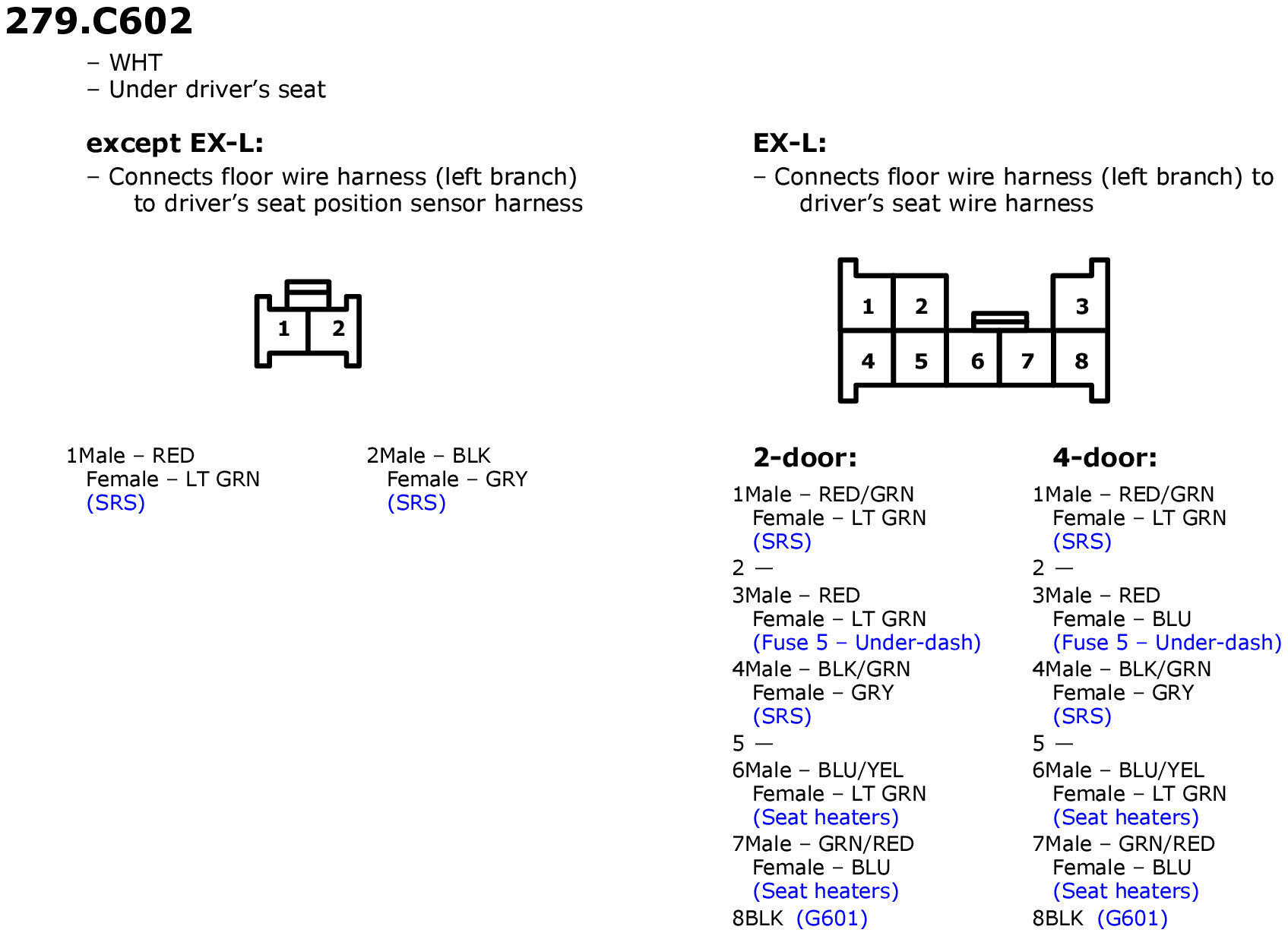

Fig 1: C602 Connector End View
GHHW1753Courtesy of AMERICAN HONDA MOTOR CO., INC.

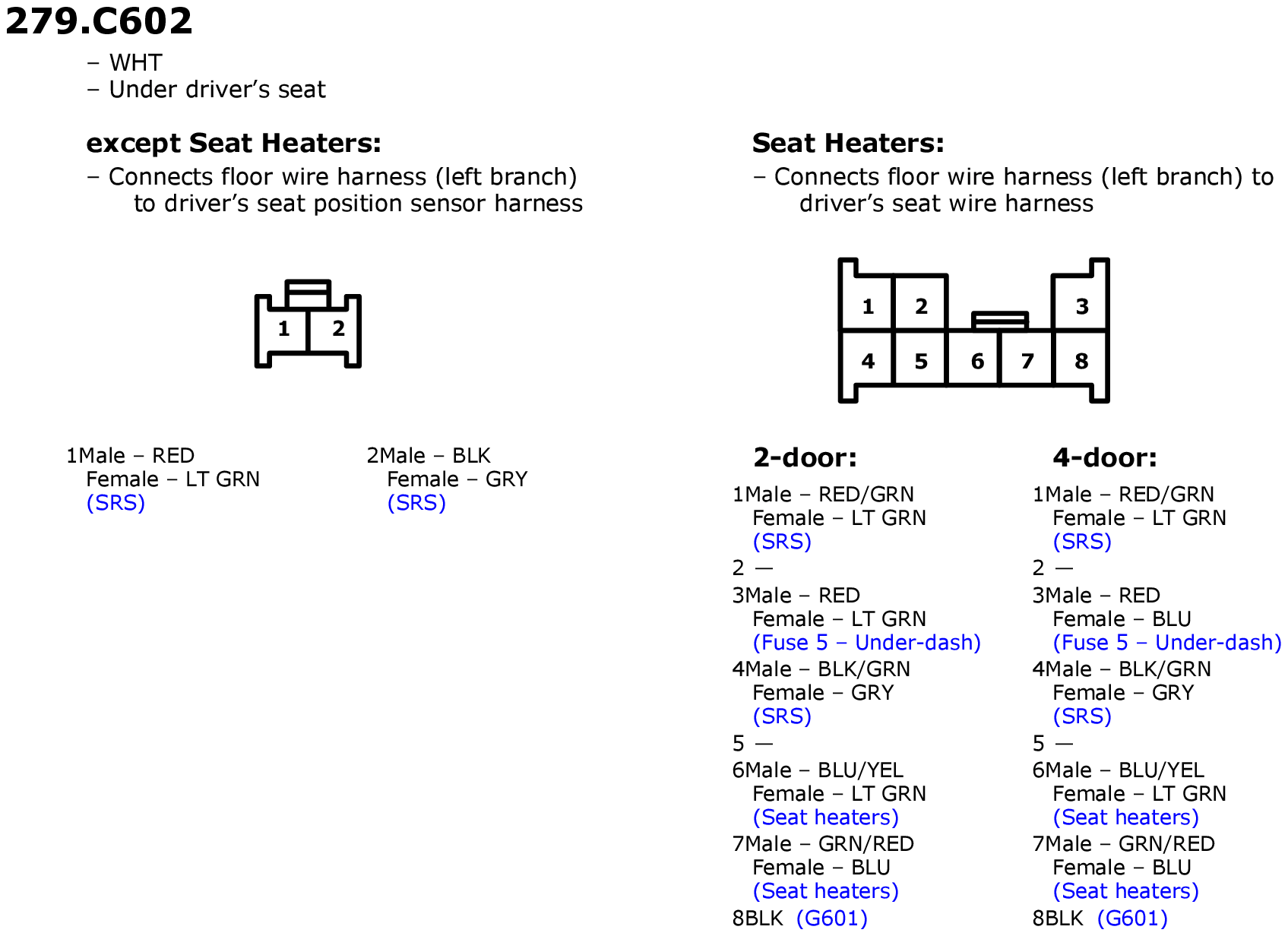

Fig 1: C602 Connector End View
GHHW2057Courtesy of AMERICAN HONDA MOTOR CO., INC.

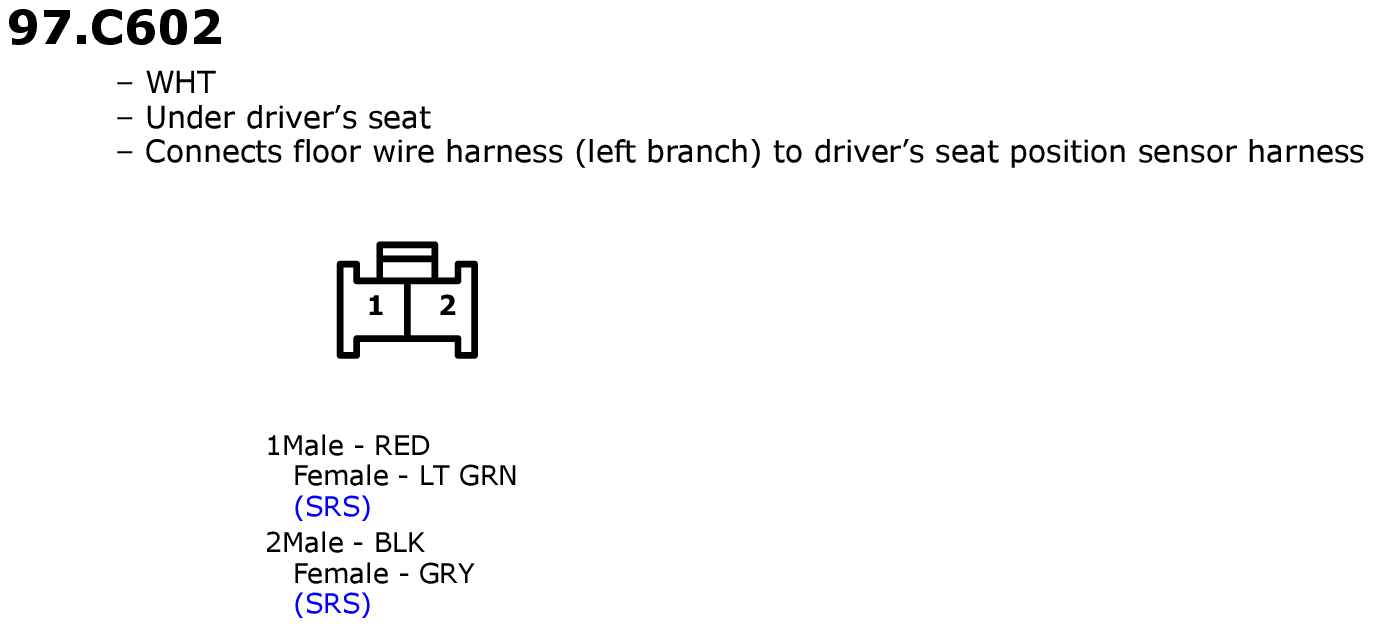

Fig 1: C602 Connector End View
GHHW2185Courtesy of AMERICAN HONDA MOTOR CO., INC.

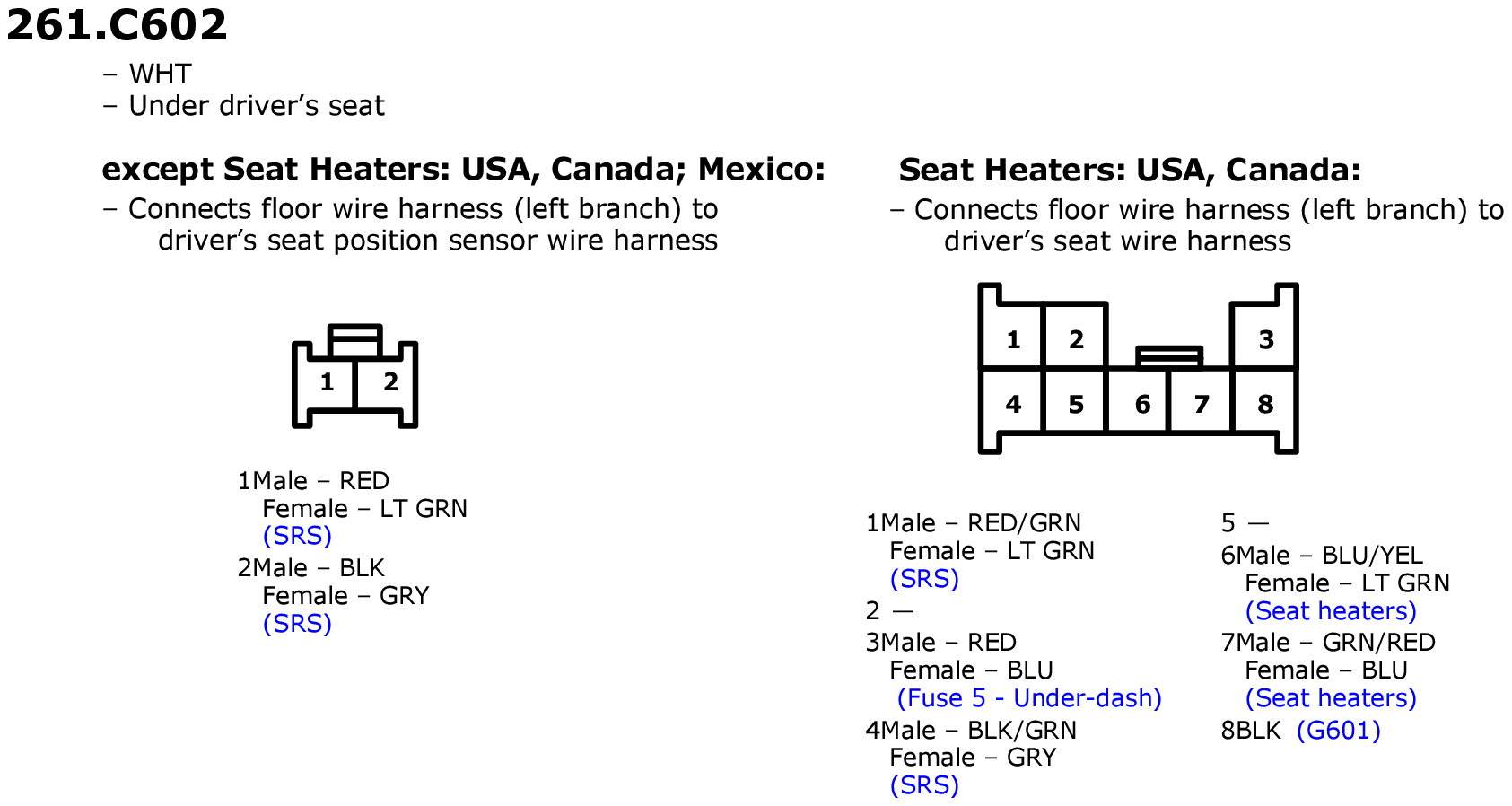

Fig 1: C602 Connector End View
GHHW2599Courtesy of AMERICAN HONDA MOTOR CO., INC.
