C504 Connector End View

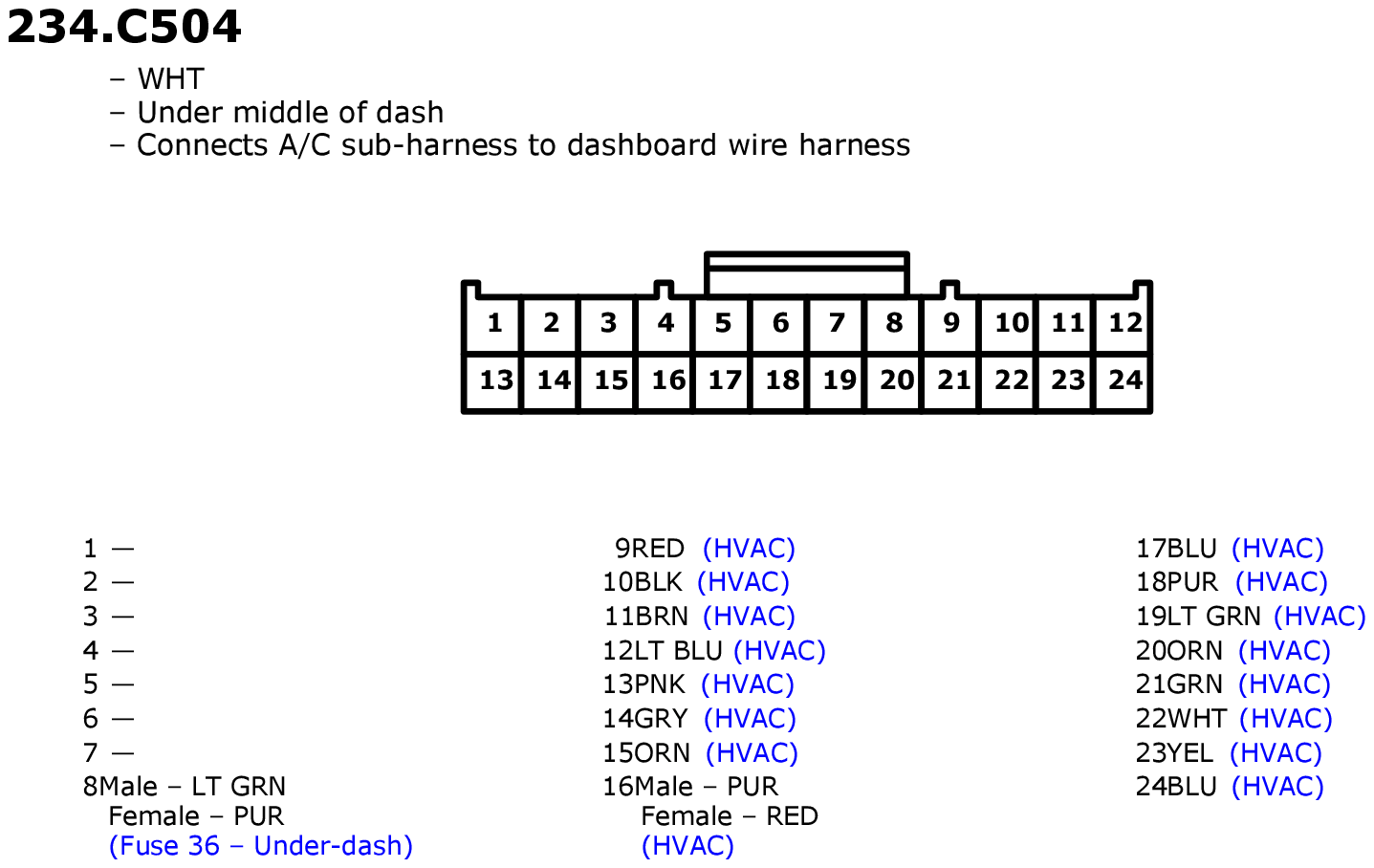

Fig 1: C504 Connector End View
GHHW1153Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: C504 Connector End View
GHHW1430Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: C504 Connector End View
GHHW2309Courtesy of AMERICAN HONDA MOTOR CO., INC.
