C202 Connector End View

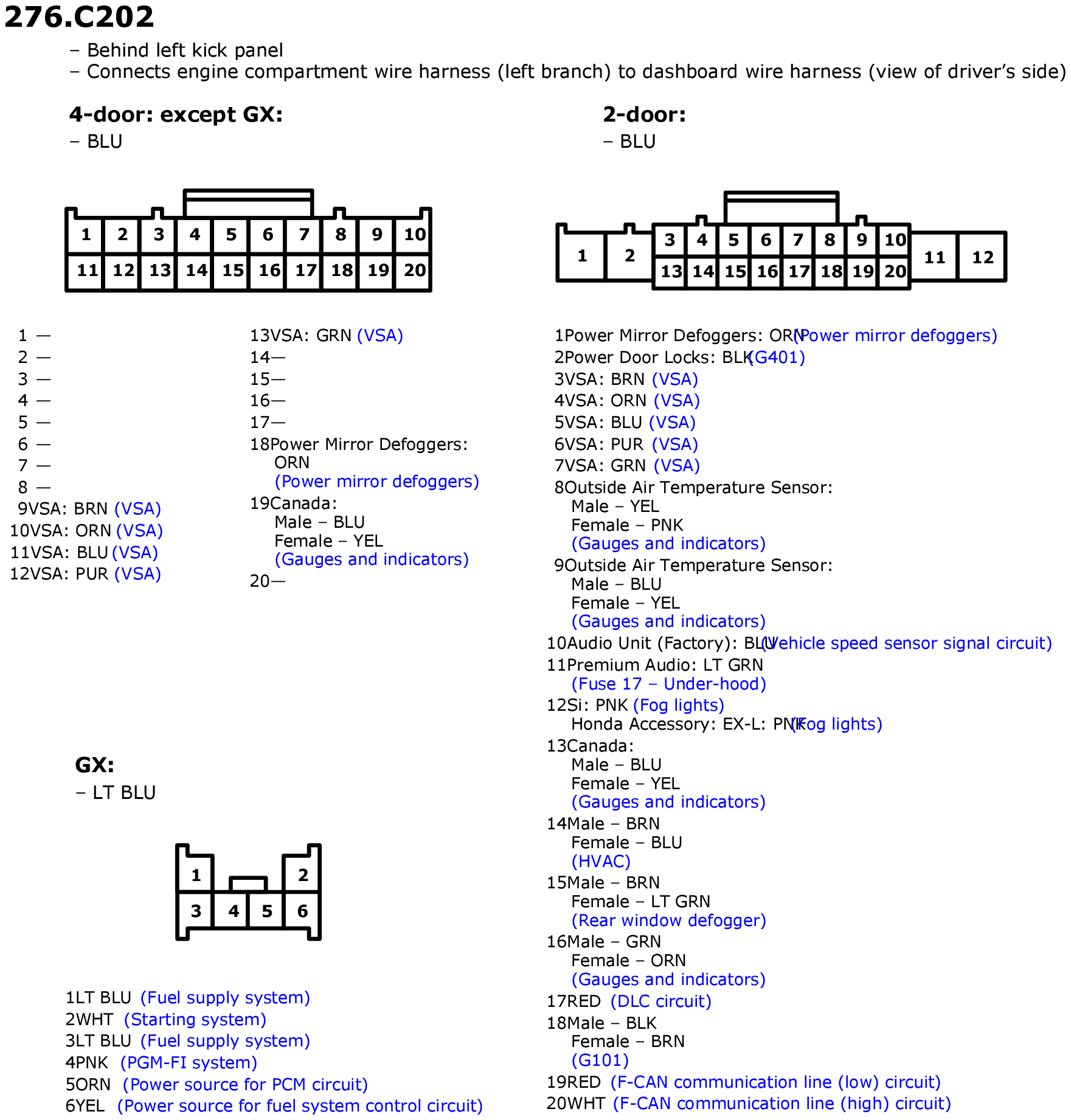

Fig 1: C202 Connector End View
GHHW2054Courtesy of AMERICAN HONDA MOTOR CO., INC.

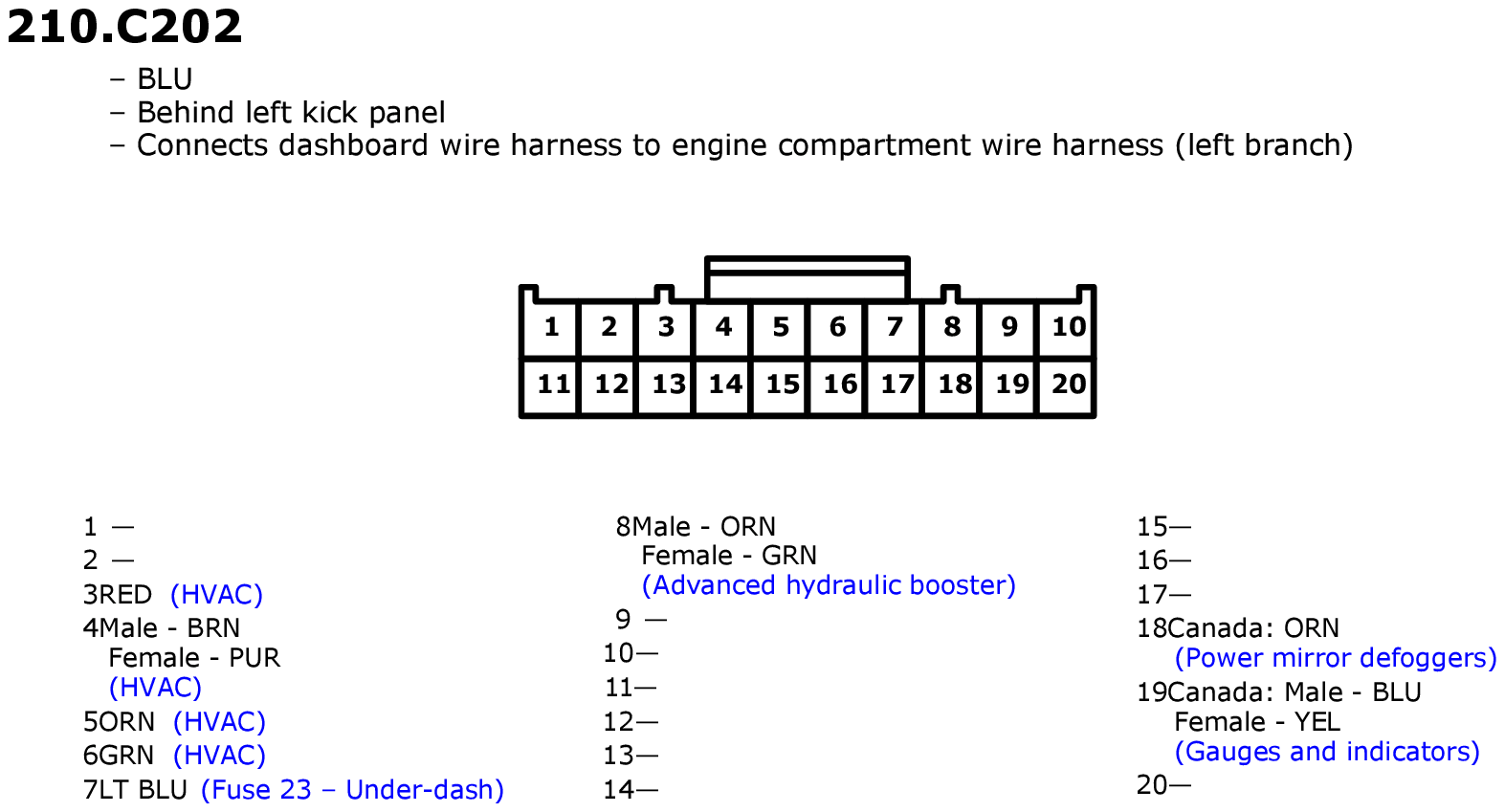

Fig 1: C202 Connector End View
GHHW2298Courtesy of AMERICAN HONDA MOTOR CO., INC.

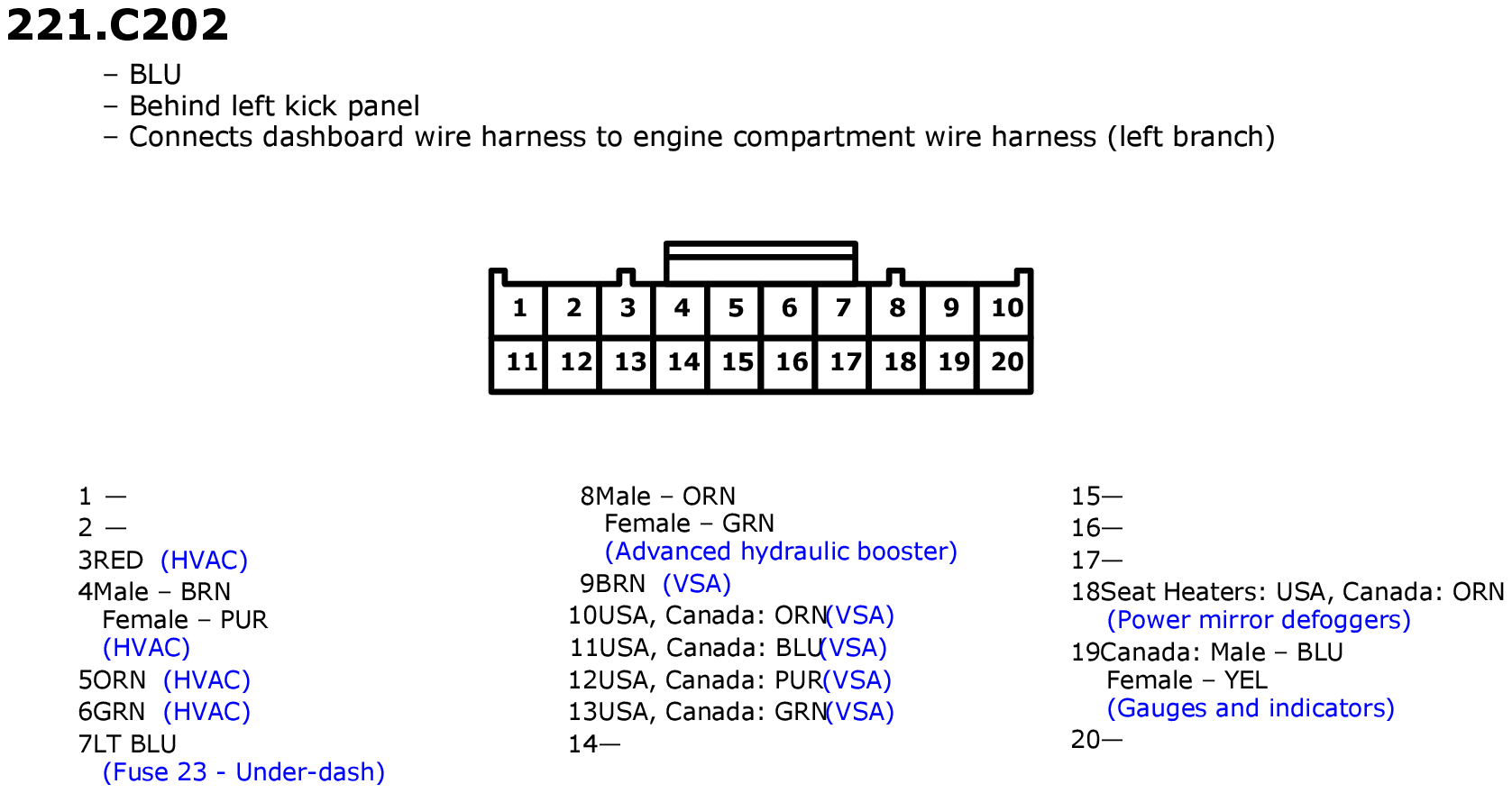

Fig 1: C202 Connector End View
GHHW2560Courtesy of AMERICAN HONDA MOTOR CO., INC.
