C102 Connector End View

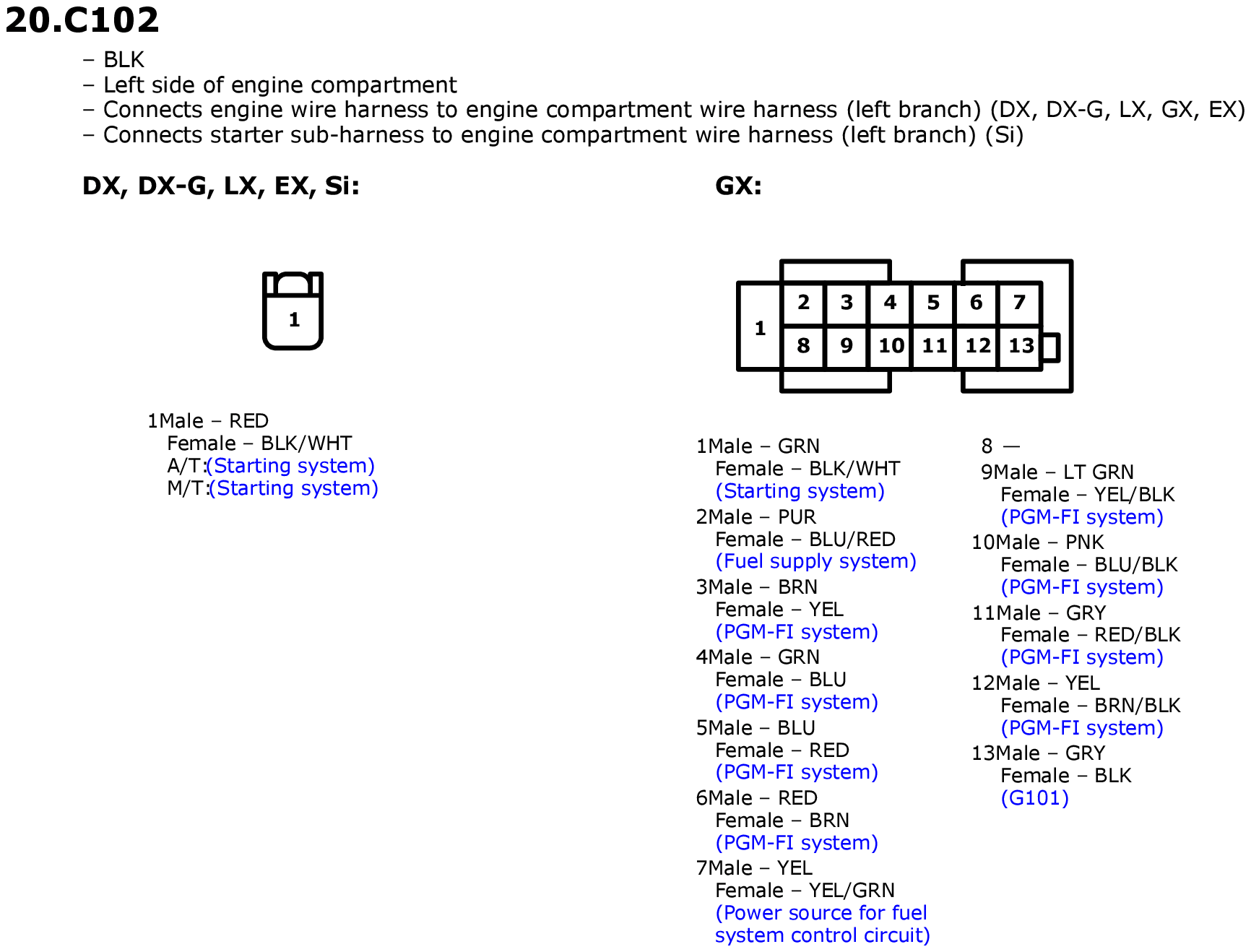

Fig 1: C102 Connector End View
GHHW943Courtesy of AMERICAN HONDA MOTOR CO., INC.

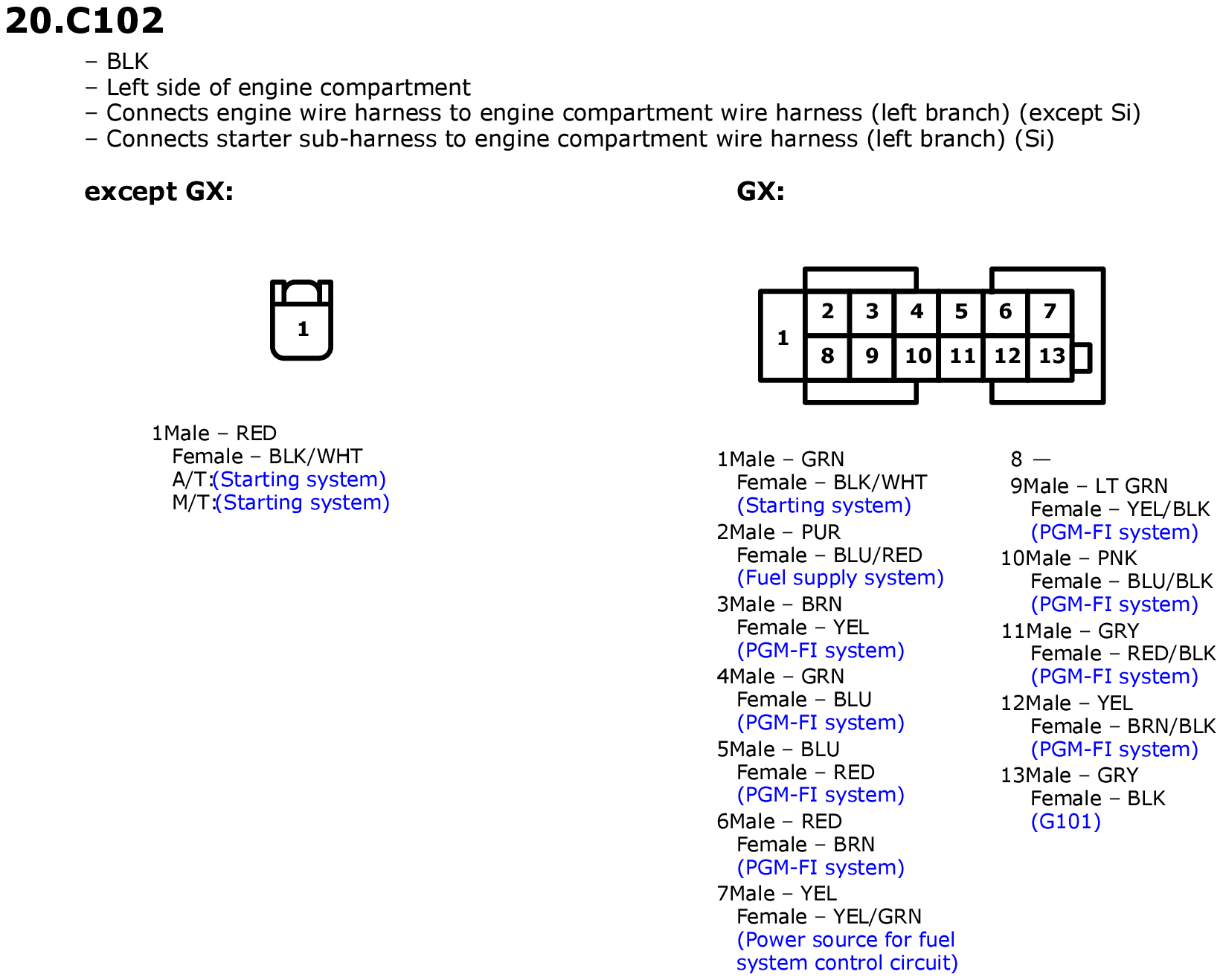

Fig 1: C102 Connector End View
GHHW1216Courtesy of AMERICAN HONDA MOTOR CO., INC.

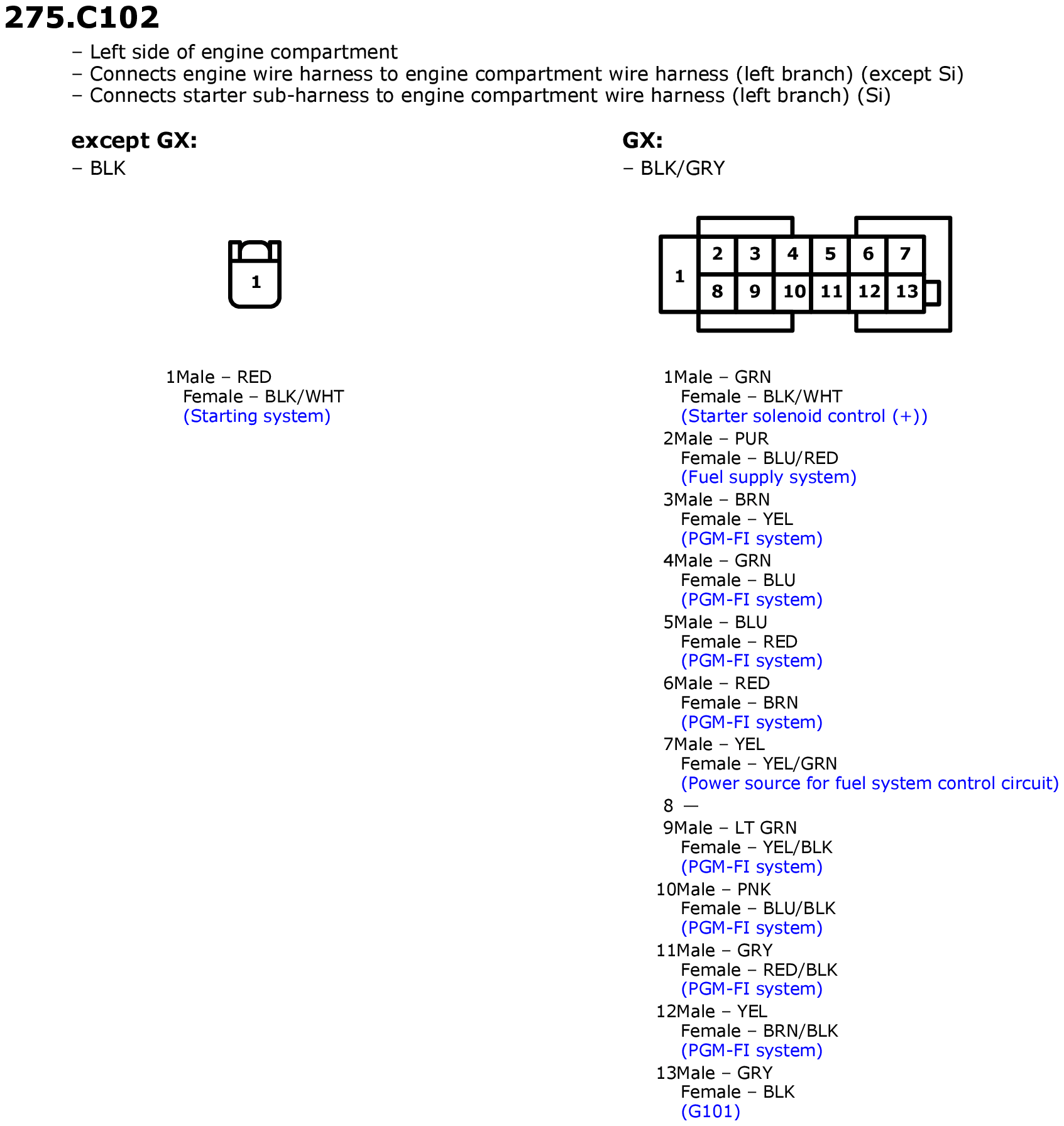

Fig 1: C102 Connector End View
GHHW1749Courtesy of AMERICAN HONDA MOTOR CO., INC.

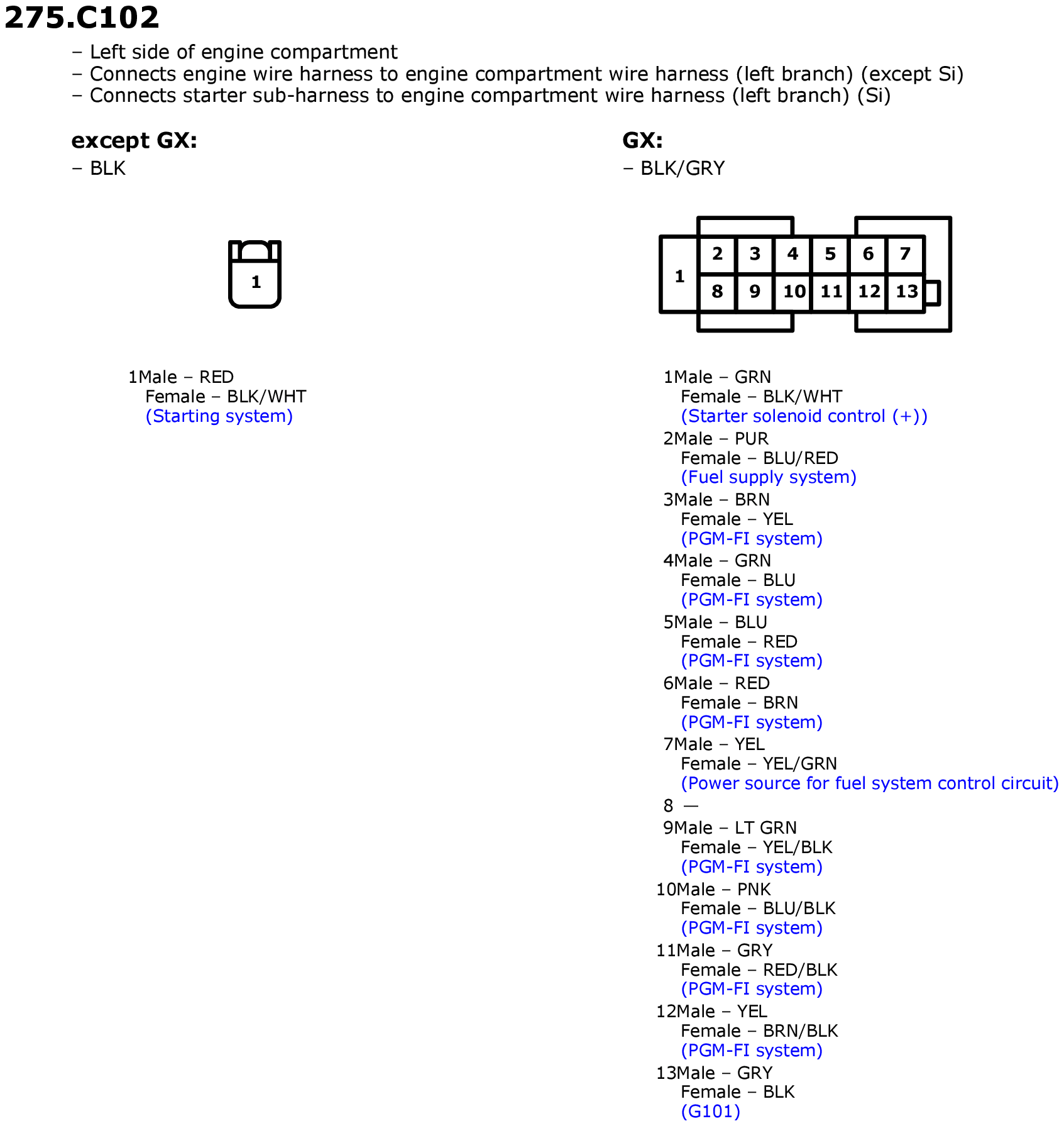

Fig 1: C102 Connector End View
GHHW2053Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: C102 Connector End View
GHHW2101Courtesy of AMERICAN HONDA MOTOR CO., INC.

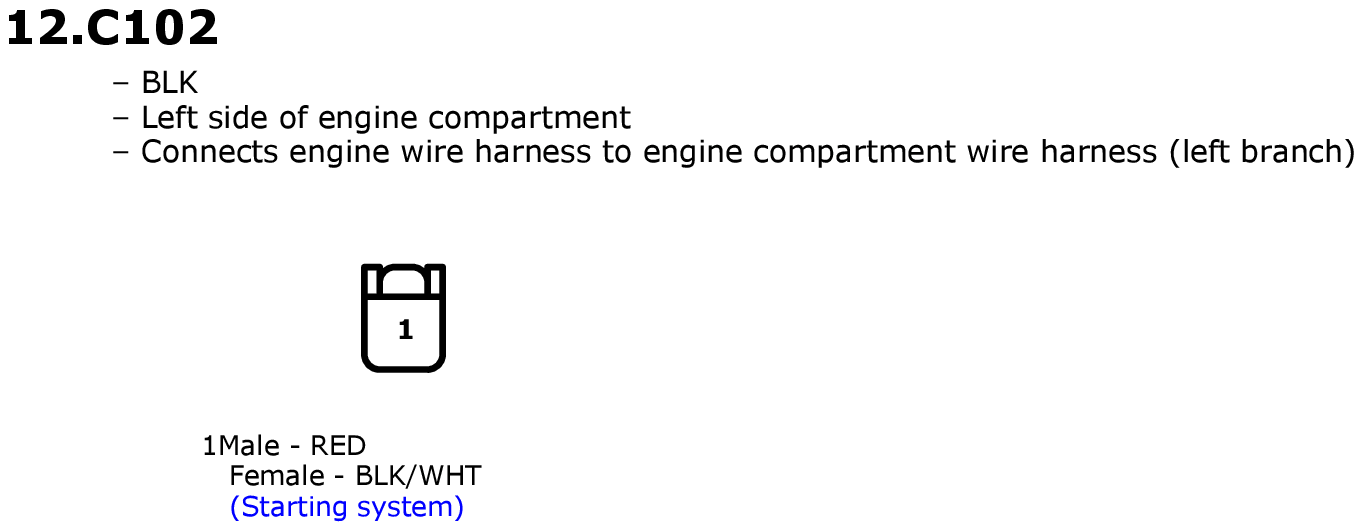

Fig 1: C102 Connector End View
GHHW2351Courtesy of AMERICAN HONDA MOTOR CO., INC.
