Brake Light/Taillight, Left Connector End View
Brake Light/Taillight, Left Connector End View

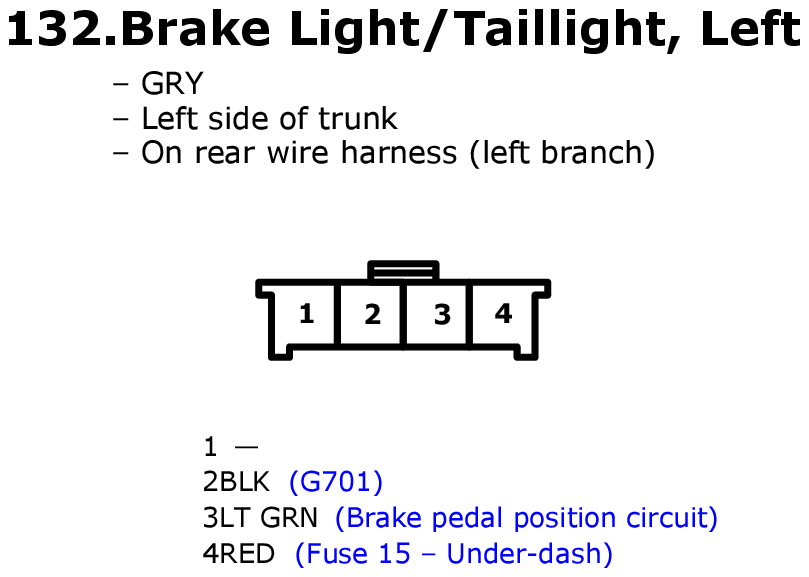

Fig 1: Brake Light/Taillight, Left Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
