Auxiliary Jack Assembly Connector End View
Auxiliary Jack Assembly Connector End View

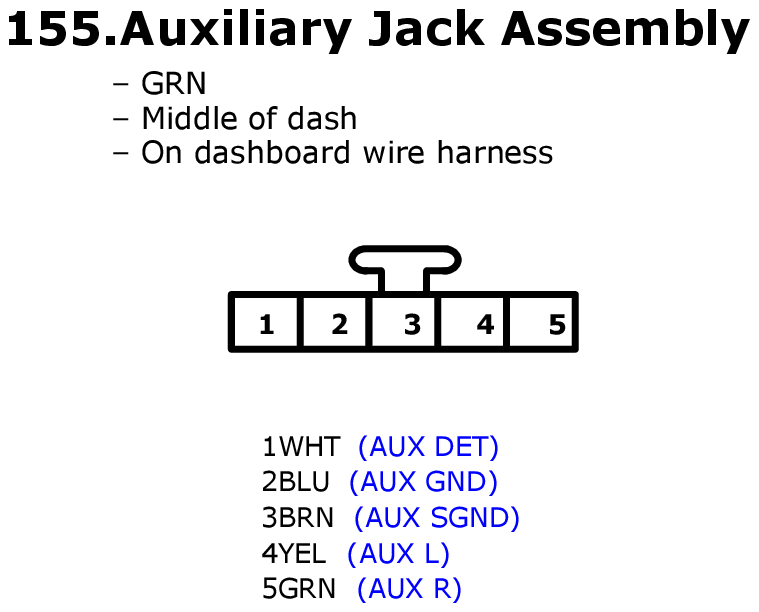

Fig 1: Auxiliary Jack Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

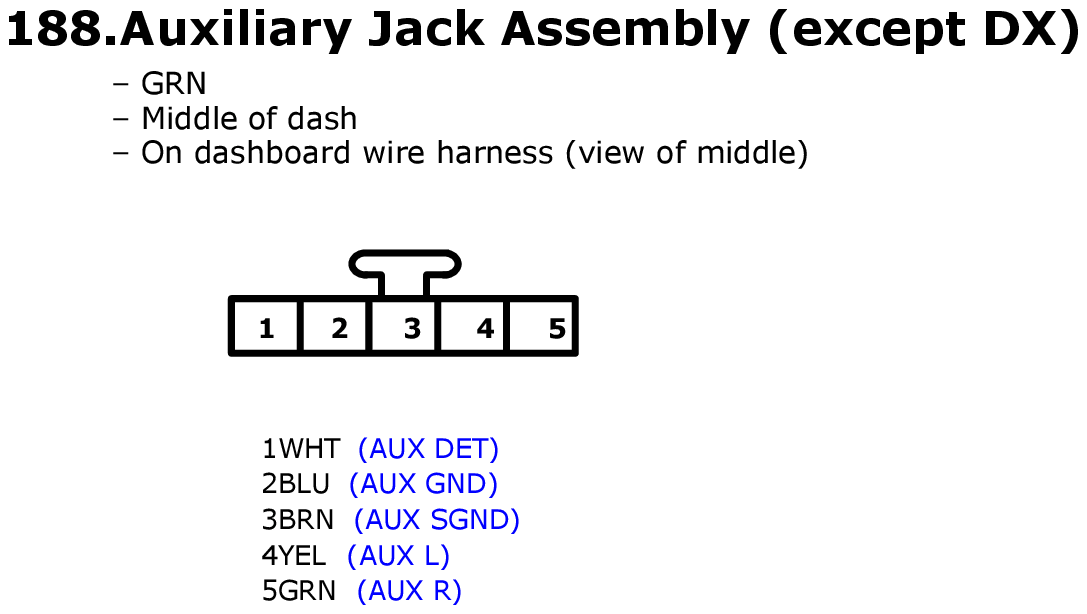

Fig 1: Auxiliary Jack Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

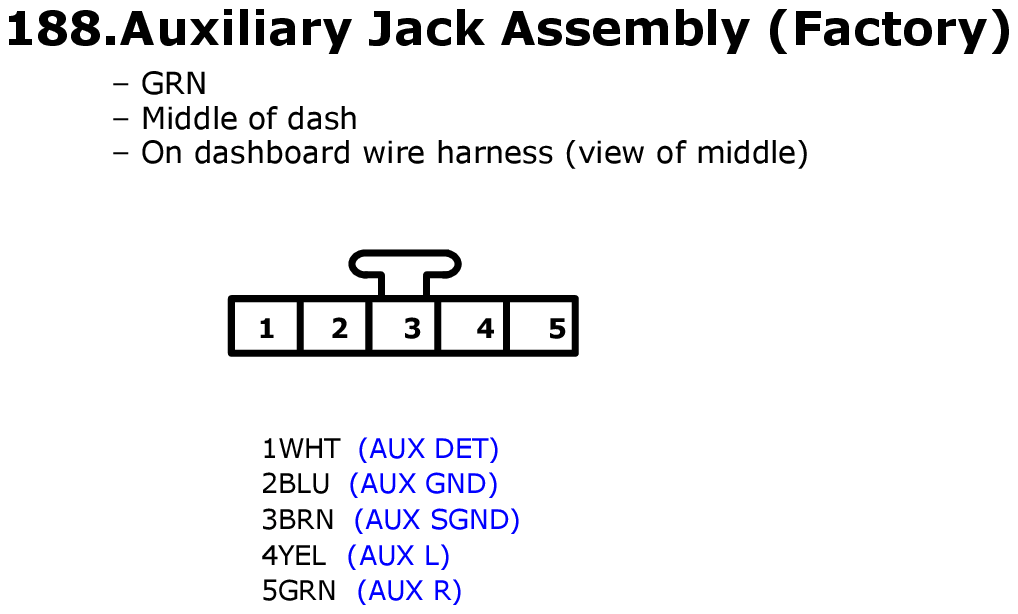

Fig 1: Auxiliary Jack Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Auxiliary Jack Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
