Audio Unit (except Navigation) Connector End View
Audio Unit (except Navigation) Connector End View

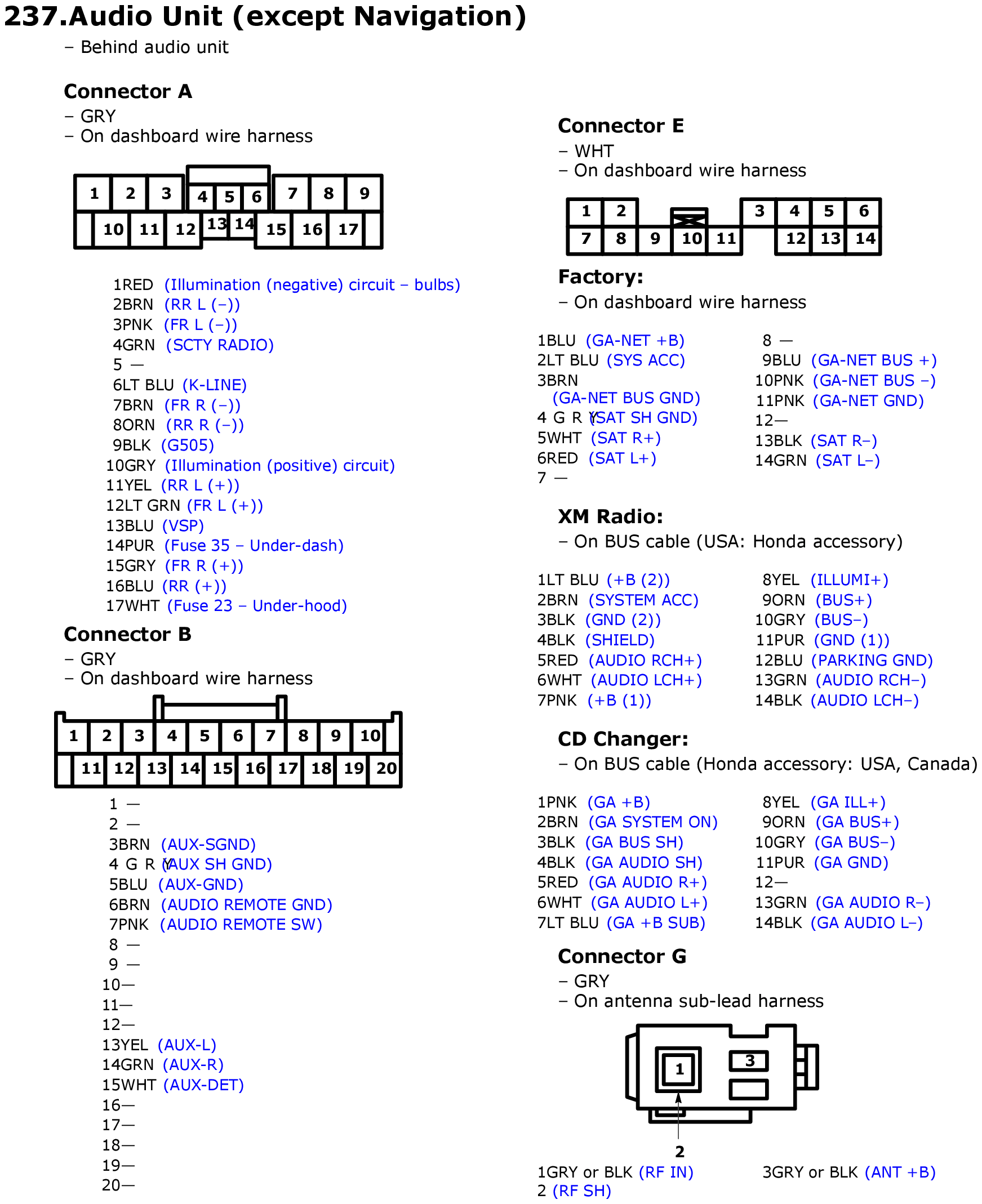

Fig 1: Audio Unit (except Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

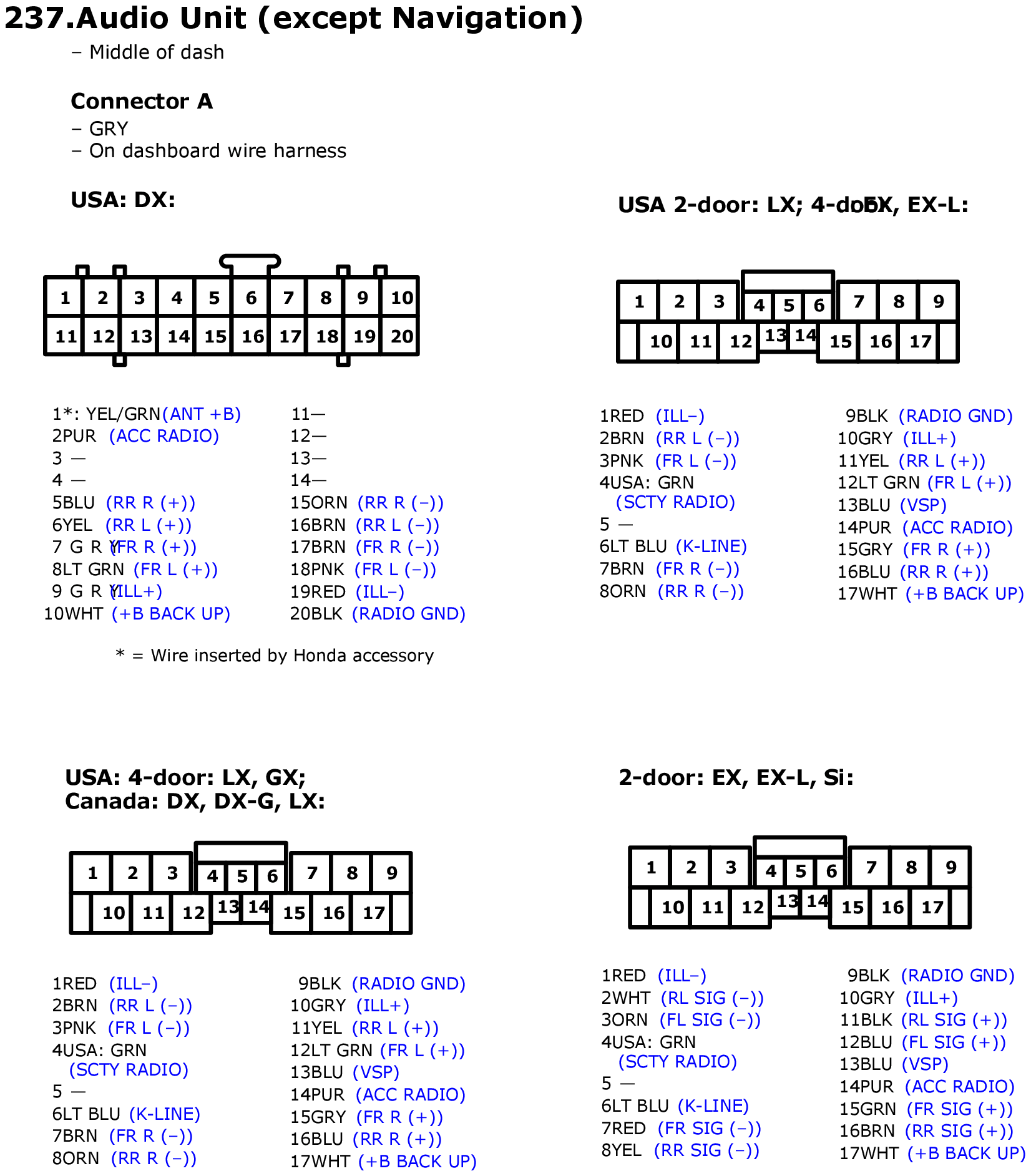

Fig 1: Audio Unit (except Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
