Alternator Connector End View

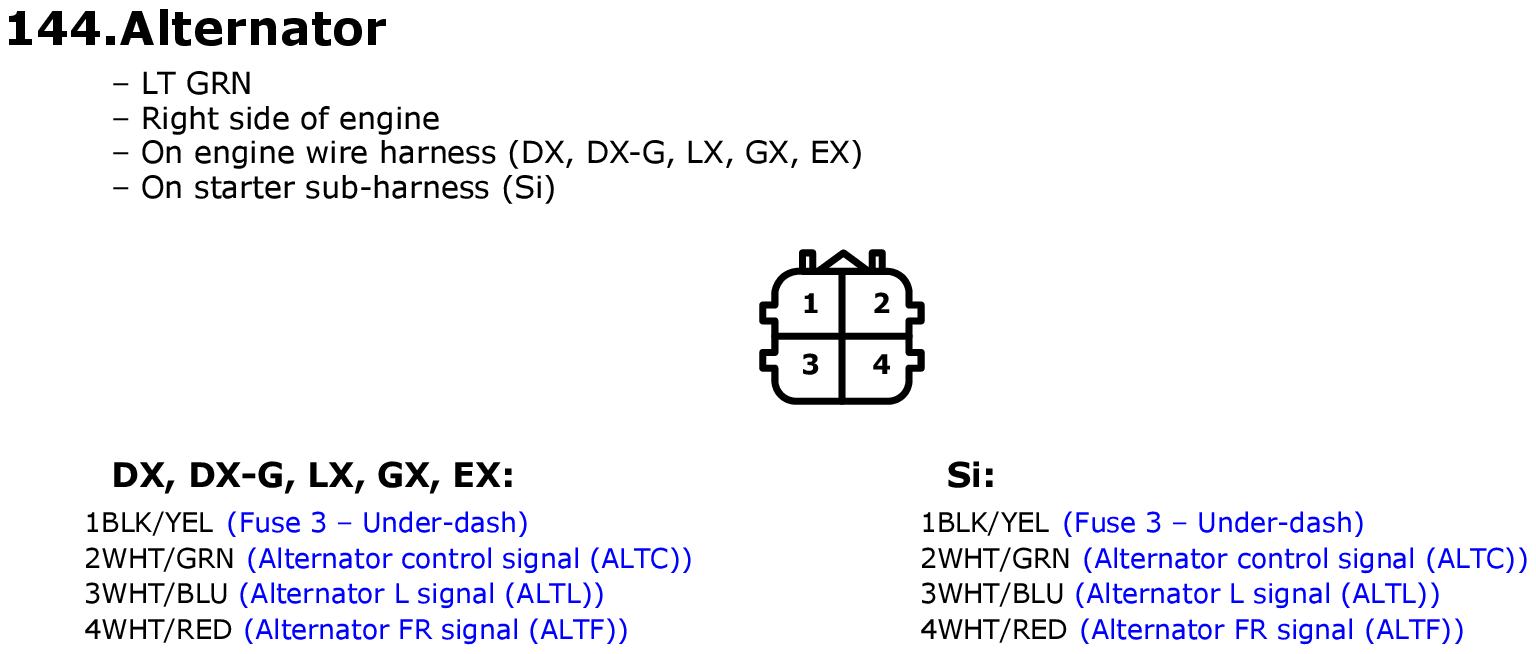

Fig 1: Alternator Connector End View
GHHW1066Courtesy of AMERICAN HONDA MOTOR CO., INC.

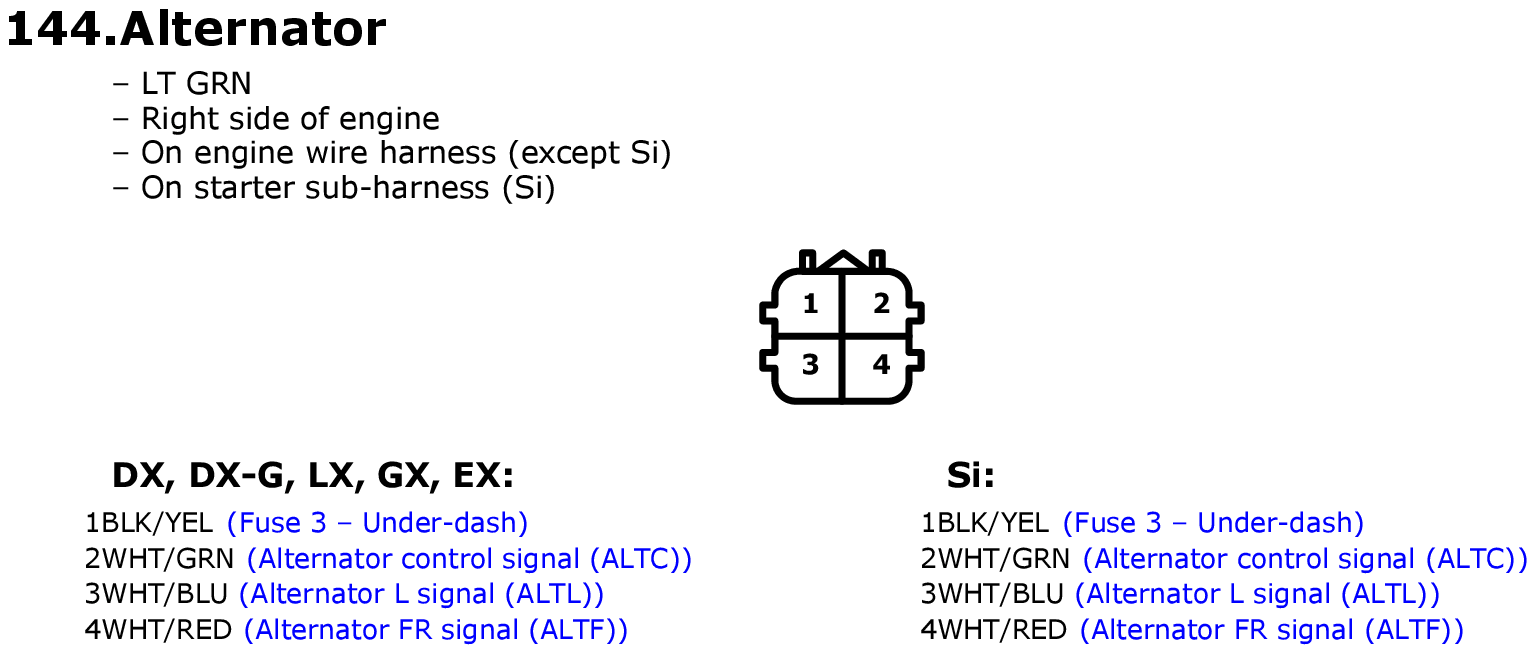

Fig 1: Alternator Connector End View
GHHW1340Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Alternator Connector End View
GHHW1636Courtesy of AMERICAN HONDA MOTOR CO., INC.

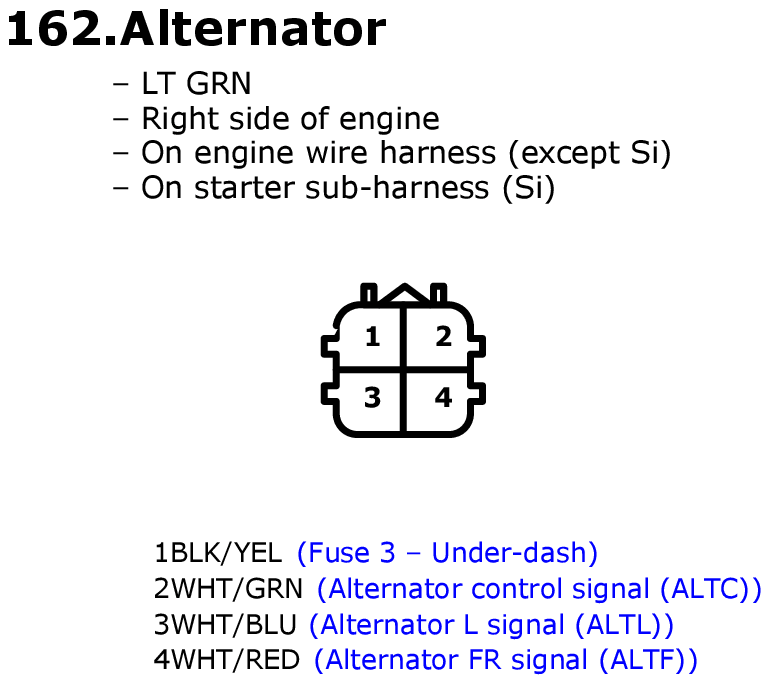

Fig 1: Alternator Connector End View
GHHW1940Courtesy of AMERICAN HONDA MOTOR CO., INC.
