A/T Gear Position Indicator Panel Light/Park Pin Switch Connector End View

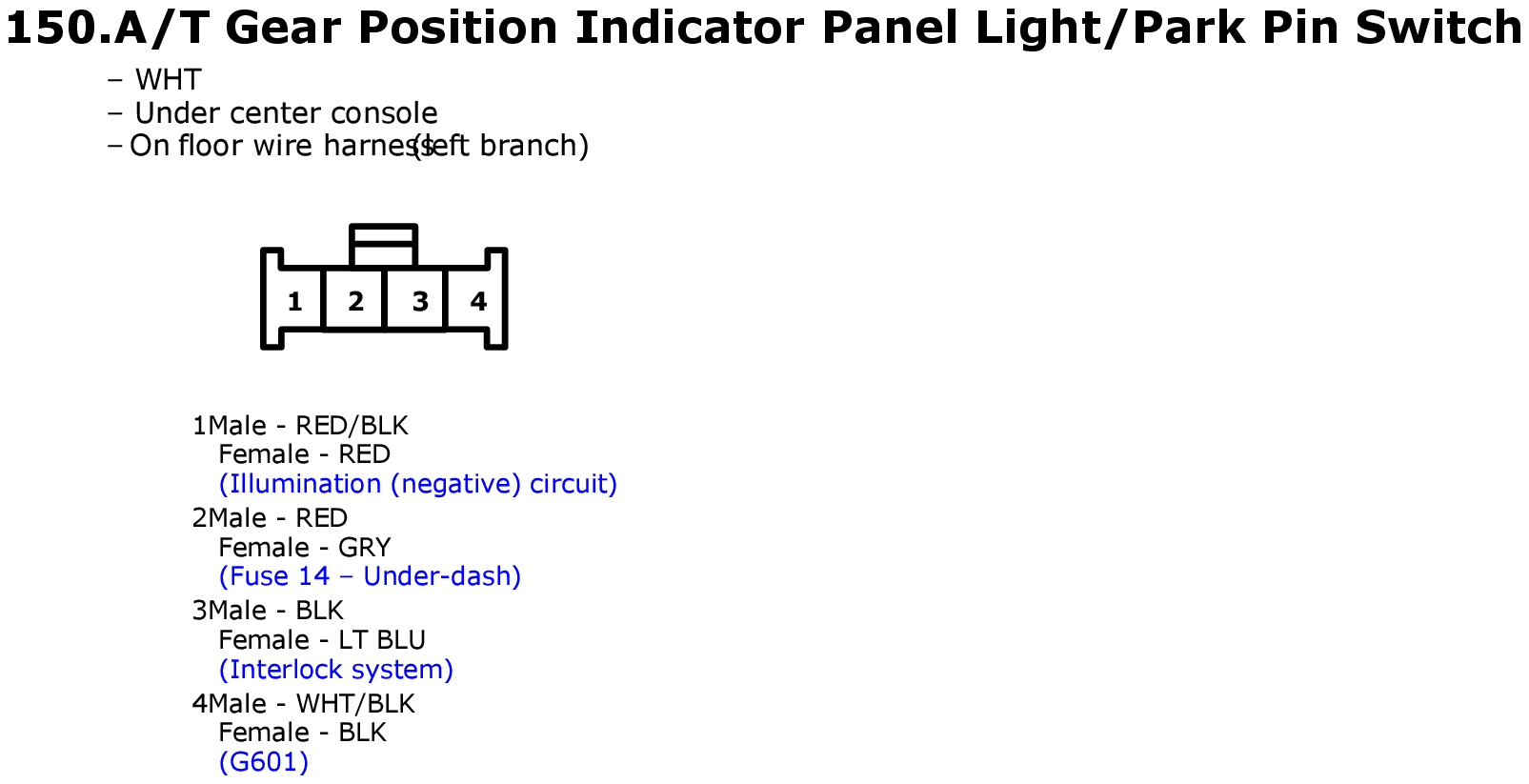

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch Connector End View
GHHW2238Courtesy of AMERICAN HONDA MOTOR CO., INC.

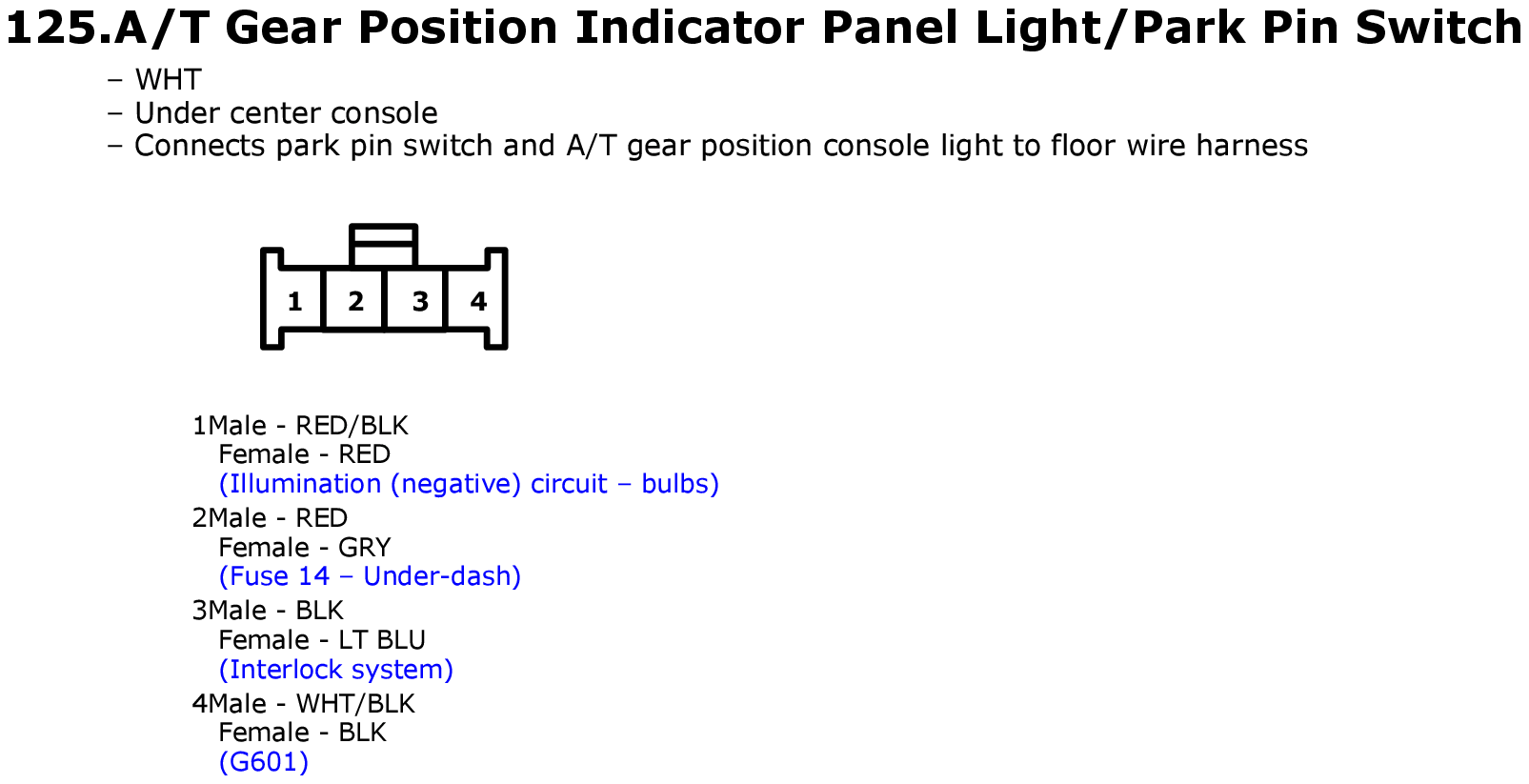

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch Connector End View
GHHW2464Courtesy of AMERICAN HONDA MOTOR CO., INC.
