A/F Sensor (Si) Connector End View
A/F Sensor (Si) Connector End View

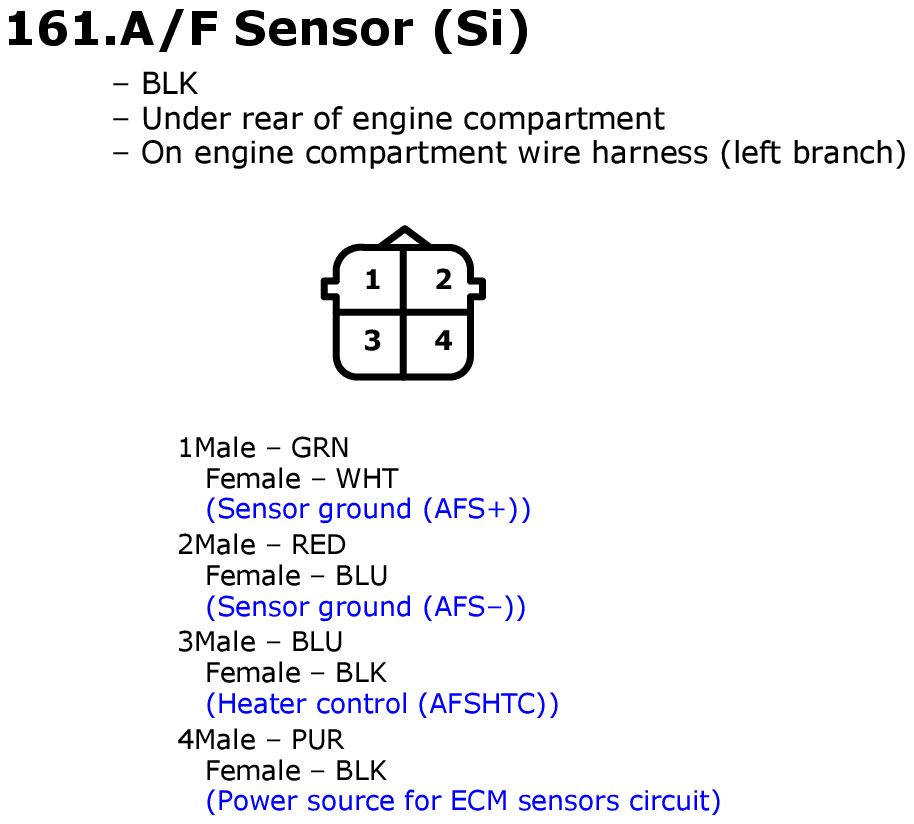

Fig 1: A/F Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

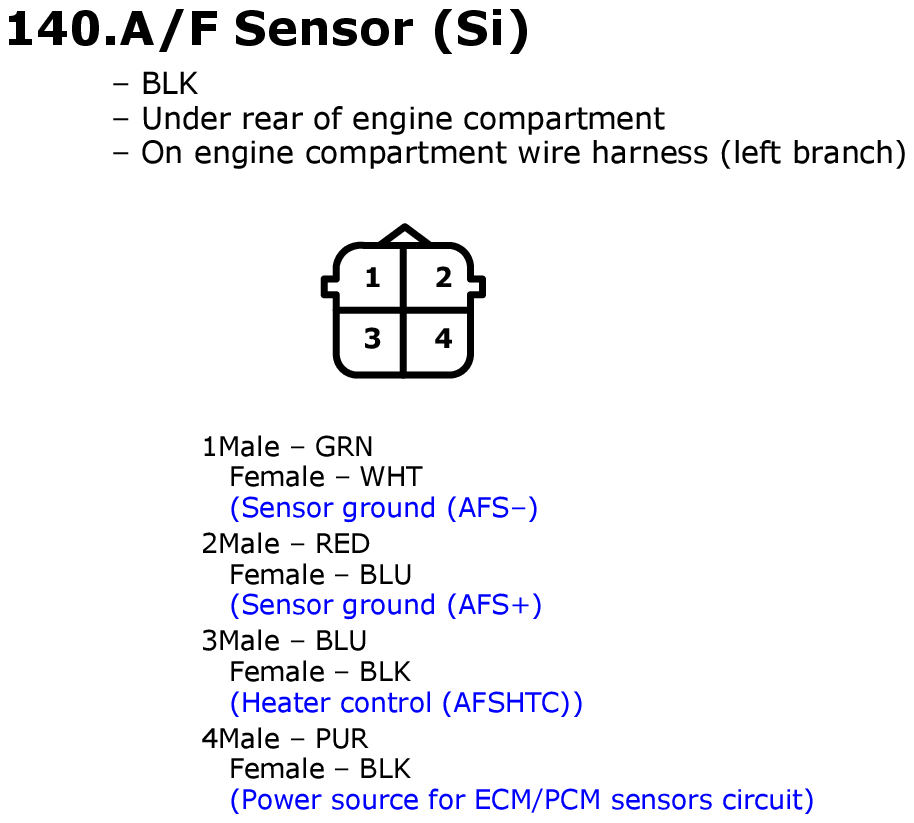

Fig 1: A/F Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: A/F Sensor (Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
