IPU Module Fan Replacement

  1. Remove the right cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the IPU module air duct (see IPU MODULE FAN REPLACEMENT  ).
  3. Disconnect the IPU module fan connector (A).

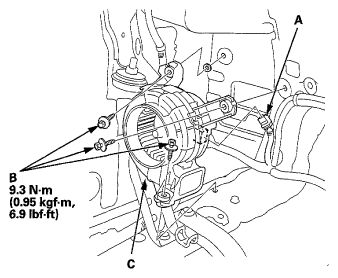

    Fig 1: IPU Module Fan Connector, IPU Module Fan And Bolts With Torque Specifications
    G06950550Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (B) and the IPU module fan (C).
  5. Remove the screws (A) and the IPU module fan (B).

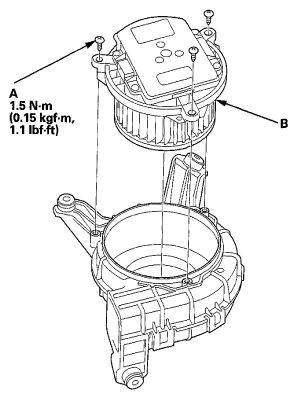

    Fig 2: IPU Module Fan And Screws With Torque Specifications
    G06950551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the parts in the reverse order of removal.
