Transmission Disassembly

WARNING: This page is about a different variant/trim than selected.

Special Tools Required

  1. Remove the CVTF pan (A) (eighteen bolts), the two dowel pins (B), and the gasket (C).

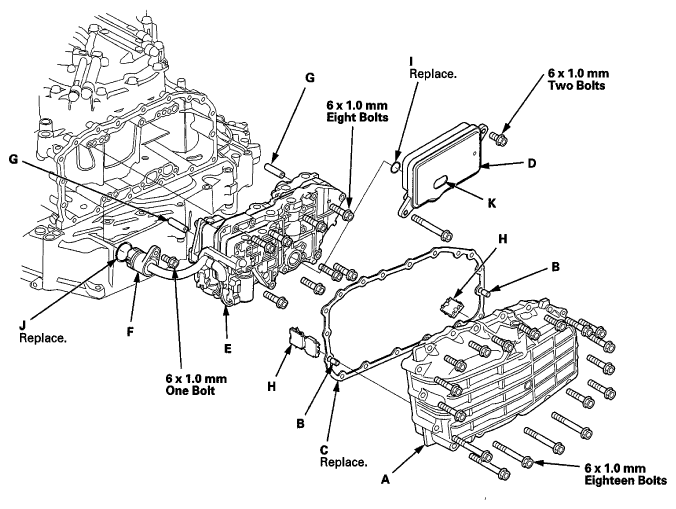

    Fig 1: Locating CVTF Pan, Bolts, Dowel Pins And Gasket Components
    G06951187Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the CVTF strainer (D) (two bolts).
  3. Remove the eight bolts securing the lower valve body (E), and hold the lower valve body.
  4. Remove the bolt securing the solenoid wire harness 7P connector F, then remove the lower valve body, the two CVTF pipes (G), and the solenoid wire harness 7P connector from the transmission housing.
  5. Remove the CVTF magnets (H), and clean and reinstall them in the CVTF pan.
  6. Remove the O-ring (I) from the CVTF strainer, and remove the O-ring (J) from the solenoid wire harness 7P connector.
  7. Clean the inlet opening (K) of the CVTF strainer thoroughly with compressed air, then check that it is in good condition and that the inlet opening is not clogged.
  8. Test the CVTF strainer by pouring clean CVTF through the inlet opening, and replace it if it is clogged or damaged.
  9. Turn the transmission end cover down.
  10. Remove the flywheel housing (A) (nineteen bolts), the three dowel pins (B), and the gasket (C).

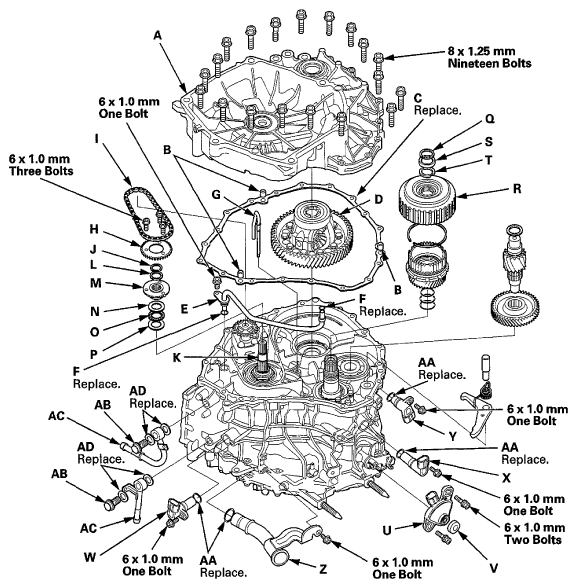

    Fig 2: Locating Flywheel Housing, Bolts, Dowel Pins And Gasket
    G06951188Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the differential assembly (D).
  12. Remove the CVTF passage pipe (E) (one bolt), the O-rings (F), and the lubrication pipe (G).
  13. Remove the three bolts securing the CVTF pump drive sprocket (H), then remove the CVTF pump drive sprocket and the CVTF pump drive chain (I).
  14. Remove the snap ring (J) from the input shaft (K), then remove the thrust shim (L), the CVTF pump drive sprocket hub (M), the thrust washer (N), the thrust needle bearing (0), and the thrust washer (P) from the input shaft.
  15. Remove the snap ring (Q) securing the start clutch (R), then remove the cotter retainer (S) and the cotters (T).
  16. Remove the transmission range switch (U) (two bolts) with the control shaft cover (V).
  17. Remove the CVT input shaft (drive pulley) speed sensor (W), the CVT output shaft (driven pulley) speed sensor (X), the vehicle speed sensor (Y), and the dipstick tube (Z) (each one bolt), and remove the O-rings (AA).
  18. Remove the line bolts (AB) securing the CVTF cooler lines (AC), then remove the CVTF cooler lines and the sealing washers (AD).
  19. Set the start clutch remover on the start clutch (A), and attach the pawl (B) of the start clutch remover to the park gear (C) securely. Do not place the pawl of the start clutch remover on the start clutch guide. If the pawl contacts the start clutch guide, the clutch guide may be damaged. Be sure not to allow dust and other foreign particles to enter the driven pulley shaft.
    Fig 3: Attaching Pawl Of Start Clutch Remover To Park Gear
    G06951189Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Remove the start clutch (A) from the driven pulley shaft.

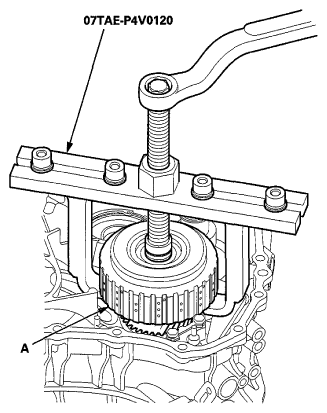

    Fig 4: Removing Start Clutch From Driven Pulley Shaft
    G06951190Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Remove the secondary drive/park gear from the start clutch.
  22. Remove the sealing ring (A) from the secondary drive/park gear (B), check it for rust, dirt, wear, or damage, and clean or replace it if necessary; it will be reinstalled on a new secondary drive/park gear when assembling the transmission.
    NOTE: The secondary drive/park gear must be replaced when disassembling the transmission.
    Fig 5: Locating Sealing Ring And Secondary Drive/Park Gear
    G06951191Courtesy of AMERICAN HONDA MOTOR CO., INC.
  23. Remove the park pawl shaft (A), and remove the park pawl spring (B) and the park pawl (C).
    Fig 6: Locating Park Pawl Shaft, Park Pawl Spring And Park Pawl
    G06951192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Remove the thrust shim (D) and the final drive shaft (E), then remove the secondary driven gear (F).
  25. Turn the transmission upside down, and set it on a workbench to prevent damaging to the input shaft and the driven pulley shaft.
  26. Remove the end cover (A) (sixteen bolts), the two dowel pins (B), and the gasket (C).

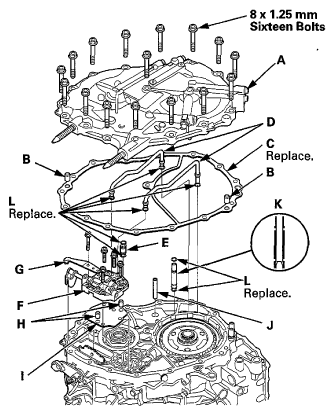

    Fig 7: Locating End Cover, Bolts, Dowel Pins And Gasket Components
    G06951193Courtesy of AMERICAN HONDA MOTOR CO., INC.
  27. Remove the two CVTF feed pipes (D).
  28. Remove the 10.9 x 18.6 mm CVTF feed pipe (E) from the manual valve body (F).
  29. Remove the manual valve body (five bolts), the detent spring (G), the two dowel pins (H), and the separator plate (I).
  30. Remove the 8 mm CVTF pipe (J) and the 10.9 x 56 mm CVTF feed pipe (K).
  31. Remove the O-rings (L) of the CVTF feed pipes.
  32. Remove the planetary carrier/input shaft assembly (A), then remove the ring gear (B).

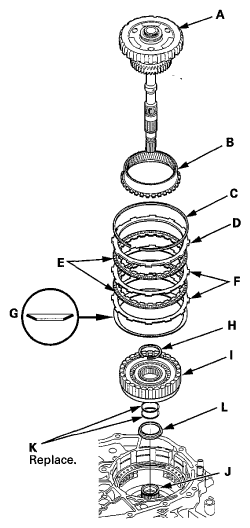

    Fig 8: Locating Planetary Carrier/Input Shaft Assembly And Ring Gear Components
    G06951194Courtesy of AMERICAN HONDA MOTOR CO., INC.
  33. Remove the reverse brake snap ring (C), then remove the reverse brake end-plate (D), the two brake discs (E), the two brake plates (F), and the disc spring (G).
  34. Remove the snap ring (H) securing the forward clutch (I) to the drive pulley shaft (J), then remove the forward clutch, the two O-rings (K), and the snap ring retainer (L) from the drive pulley shaft.
  35. Install the reverse brake spring compressor to remove the snap ring securing the reverse brake return spring retainer.

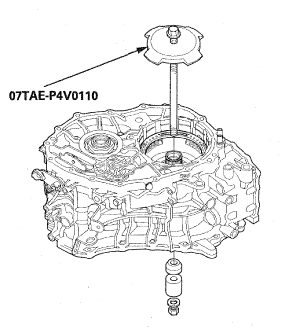

    Fig 9: Removing Snap Ring Securing Reverse Brake Return Spring Retainer
    G06951195Courtesy of AMERICAN HONDA MOTOR CO., INC.
  36. Compress the return spring using the reverse brake spring compressor. Be sure the reverse brake spring compressor is set over the reverse brake return springs.
    Fig 10: Compressing Return Spring Using Reverse Brake Spring Compressor
    G06951196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  37. Remove the snap ring (A) while compressing the return spring.

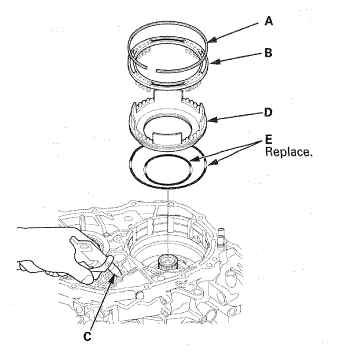

    Fig 11: Removing Snap Ring While Compressing Return Spring
    G06951197Courtesy of AMERICAN HONDA MOTOR CO., INC.
  38. Remove the reverse brake spring compressor, then remove the spring retainer/return spring assembly (B).
  39. Apply air pressure to reverse brake pressure circuit hole (C) to remove the reverse brake piston (D), then remove the O-rings (E) from the reverse brake piston.
  40. Remove the roller (A).

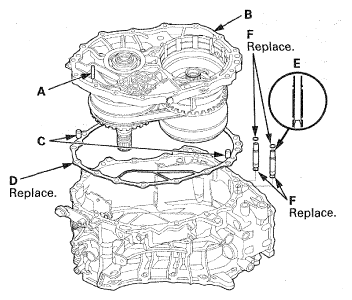

    Fig 12: Locating Roller, Intermediate Housing, Dowel Pins And Gasket Components
    G06951198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  41. Remove the intermediate housing (B), the two dowel pins (C), and the gasket (D).
  42. Remove the two 10.9 x 56 mm CVTF feed pipes (E) and the O-rings (F).
