Passenger's Power Window Motor Test

Remove the door panel.
- Front door (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
- Rear door (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the power window motor.

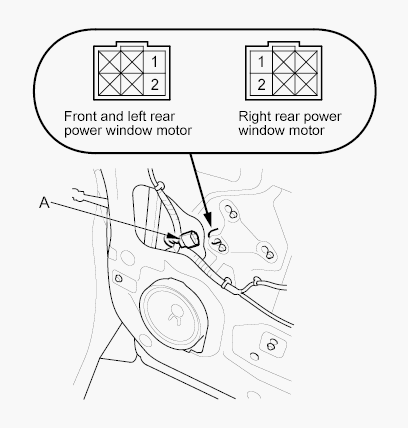

Fig 1: Identifying Power Window Motor 6P Connector (A) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

Fig 2: Terminal Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace the passenger's door regulator.
- Front door regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT )
- Rear door regulator (see REAR DOOR GLASS AND REGULATOR REPLACEMENT )
