PCM A/T Control System Electrical Connections
PCM A/T Control System Electrical Connections

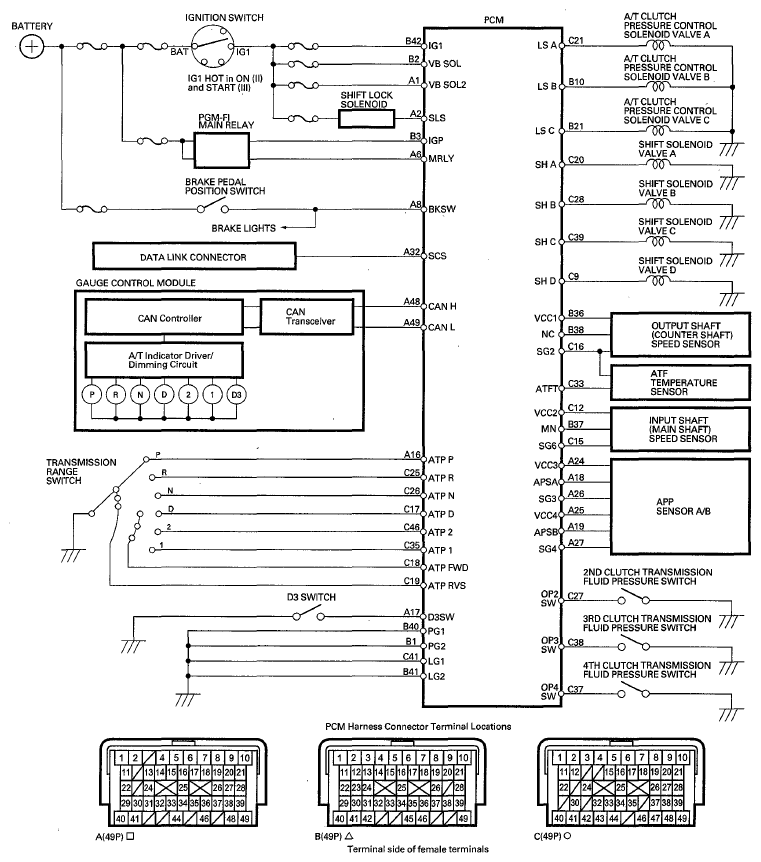

Fig 1: Identifying PCM A/T Control System Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
