Pilot Touring, 3.5 4
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Engine Block
>>
Component Location Index
Component Location Index

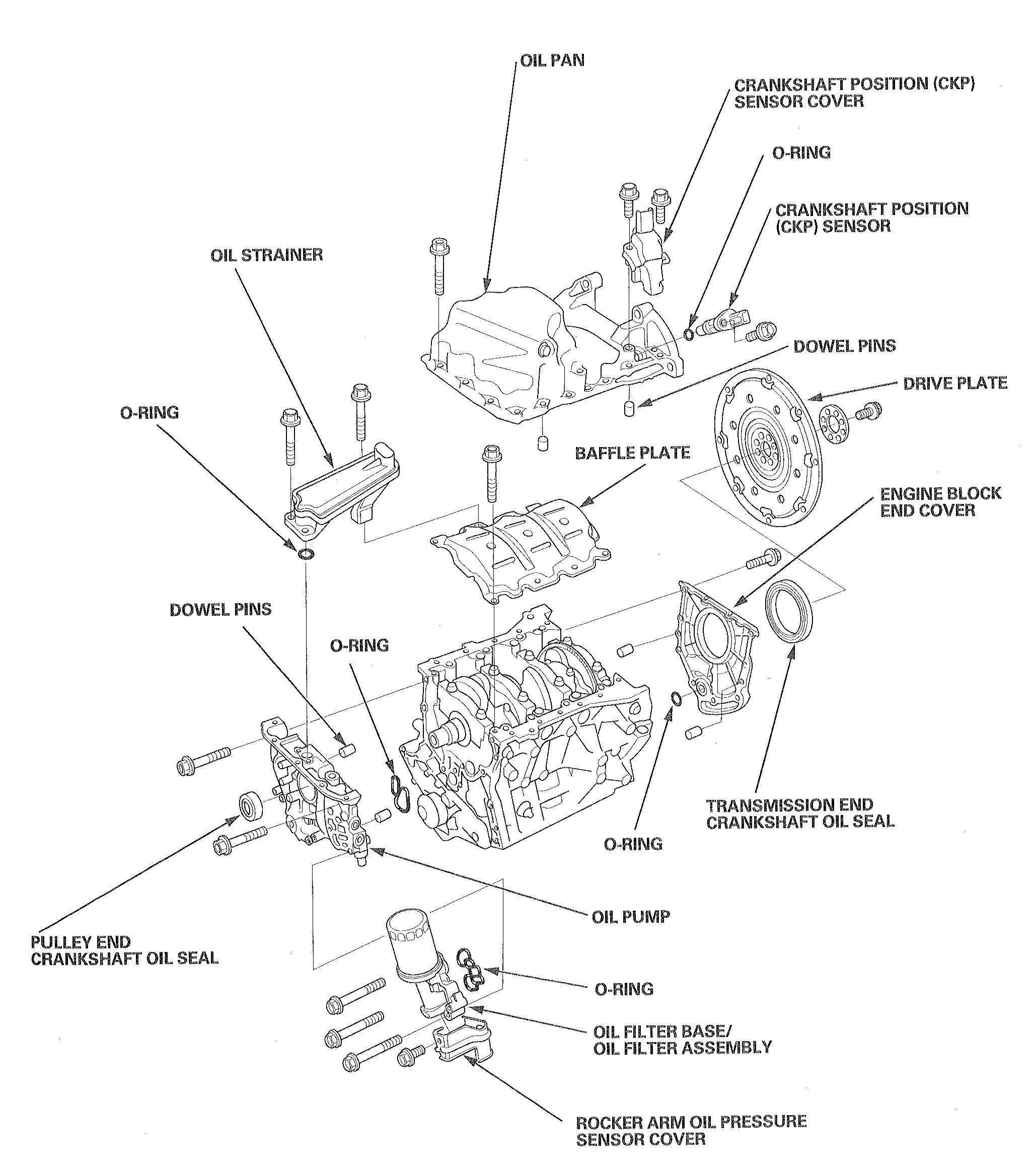

Fig 1: Identifying Engine Block Replacement Components Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

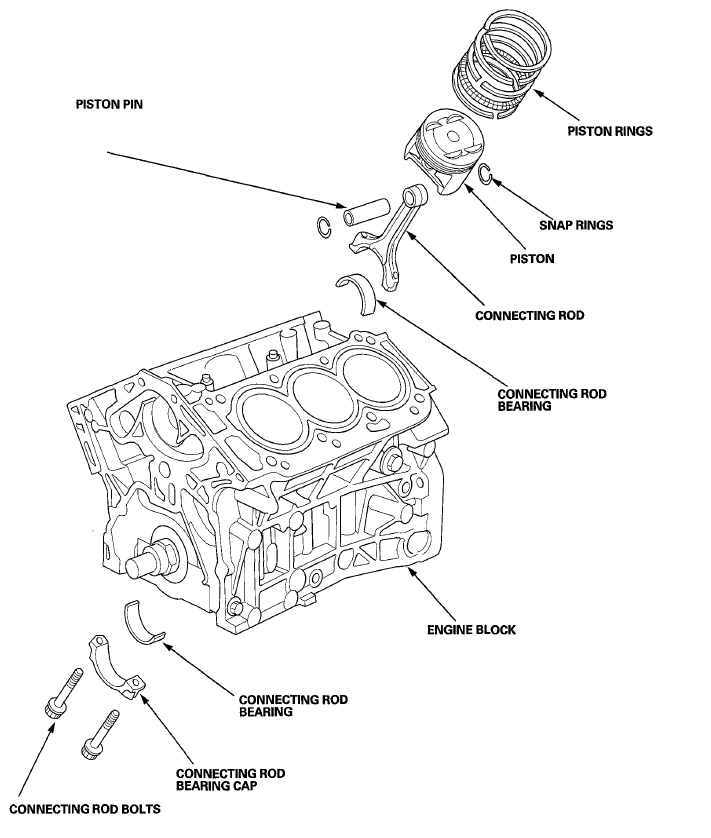

Fig 2: Identifying Engine Block Replacement Components Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

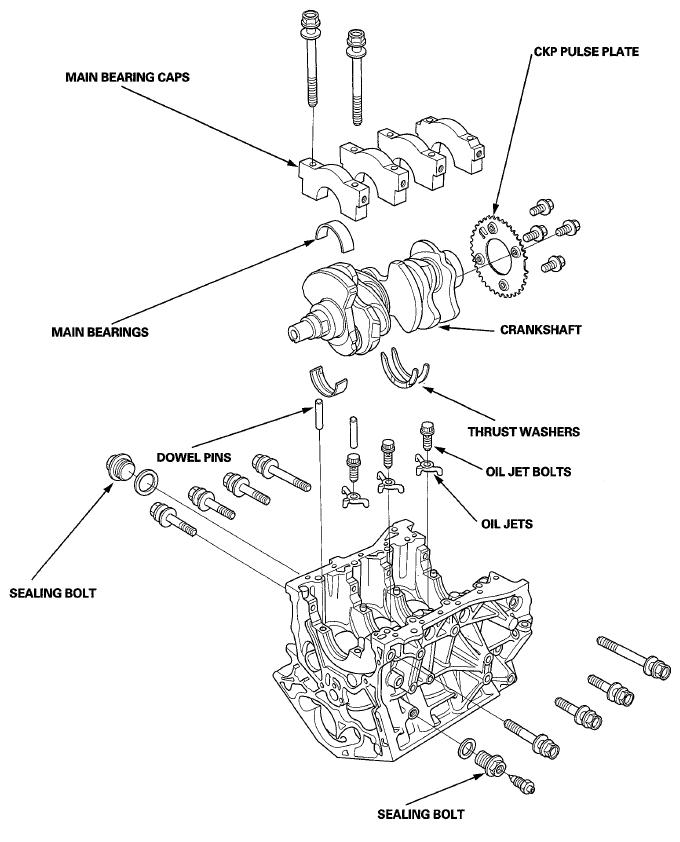

Fig 3: Identifying Engine Block Replacement Components (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
