Engine Mount Replacement

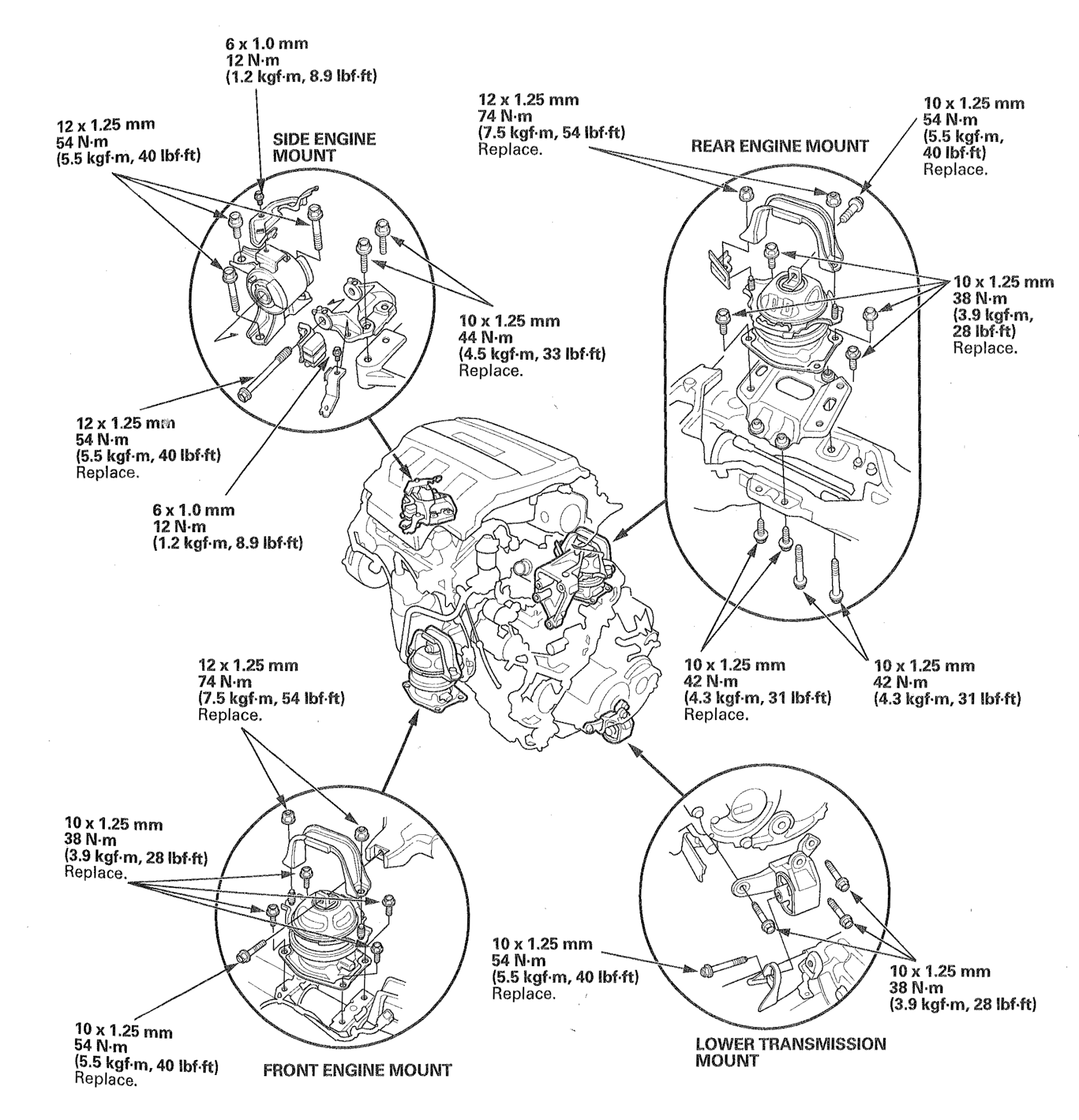

Fig 1: Identifying Engine Mount Replacement Components With Torque Specifications

G00509895

Courtesy of AMERICAN HONDA MOTOR CO., INC.
