Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Lighting Control Unit | Under left side of dash. See Figure. |
| ELD Unit (24) | In underhood fuse/relay box. See Figure. |

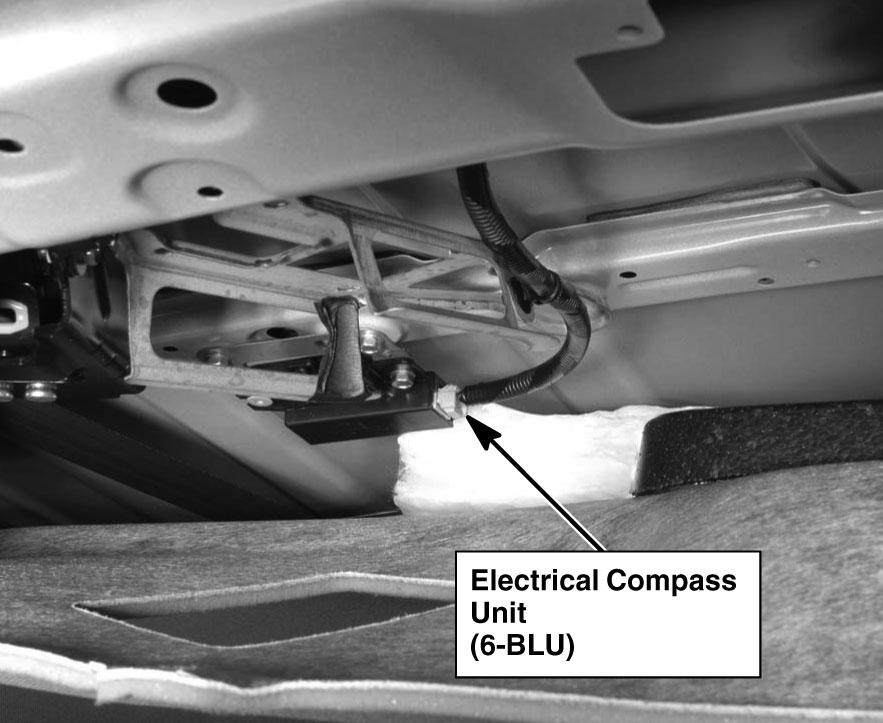

| Electrical Compass Unit | Center rear of roof. See Figure. |

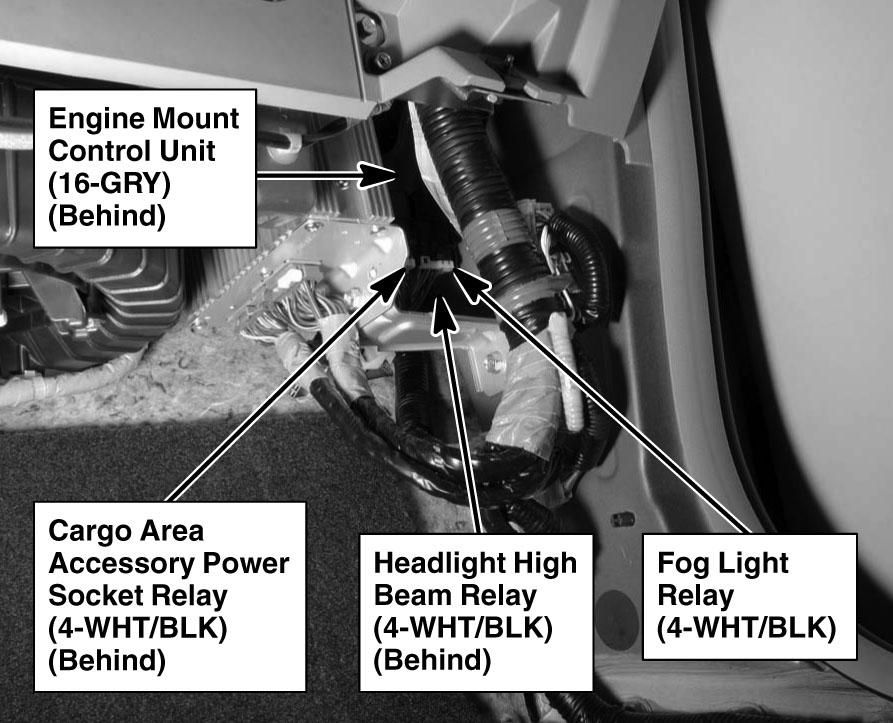

| Engine Mount Control Unit | Behind right kick panel. See Figure. |

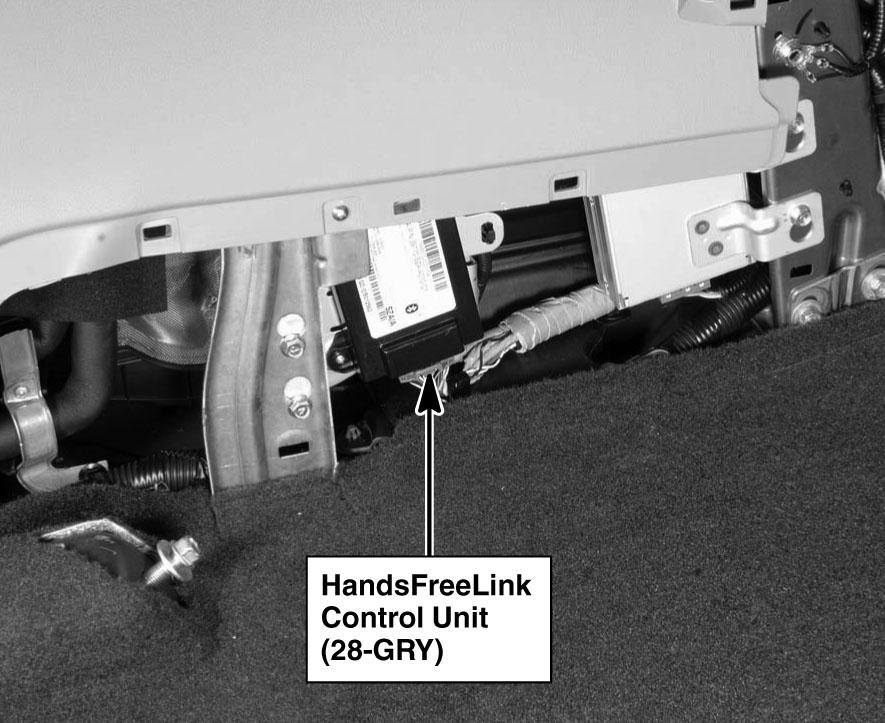

| HandsFreeLink Control Unit | Under center console. See Figure. |

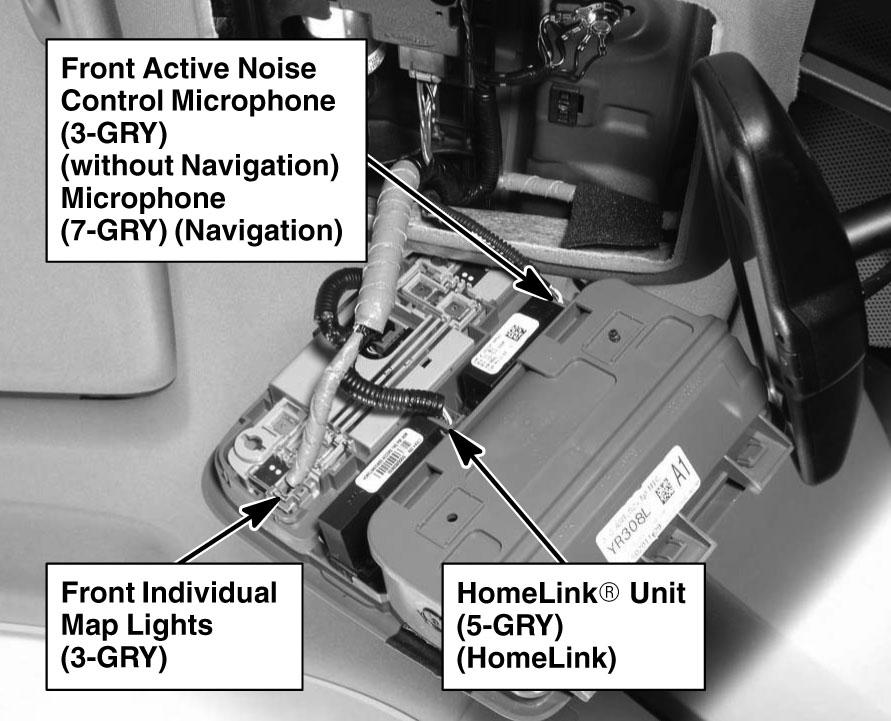

| HomeLink Unit | In front roof console. See Figure. |

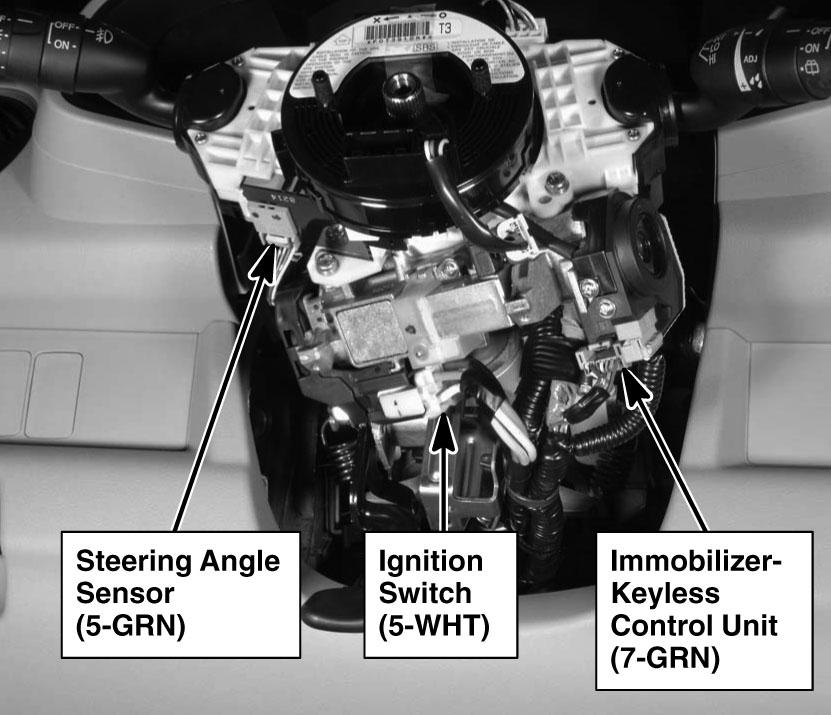

| Immobilizer-Keyless Control Unit | In steering column. See Figure. |

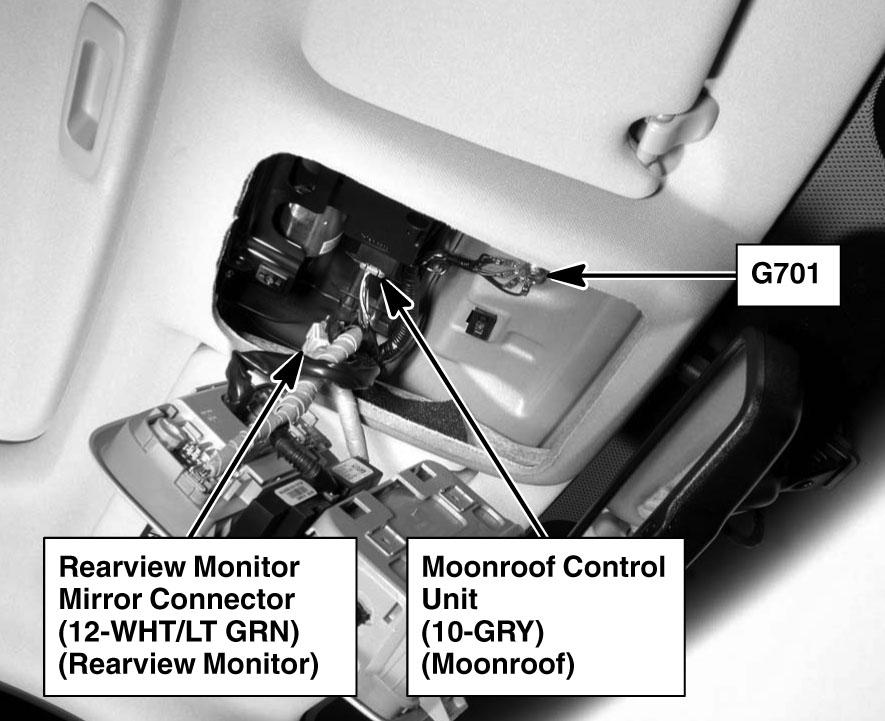

| Moonroof Control Unit | In front roof console. See Figure. |

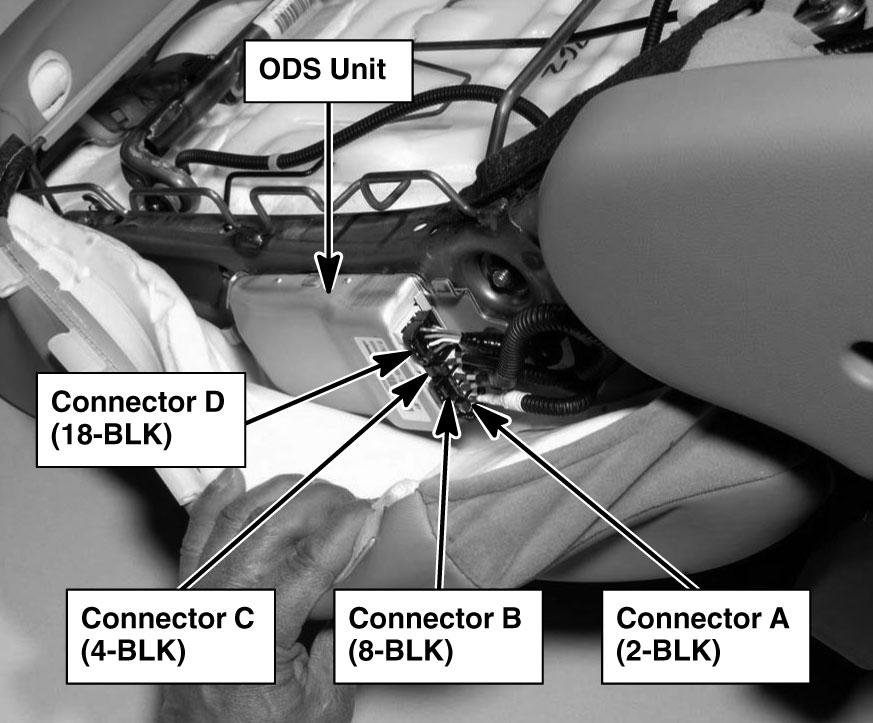

| ODS Unit | Left side of front passenger's seat. See Figure. |

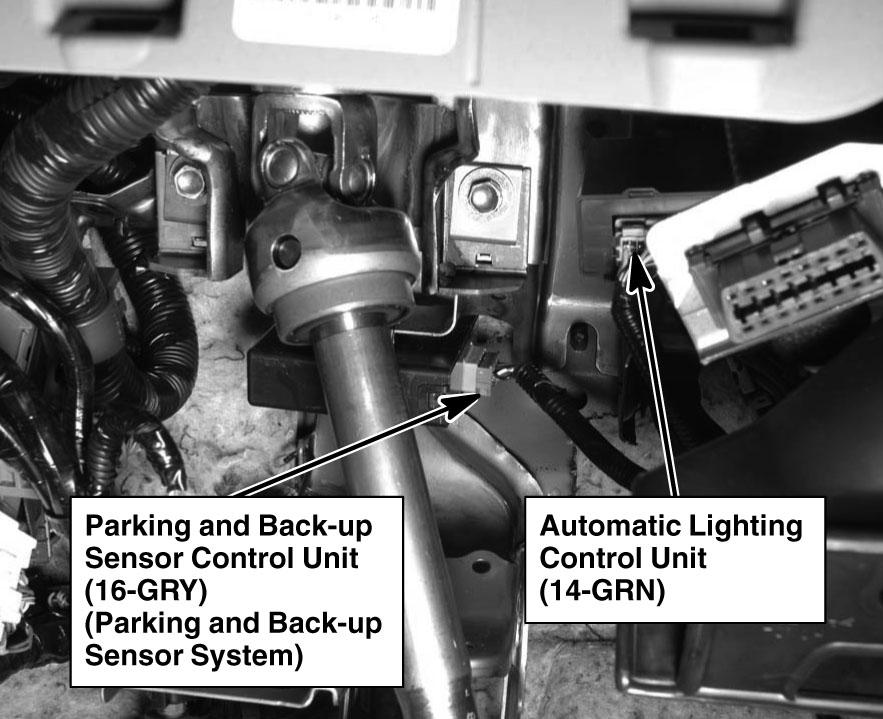

| Parking & Back-Up Sensor Control Unit | Under left side of dash. See Figure. |

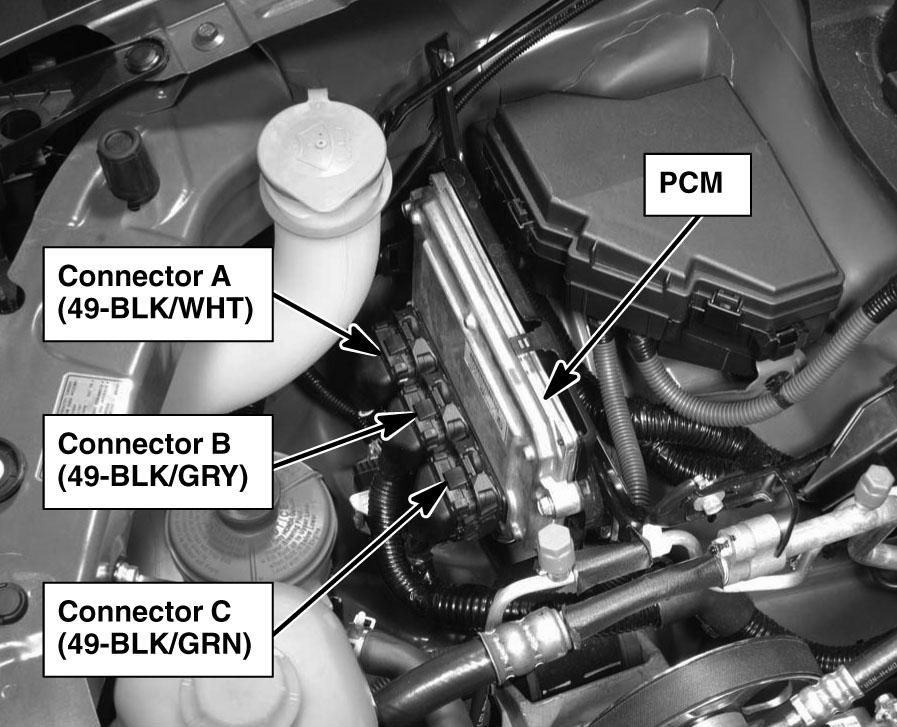

| PCM | Right side of engine compartment. See Figure. |

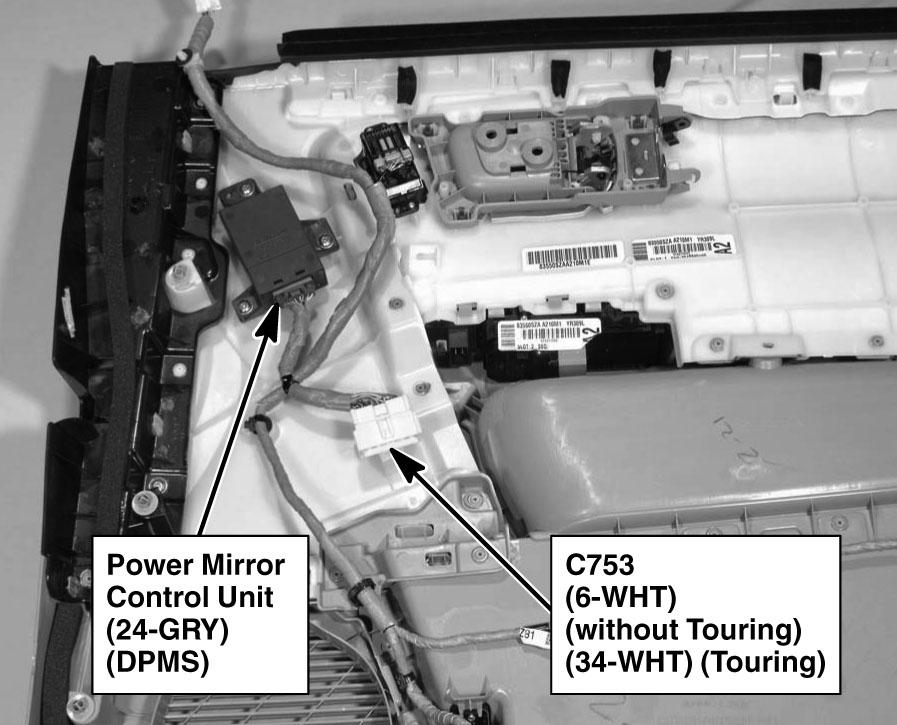

| Power Mirror Control Unit | In driver's door. See Figure. |

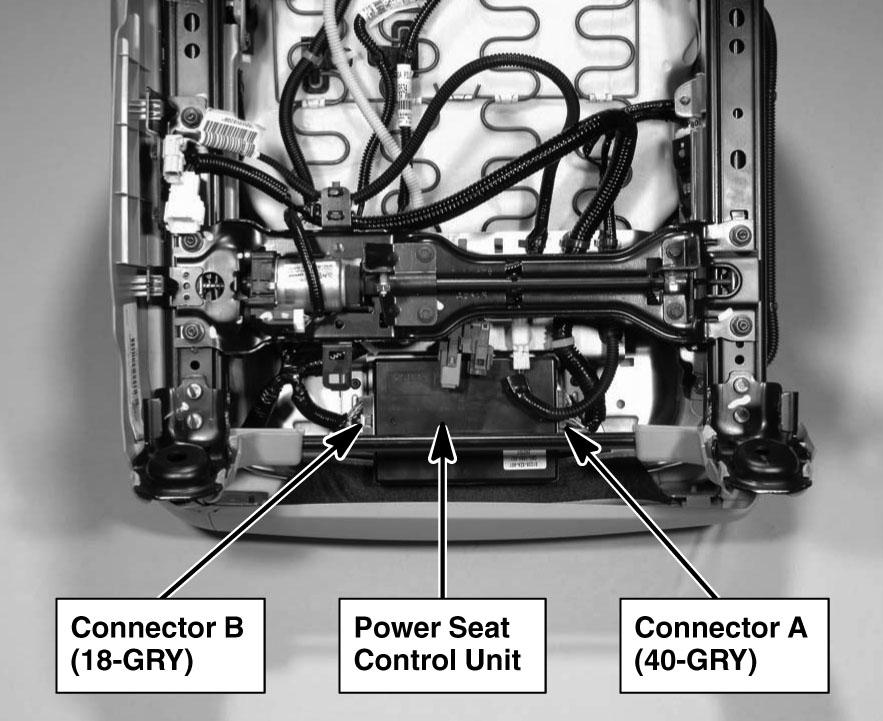

| Power Seat Control Unit | Under driver's seat. See Figure. |

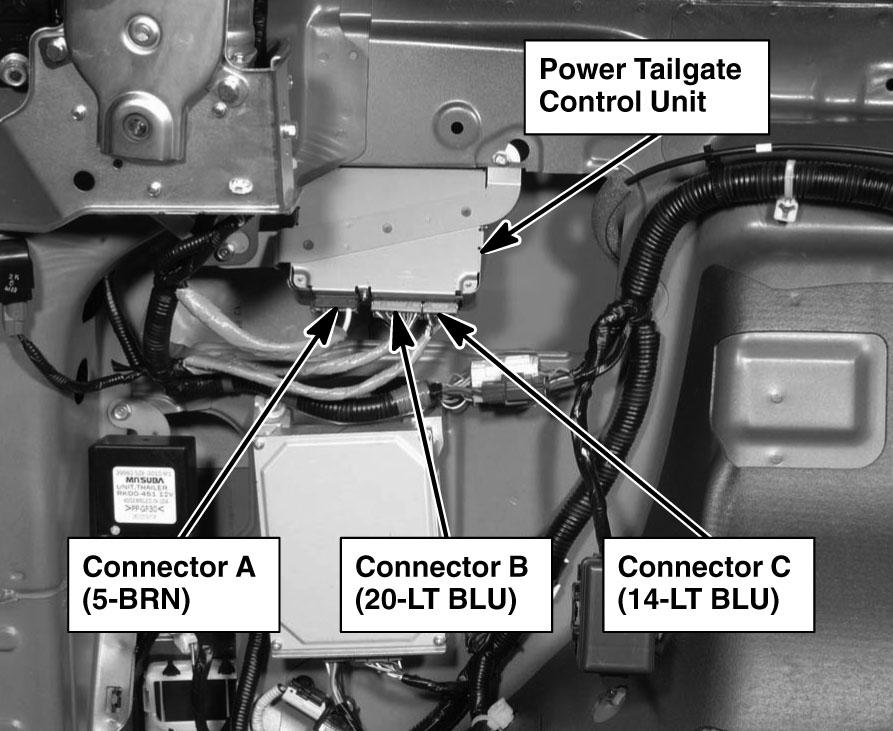

| Power Tailgate Control Unit | Left side of cargo area. See Figure. |

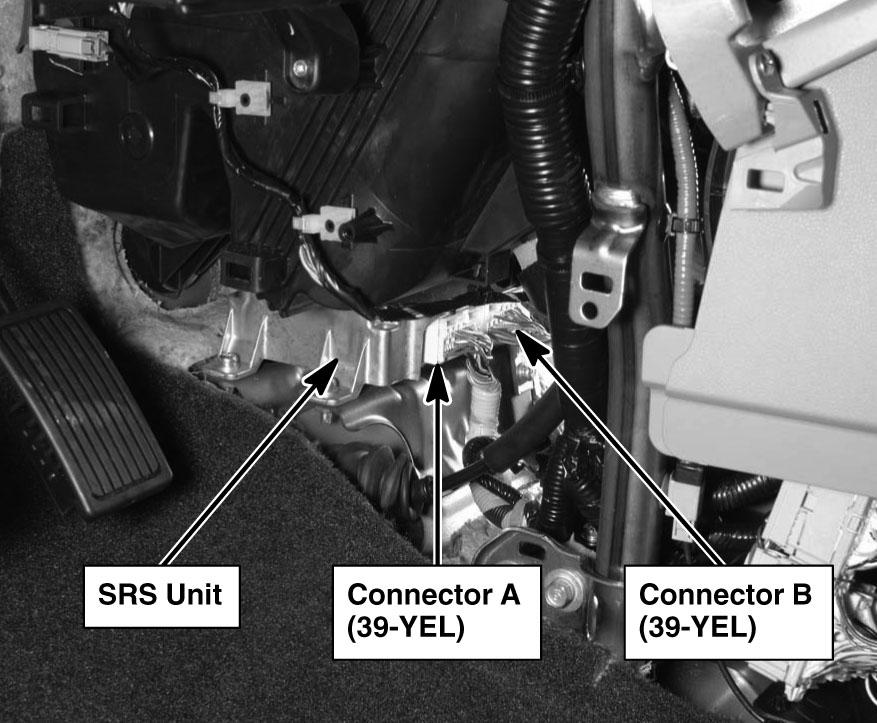

| SRS Unit | Under middle of dash. See Figure. |

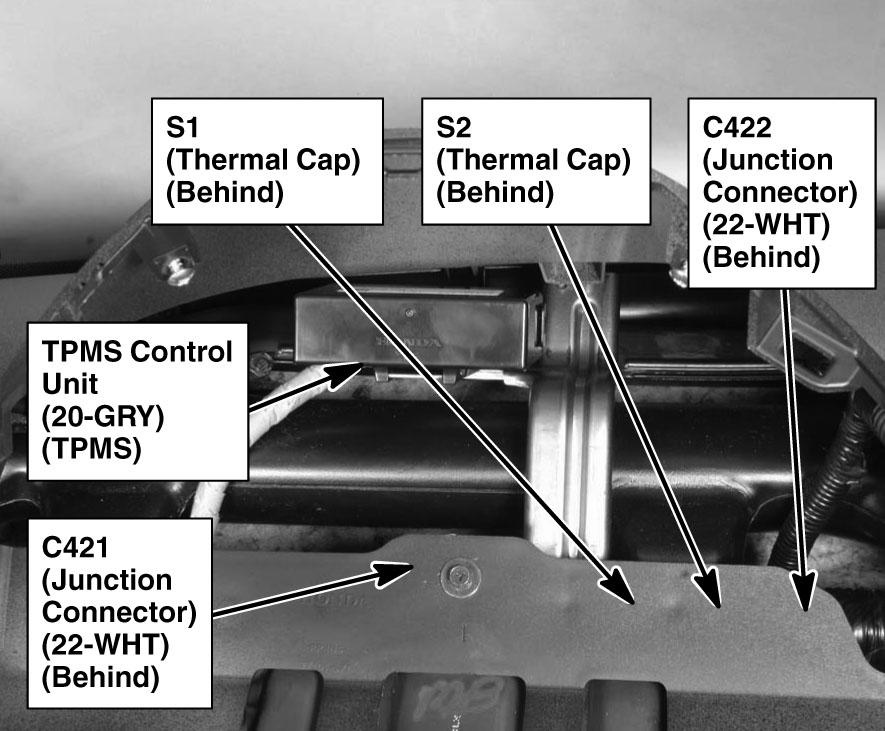

| TPMS Control Unit | Under left side of dash. See Figure. |

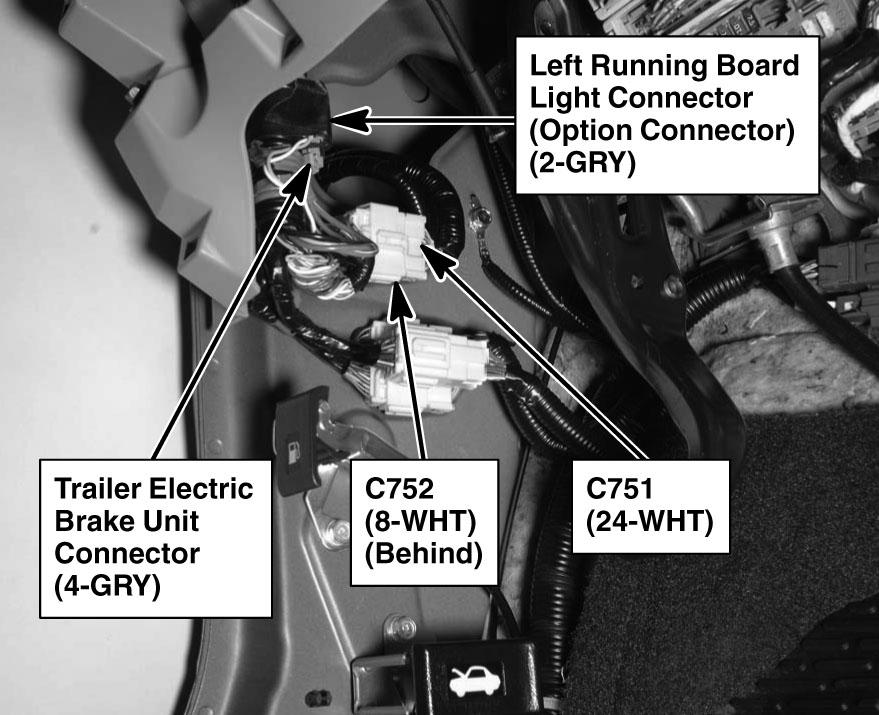

| Trailer Electric Brake Unit Connector | Under left side of dash. See Figure. |

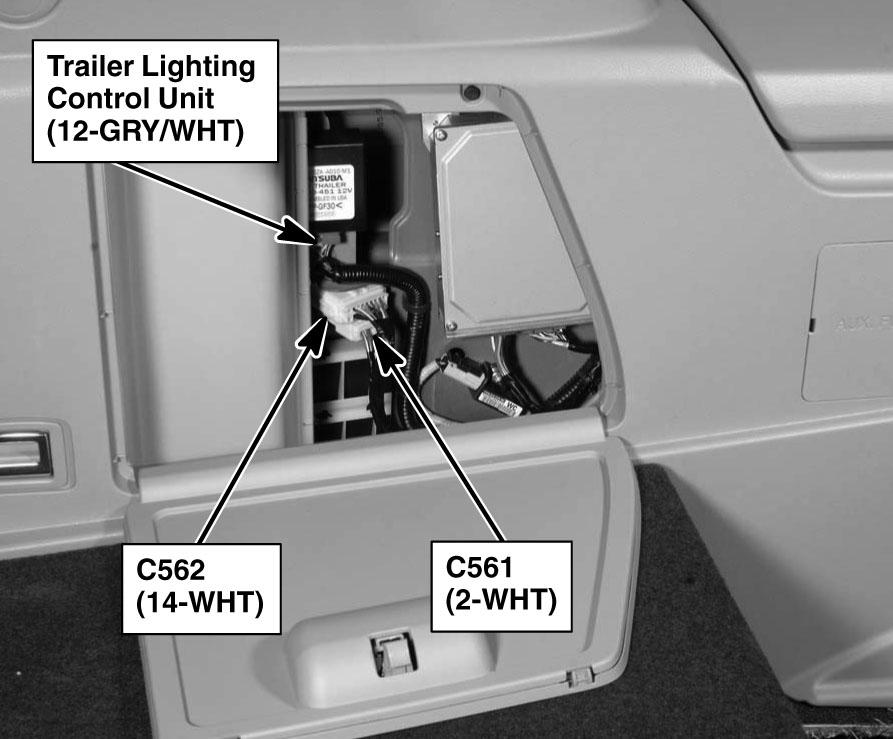

| Trailer Lighting Control Unit | Left side of cargo area. See Figure. |

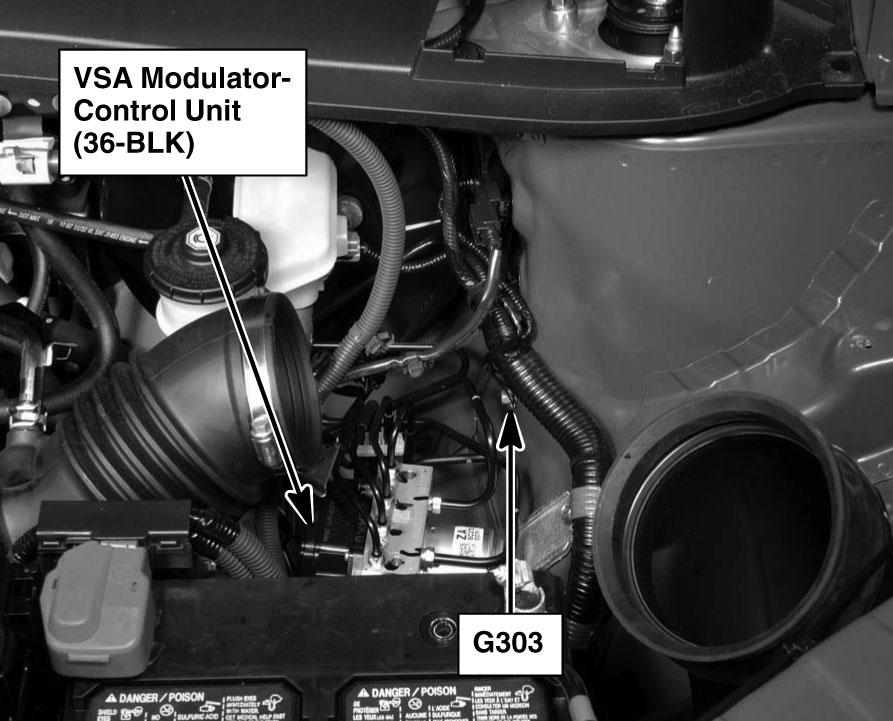

| VSA Modulator Control Unit | Left side of engine compartment. See Figure. |

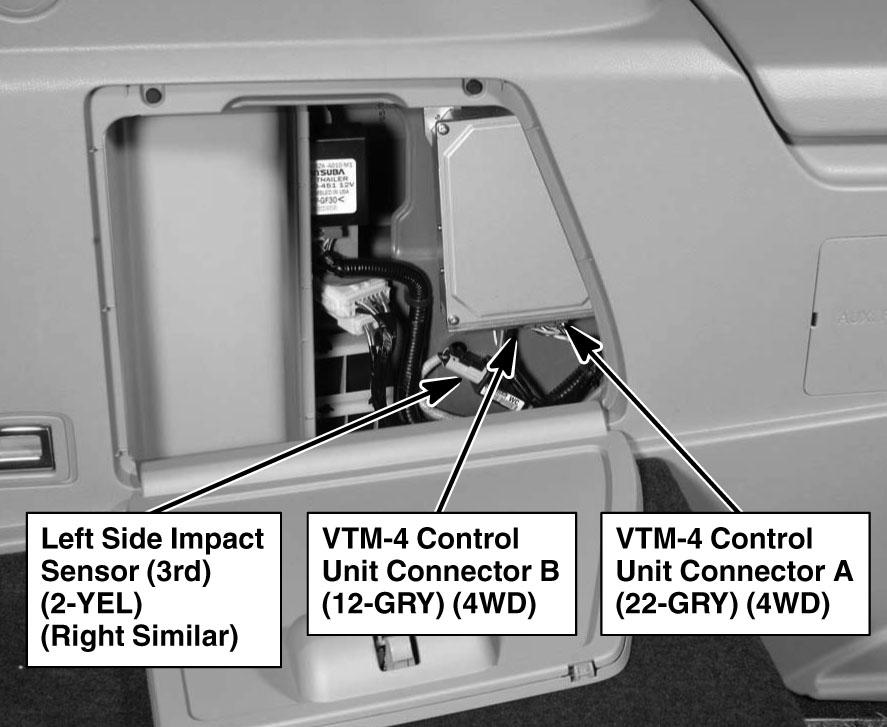

| VTM-4 Control Unit | Left side of cargo area. See Figure. |
