Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

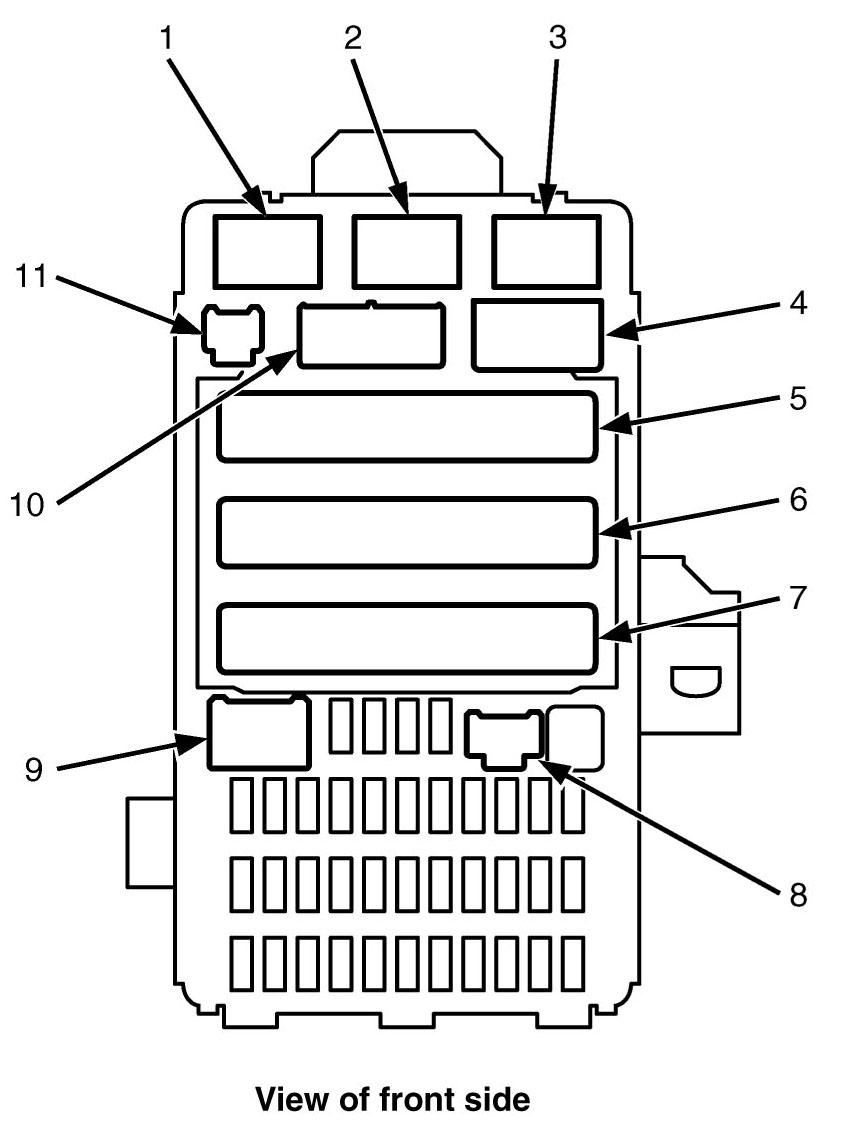

Fig 1: Under-Dash Fuse/Relay Box

G00473055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Under-Hood Fuse/Relay Box

G00473056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

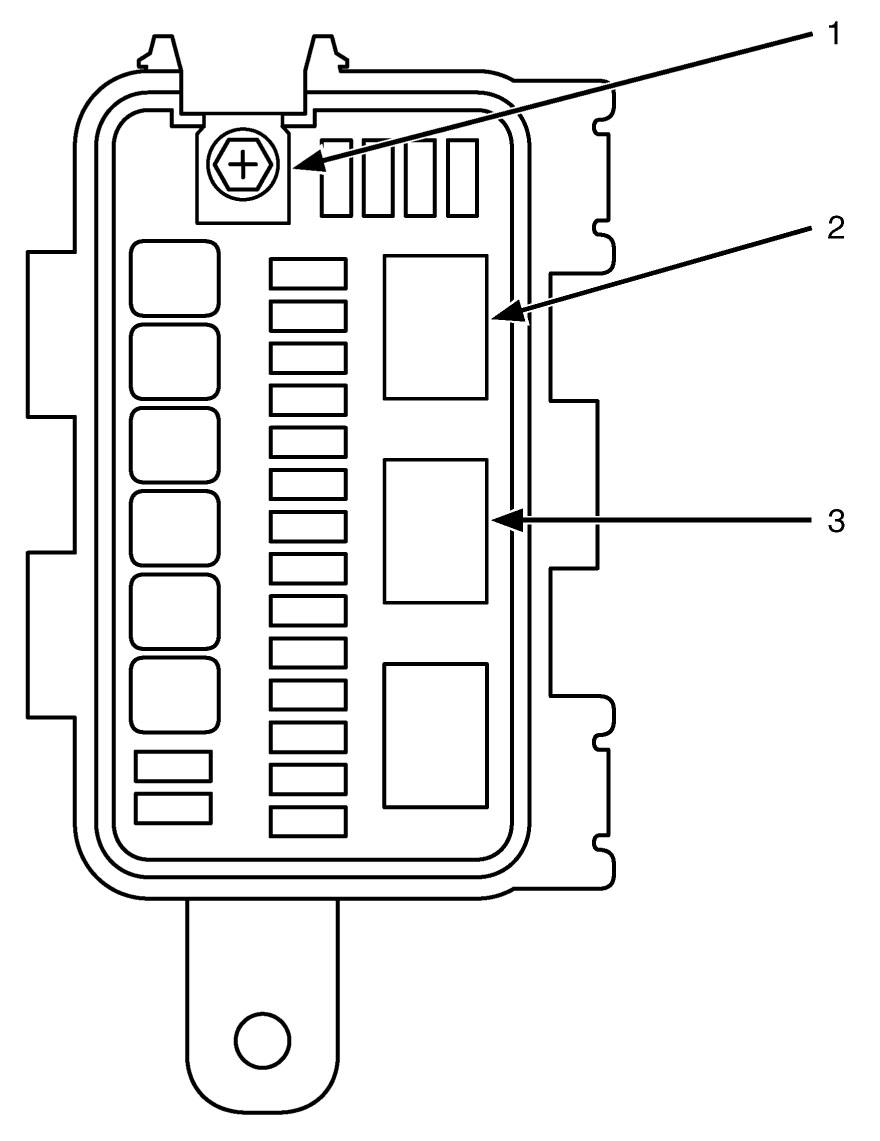

Fig 3: Auxiliary Under-Hood Fuse/Relay Box

G00473057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

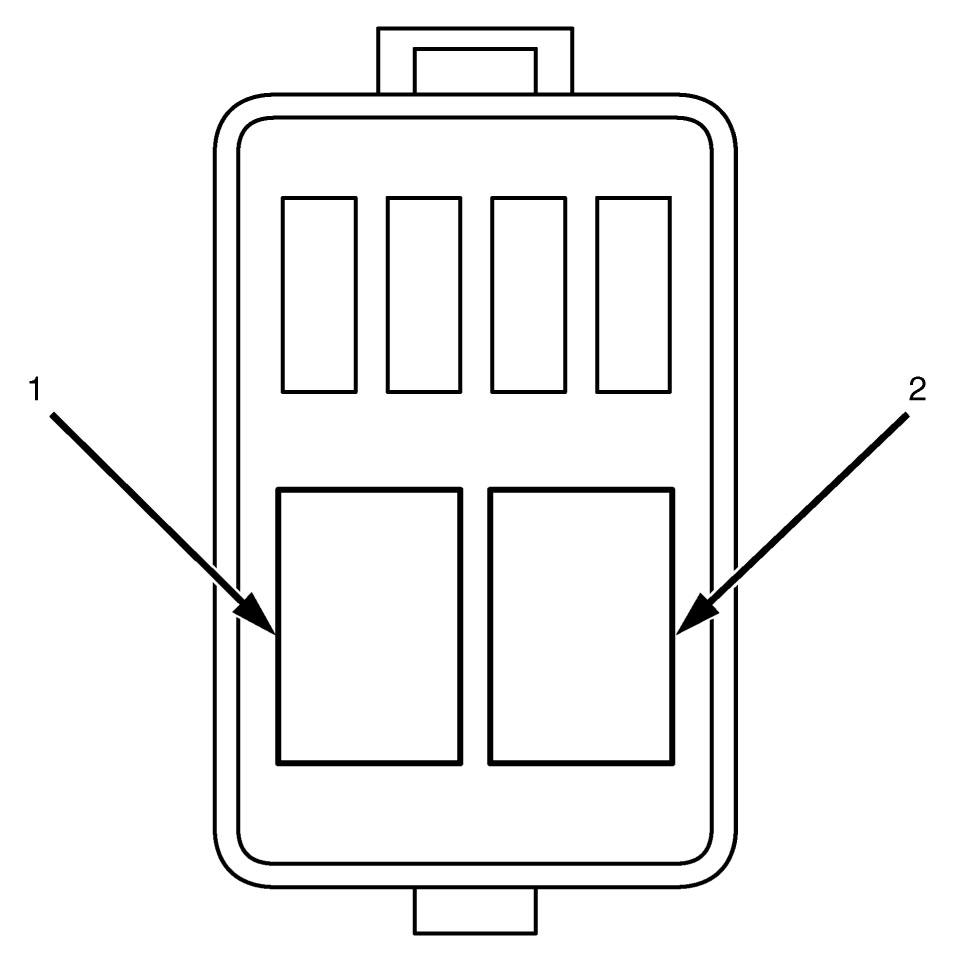

Fig 4: Rear Fuse/Relay Box

G00473058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

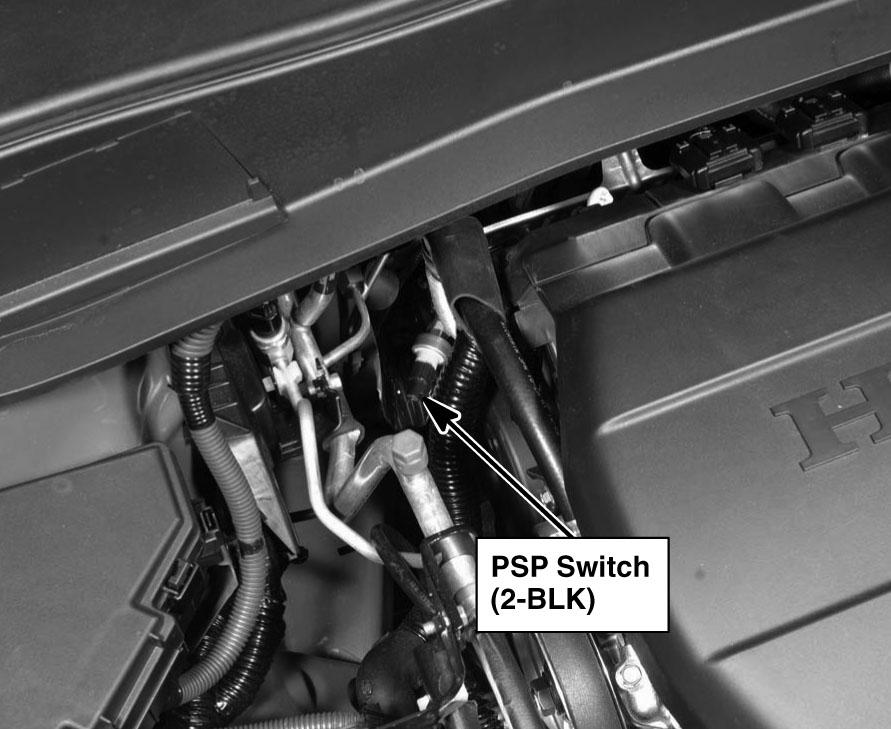

Fig 5: Right Rear Of Engine Compartment

G00473059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

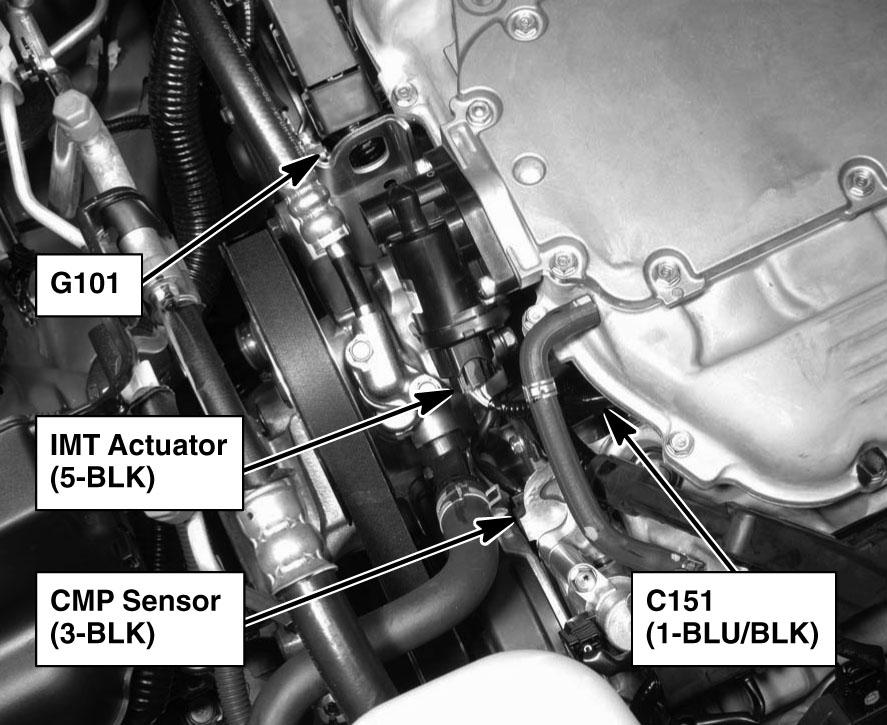

Fig 6: Front Of Engine

G00473060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

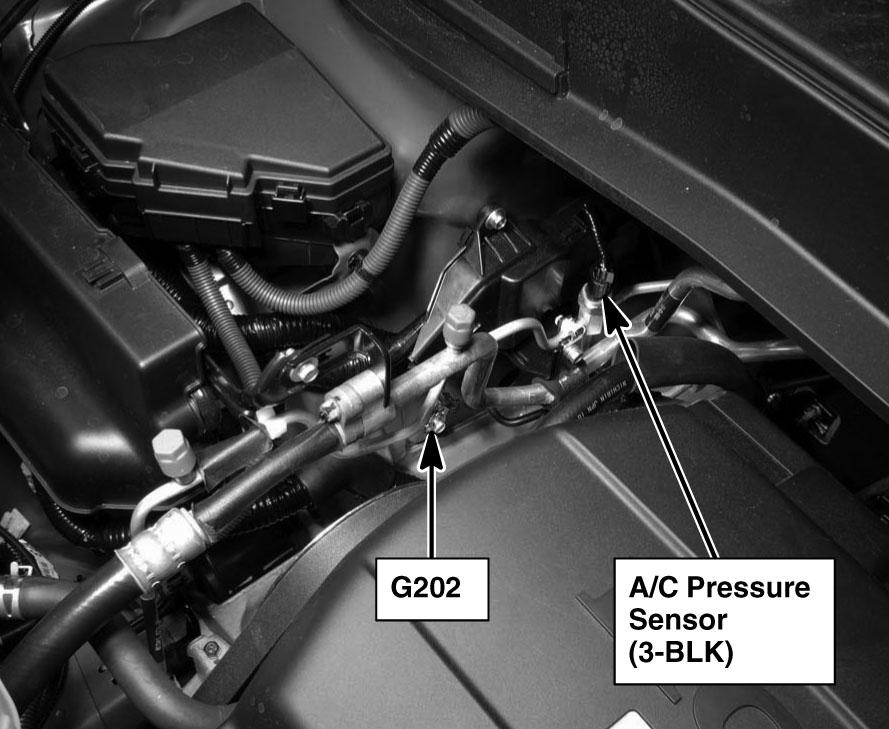

Fig 7: Right Side Of Engine Compartment

G00473061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

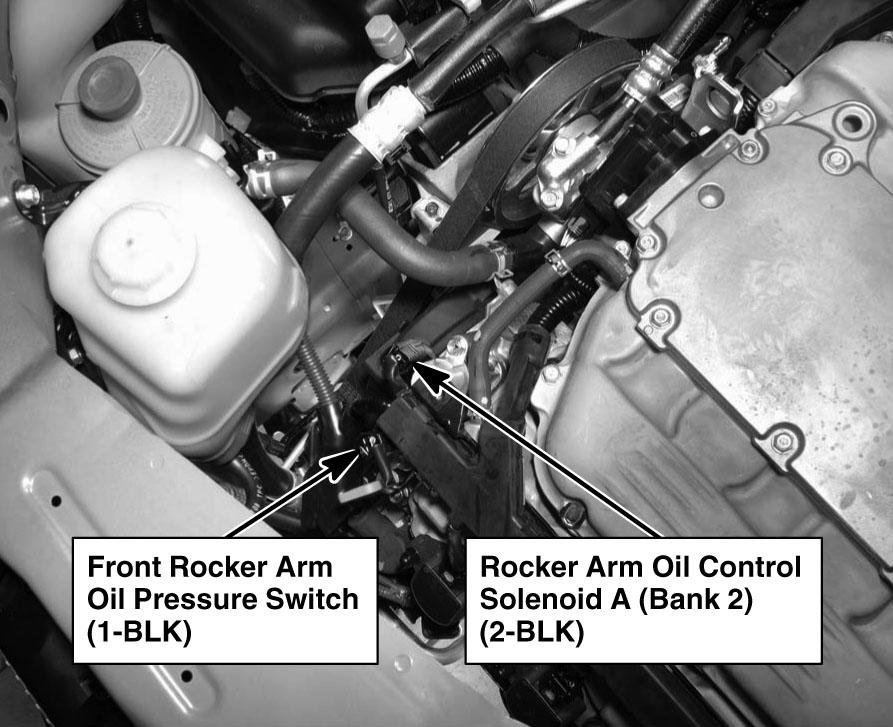

Fig 8: Front Of Engine

G00473062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

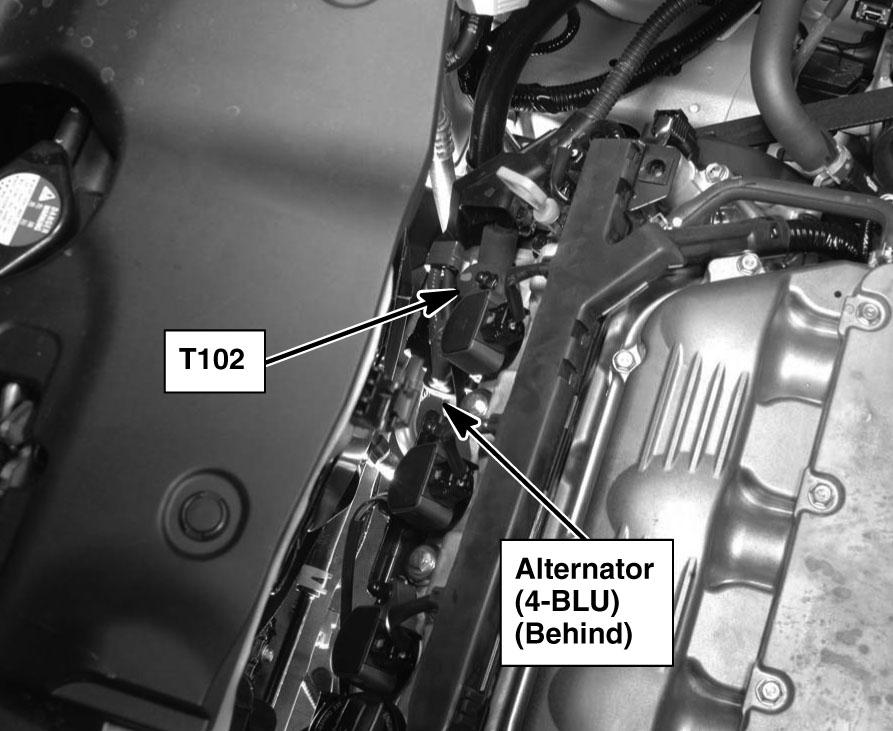

Fig 9: Left Front Of Engine

G00473063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

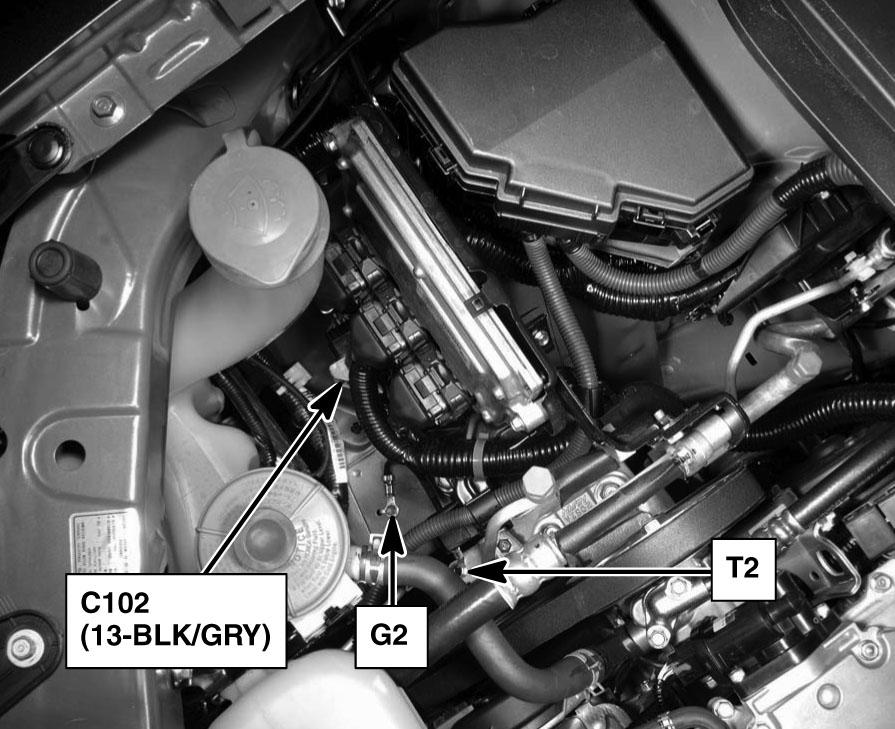

Fig 10: Right Side Of Engine Compartment

G00473064

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Right Side Of Engine Compartment

G00473065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

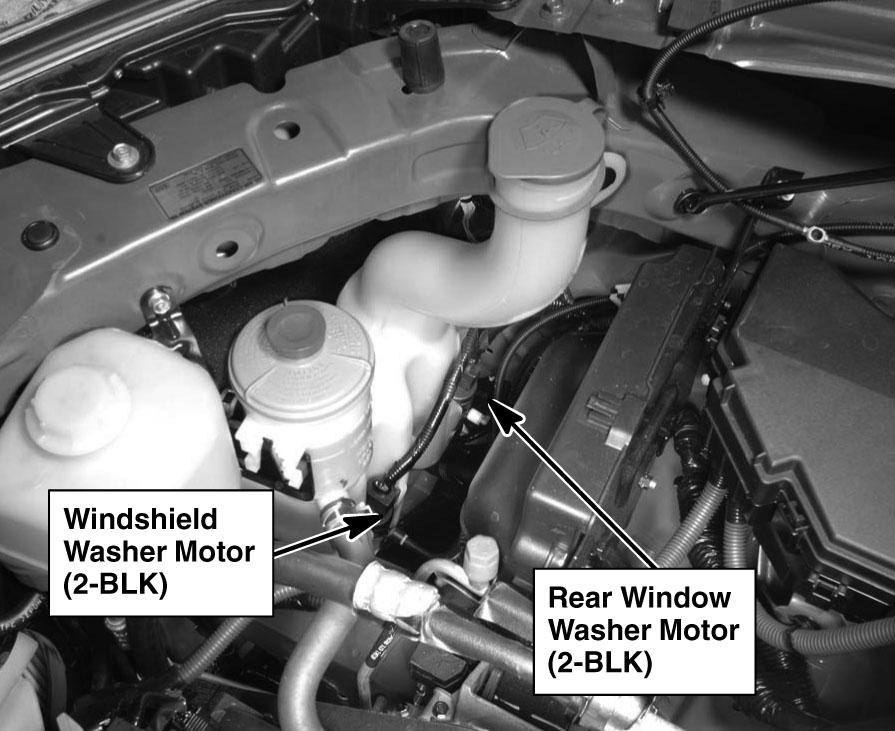

Fig 12: Right Side Of Engine Compartment

G00473066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Right Side Of Engine Compartment

G00473067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

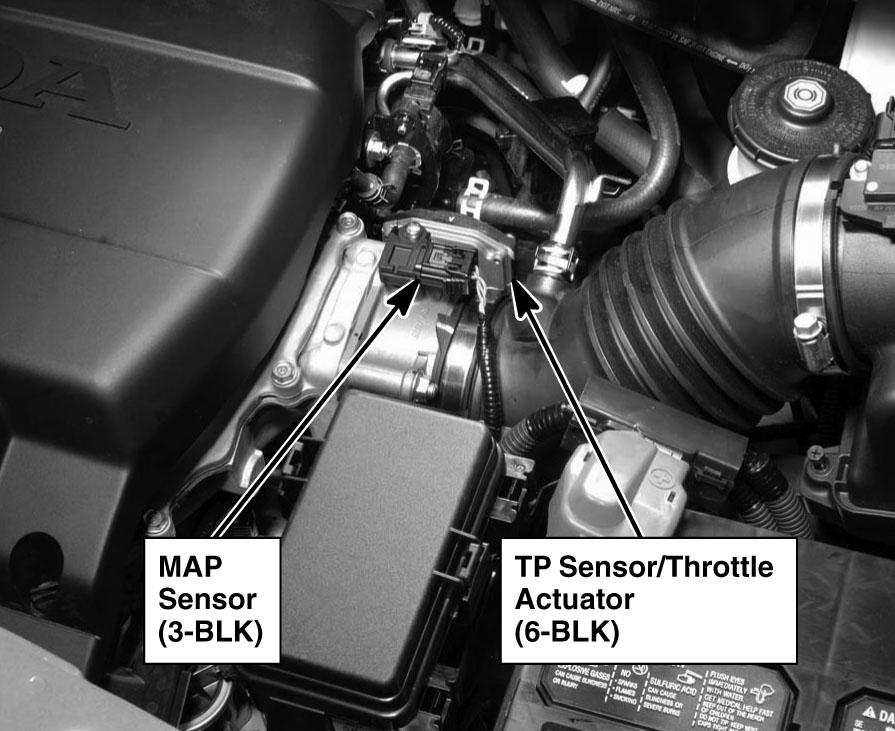

Fig 14: Rear Of Engine

G00473068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

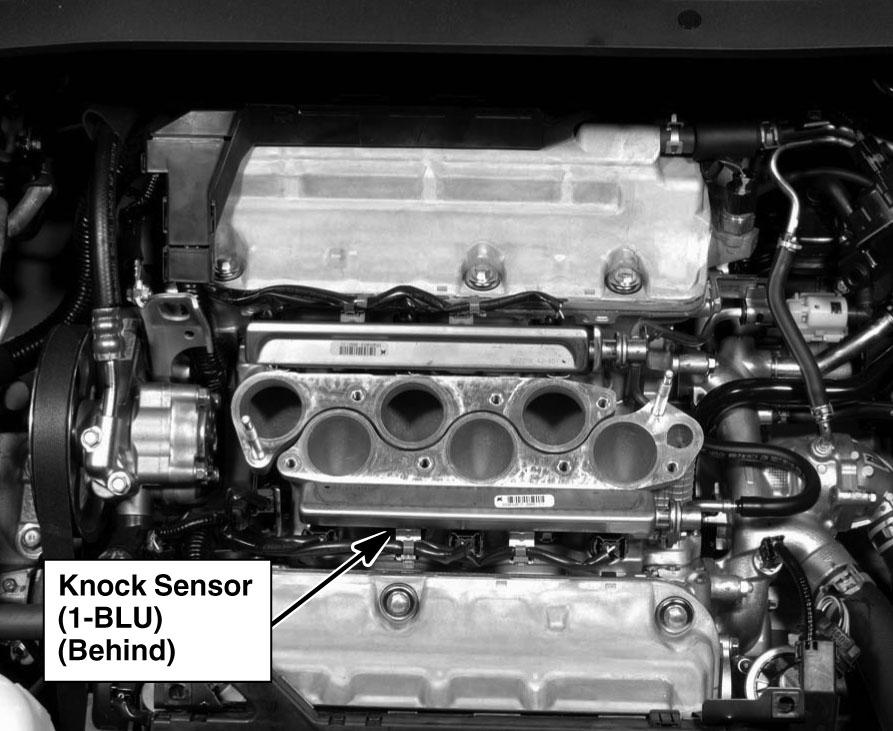

Fig 15: Top Of Engine

G00473069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

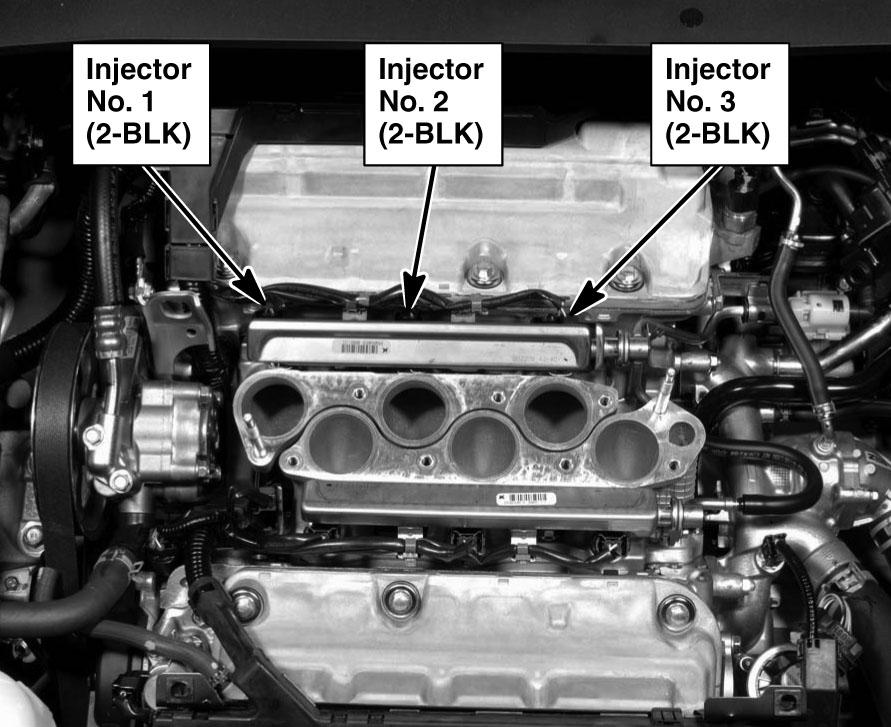

Fig 16: Top Of Engine

G00473070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

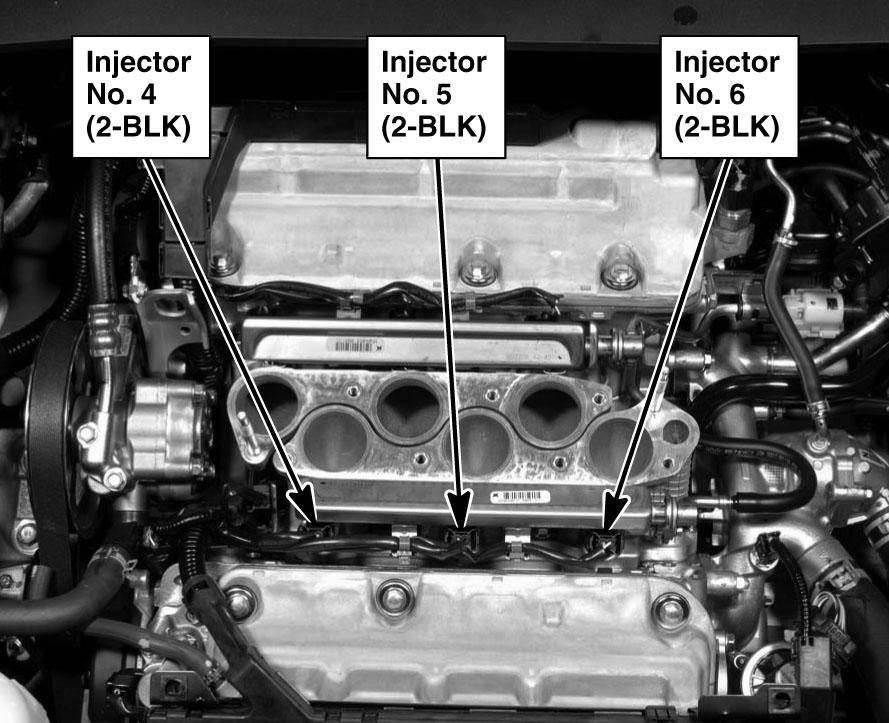

Fig 17: Top Of Engine

G00473071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

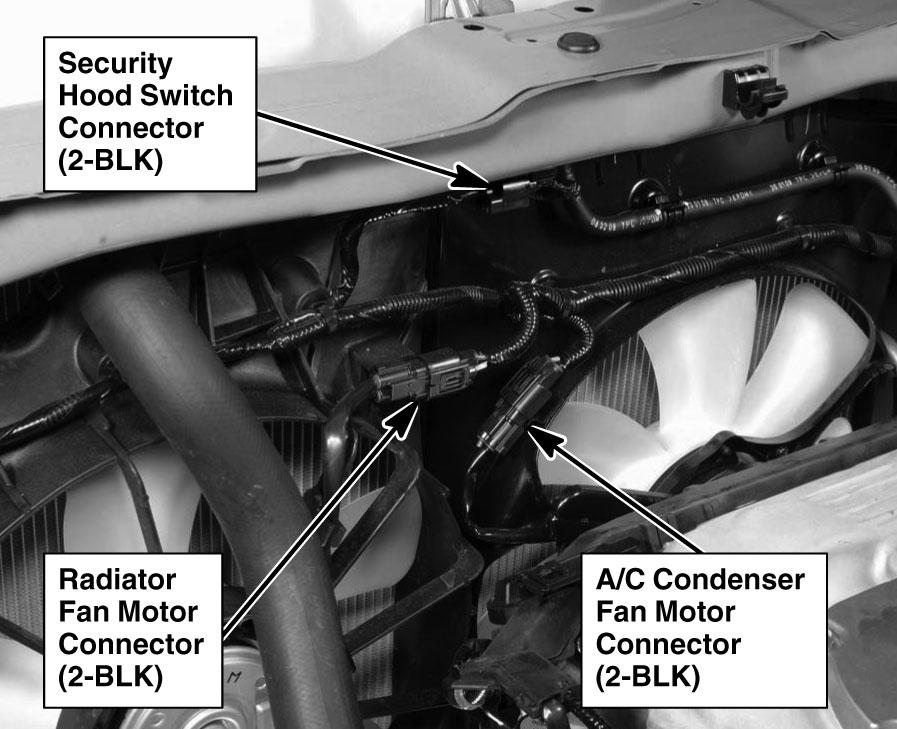

Fig 18: Front Of Engine Compartment

G00473072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

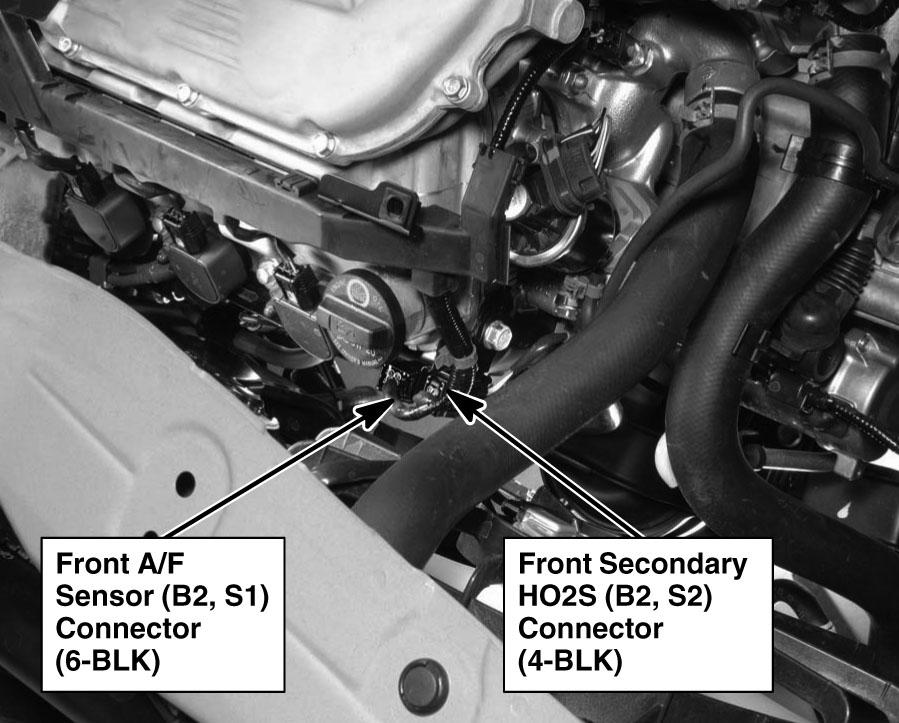

Fig 19: Left Side Of Engine

G00473073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

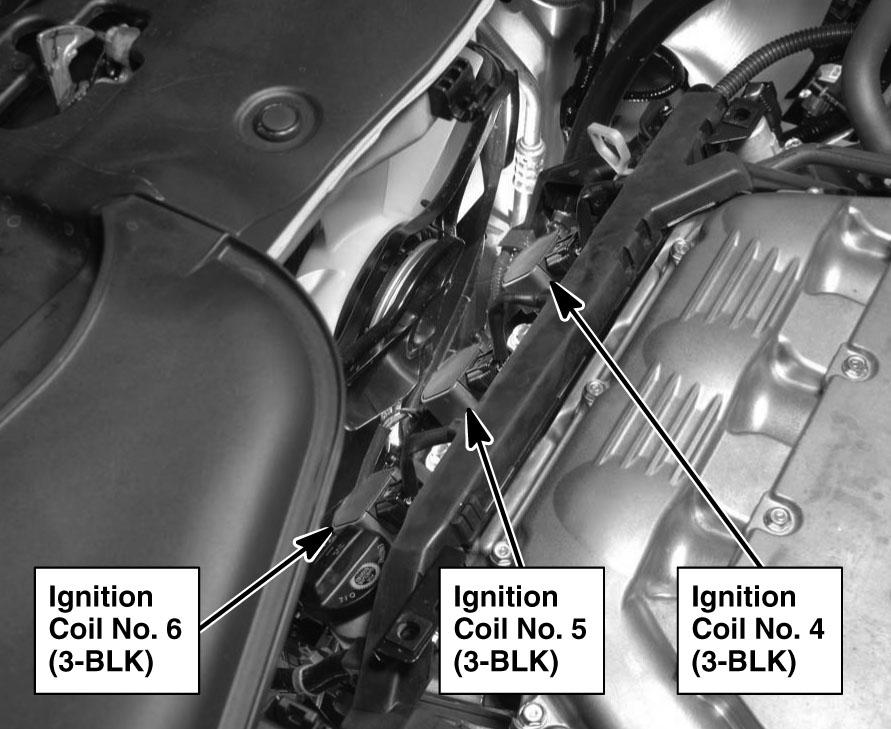

Fig 20: Left Side Of Engine

G00473074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

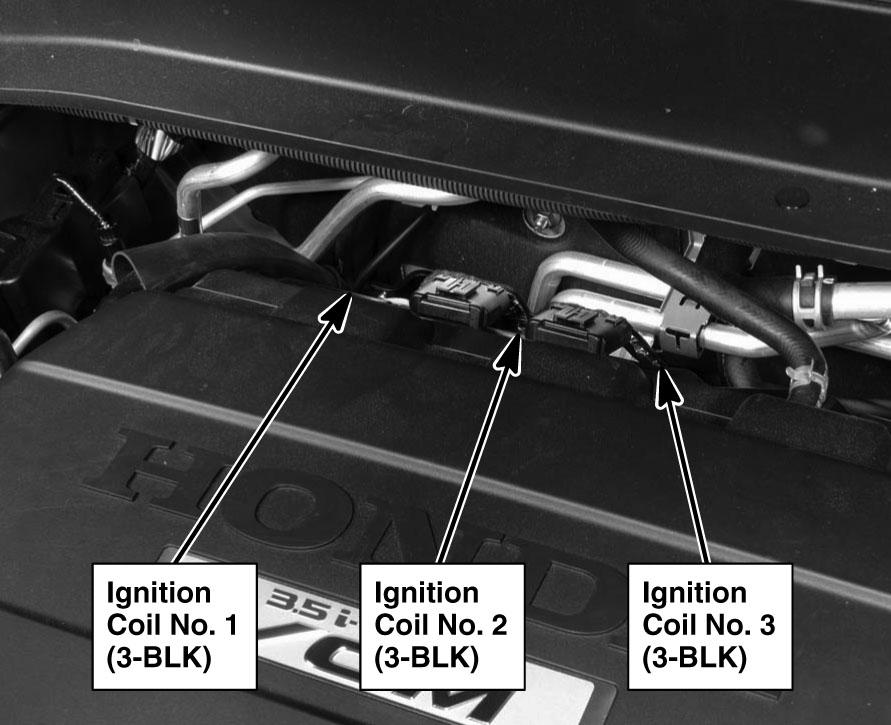

Fig 21: Right Side Of Engine

G00473075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

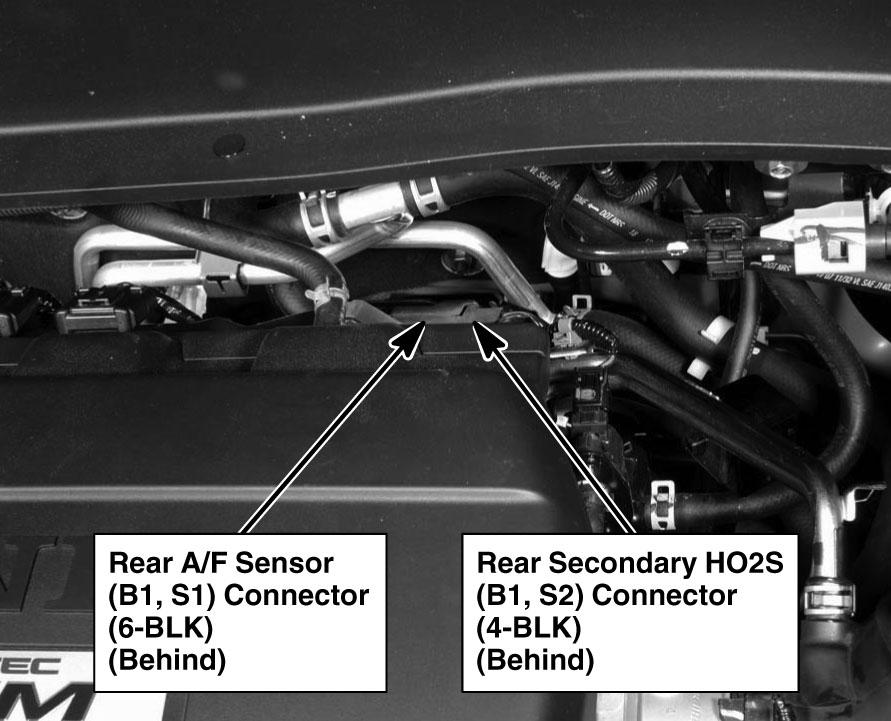

Fig 22: Right Side Of Engine

G00473076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

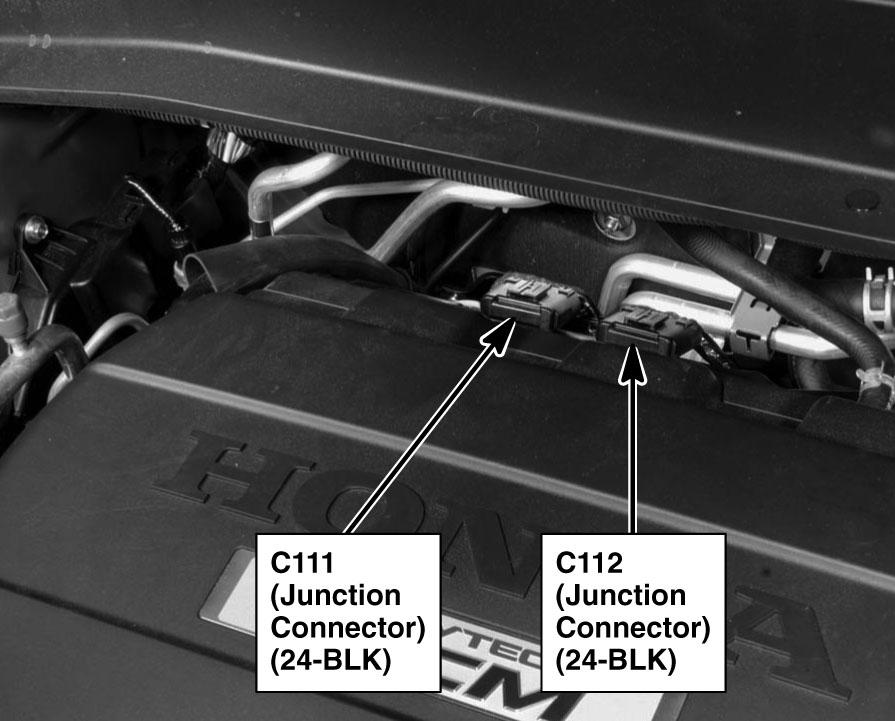

Fig 23: Right Side Of Engine

G00473077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

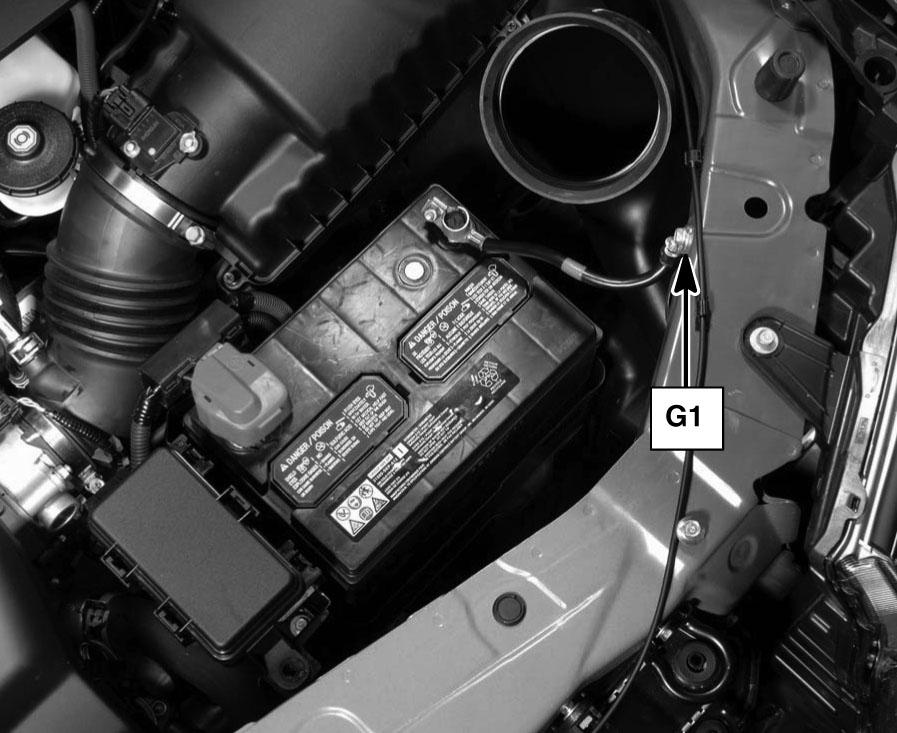

Fig 24: Left Side Of Engine Compartment

G00473078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

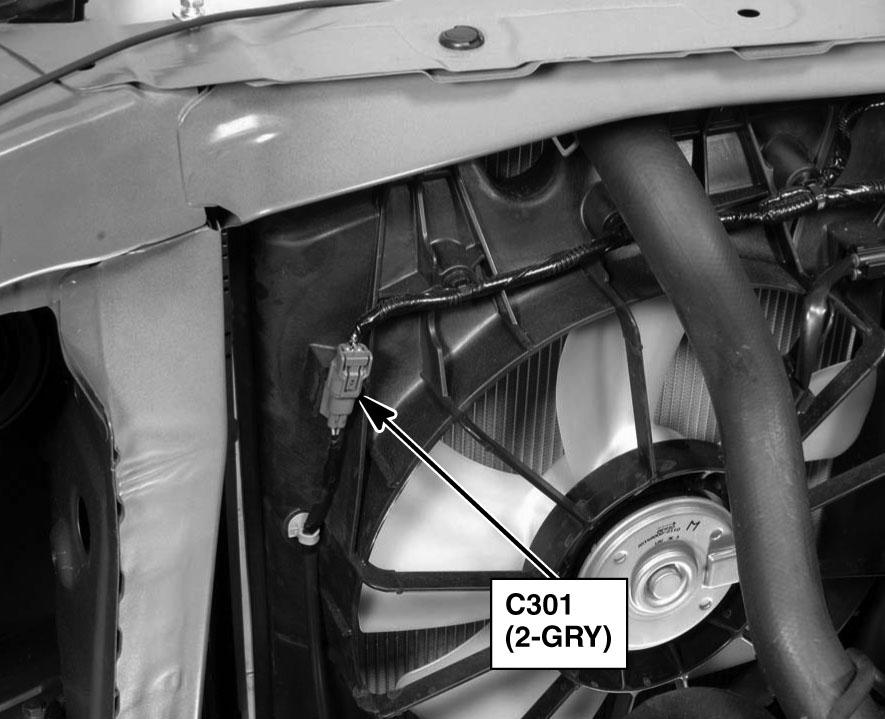

Fig 25: Left Front Of Engine Compartment

G00473079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

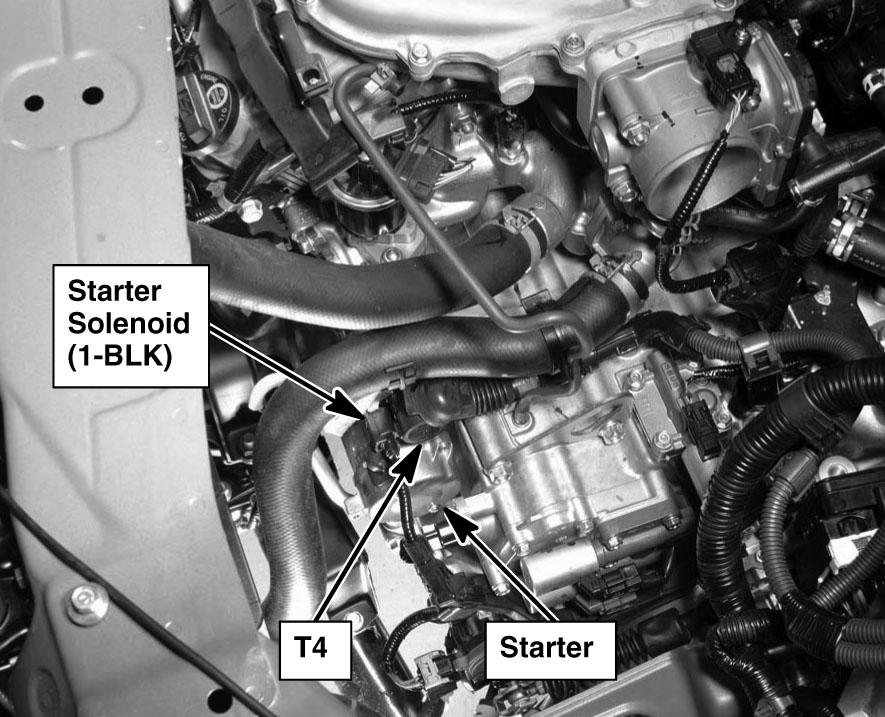

Fig 26: Rear Of Engine

G00473080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Side Of Engine Compartment

G00473081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

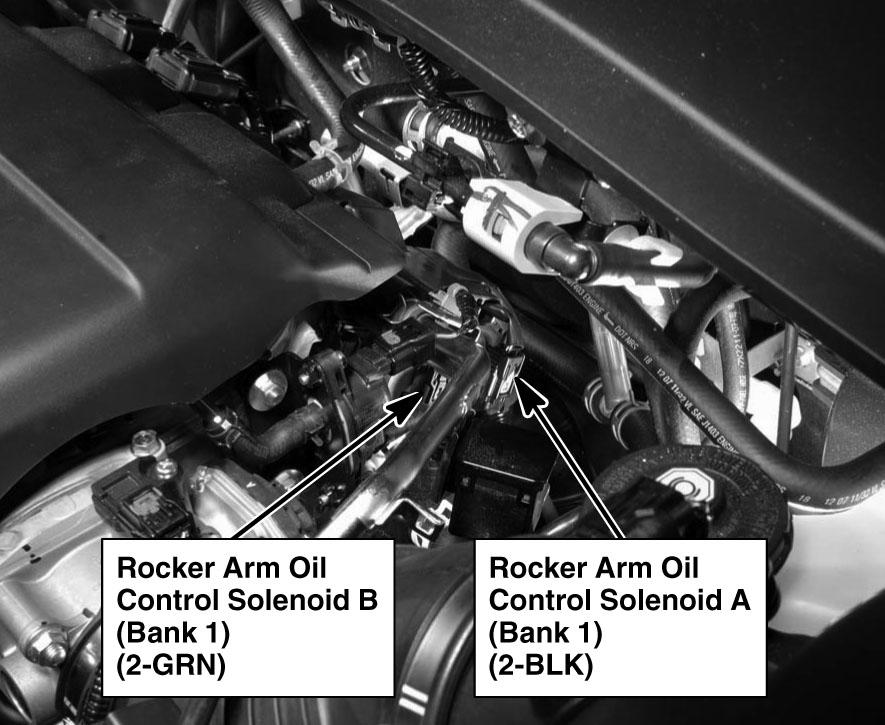

Fig 28: Rear Of Engine

G00473082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

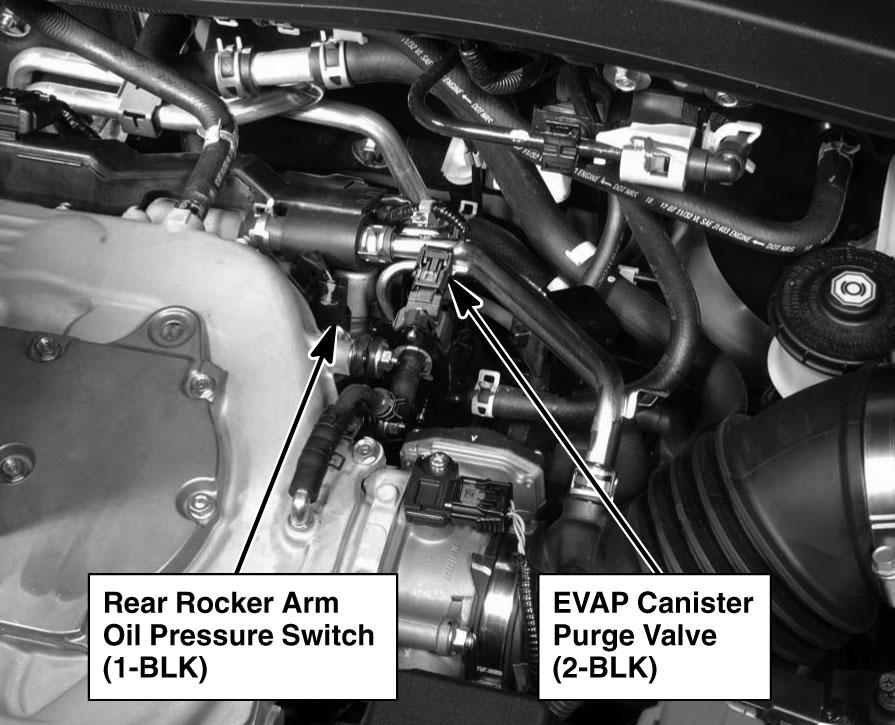

Fig 29: Right Rear Of Engine

G00473083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

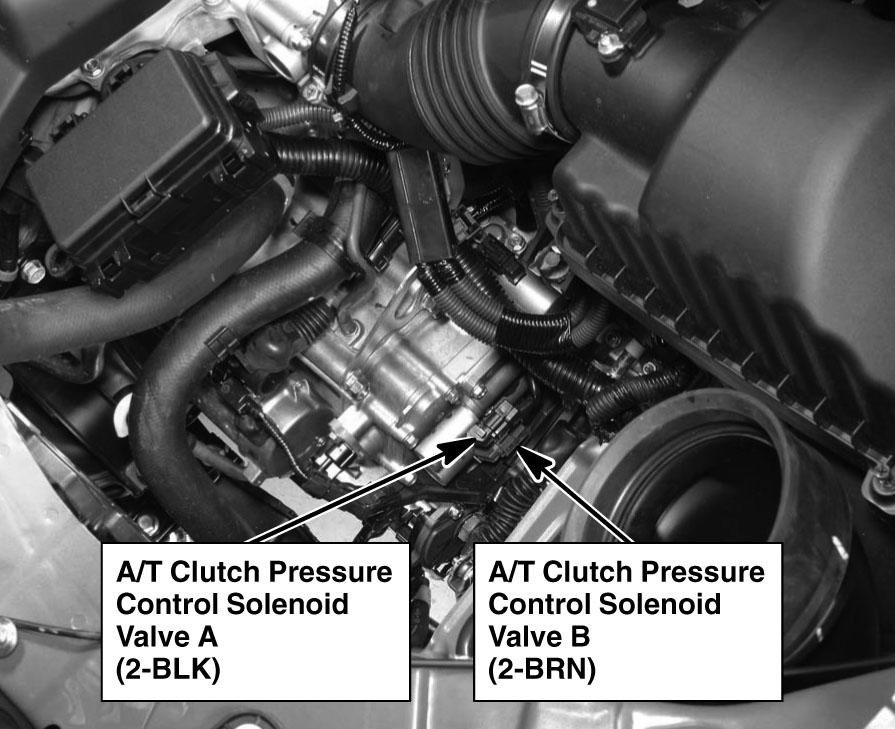

Fig 30: Top Of Automatic Transmission

G00473084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

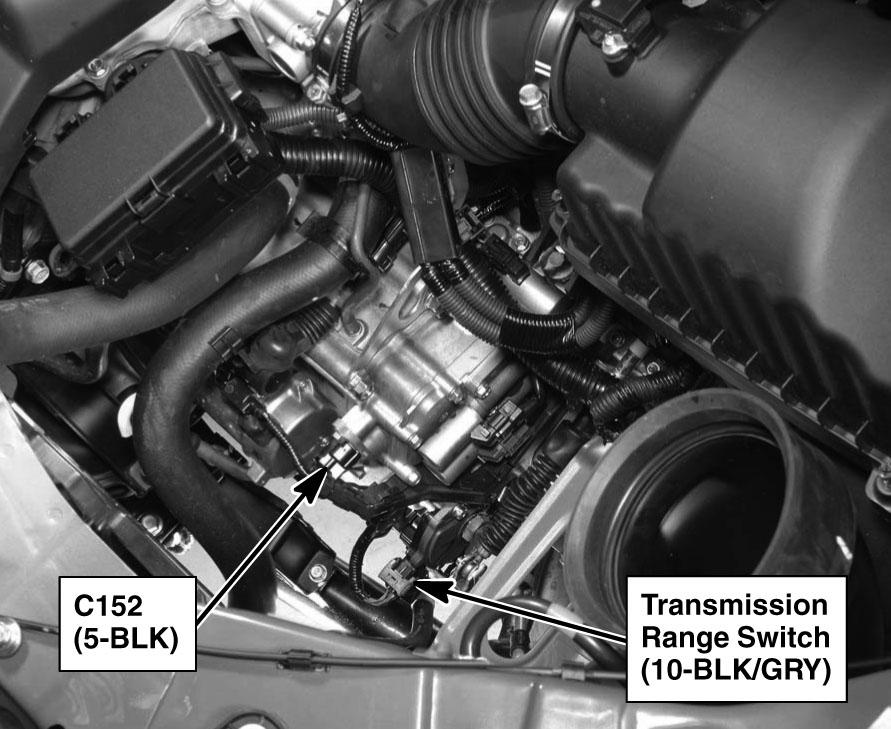

Fig 31: Top Of Automatic Transmission

G00473085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

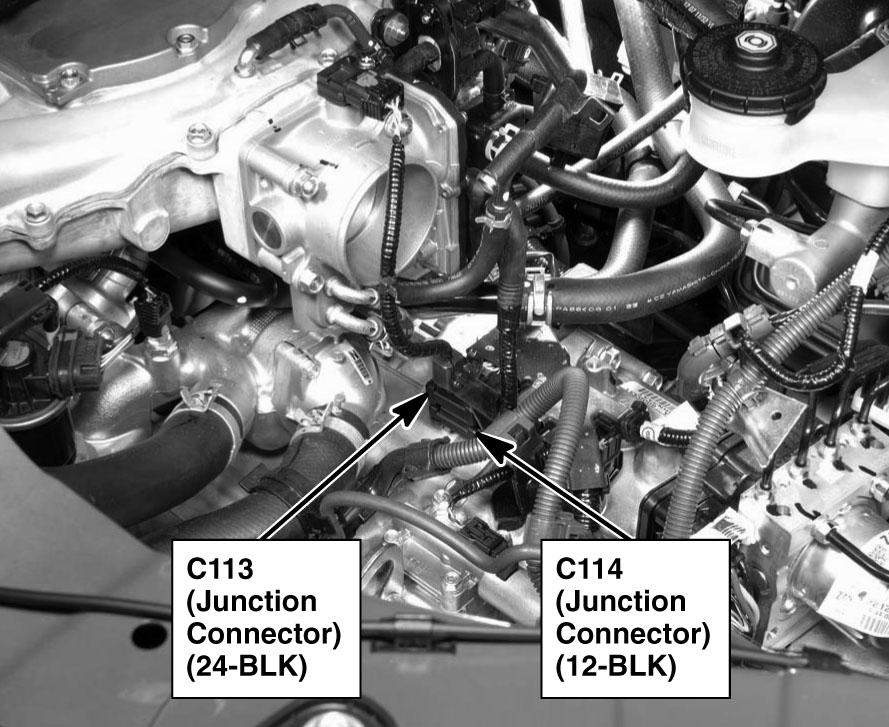

Fig 32: Top Of Automatic Transmission

G00473086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

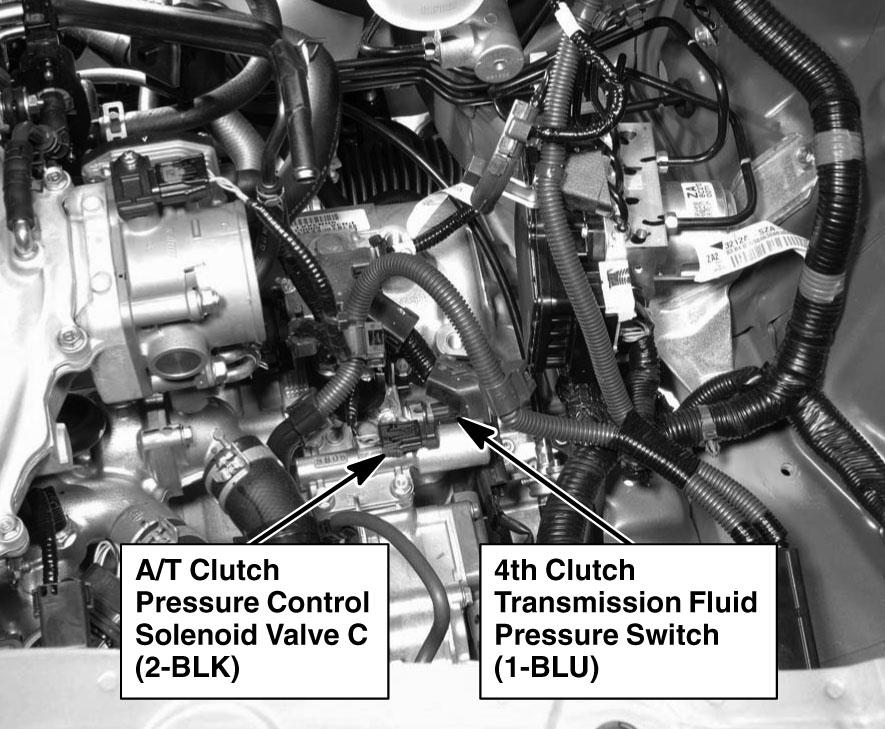

Fig 33: Top Of Automatic Transmission

G00473087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

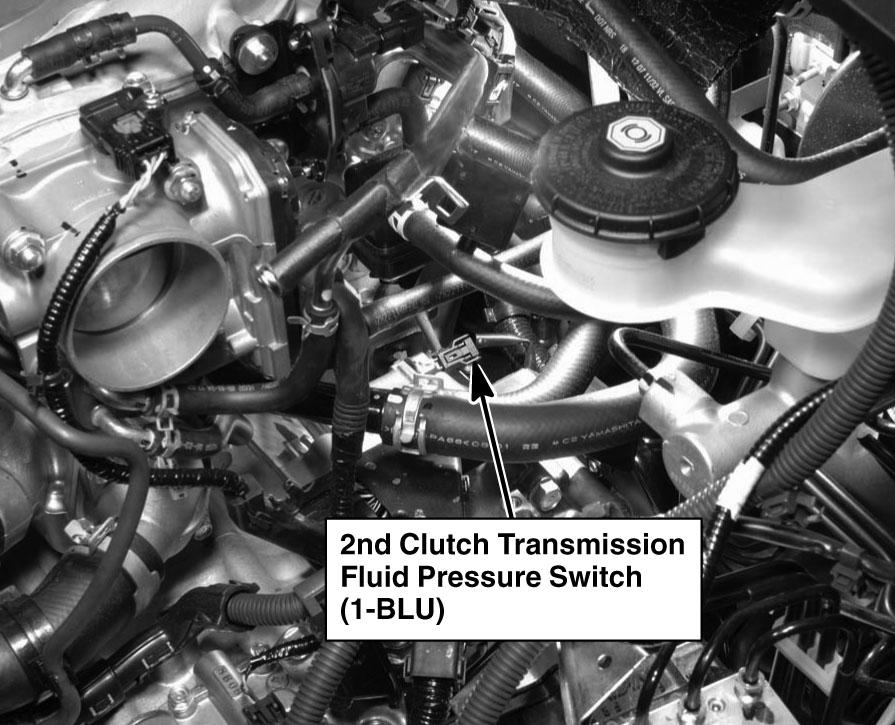

Fig 34: Top Right Side Of Automatic Transmission

G00473088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Left Side Of Engine Compartment

G00473089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

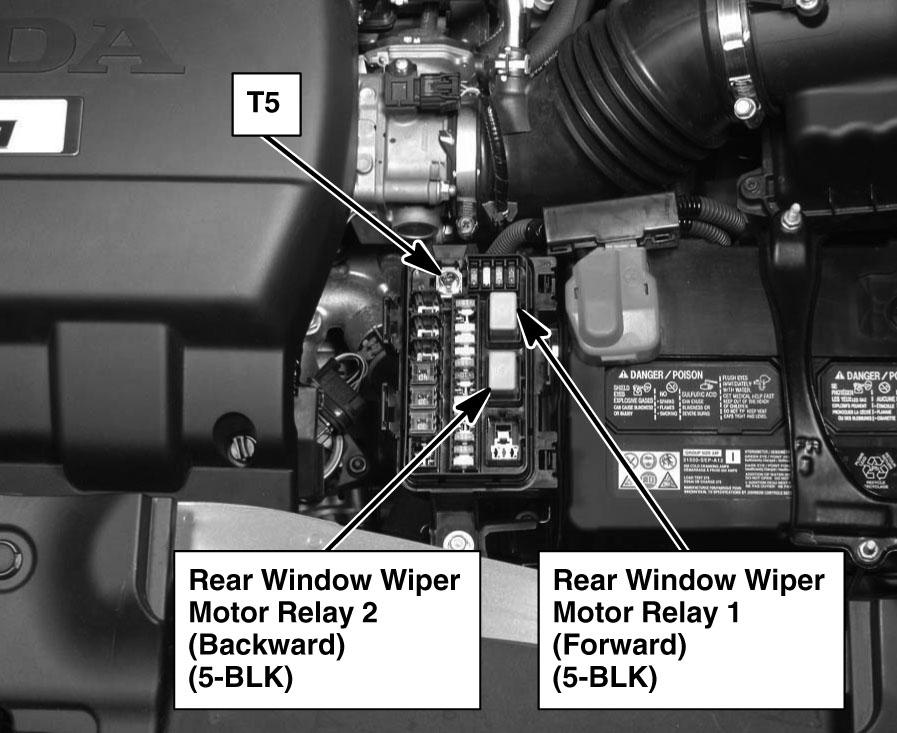

Fig 36: Left Side Of Engine Compartment

G00473090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

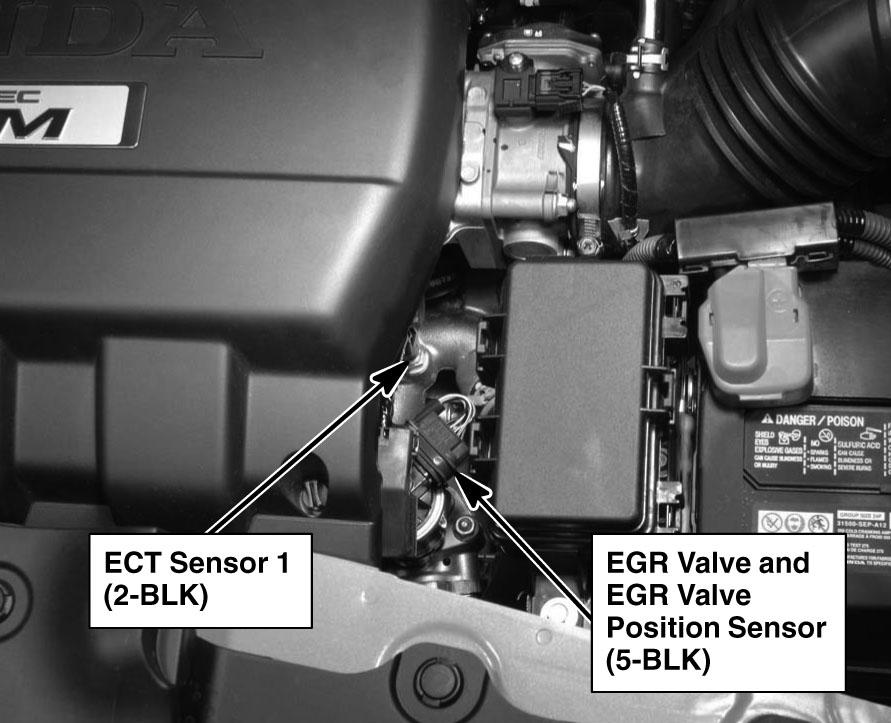

Fig 37: Rear Of Engine

G00473091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

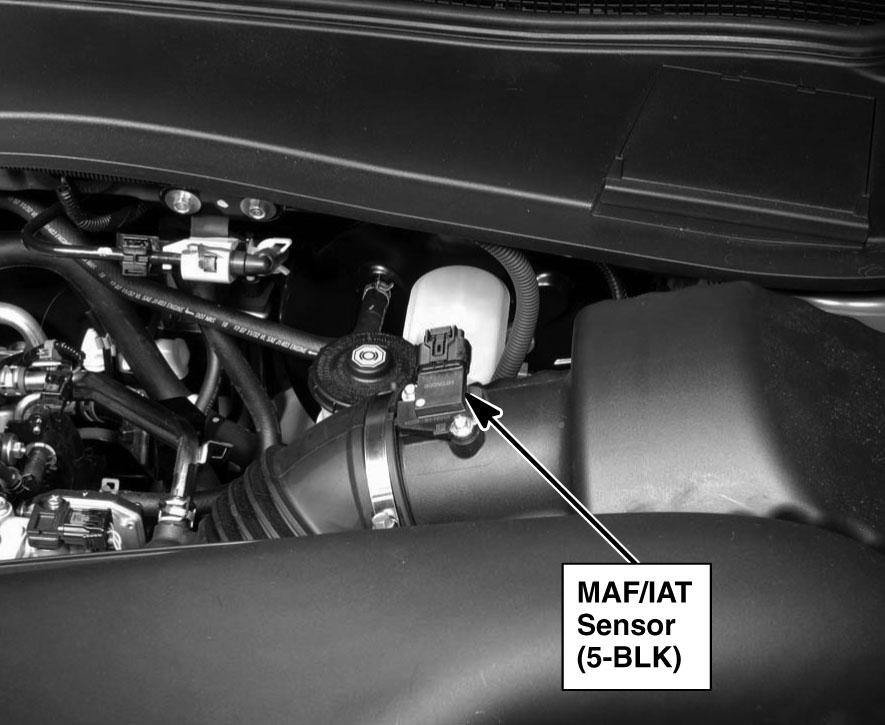

Fig 38: Left Side Of Engine Compartment

G00473092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

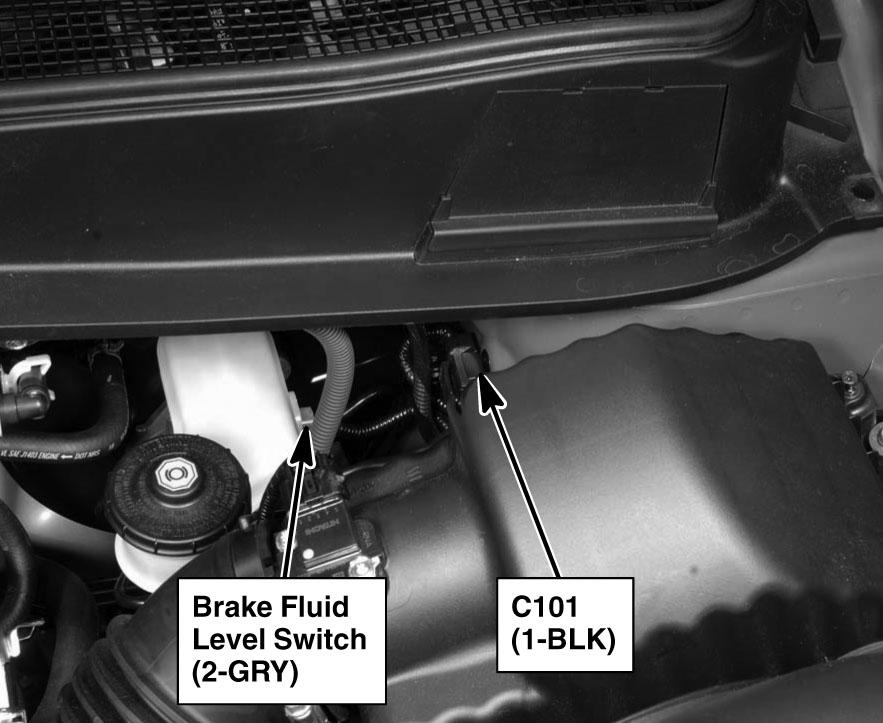

Fig 39: Left Rear Of Engine Compartment

G00473093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

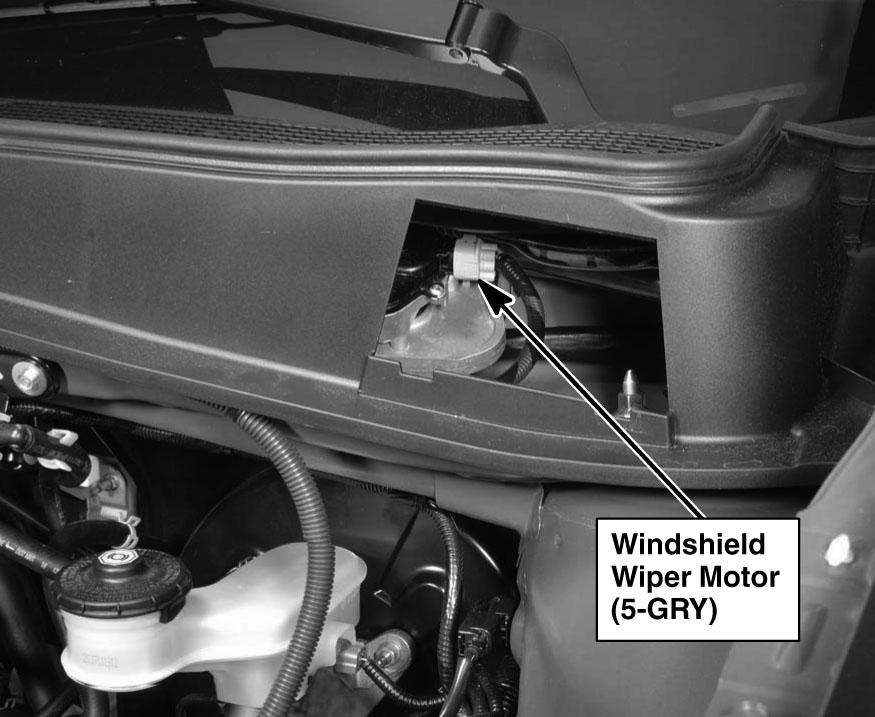

Fig 40: Under Left Side Of Cowl Cover

G00473094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Behind Left Side Of Dash

G00473095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

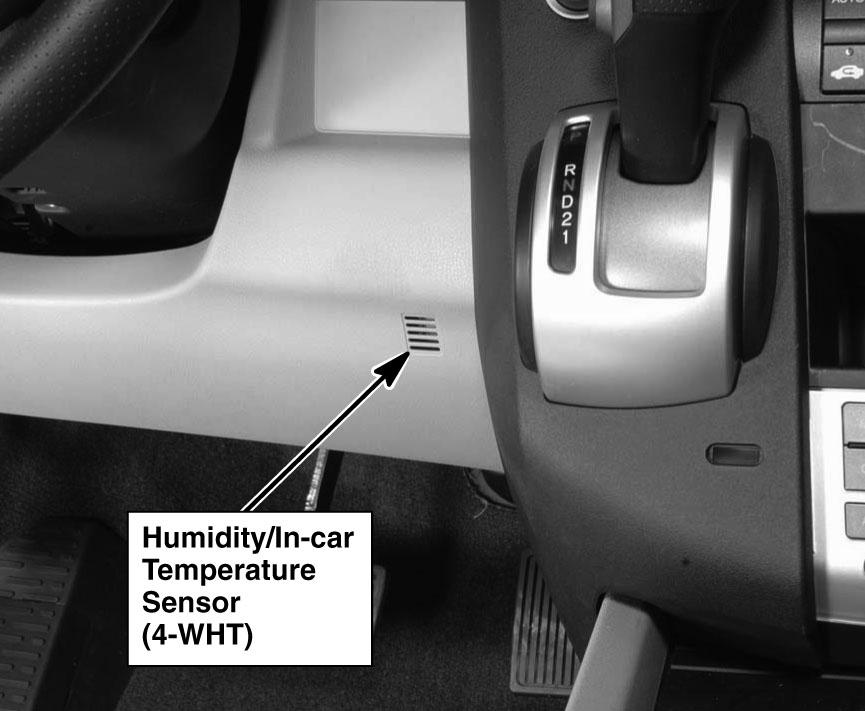

Fig 42: Left Side Of Dash

G00473096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

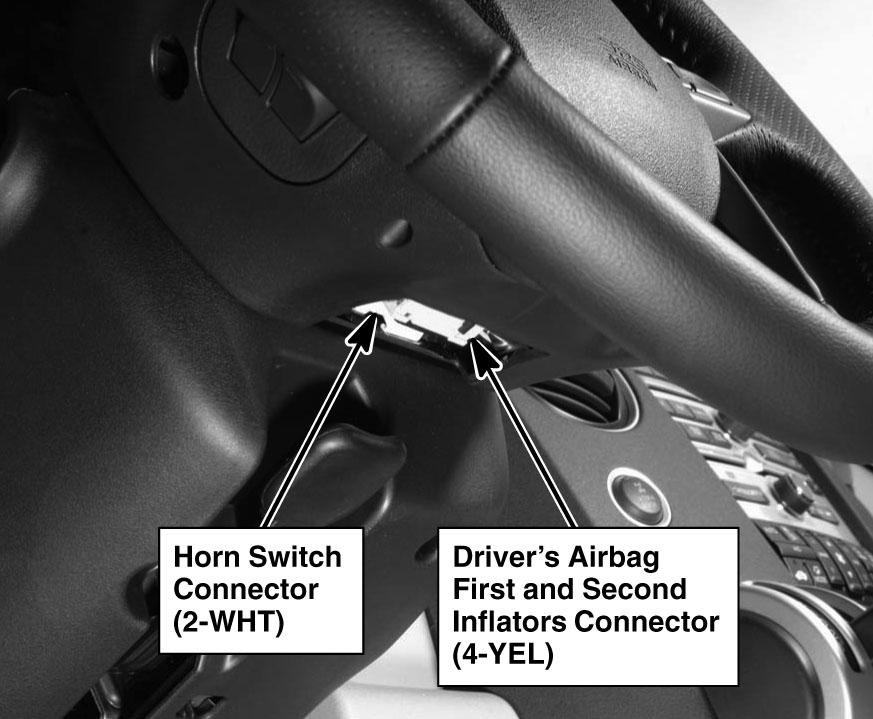

Fig 43: Steering Wheel

G00473097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

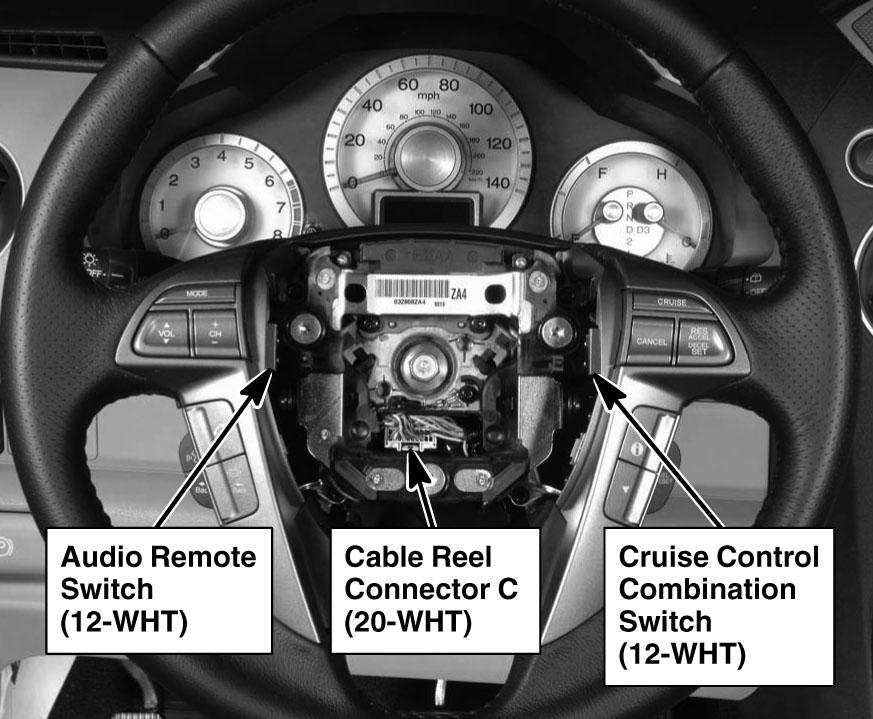

Fig 44: Steering Wheel

G00473098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

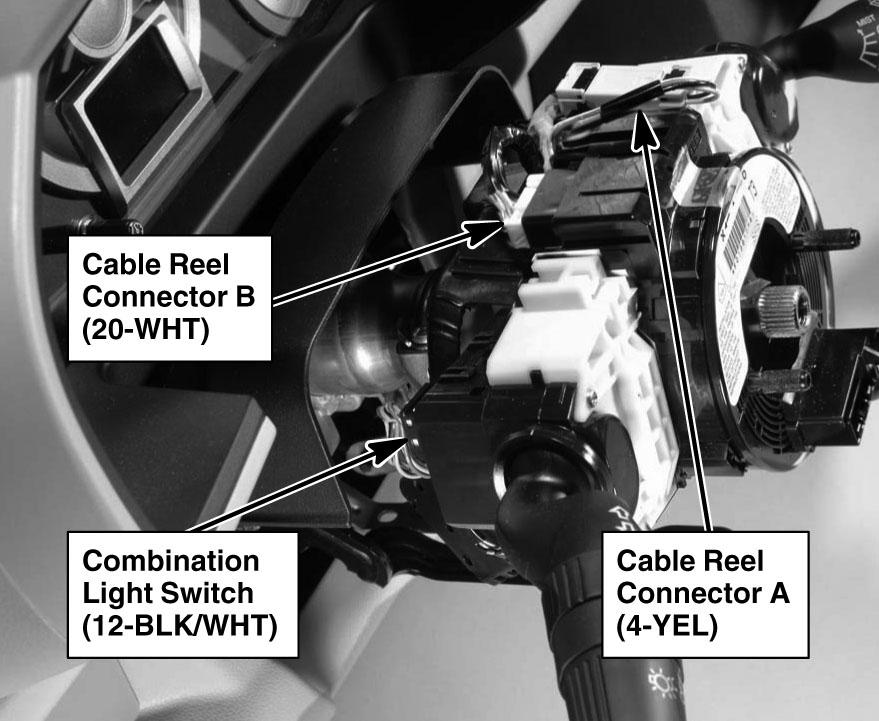

Fig 45: Steering Column

G00473099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Steering Column

G00473100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Left Side Of Dash

G00473101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

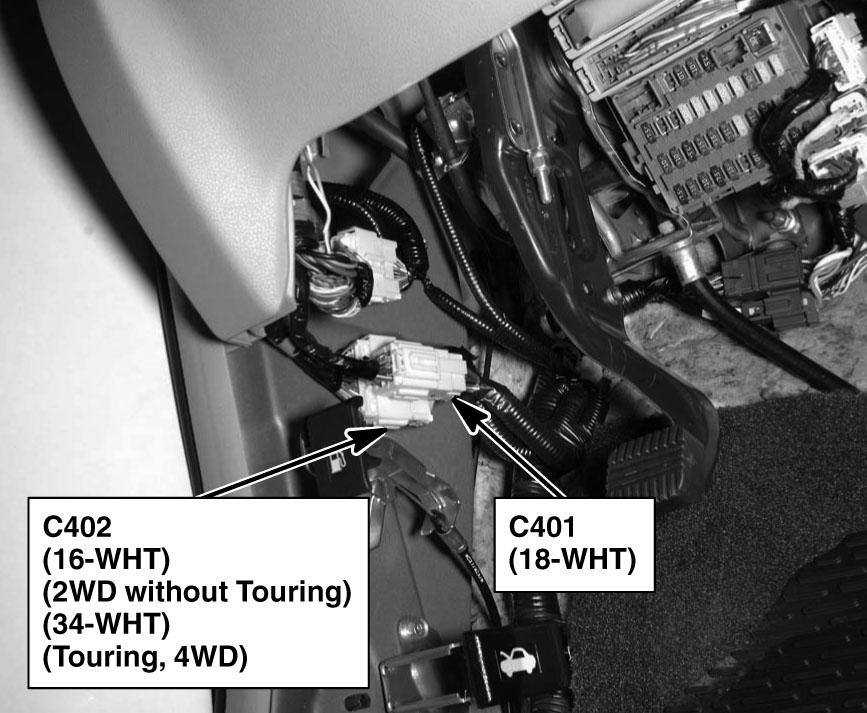

Fig 48: Under Left Side Of Dash

G00473102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

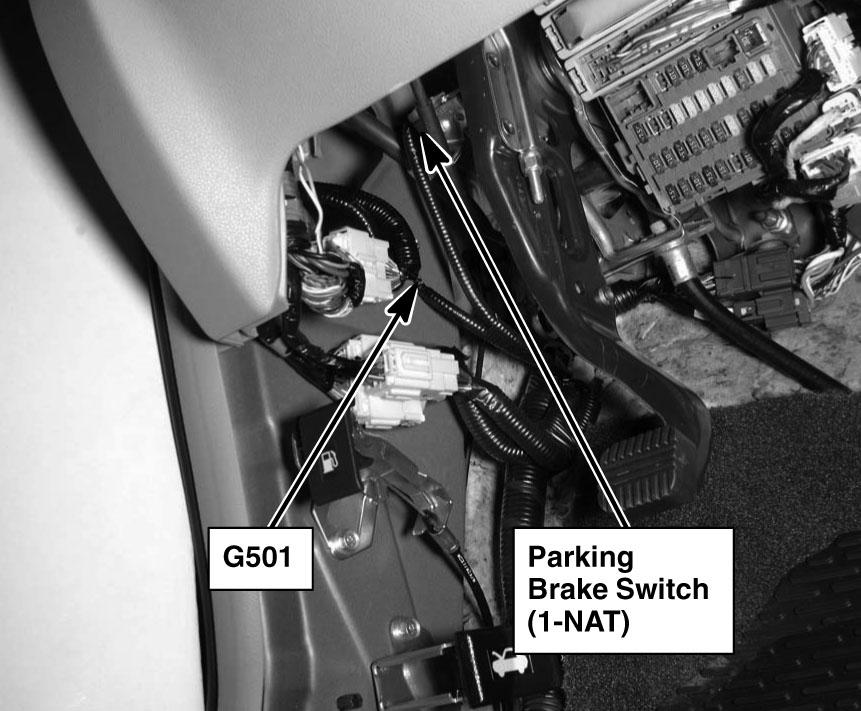

Fig 49: Under Left Side Of Dash

G00473103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

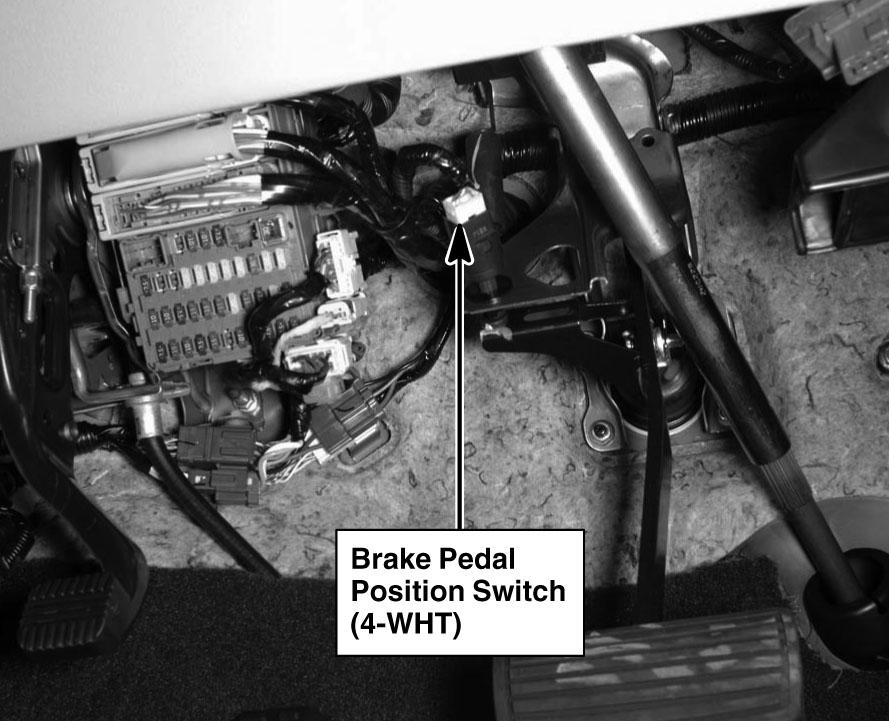

Fig 50: Under Left Side Of Dash

G00473104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Under Left Side Of Dash

G00473105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

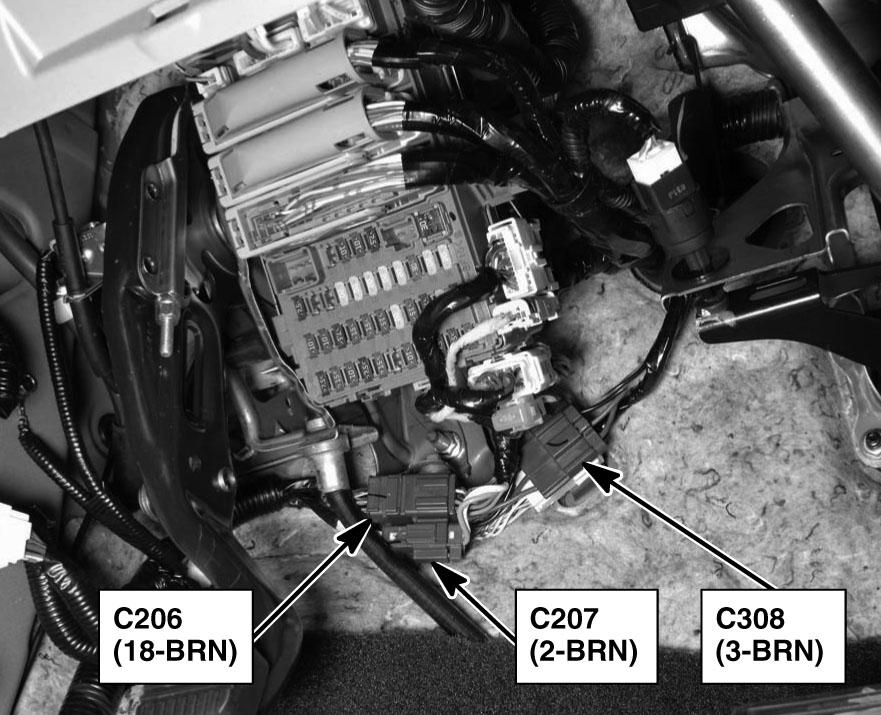

Fig 52: Under Left Side Of Dash

G00473106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

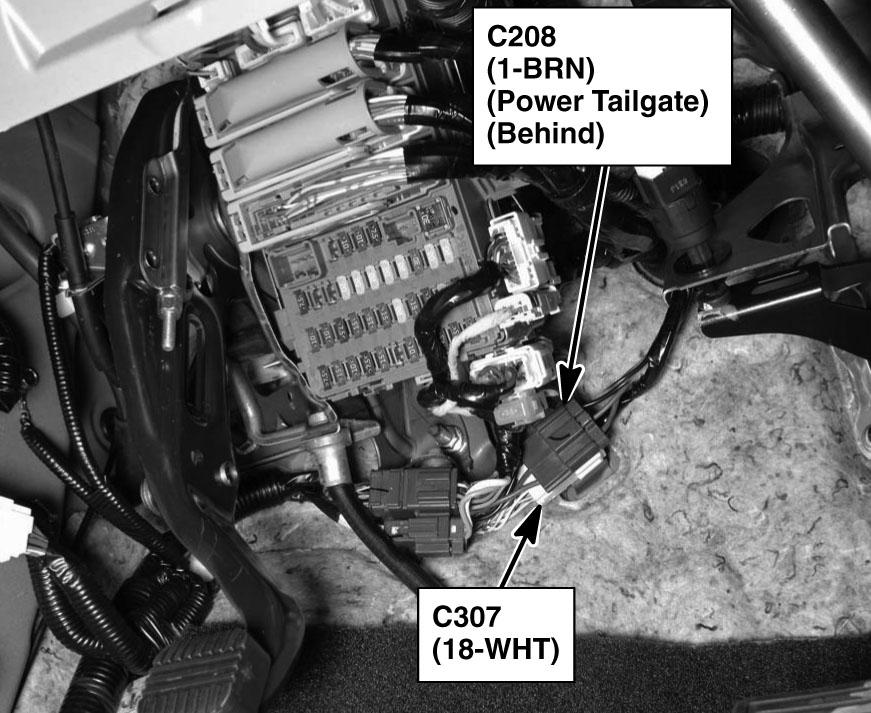

Fig 53: Under Left Side Of Dash

G00473107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Left Side Of Dash

G00473108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

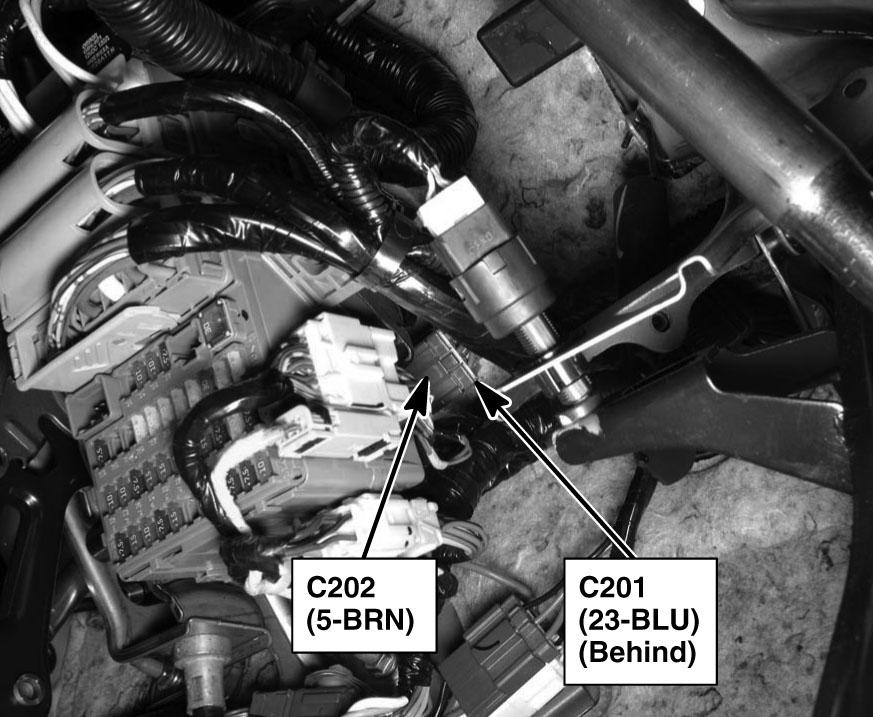

Fig 55: Under Left Side Of Dash

G00473109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

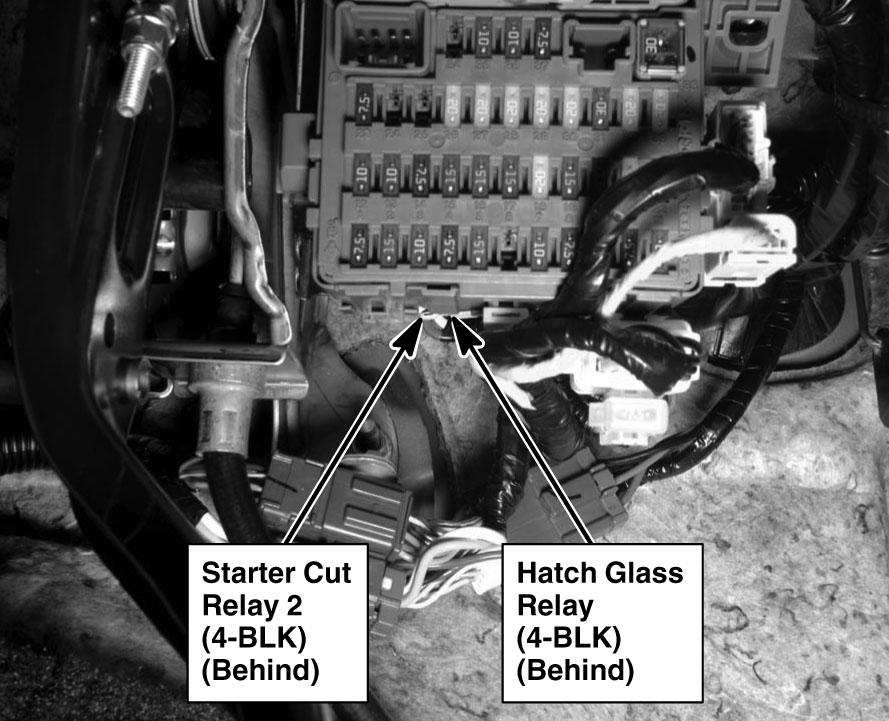

Fig 56: Under Left Side Of Dash

G00473110

Courtesy of AMERICAN HONDA MOTOR CO., INC.

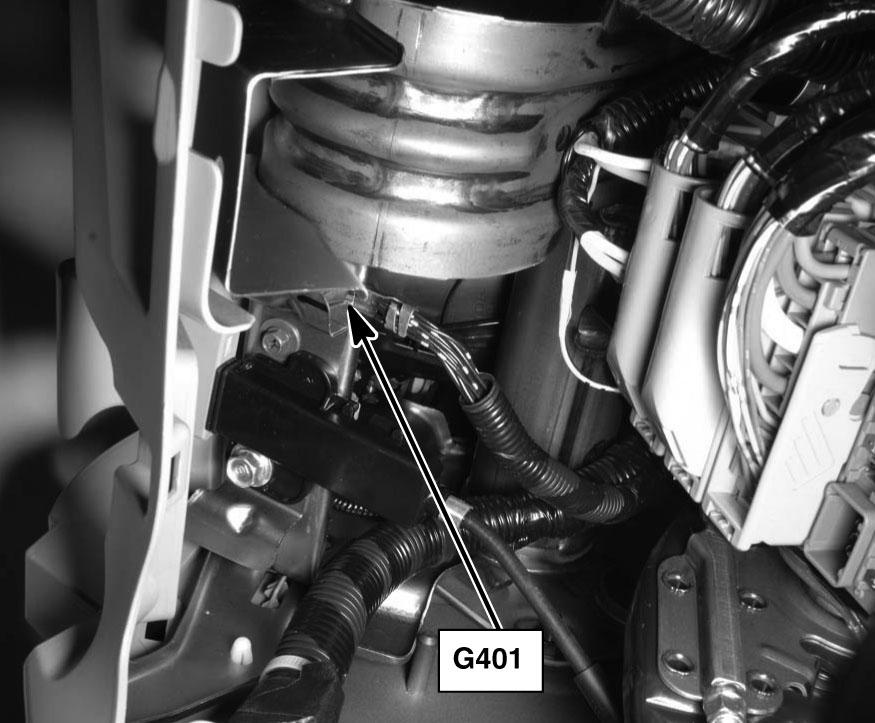

Fig 57: Under Left Side Of Dash

G00473111

Courtesy of AMERICAN HONDA MOTOR CO., INC.

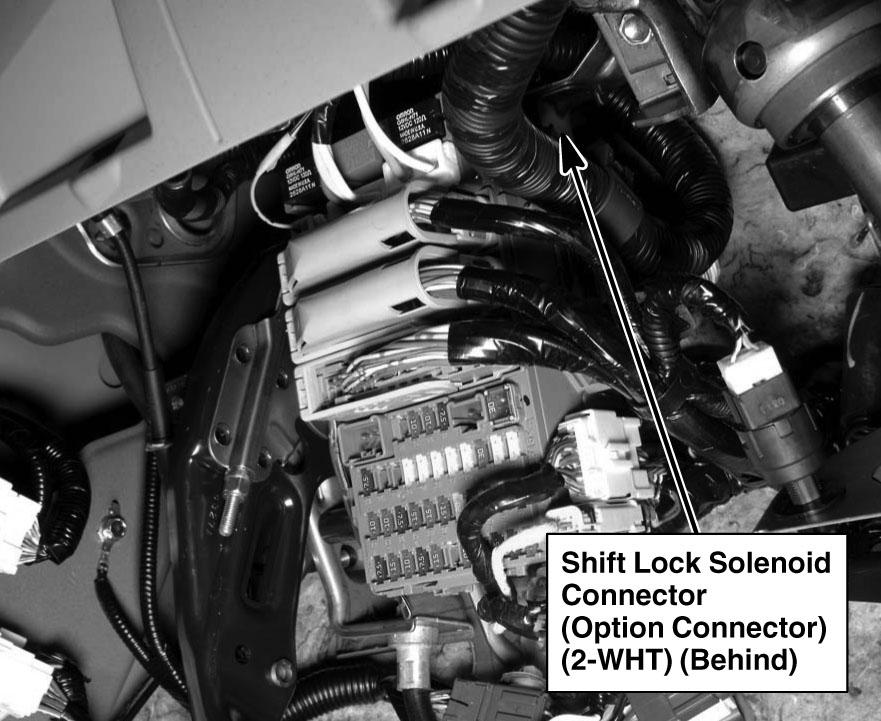

Fig 58: Under Left Side Of Dash

G00473112

Courtesy of AMERICAN HONDA MOTOR CO., INC.

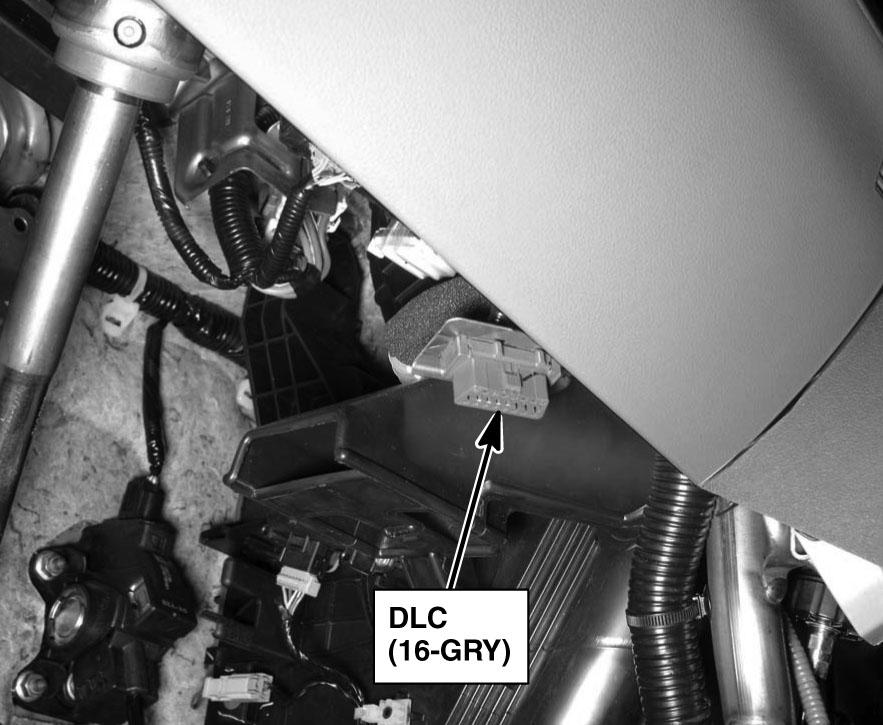

Fig 59: Under Left Side Of Dash

G00473113

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Left Side Of Dash

G00473114

Courtesy of AMERICAN HONDA MOTOR CO., INC.

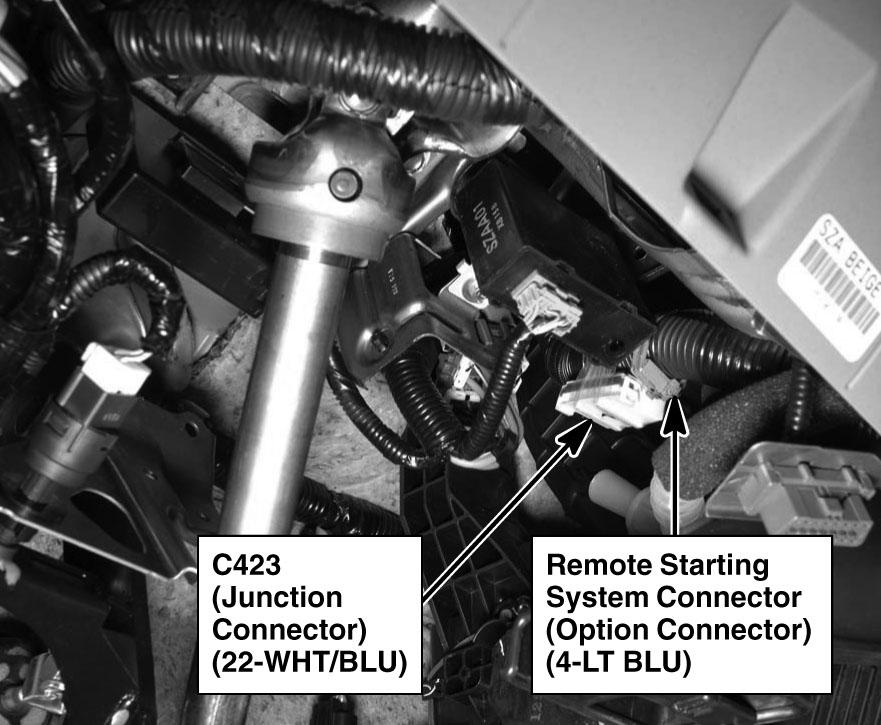

Fig 61: Under Left Side Of Dash

G00473115

Courtesy of AMERICAN HONDA MOTOR CO., INC.

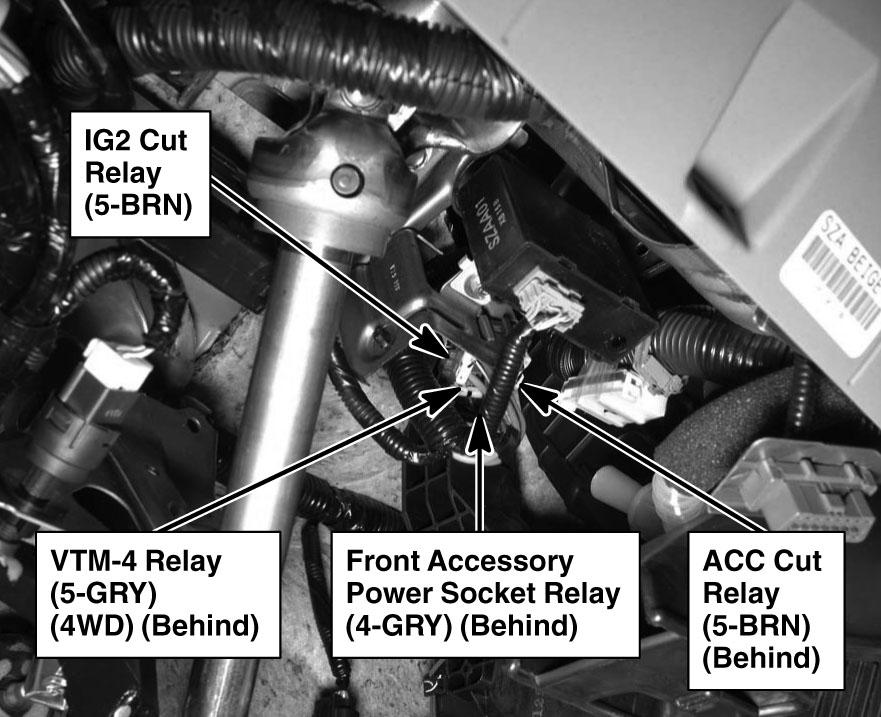

Fig 62: Under Left Side Of Dash

G00473116

Courtesy of AMERICAN HONDA MOTOR CO., INC.

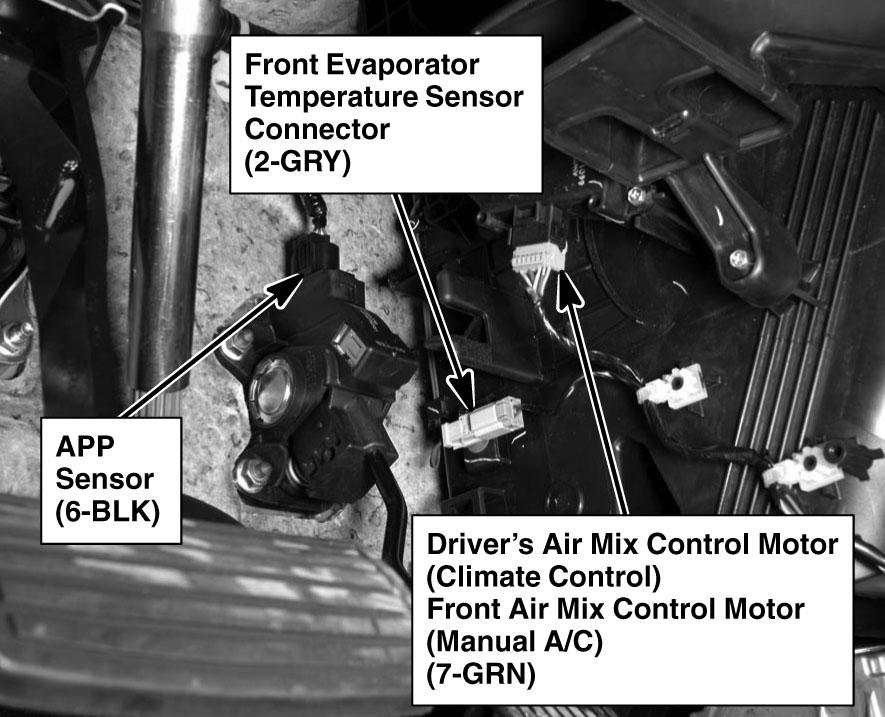

Fig 63: Under Left Side Of Dash

G00473117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

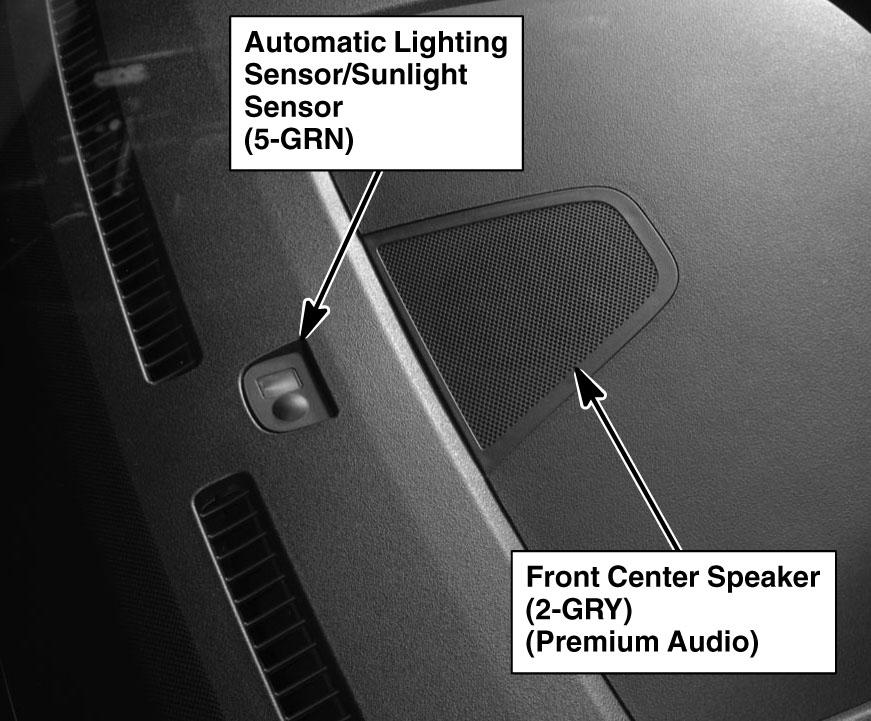

Fig 64: Top Center Of Dash

G00473118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

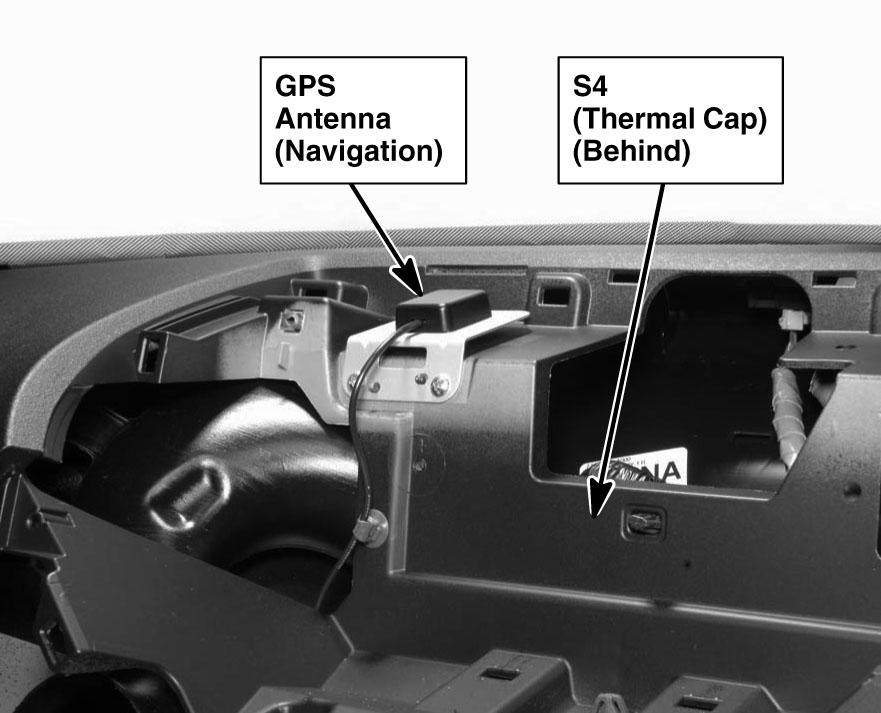

Fig 65: Behind Middle Of Dash

G00473119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

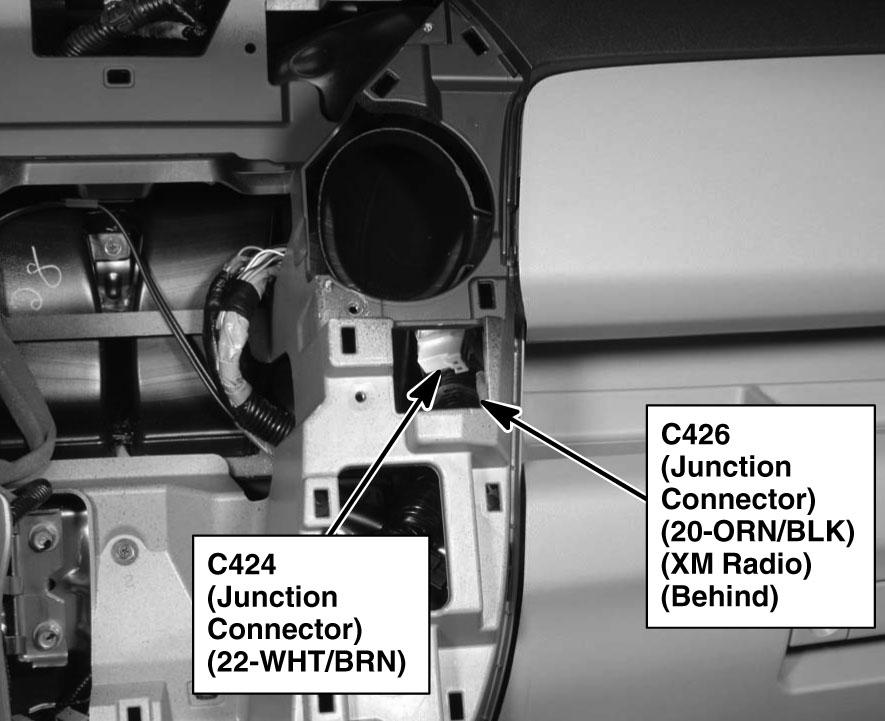

Fig 66: Behind Middle Of Dash

G00473120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

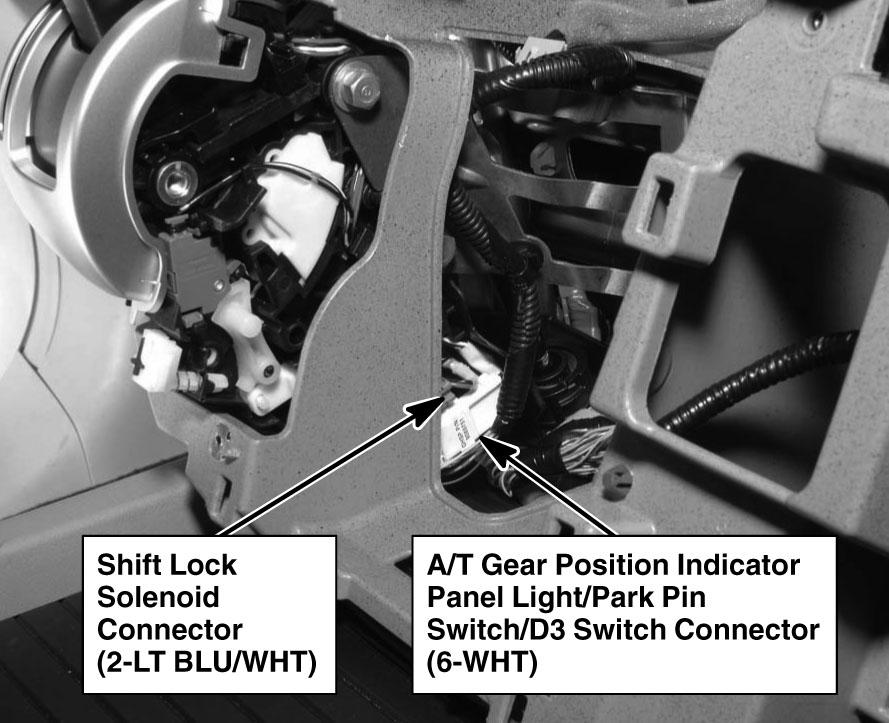

Fig 67: Behind Middle Of Dash

G00473121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Under Middle Of Dash

G00473122

Courtesy of AMERICAN HONDA MOTOR CO., INC.

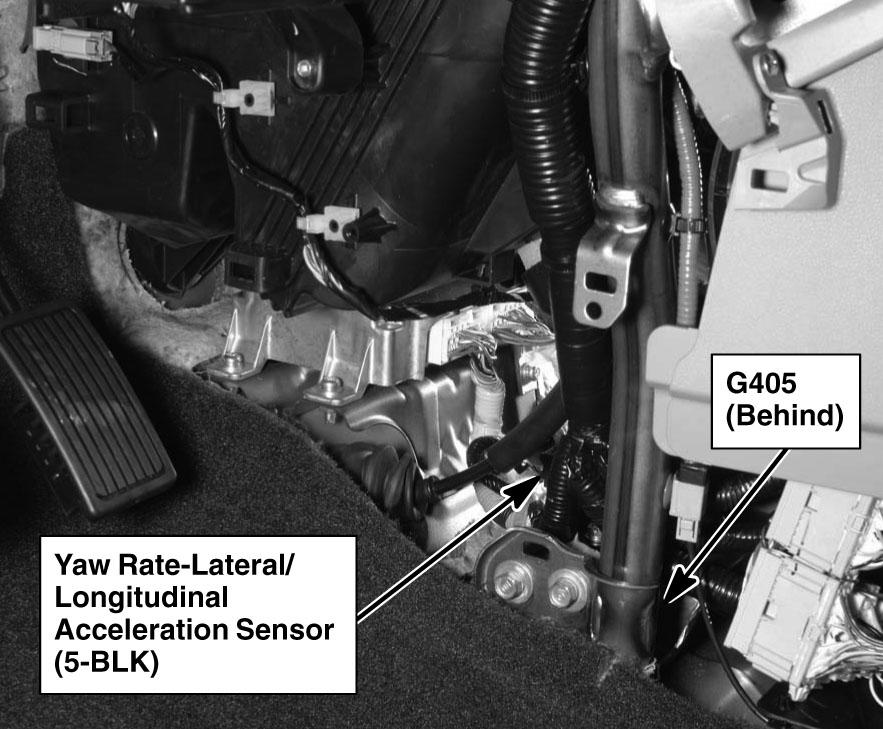

Fig 69: Under Middle Of Dash

G00473123

Courtesy of AMERICAN HONDA MOTOR CO., INC.

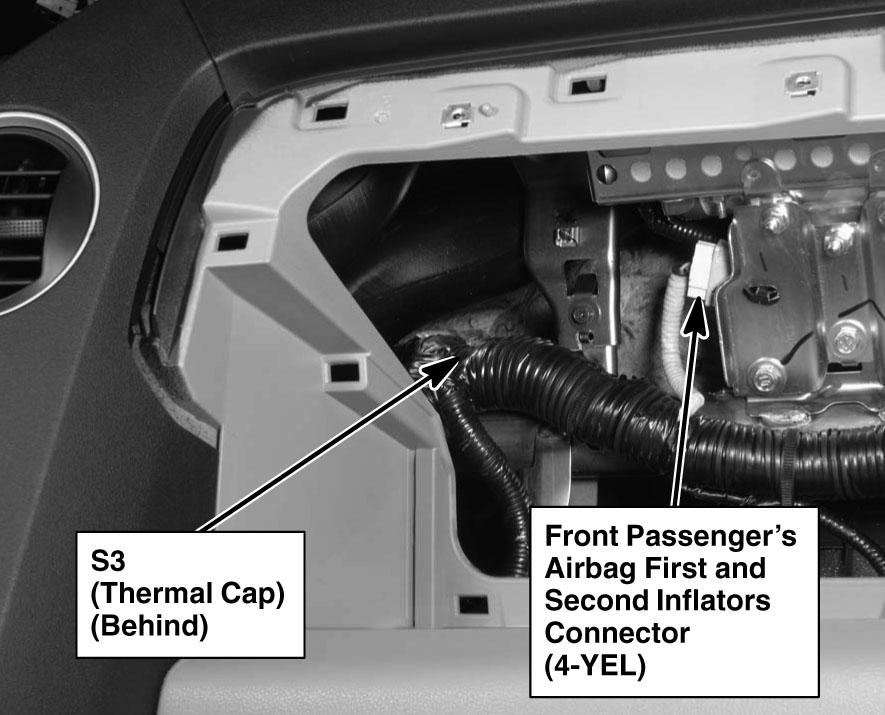

Fig 70: Behind Right Side Of Dash

G00473124

Courtesy of AMERICAN HONDA MOTOR CO., INC.

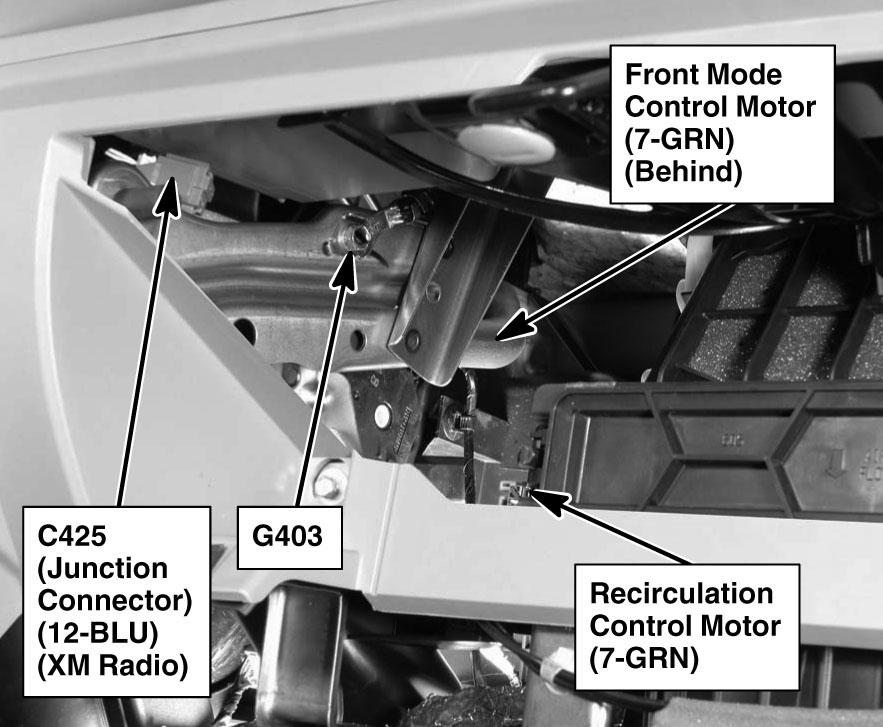

Fig 71: Behind Glove Box

G00473125

Courtesy of AMERICAN HONDA MOTOR CO., INC.

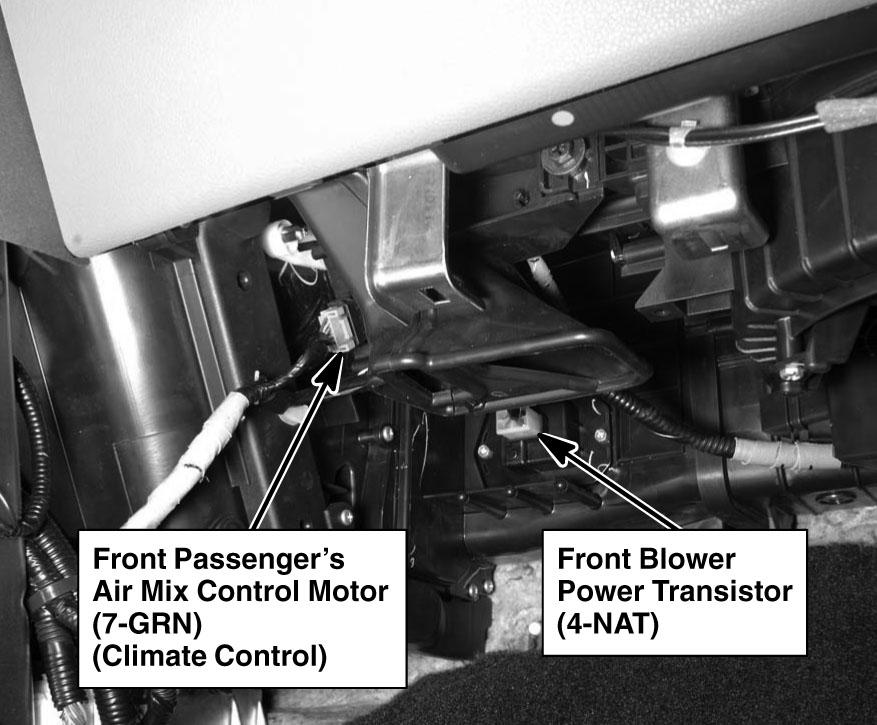

Fig 72: Under Right Side Of Dash

G00473126

Courtesy of AMERICAN HONDA MOTOR CO., INC.

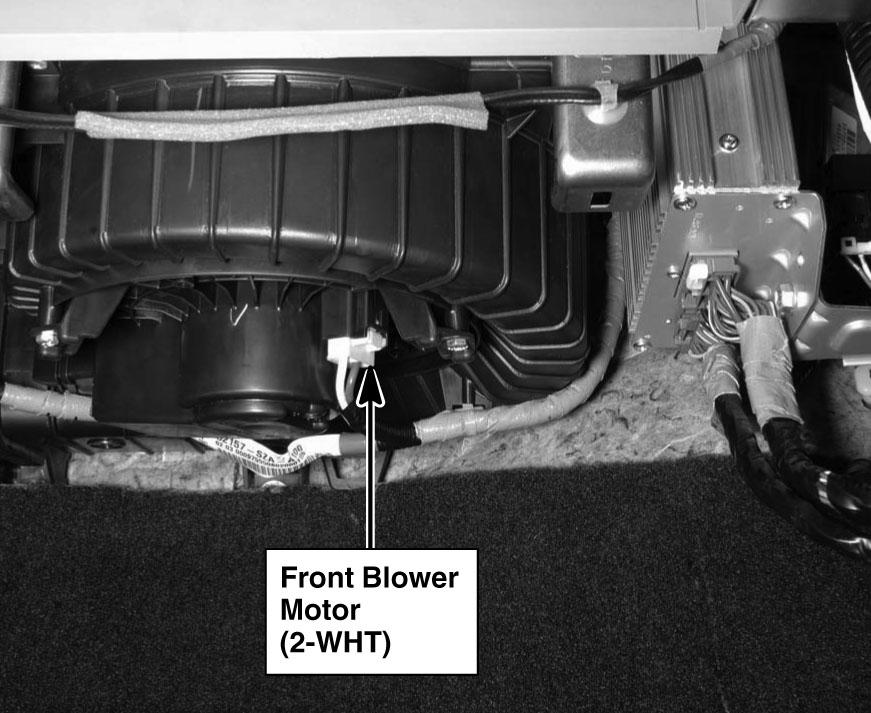

Fig 73: Under Right Side Of Dash

G00473127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

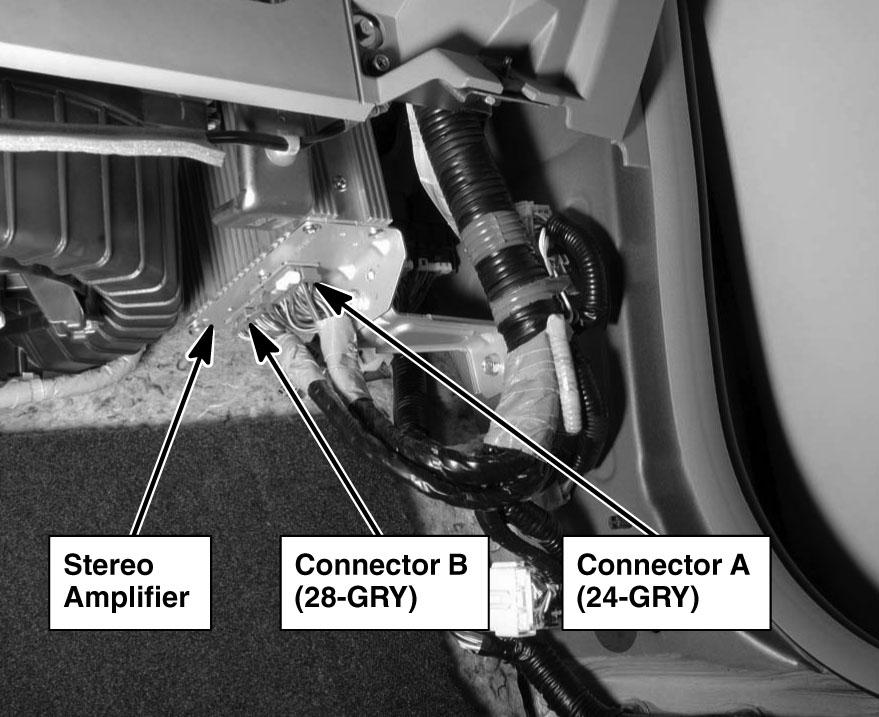

Fig 74: Under Right End Of Dash

G00473128

Courtesy of AMERICAN HONDA MOTOR CO., INC.

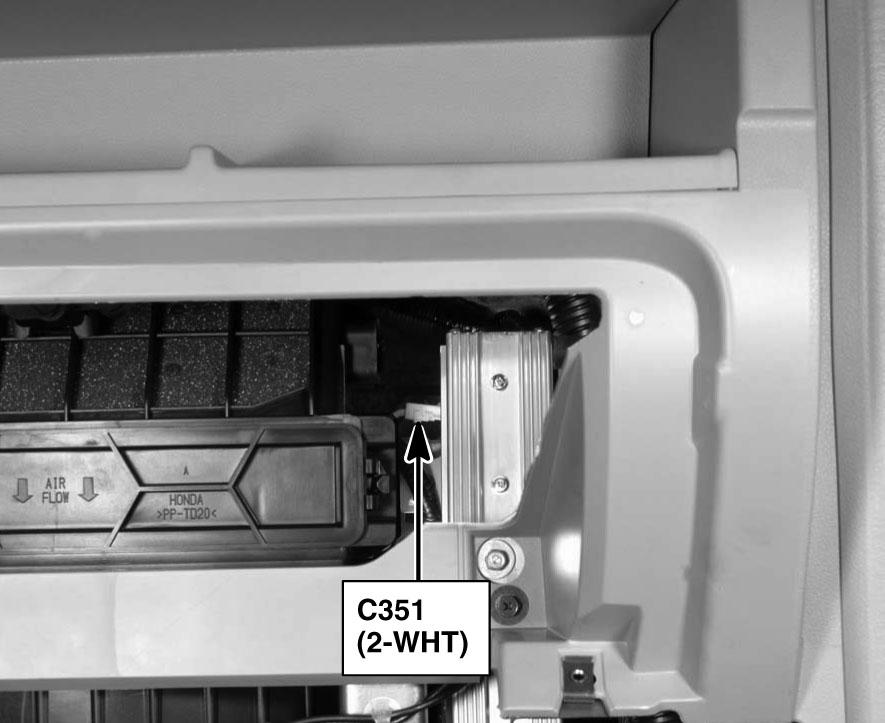

Fig 75: Behind Glove Box

G00473129

Courtesy of AMERICAN HONDA MOTOR CO., INC.

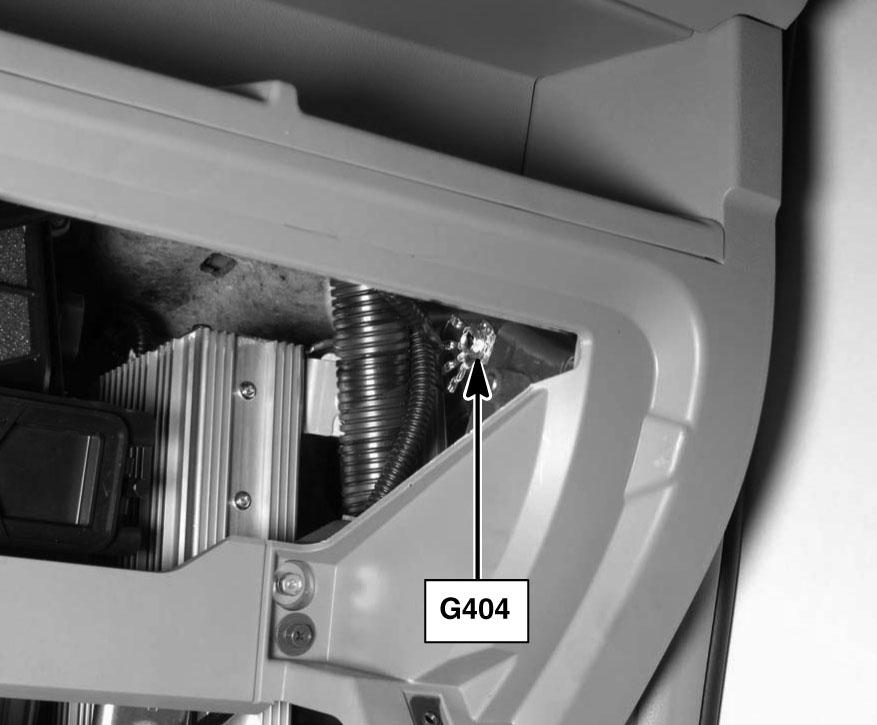

Fig 76: Behind Glove Box

G00473130

Courtesy of AMERICAN HONDA MOTOR CO., INC.

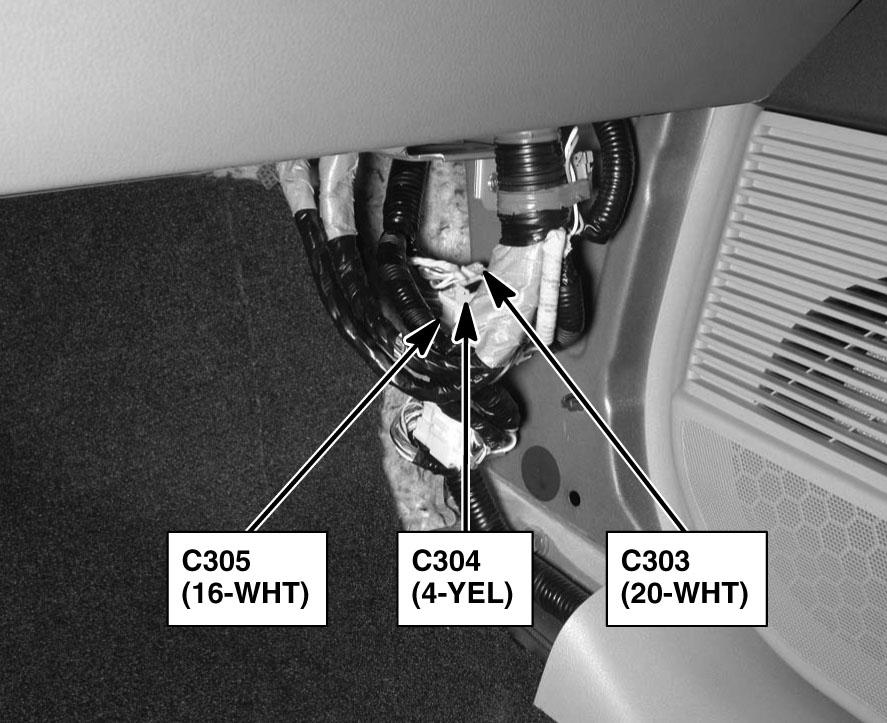

Fig 77: Right Kick Panel

G00473131

Courtesy of AMERICAN HONDA MOTOR CO., INC.

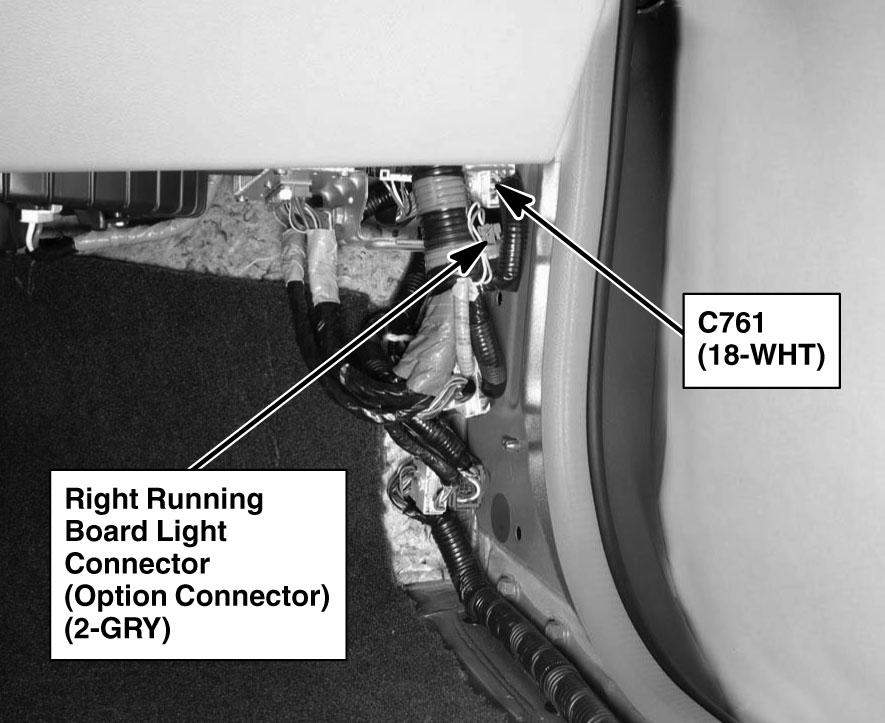

Fig 78: Right Kick Panel

G00473132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

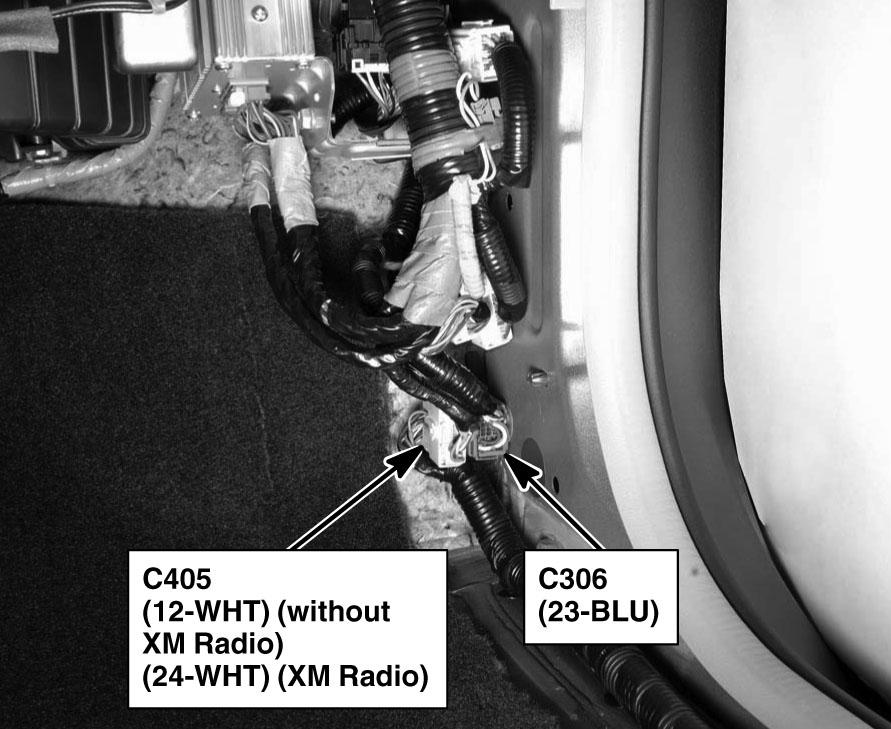

Fig 79: Right Kick Panel

G00473133

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Right Kick Panel

G00473134

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Under Driver's Seat

G00473135

Courtesy of AMERICAN HONDA MOTOR CO., INC.

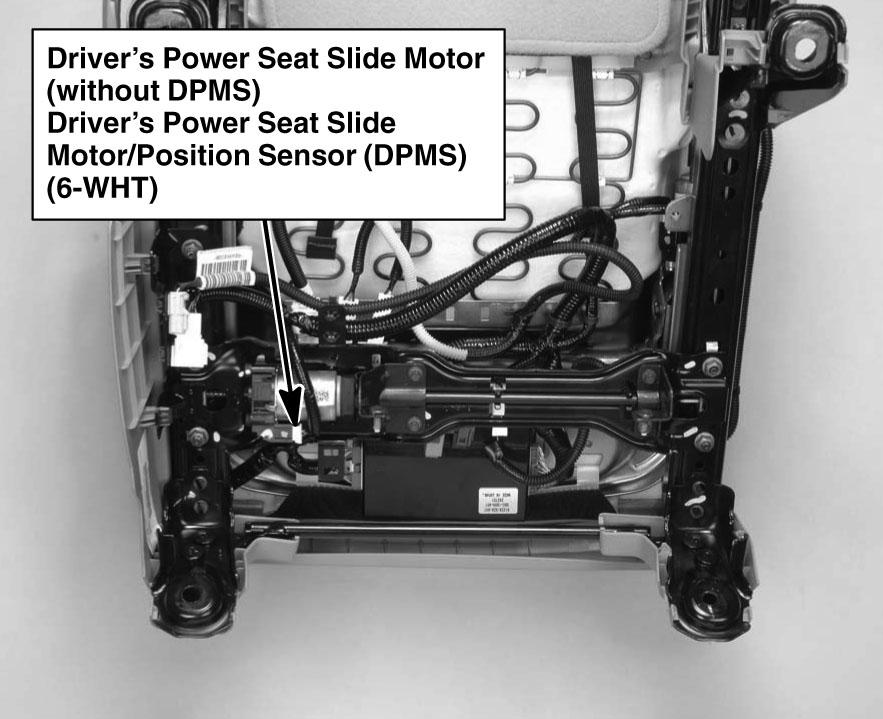

Fig 82: Under Driver's Seat

G00473136

Courtesy of AMERICAN HONDA MOTOR CO., INC.

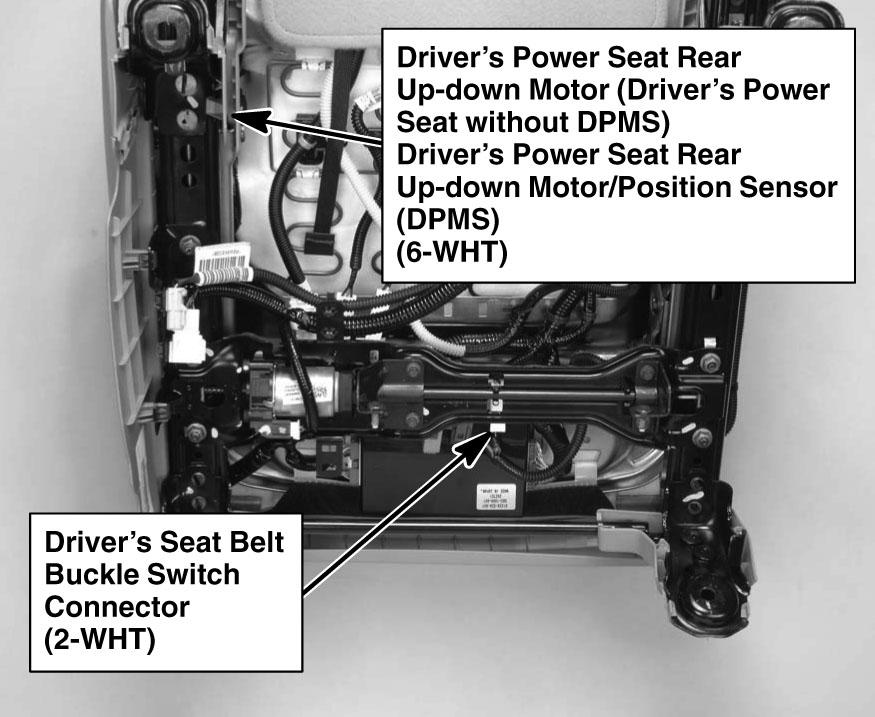

Fig 83: Under Driver's Seat

G00473137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

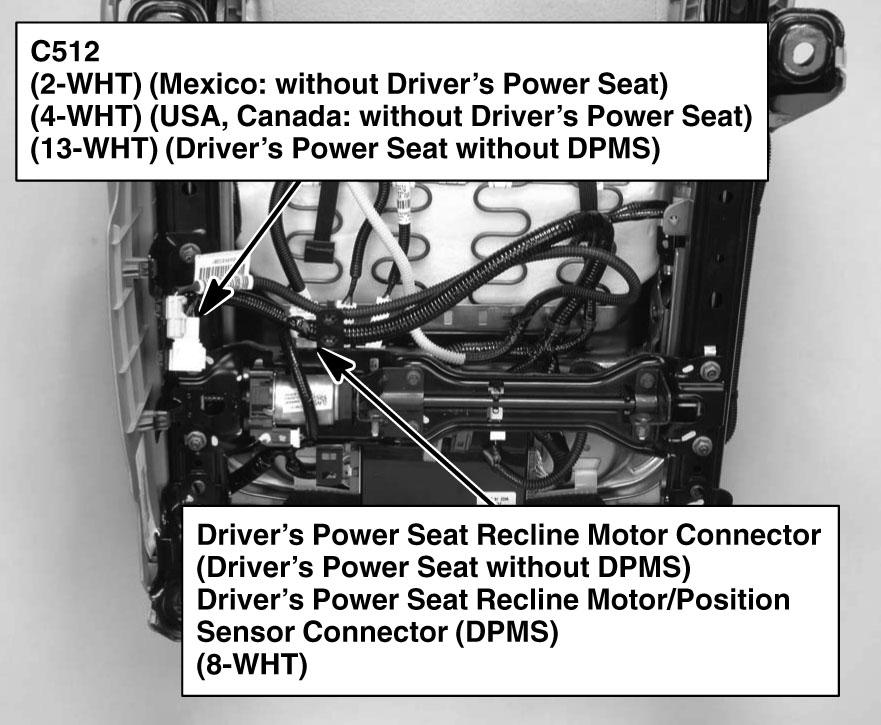

Fig 84: Under Driver's Seat

G00473138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

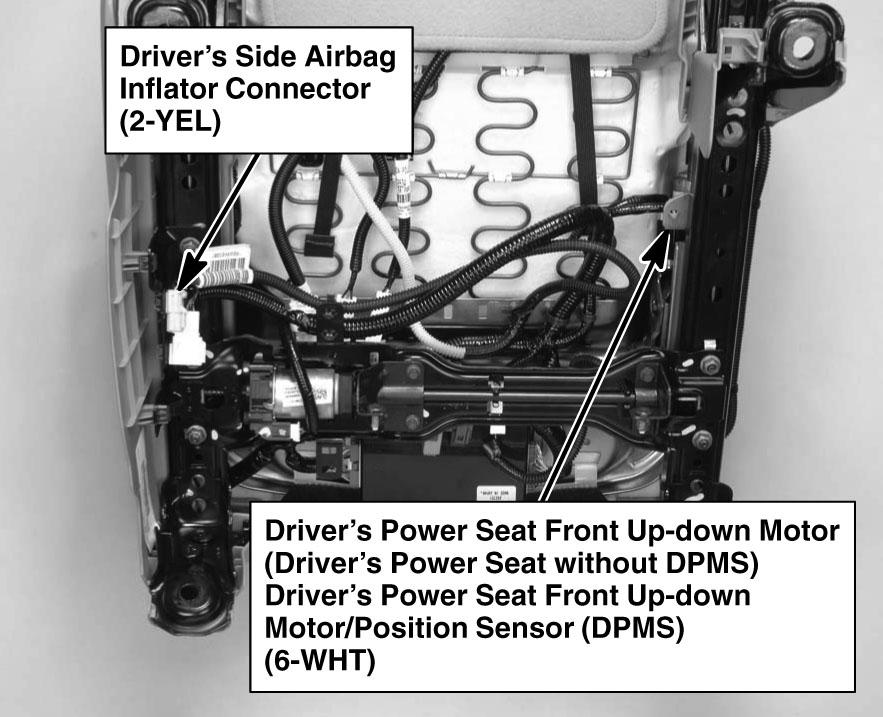

Fig 85: Under Driver's Seat

G00473139

Courtesy of AMERICAN HONDA MOTOR CO., INC.

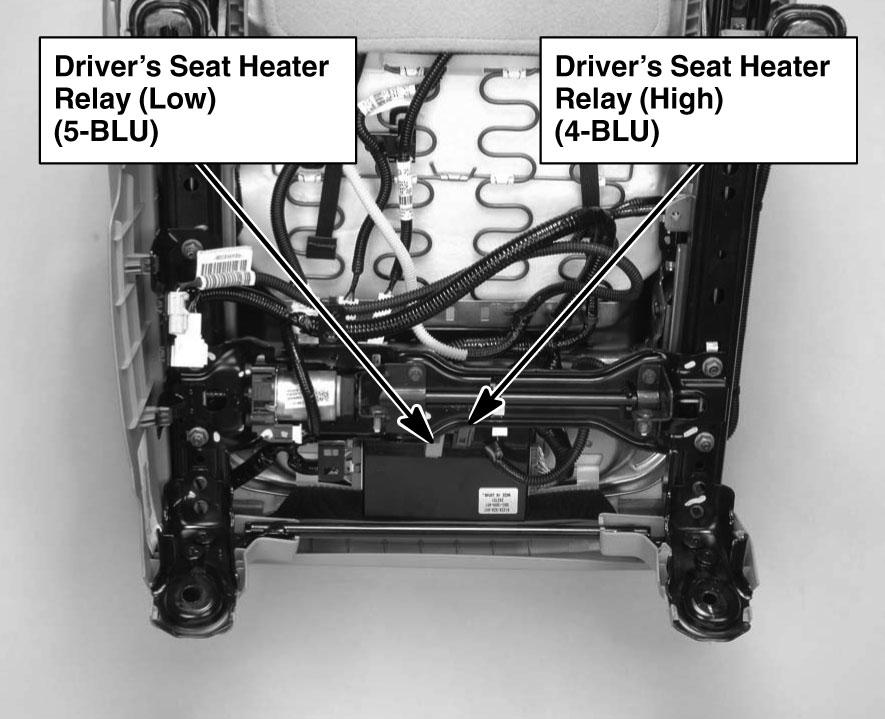

Fig 86: Under Driver's Seat

G00473140

Courtesy of AMERICAN HONDA MOTOR CO., INC.

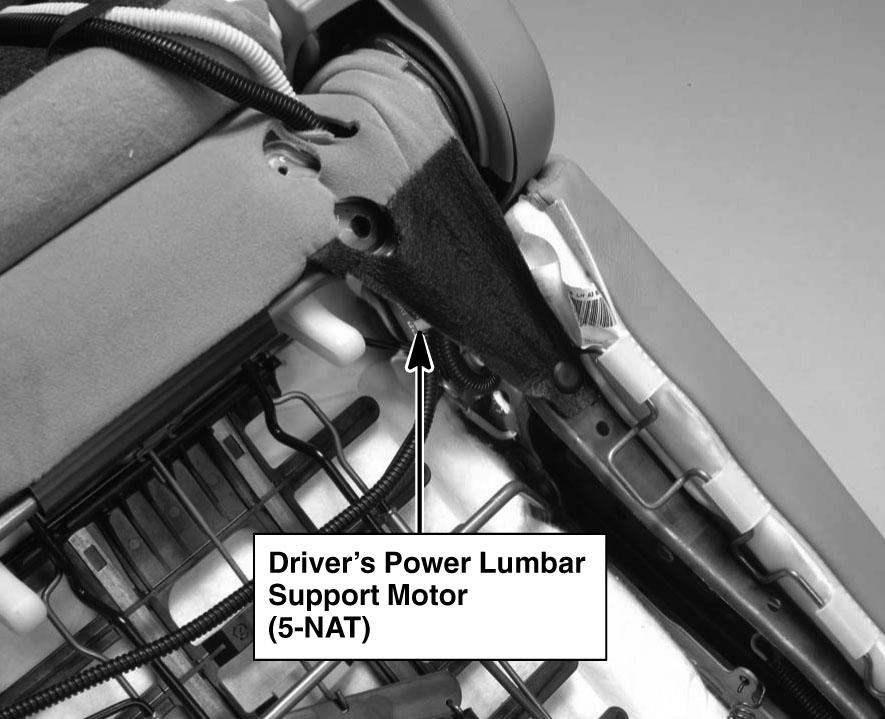

Fig 87: Driver's Seat Back

G00473141

Courtesy of AMERICAN HONDA MOTOR CO., INC.

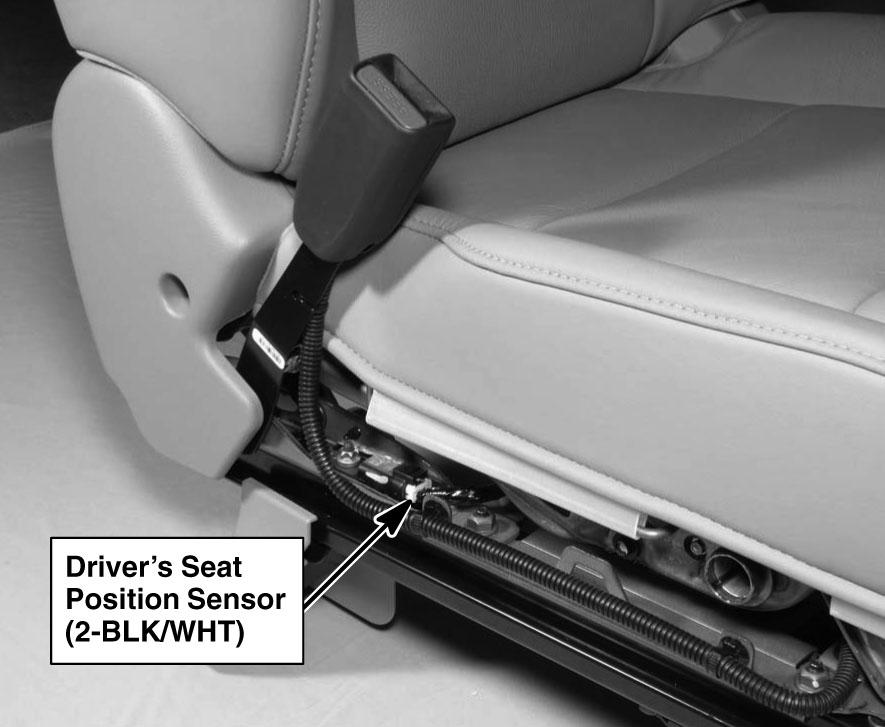

Fig 88: Driver's Seat

G00473142

Courtesy of AMERICAN HONDA MOTOR CO., INC.

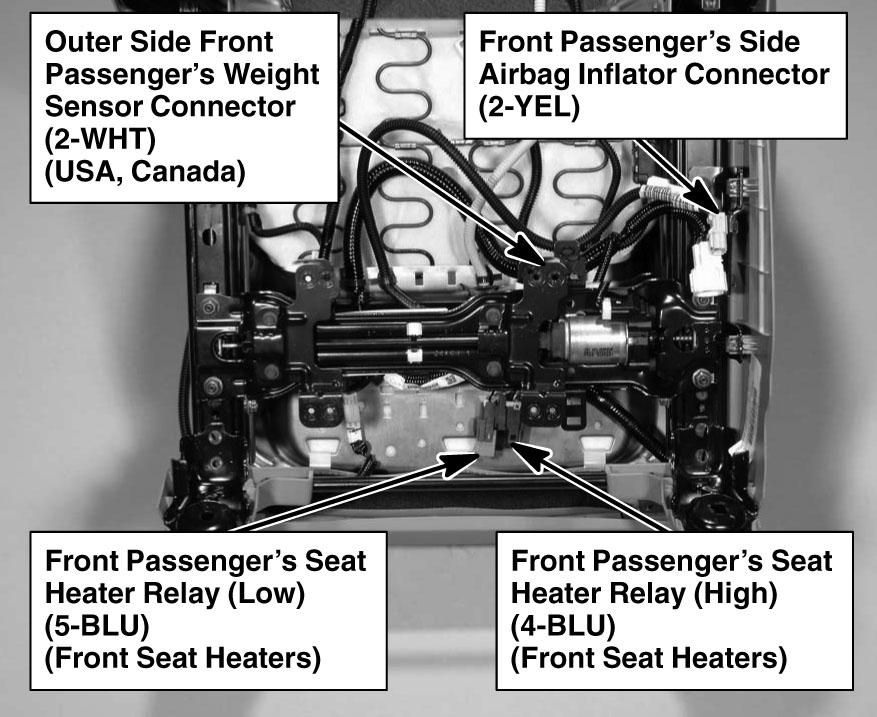

Fig 89: Under Front Passenger's Seat

G00473143

Courtesy of AMERICAN HONDA MOTOR CO., INC.

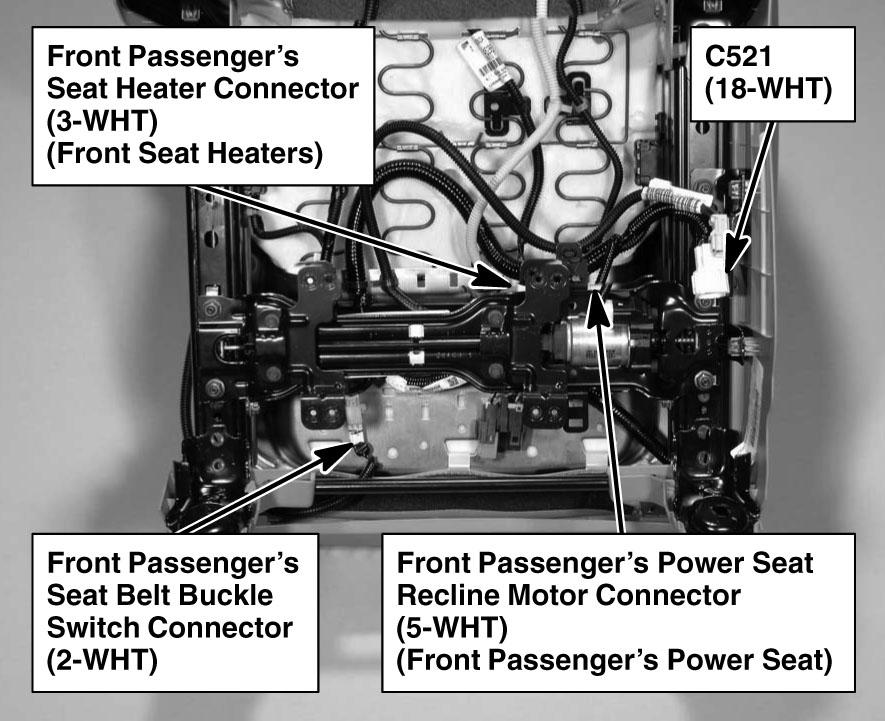

Fig 90: Under Front Passenger's Seat

G00473144

Courtesy of AMERICAN HONDA MOTOR CO., INC.

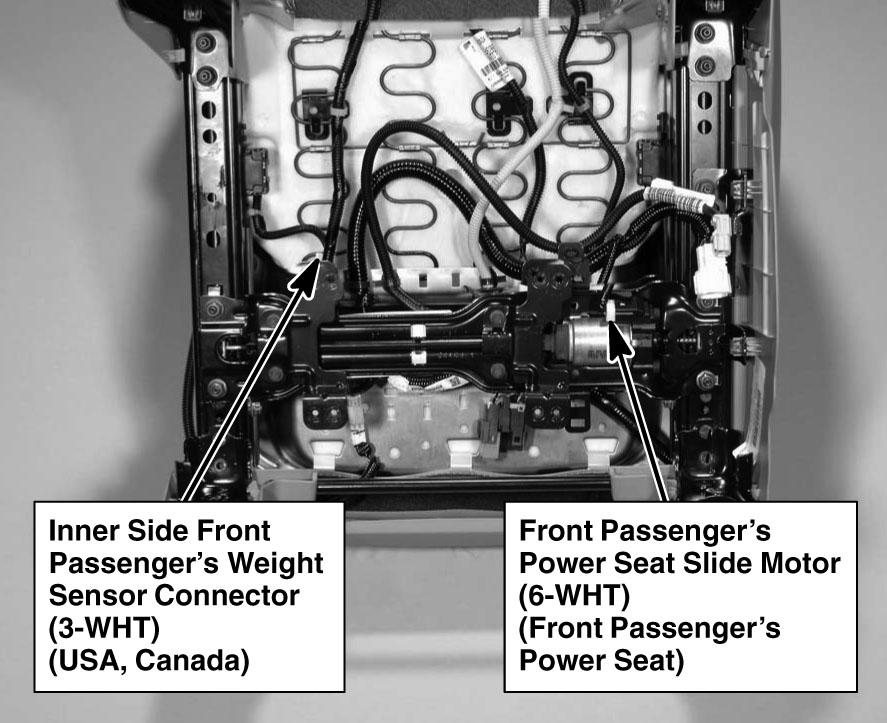

Fig 91: Under Front Passenger's Seat

G00473145

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Front Passenger's Seat Back

G00473146

Courtesy of AMERICAN HONDA MOTOR CO., INC.

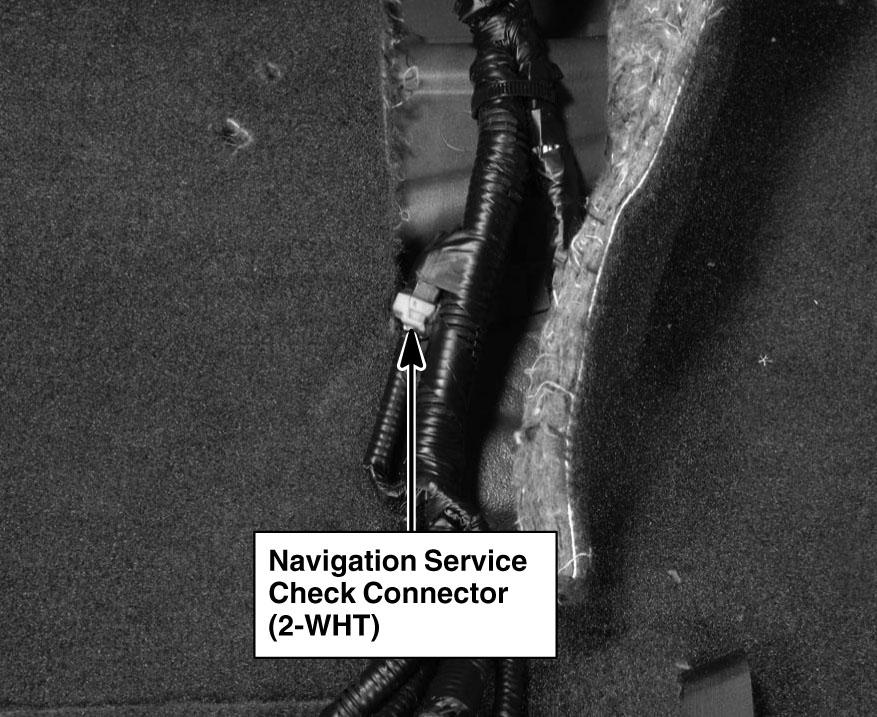

Fig 93: Under Driver's Seat

G00473147

Courtesy of AMERICAN HONDA MOTOR CO., INC.

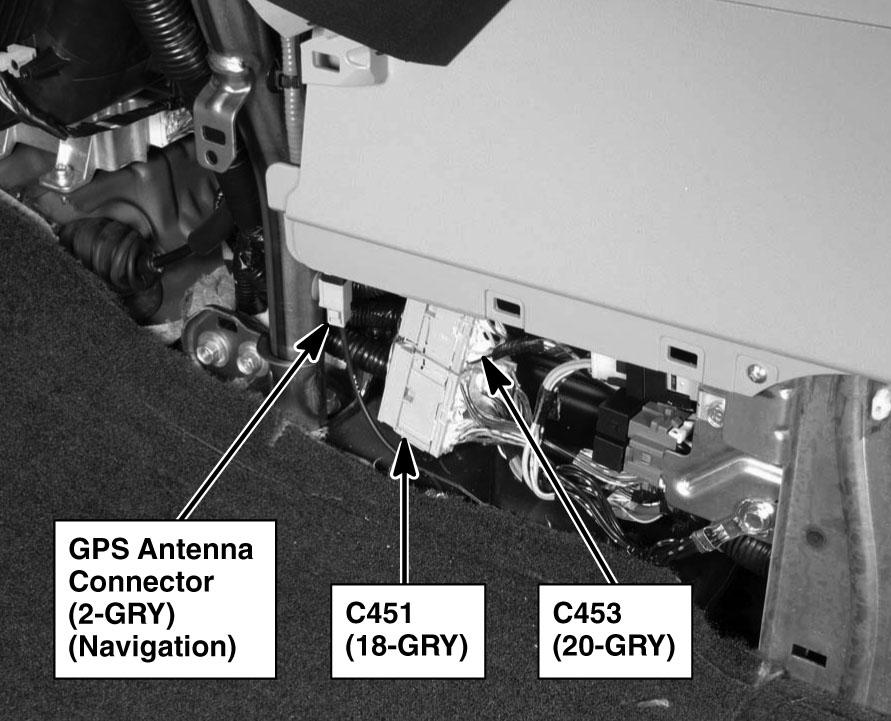

Fig 94: Under Center Console

G00473148

Courtesy of AMERICAN HONDA MOTOR CO., INC.

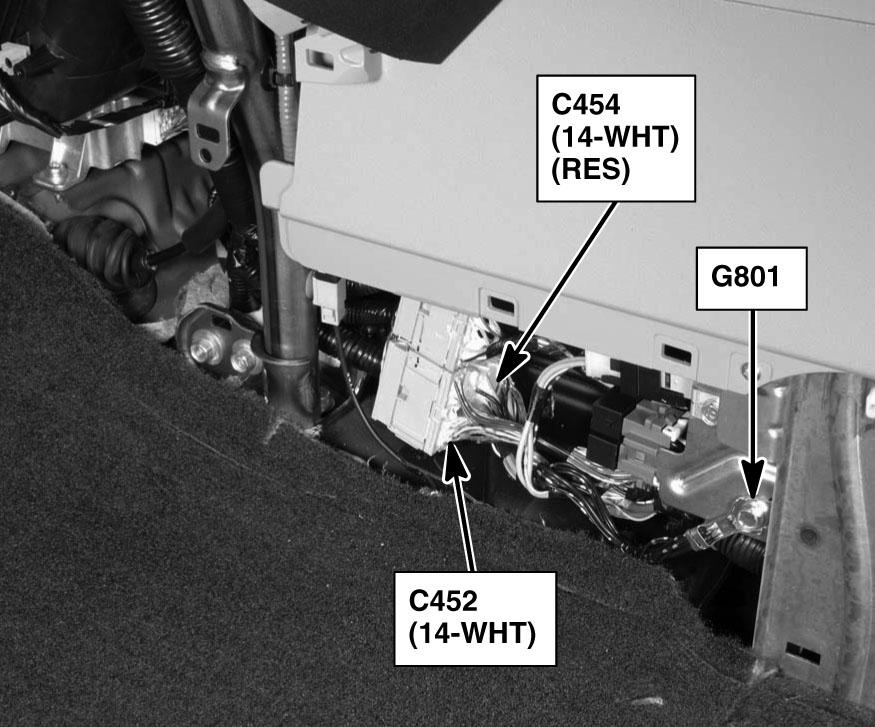

Fig 95: Under Center Console

G00473149

Courtesy of AMERICAN HONDA MOTOR CO., INC.

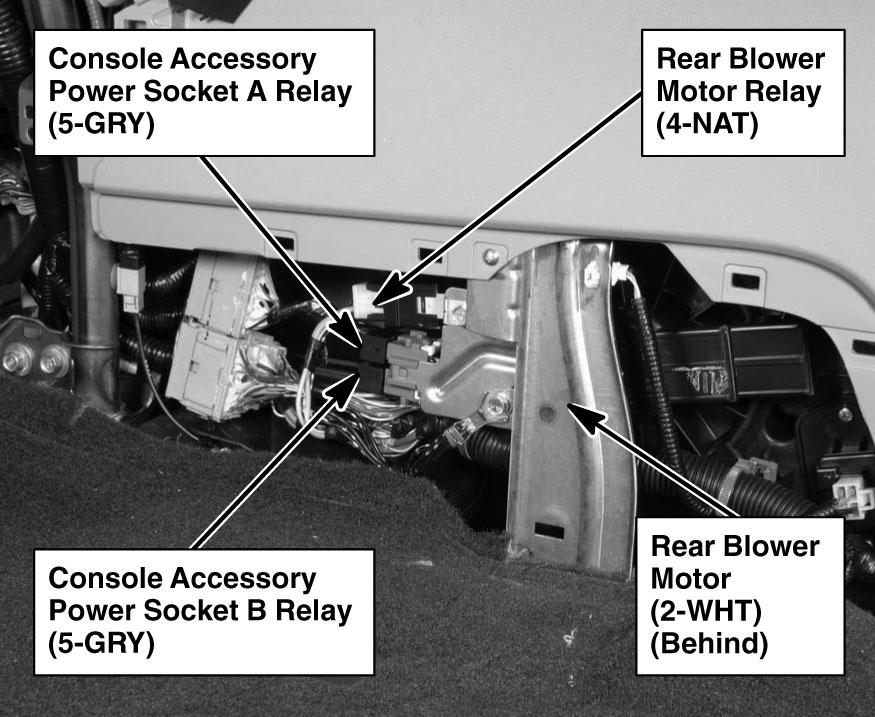

Fig 96: Under Center Console

G00473150

Courtesy of AMERICAN HONDA MOTOR CO., INC.

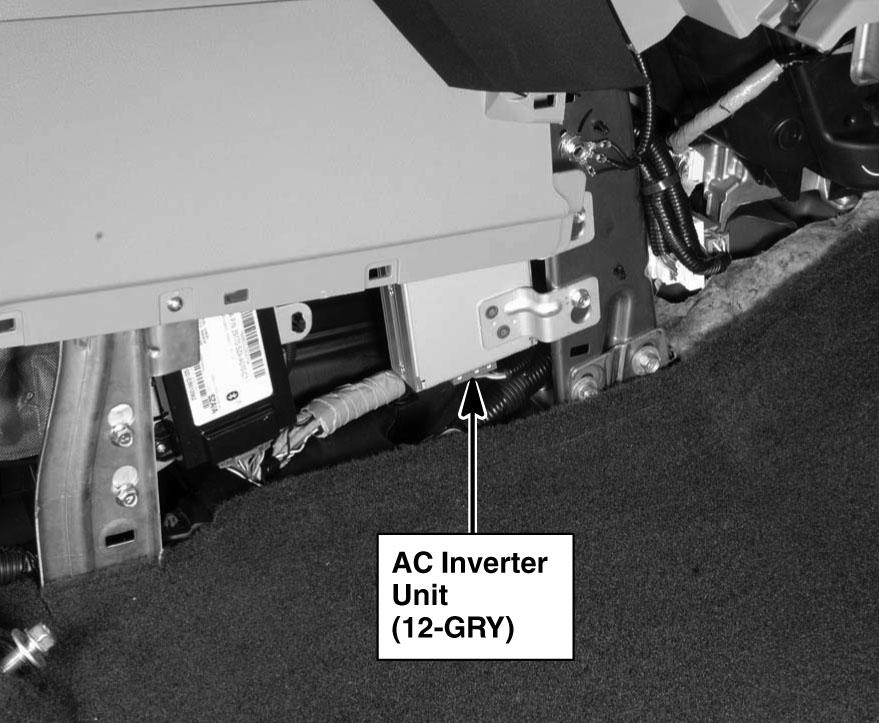

Fig 97: Under Center Console

G00473151

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Center Console

G00473152

Courtesy of AMERICAN HONDA MOTOR CO., INC.

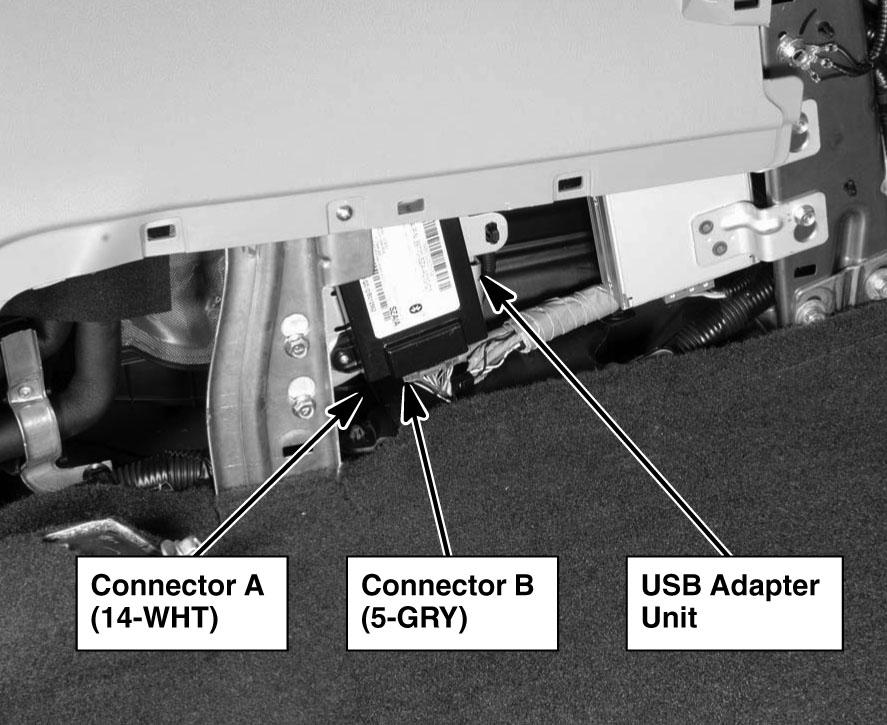

Fig 99: Under Center Console

G00473153

Courtesy of AMERICAN HONDA MOTOR CO., INC.

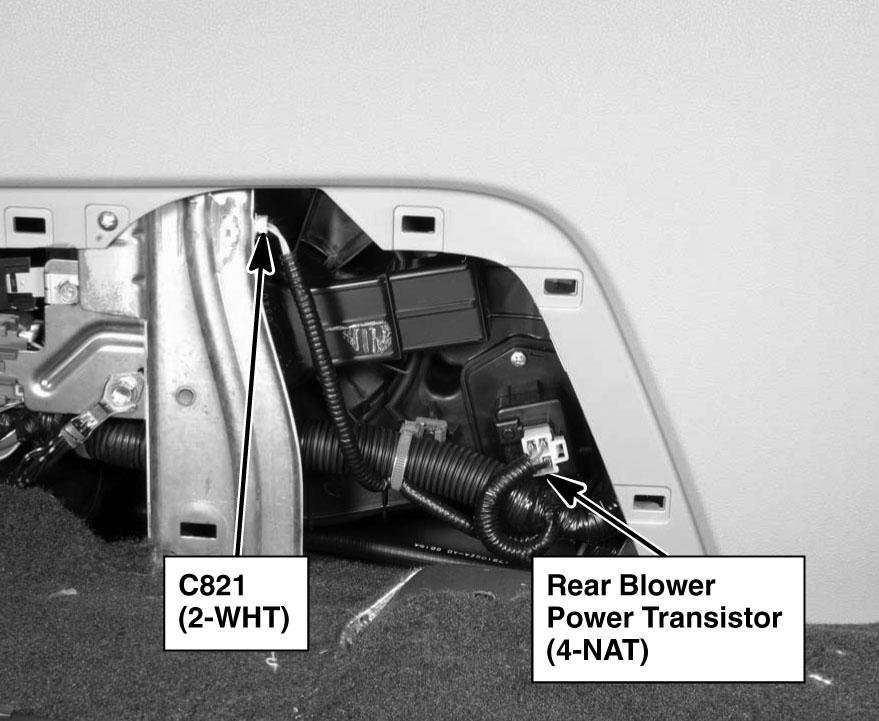

Fig 100: Under Center Console

G00473154

Courtesy of AMERICAN HONDA MOTOR CO., INC.

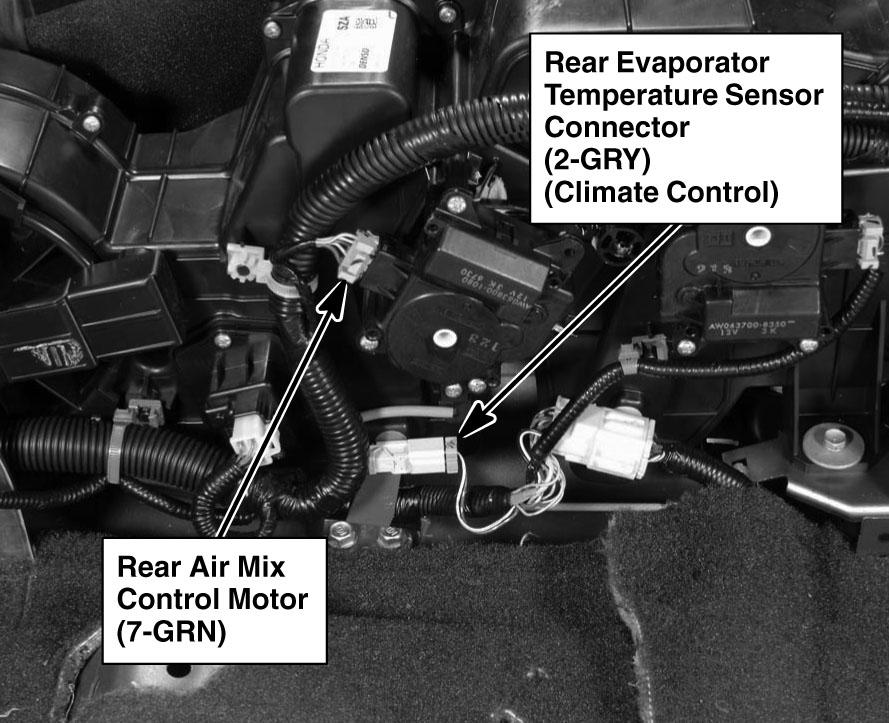

Fig 101: Under Center Console

G00473155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

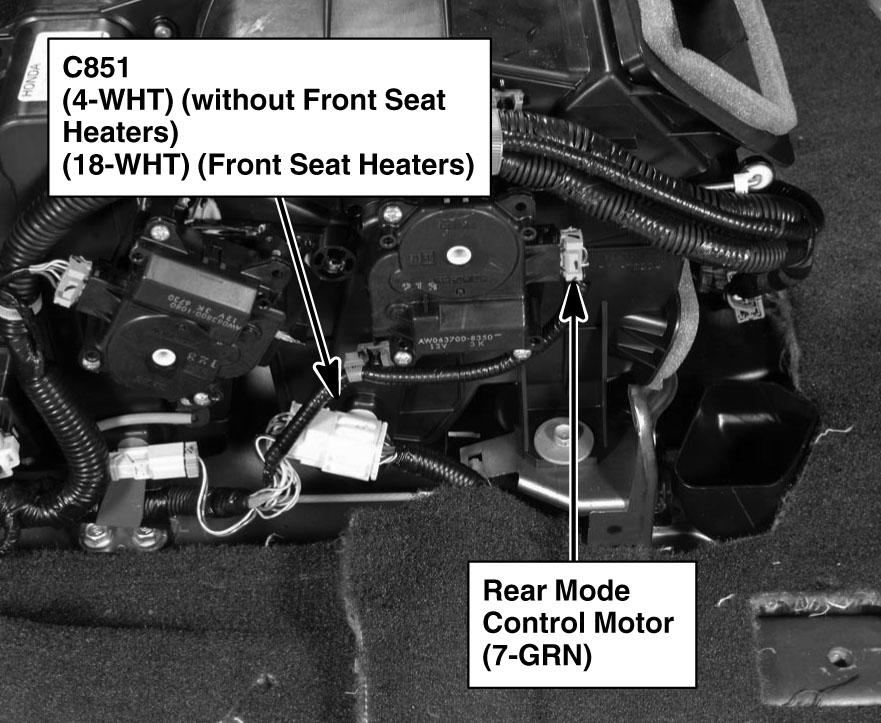

Fig 102: Under Center Console

G00473156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

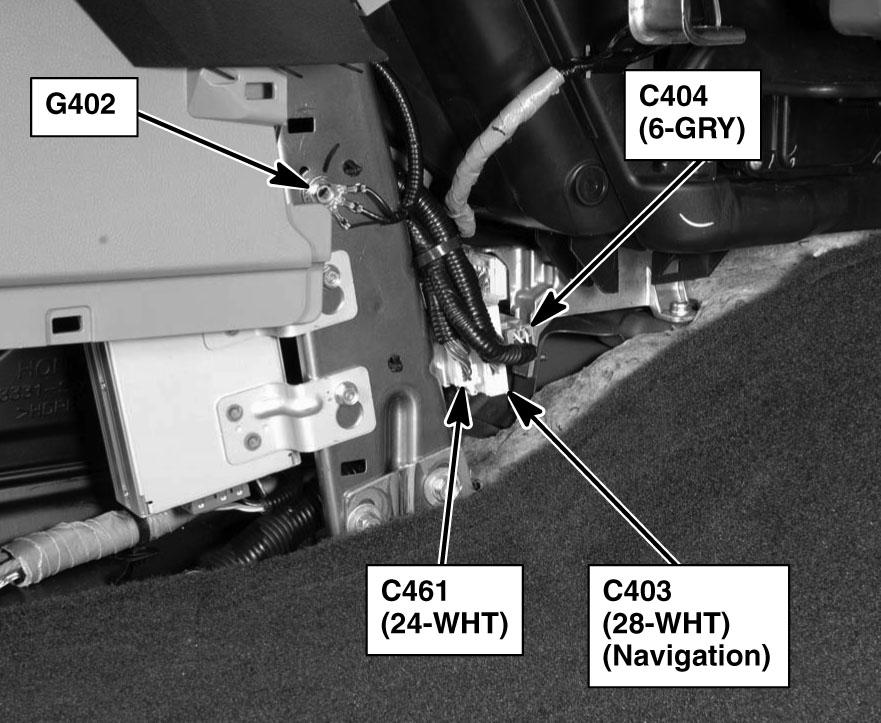

Fig 103: Under Middle Of Dash

G00473157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

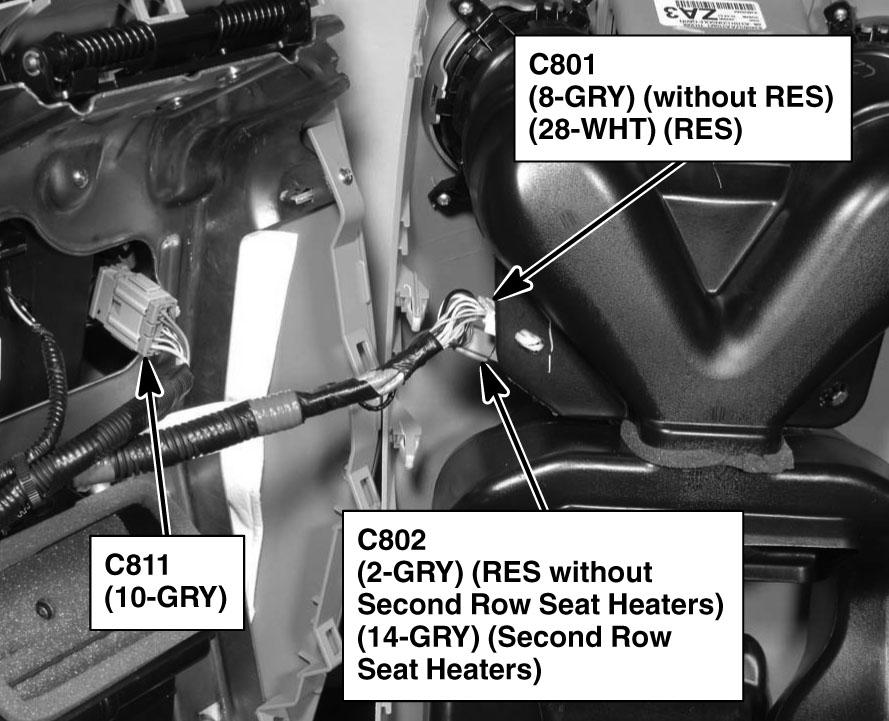

Fig 104: Under Rear Of Center Console

G00473158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

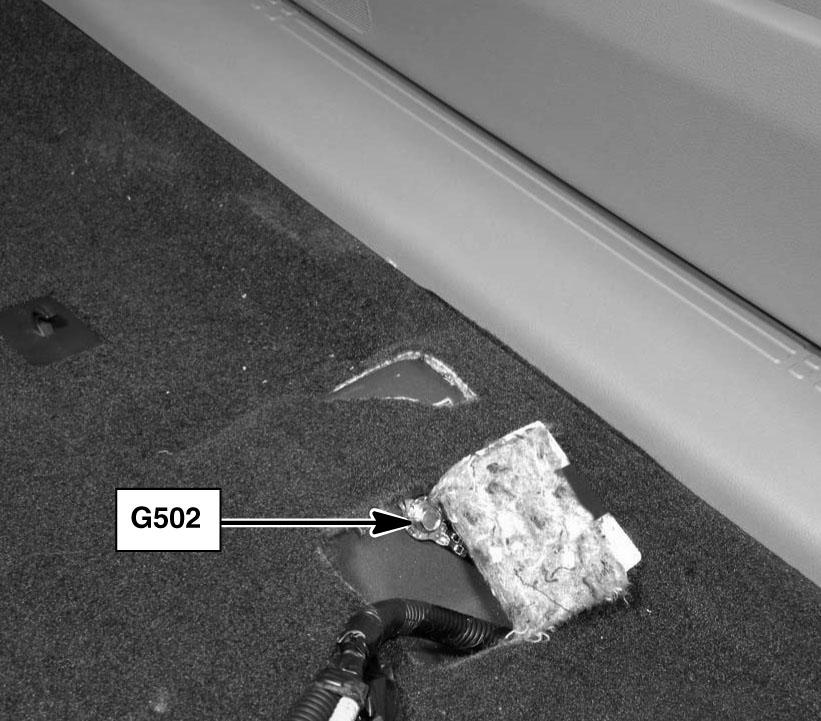

Fig 105: Under Front Passenger's Seat

G00473159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

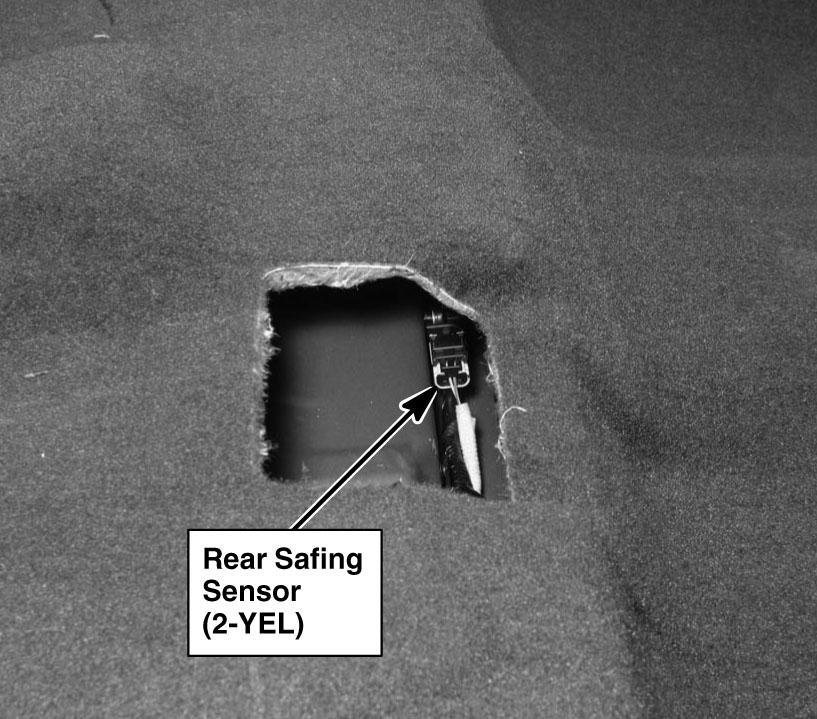

Fig 106: Center Of Floor

G00473160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

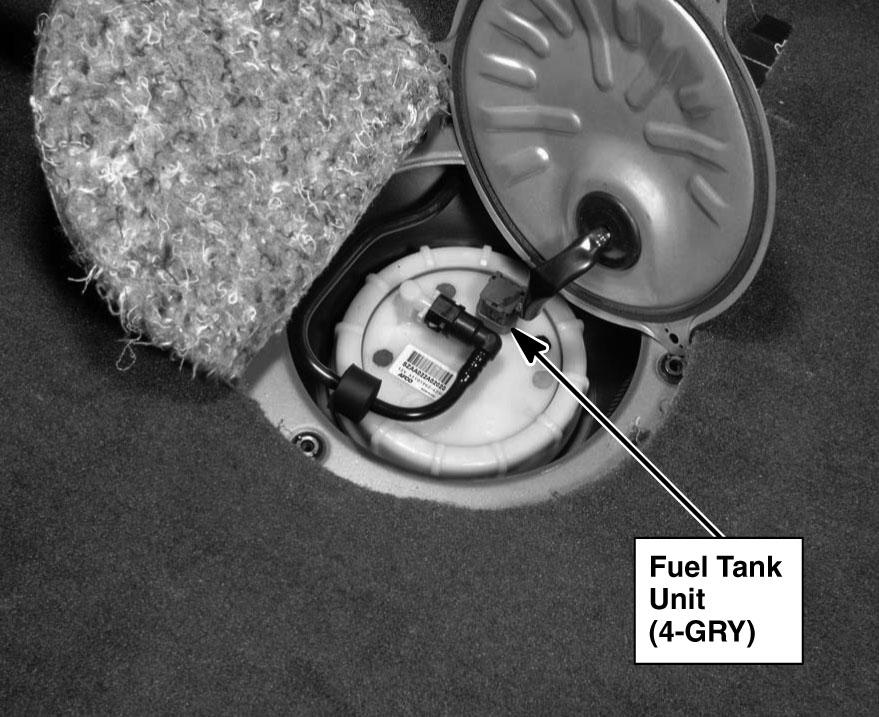

Fig 107: Center Of Floor

G00473161

Courtesy of AMERICAN HONDA MOTOR CO., INC.

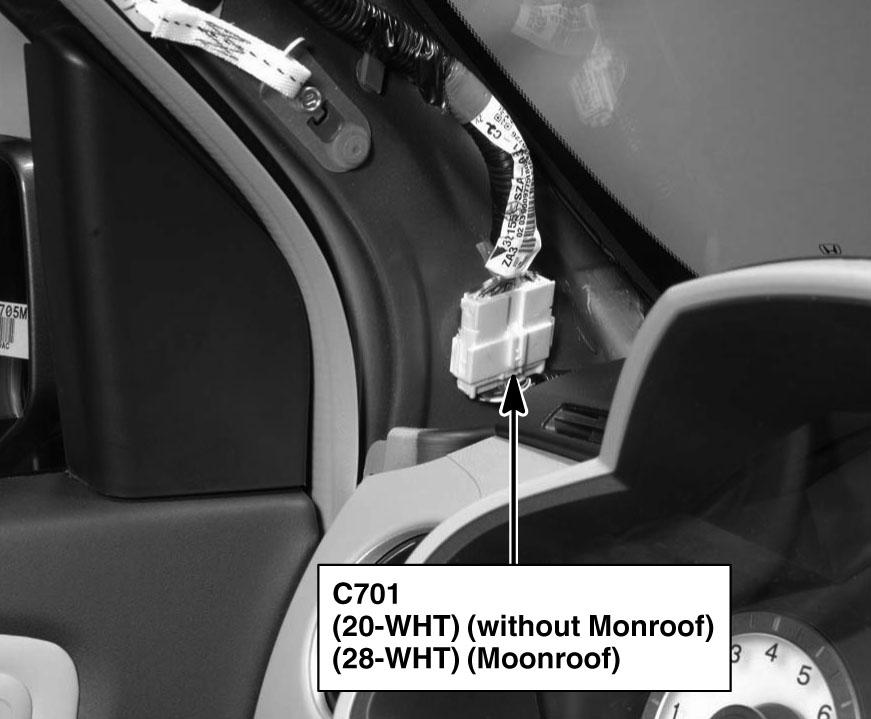

Fig 108: Left "A" Pillar

G00473162

Courtesy of AMERICAN HONDA MOTOR CO., INC.

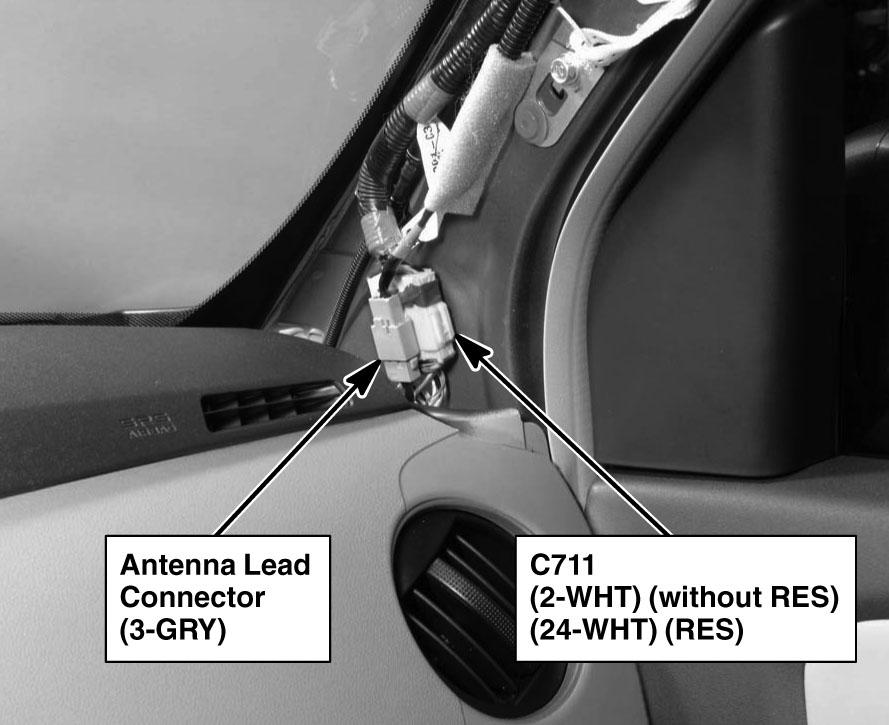

Fig 109: Right "A" Pillar

G00473163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

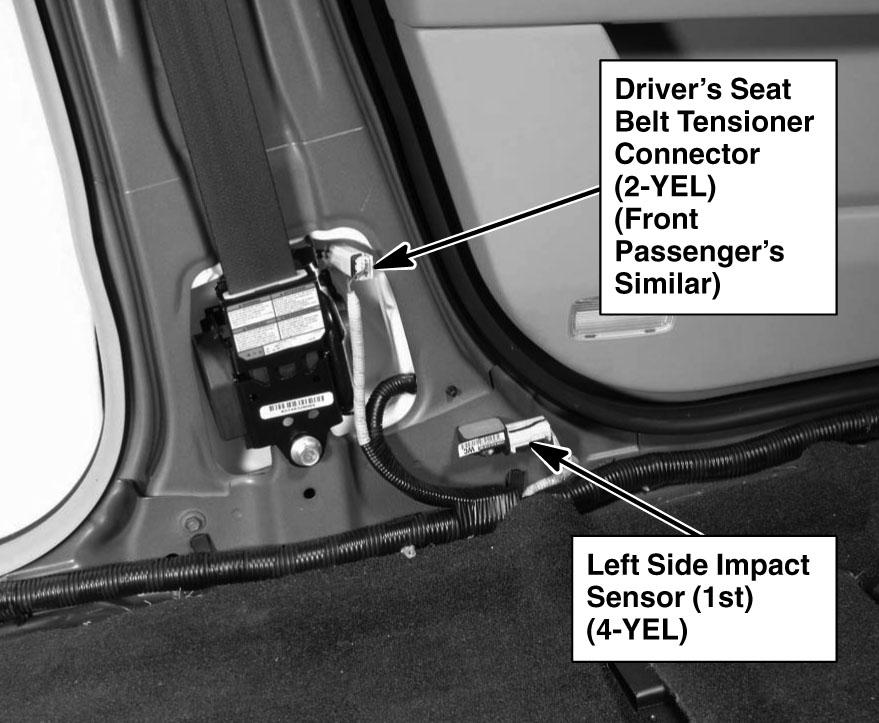

Fig 110: Left "B" Pillar (Right Similar)

G00473164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

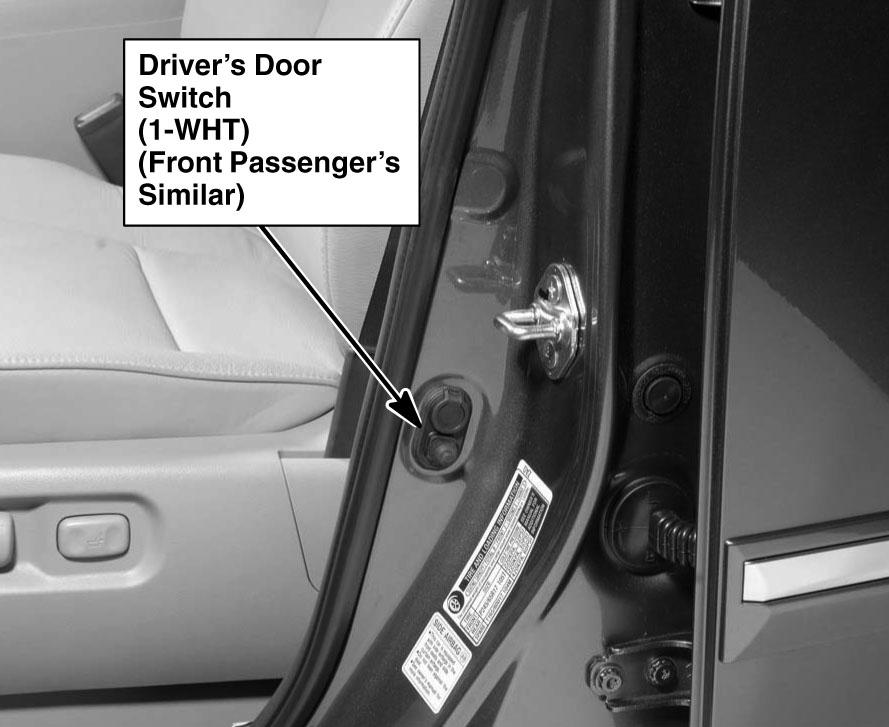

Fig 111: Left "B" Pillar (Right Similar)

G00473165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

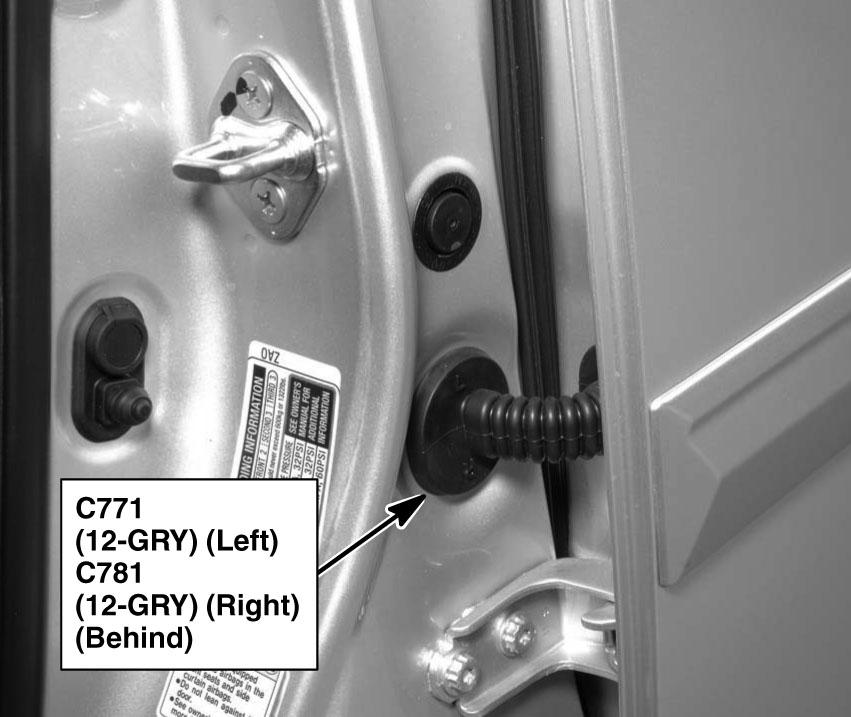

Fig 112: Left "B" Pillar (Right Similar)

G00473166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

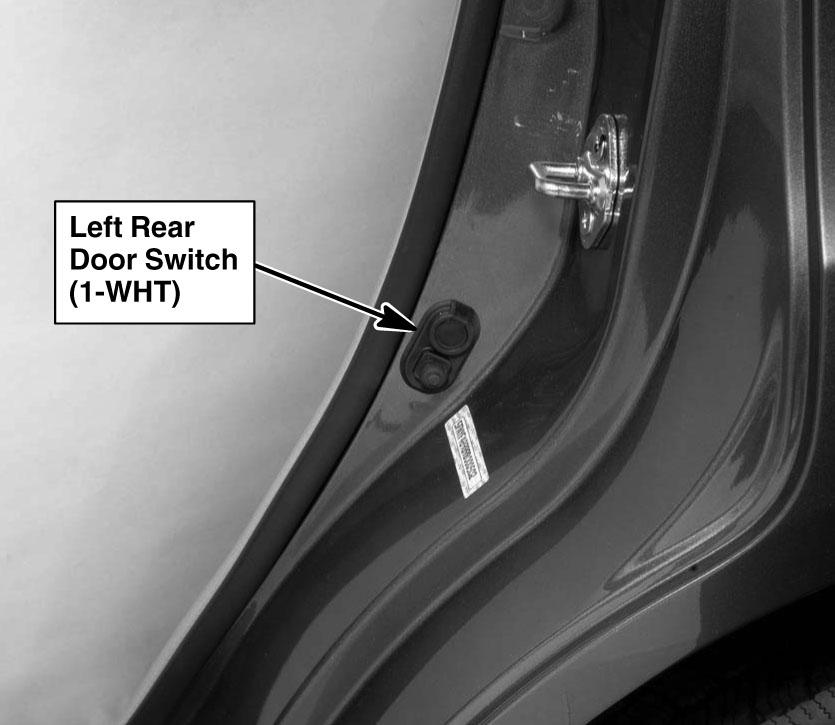

Fig 113: Left "C" Pillar (Right Similar)

G00473167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

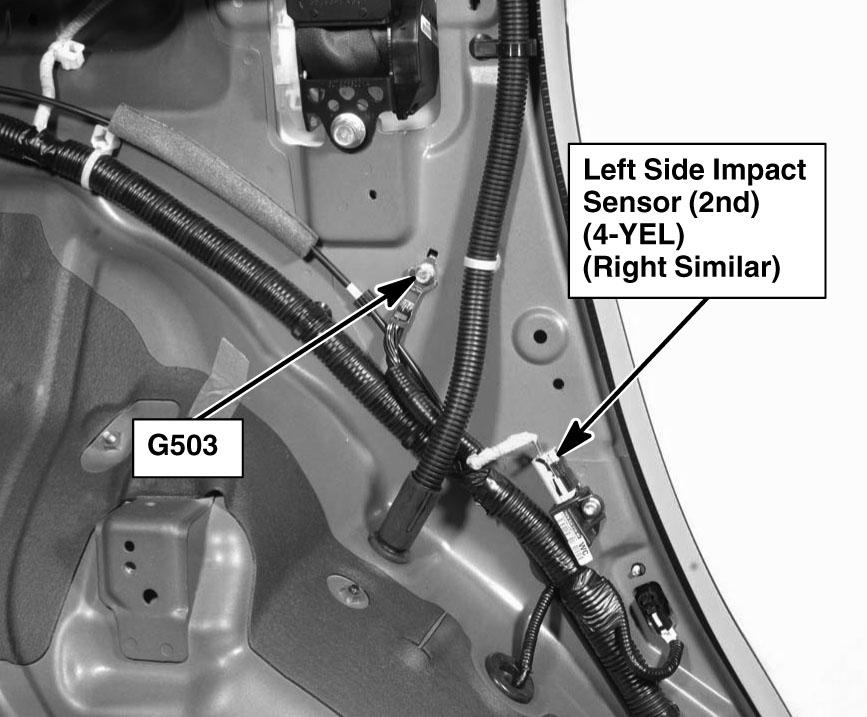

Fig 114: Left "C" Pillar (Right Similar)

G00473168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

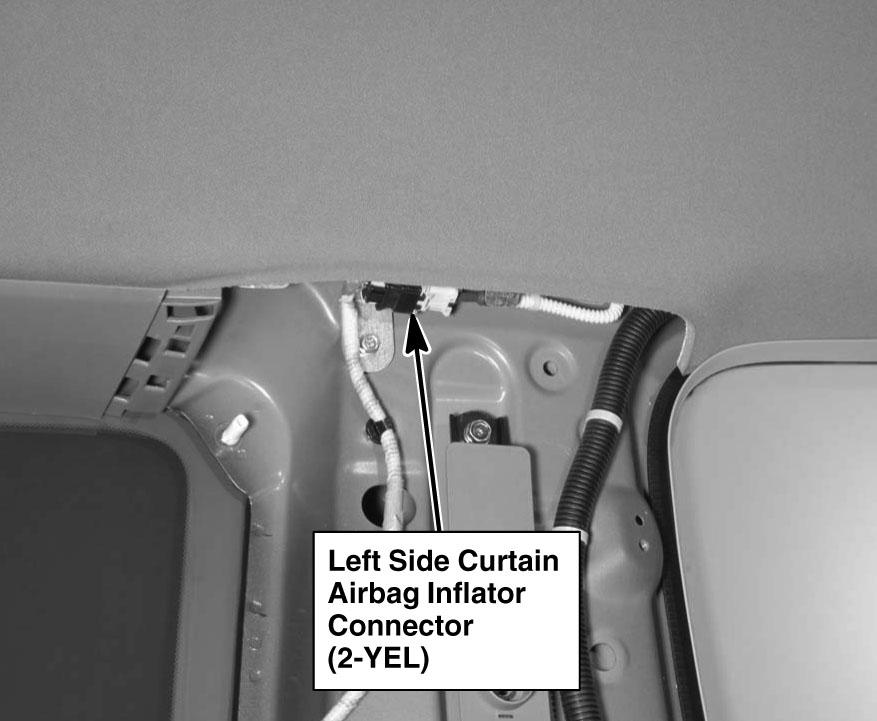

Fig 115: Left "C" Pillar (Right Similar)

G00473169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

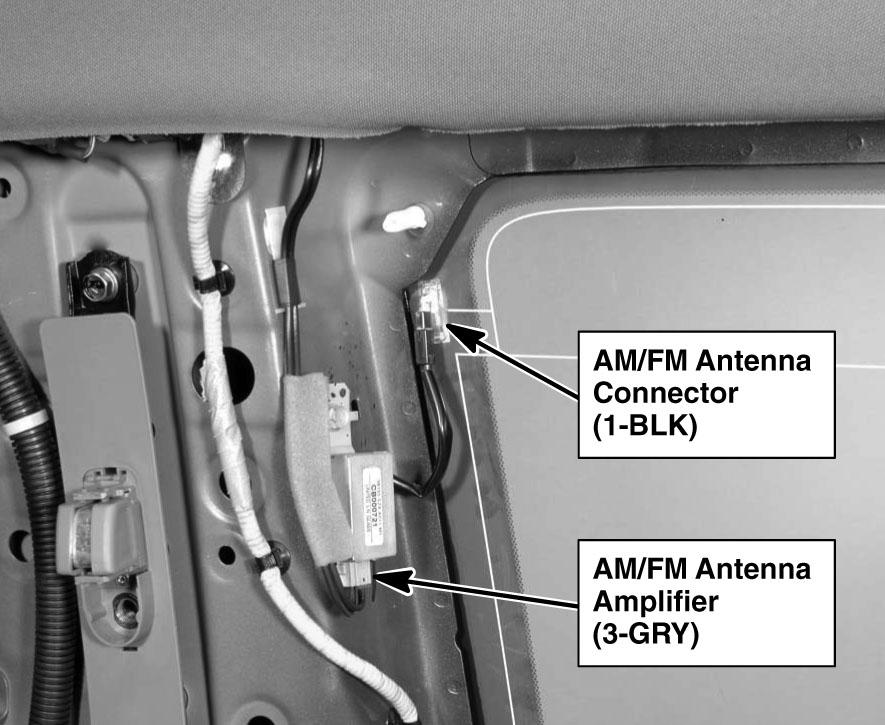

Fig 116: Right "C" Pillar

G00473170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

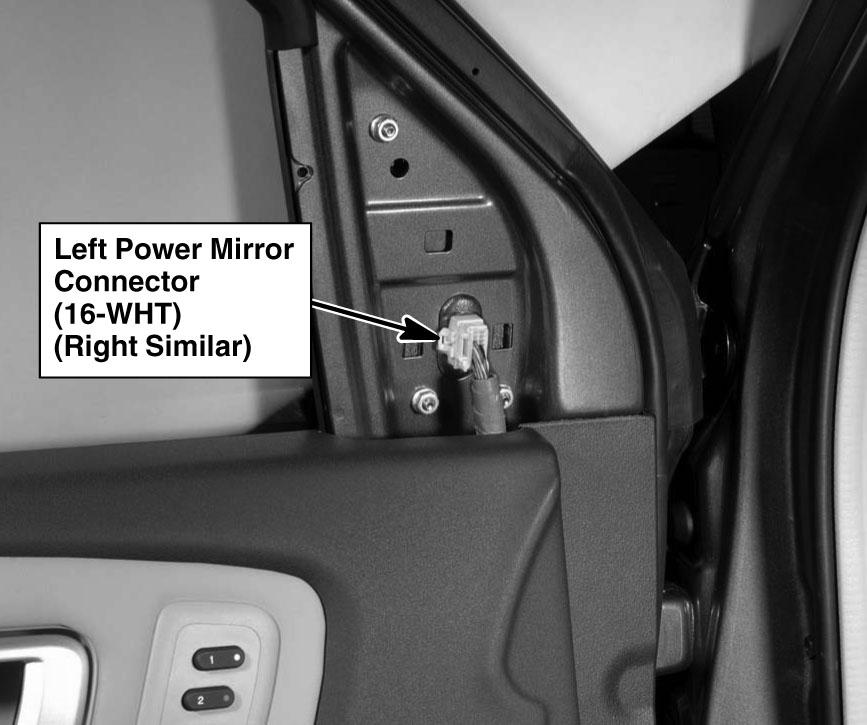

Fig 117: Driver's Door (Front Passenger's Similar)

G00473171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

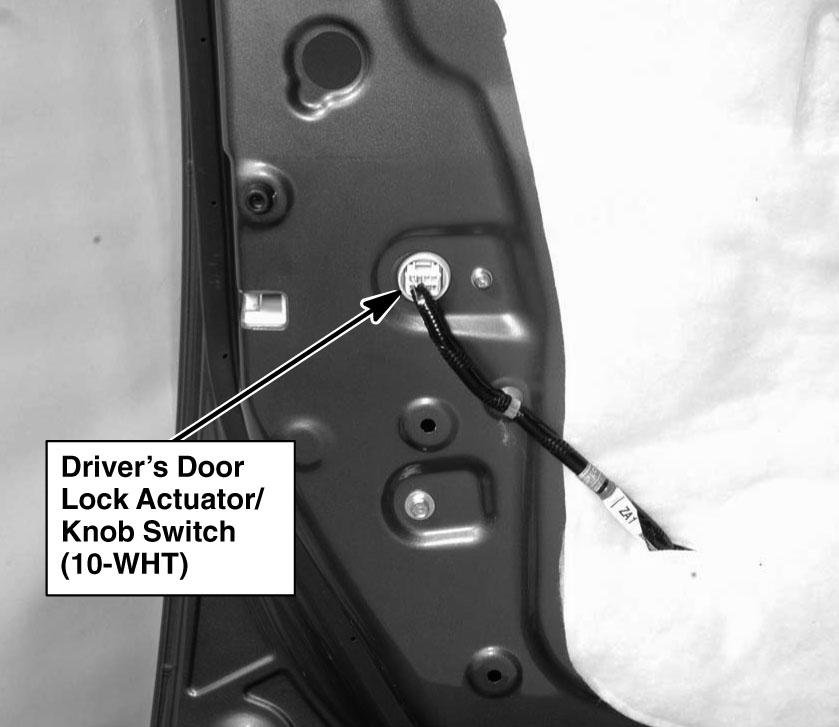

Fig 118: Driver's Door (Front Passenger's Similar)

G00473172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

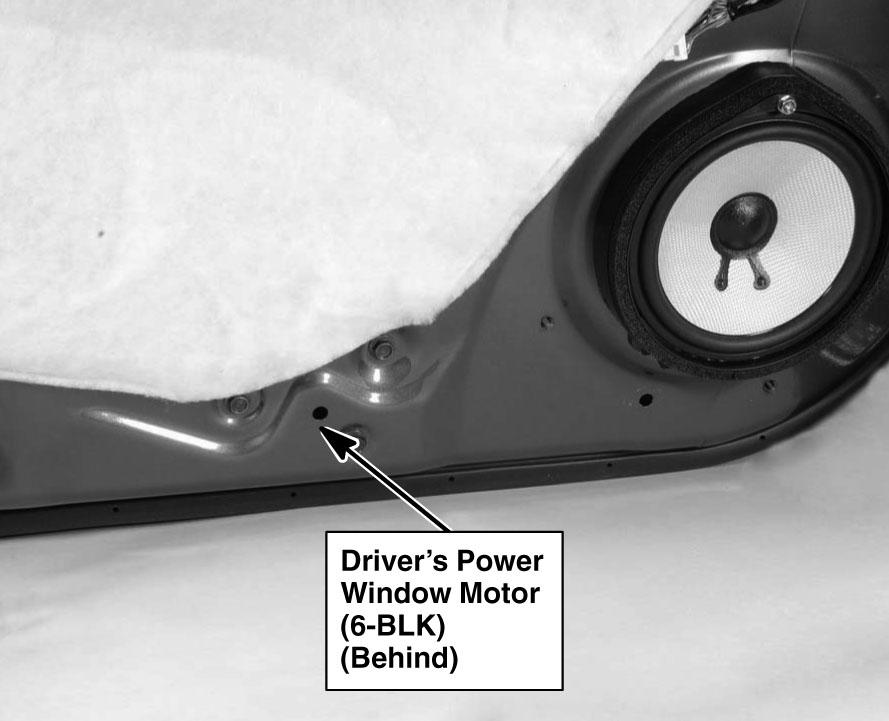

Fig 119: Driver's Door (Front Passenger's Similar)

G00473173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

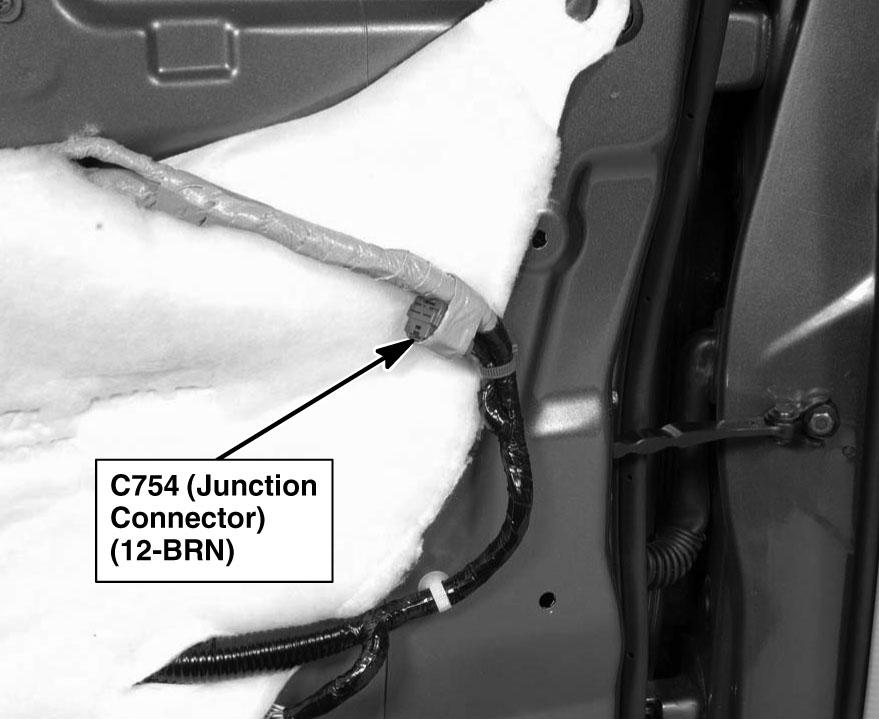

Fig 120: Driver's Door

G00473174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Driver's Door

G00473175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

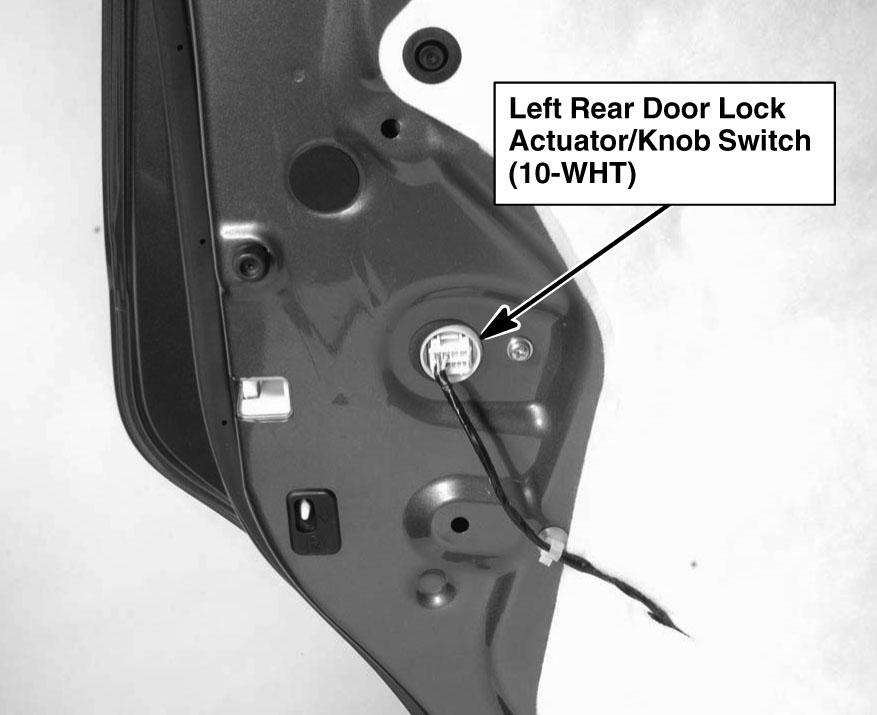

Fig 122: Left Rear Door (Right Similar)

G00473176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

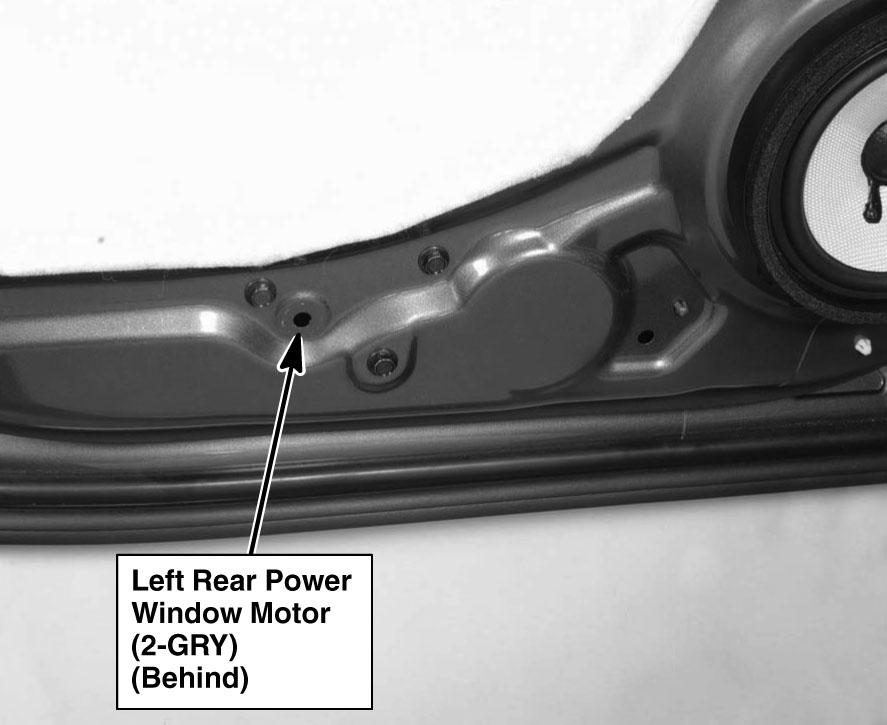

Fig 123: Left Rear Door (Right Similar)

G00473177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

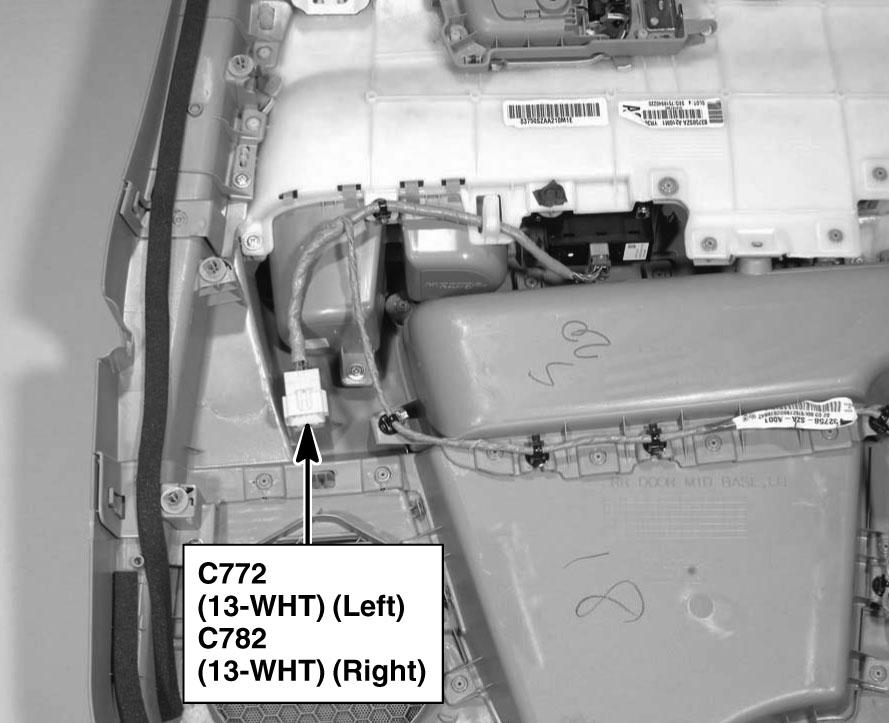

Fig 124: Left Rear Door (Right Similar)

G00473178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Front Of Roof

G00473179

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Front Of Roof

G00473180

Courtesy of AMERICAN HONDA MOTOR CO., INC.

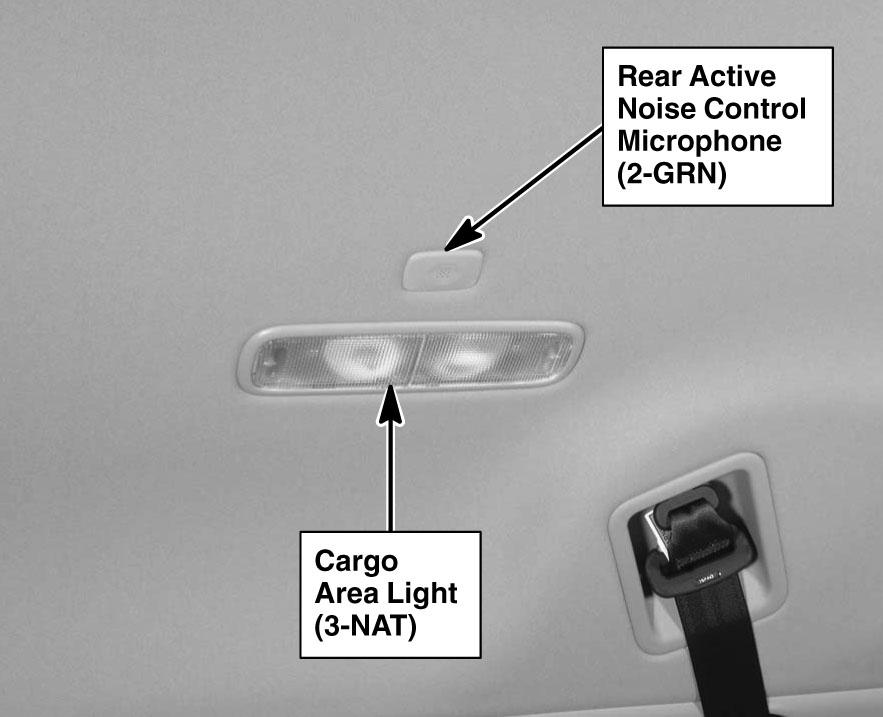

Fig 127: Rear Of Roof

G00473181

Courtesy of AMERICAN HONDA MOTOR CO., INC.

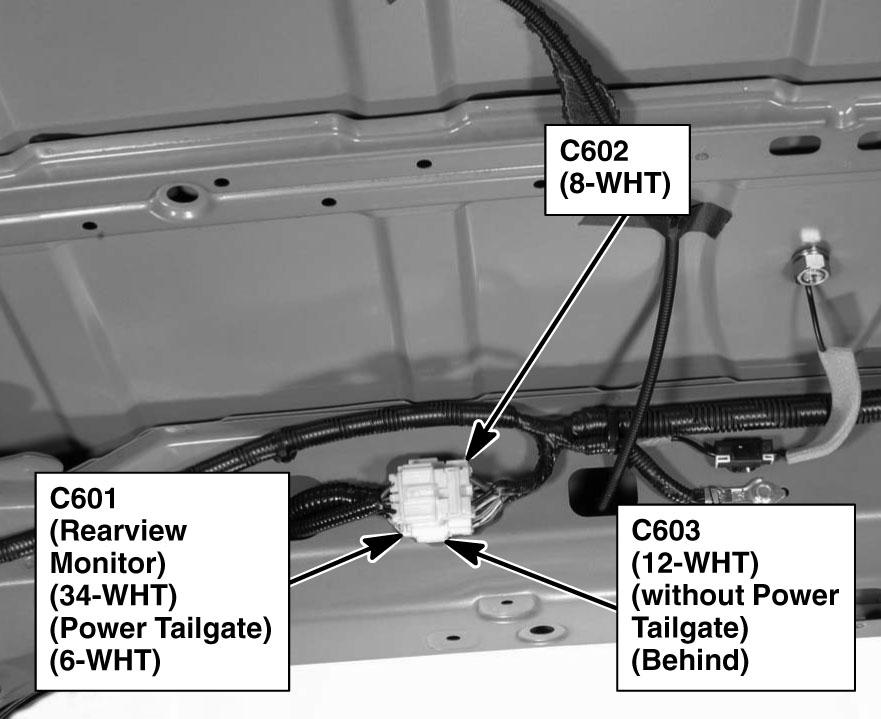

Fig 128: Rear Of Roof

G00473182

Courtesy of AMERICAN HONDA MOTOR CO., INC.

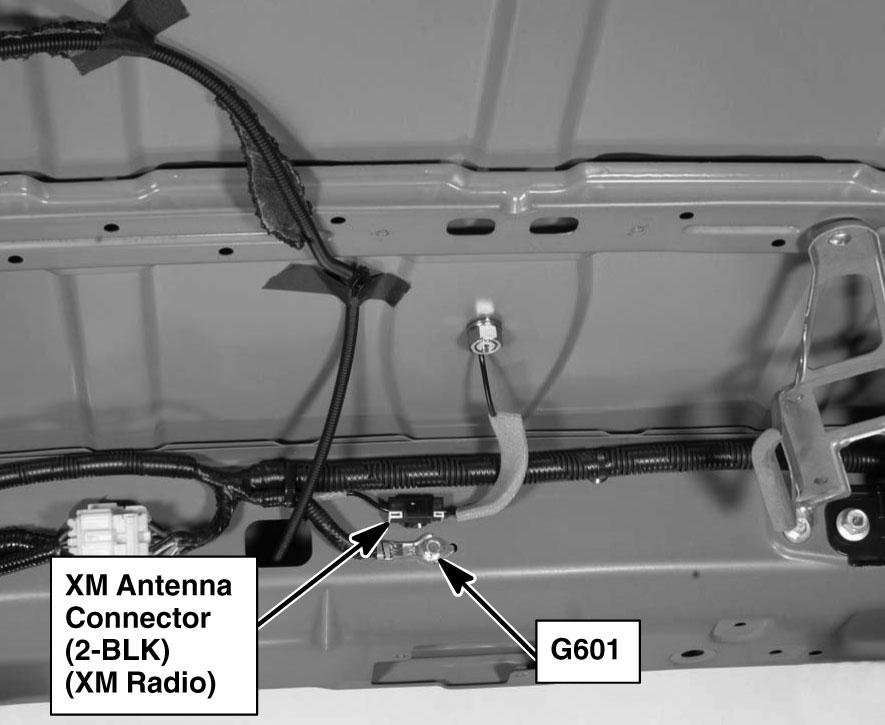

Fig 129: Rear Of Roof

G00473183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Rear Of Roof

G00473184

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Left Side Of Cargo Area

G00473185

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Left Side Of Cargo Area

G00473187

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Left Side Of Cargo Area

G00473188

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Left Side Of Cargo Area

G00473189

Courtesy of AMERICAN HONDA MOTOR CO., INC.

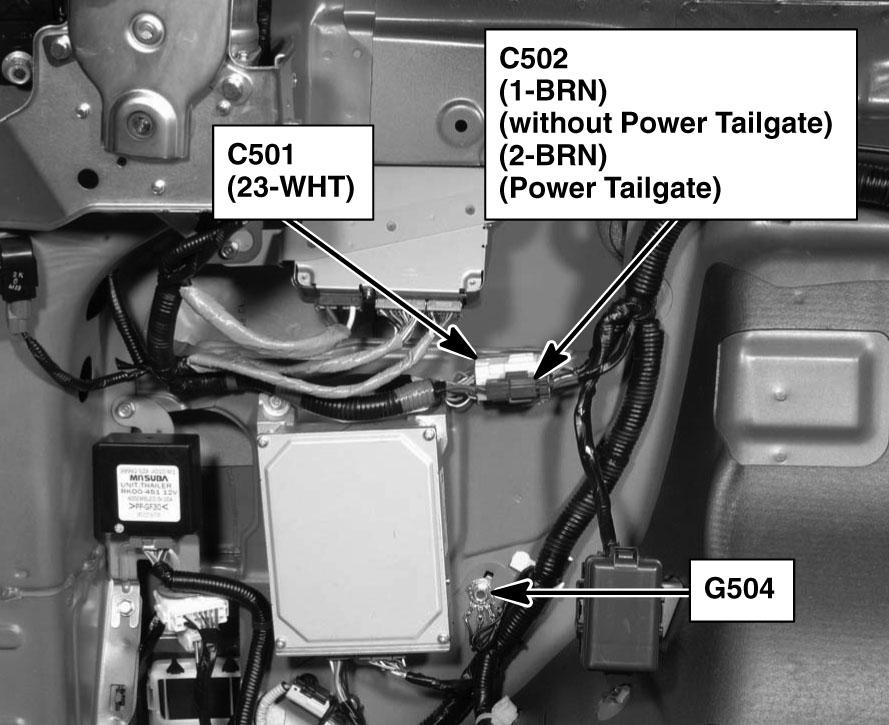

Fig 135: Left Side Of Cargo Area

G00473190

Courtesy of AMERICAN HONDA MOTOR CO., INC.

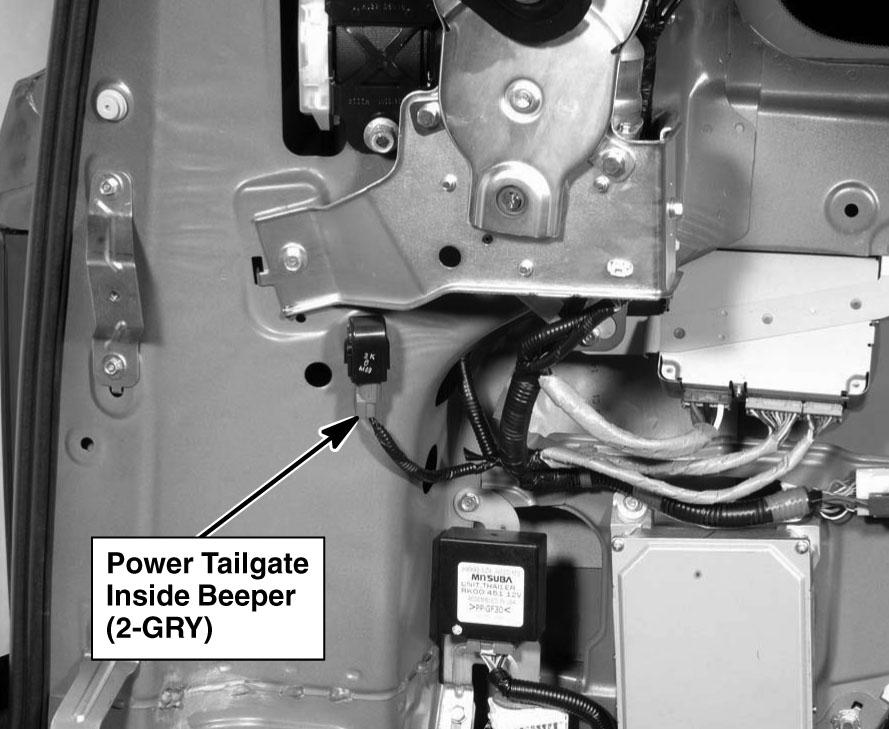

Fig 136: Left Side Of Cargo Area

G00473191

Courtesy of AMERICAN HONDA MOTOR CO., INC.

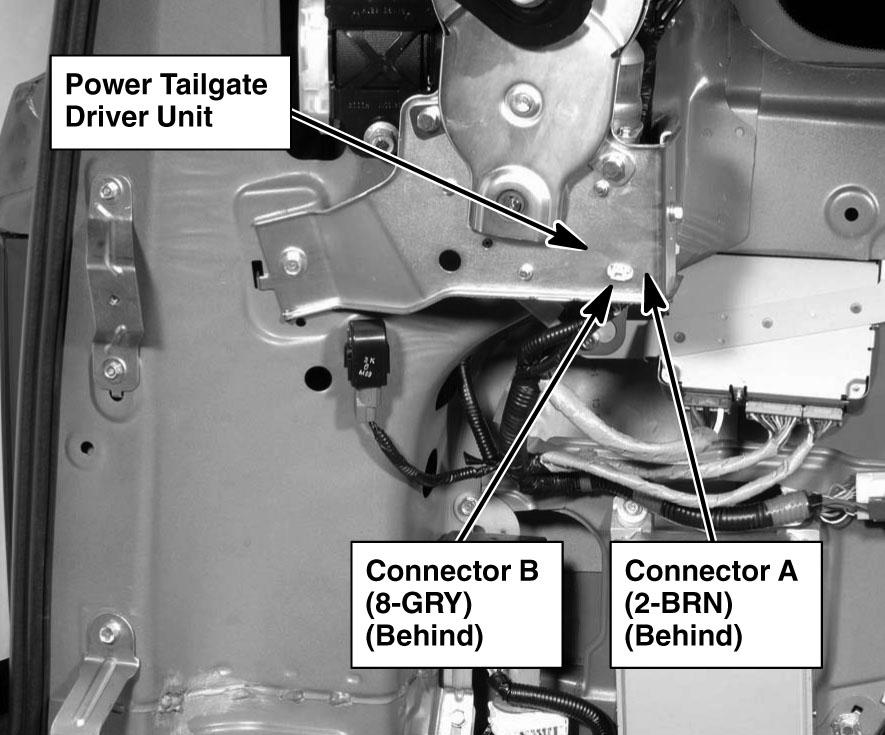

Fig 137: Left Side Of Cargo Area

G00473192

Courtesy of AMERICAN HONDA MOTOR CO., INC.

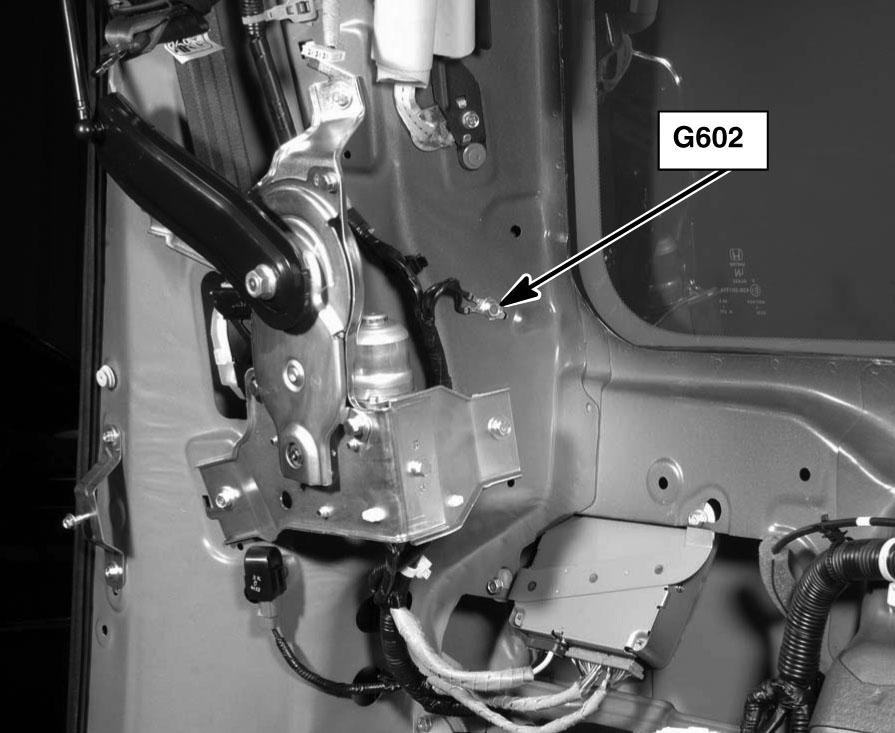

Fig 138: Left "D" Pillar

G00473193

Courtesy of AMERICAN HONDA MOTOR CO., INC.

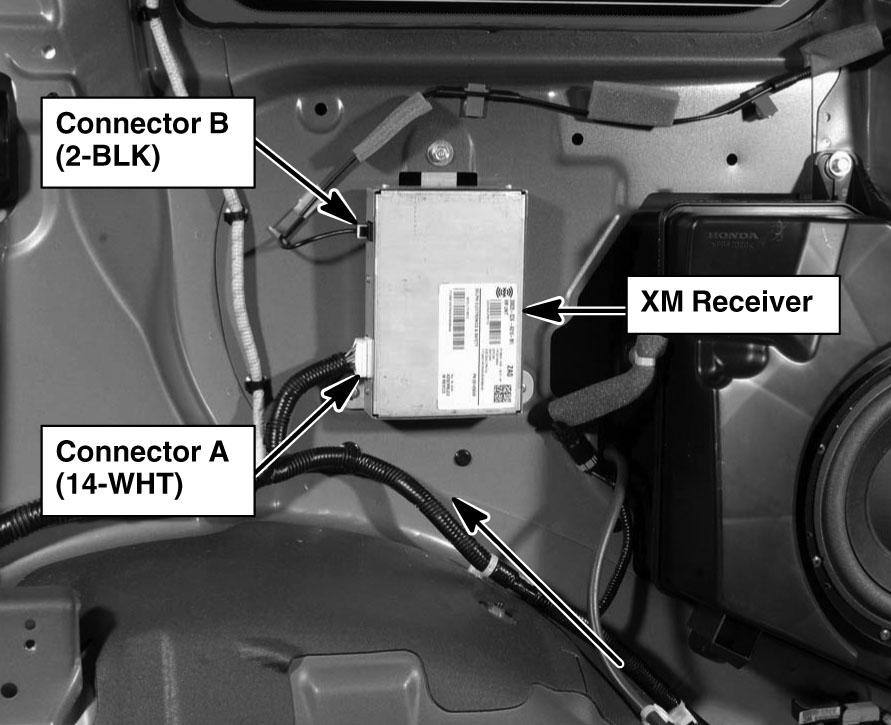

Fig 139: Right Side Of Cargo Area

G00473194

Courtesy of AMERICAN HONDA MOTOR CO., INC.

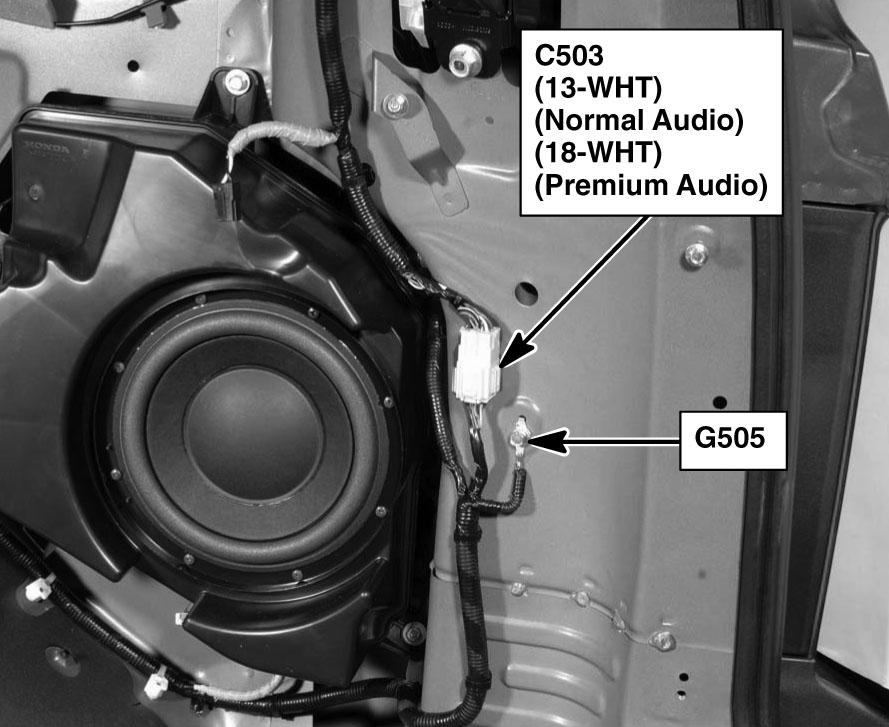

Fig 140: Right Side Of Cargo Area

G00473195

Courtesy of AMERICAN HONDA MOTOR CO., INC.

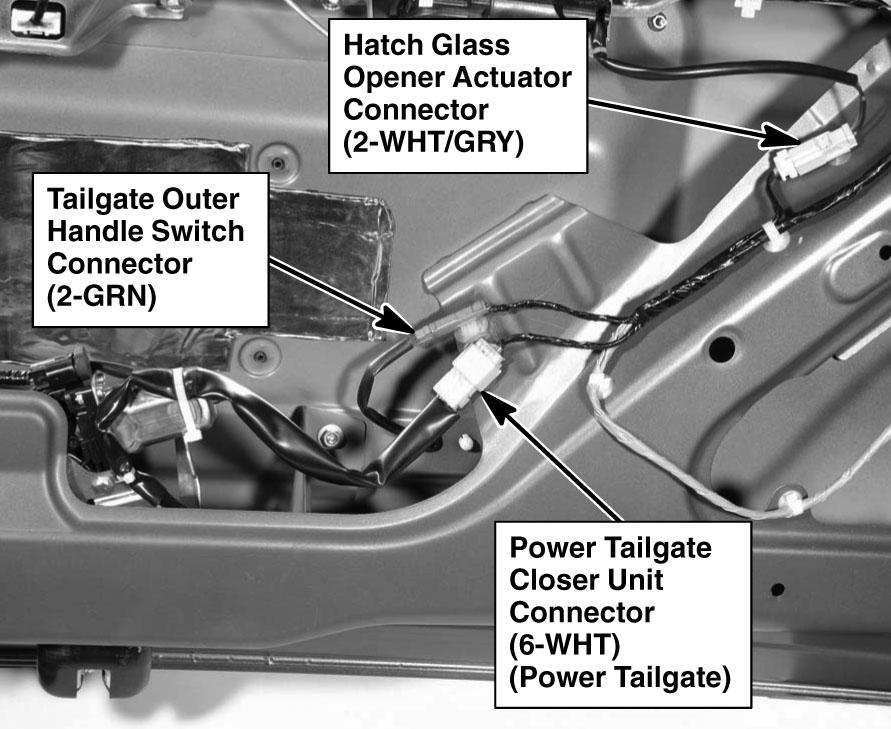

Fig 141: Left Side Of Tailgate

G00473196

Courtesy of AMERICAN HONDA MOTOR CO., INC.

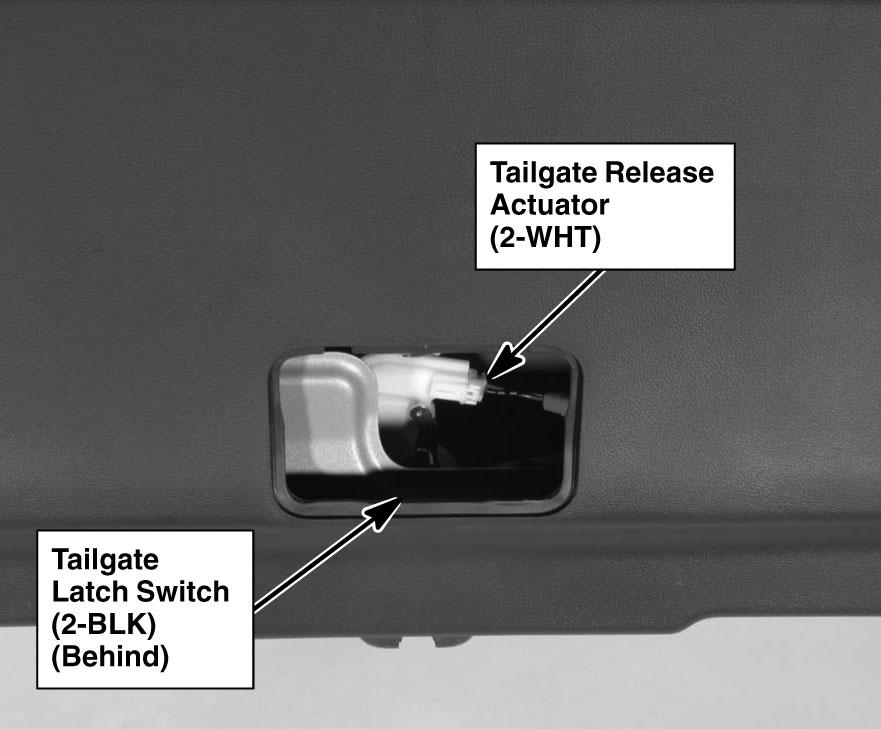

Fig 142: Middle Of Tailgate

G00473197

Courtesy of AMERICAN HONDA MOTOR CO., INC.

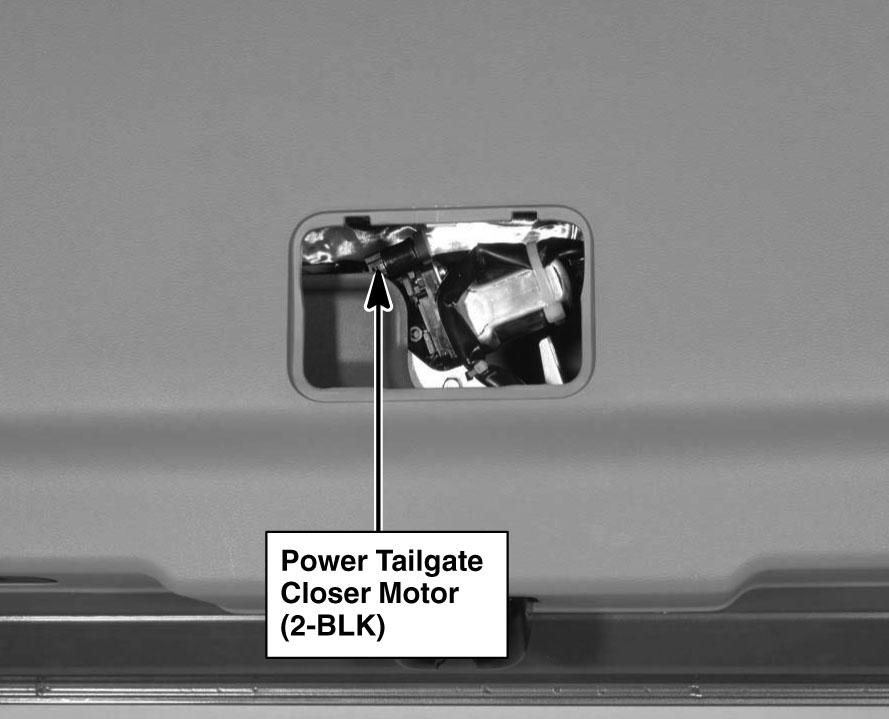

Fig 143: Middle Of Tailgate

G00473198

Courtesy of AMERICAN HONDA MOTOR CO., INC.

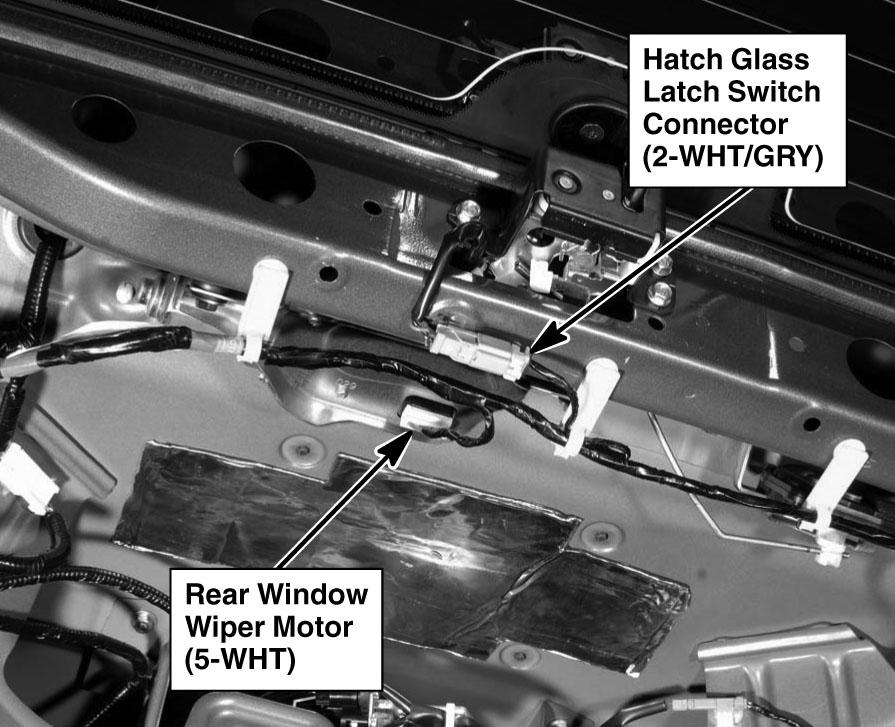

Fig 144: Middle Of Tailgate

G00473199

Courtesy of AMERICAN HONDA MOTOR CO., INC.

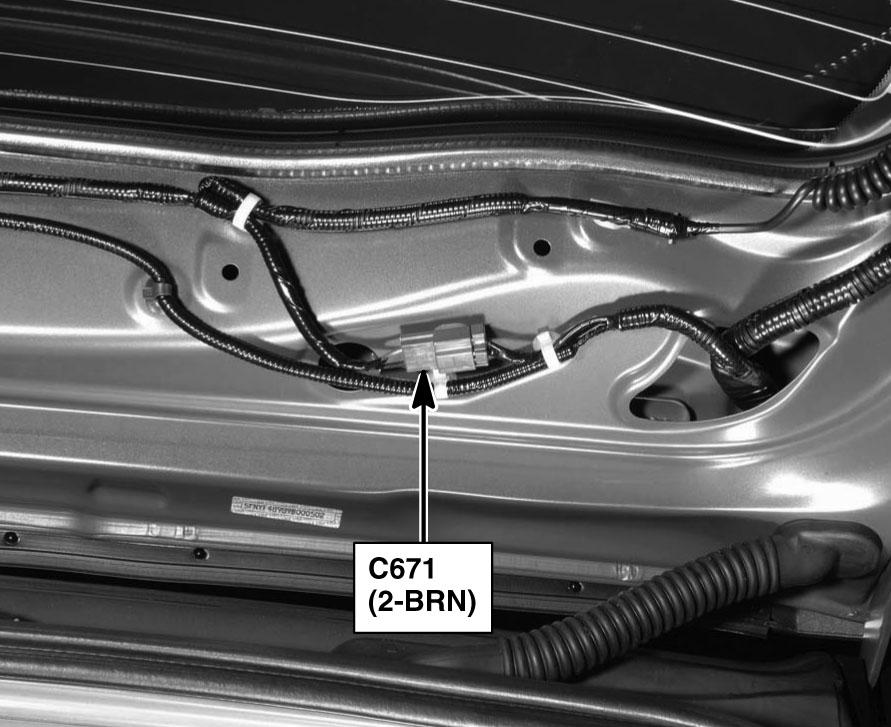

Fig 145: Top Right Side Of Tailgate

G00473200

Courtesy of AMERICAN HONDA MOTOR CO., INC.

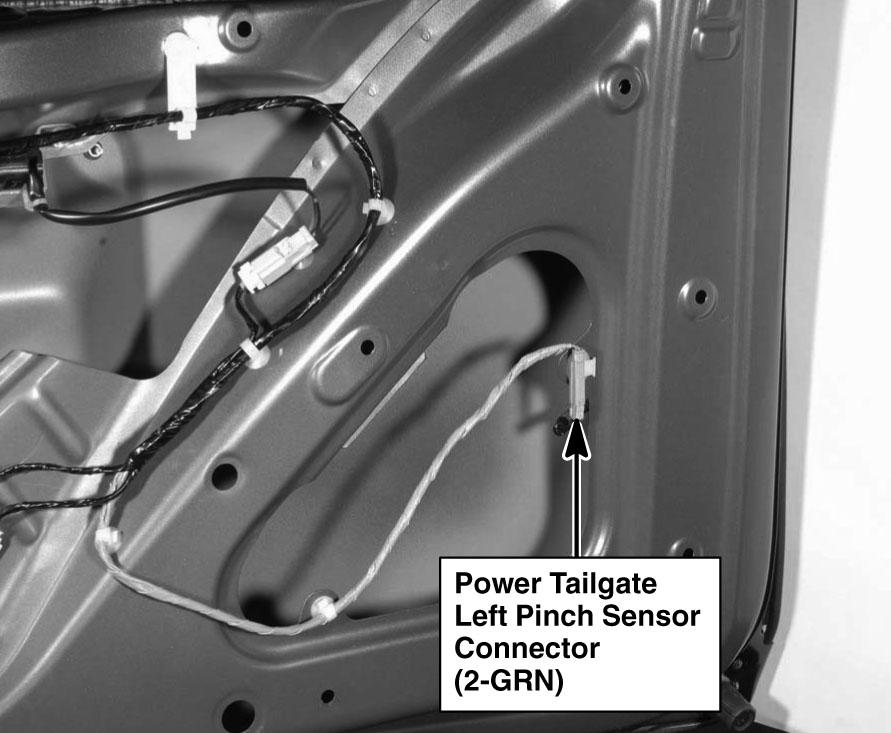

Fig 146: Left Side Of Tailgate

G00473201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

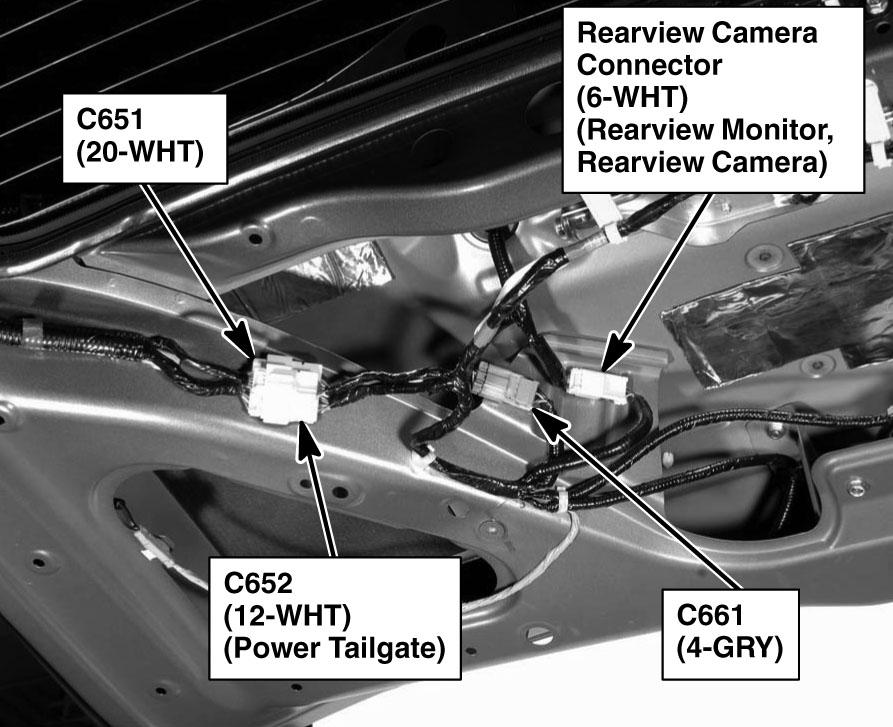

Fig 147: Right Side Of Tailgate

G00473202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

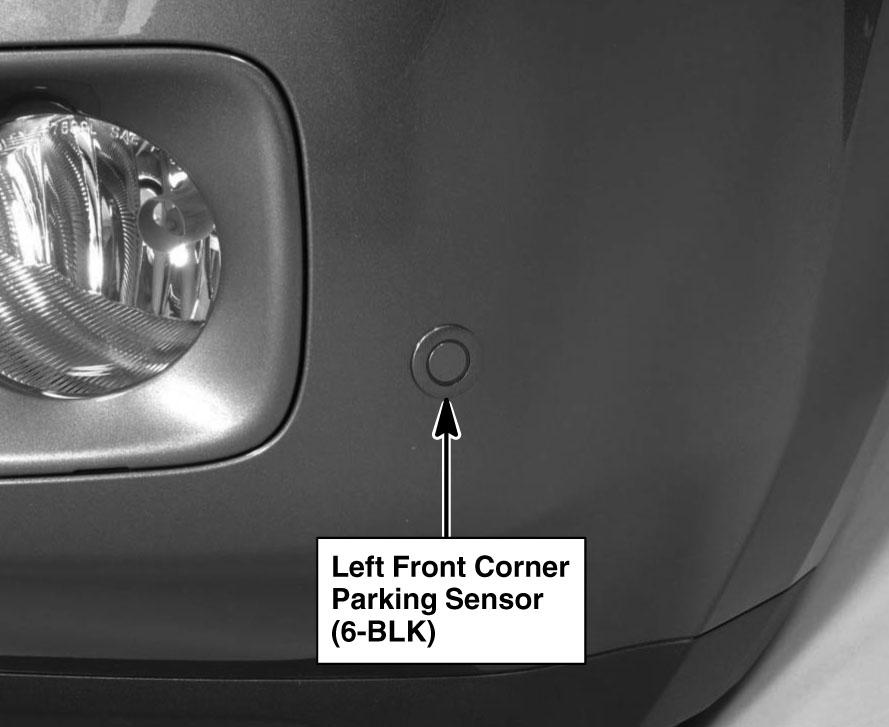

Fig 148: Left Side Of Front Bumper (Right Similar)

G00473203

Courtesy of AMERICAN HONDA MOTOR CO., INC.

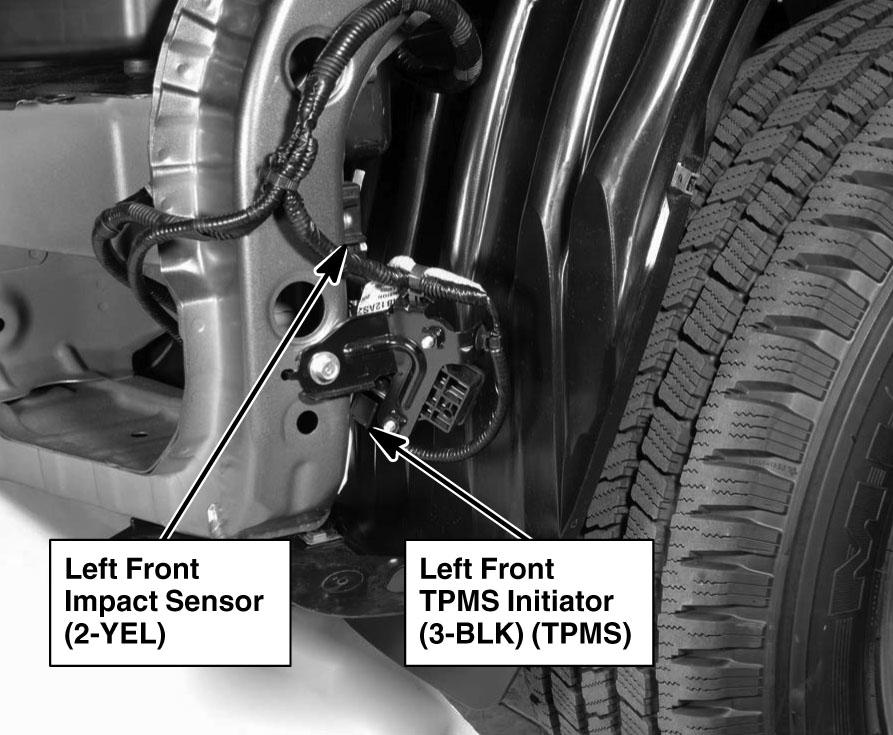

Fig 149: Left Side Of Front Bumper (Right Similar)

G00473204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

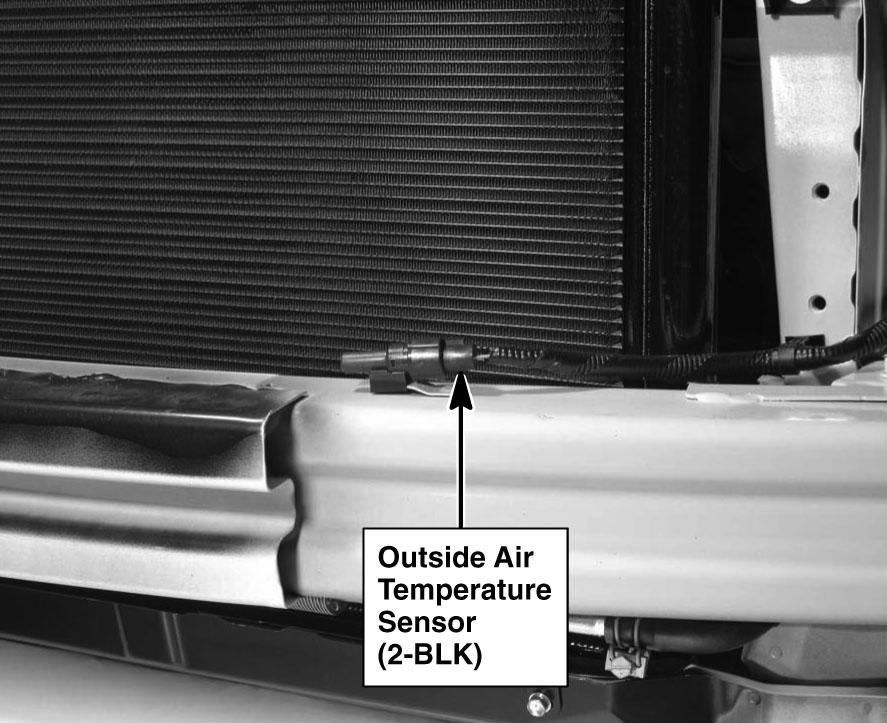

Fig 150: Left Side Of Front Bumper

G00473205

Courtesy of AMERICAN HONDA MOTOR CO., INC.

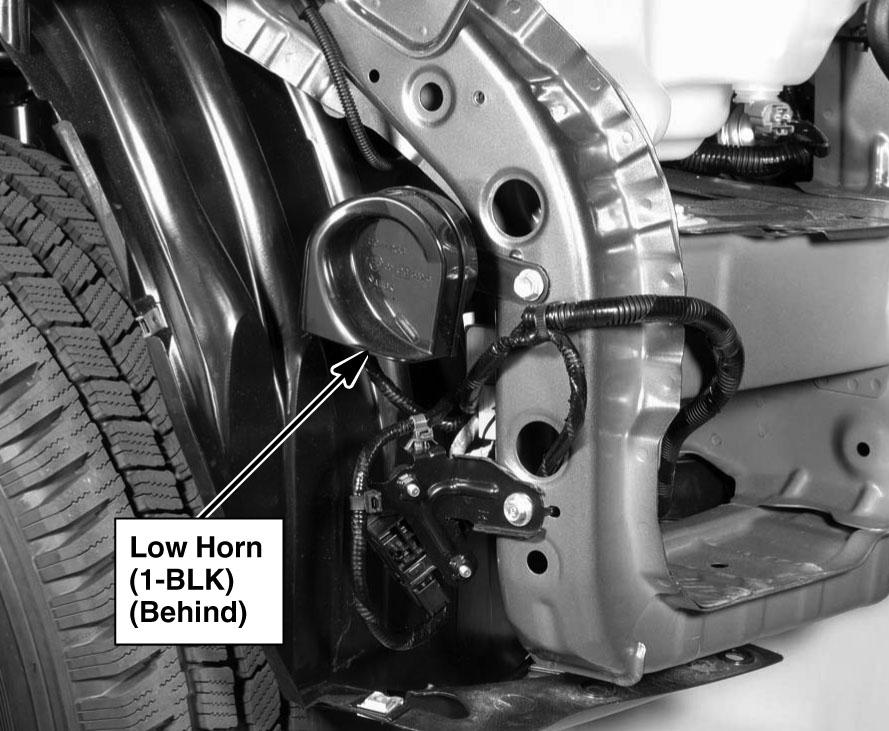

Fig 151: Right Side Of Front Bumper

G00473206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

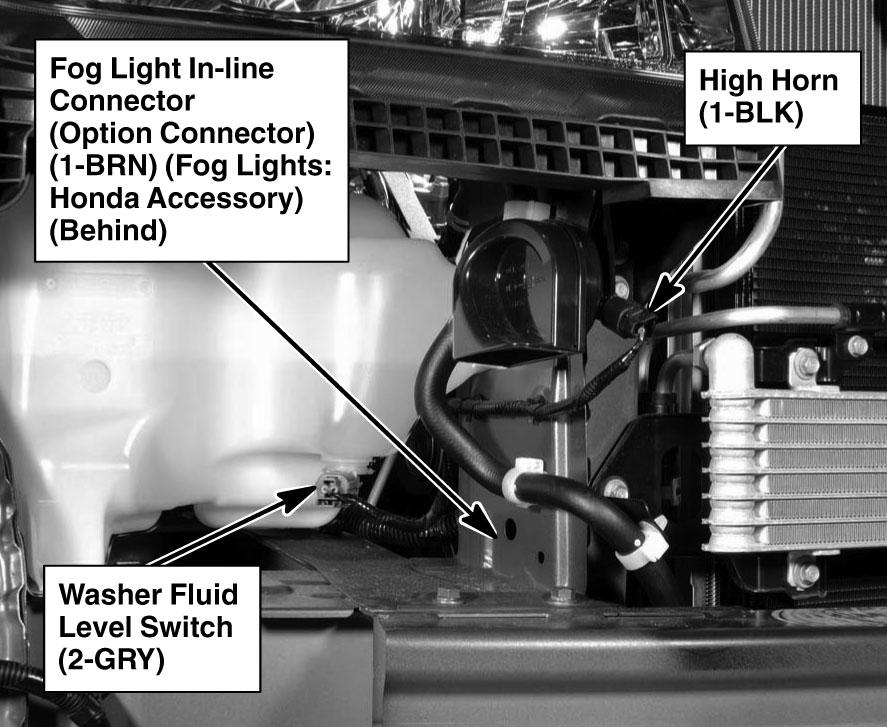

Fig 152: Right Side Of Front Bumper

G00473207

Courtesy of AMERICAN HONDA MOTOR CO., INC.

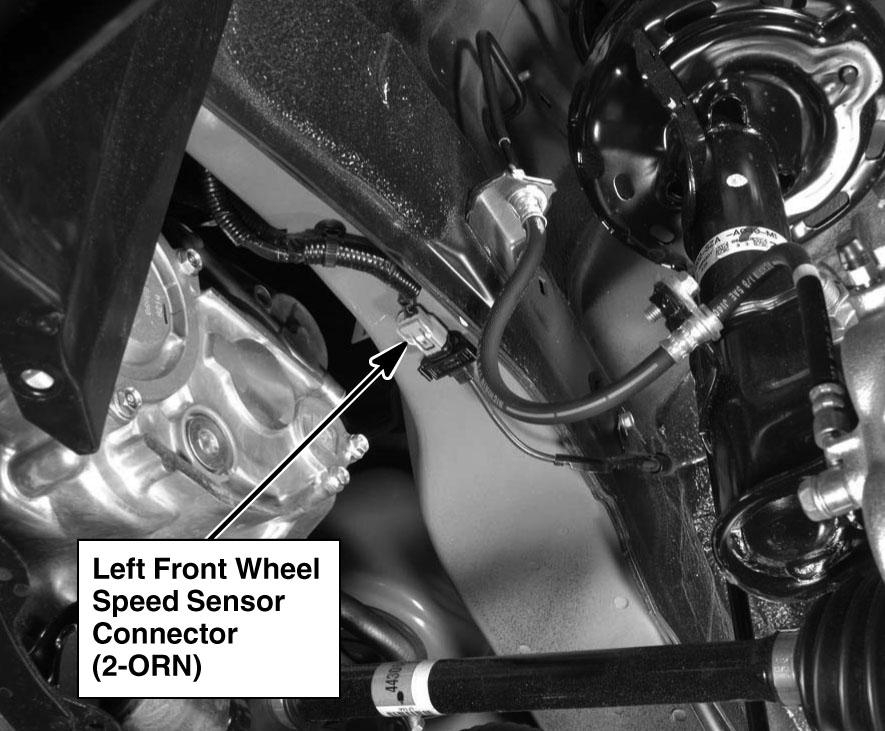

Fig 153: Under Left Front Of Engine Compartment (Right Similar)

G00473208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

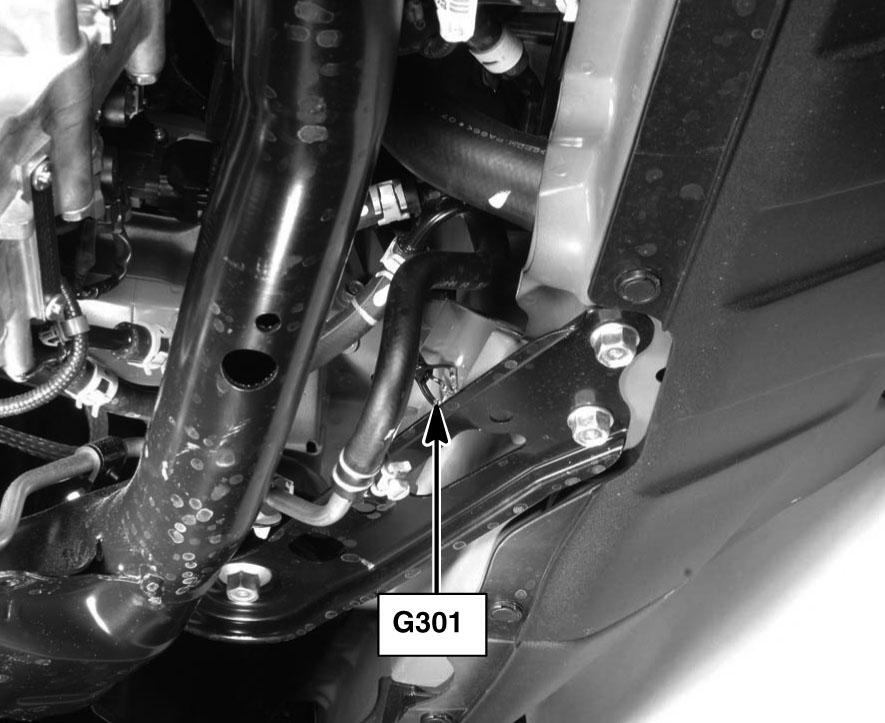

Fig 154: Under Left Front Of Engine Compartment

G00473209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

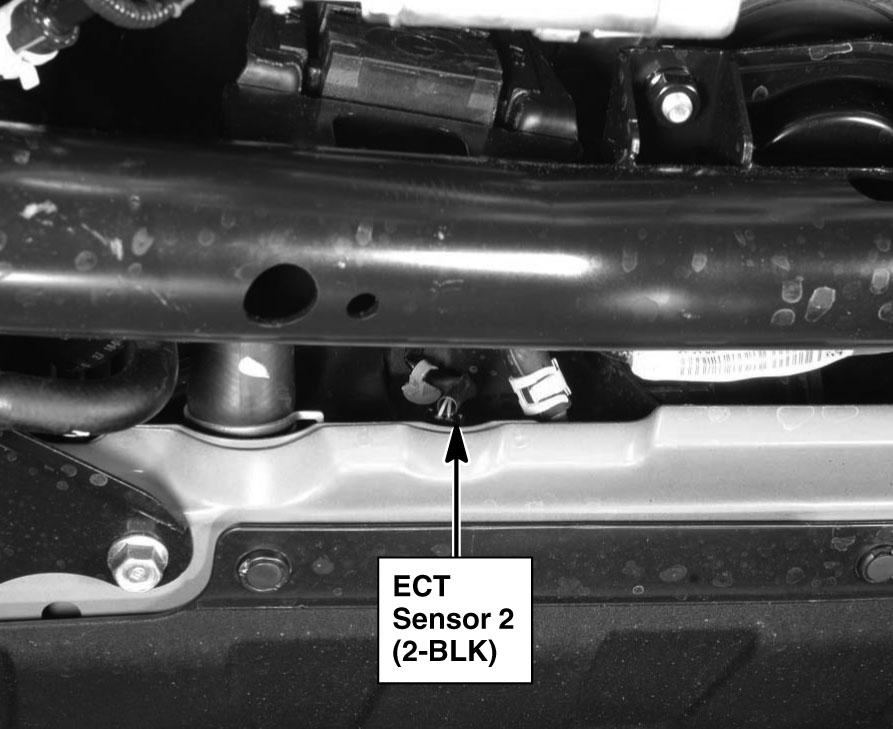

Fig 155: Under Left Front Of Engine Compartment

G00473210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

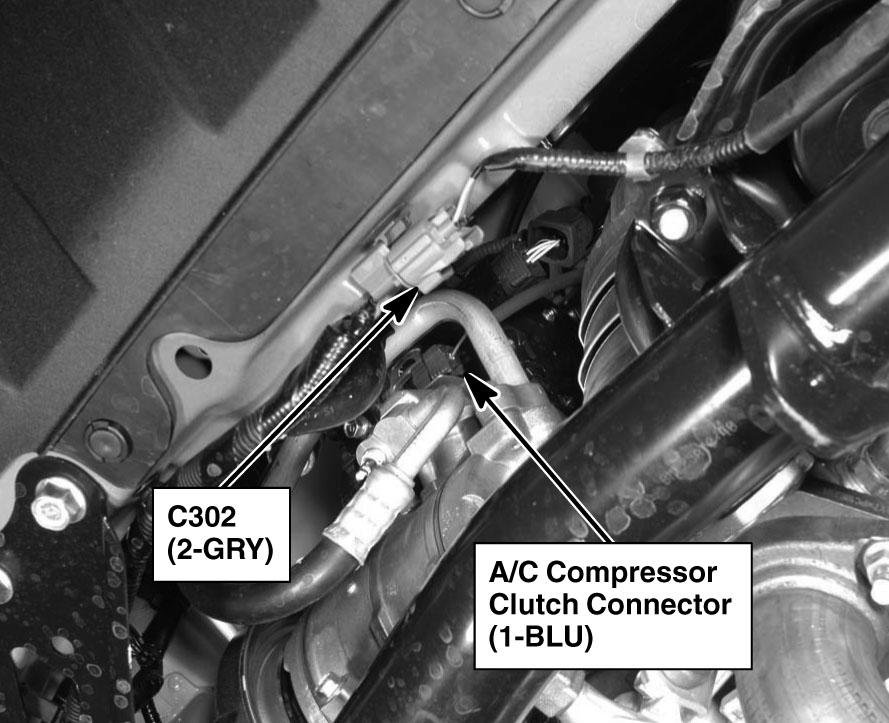

Fig 156: Under Middle Front Of Engine Compartment

G00473211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

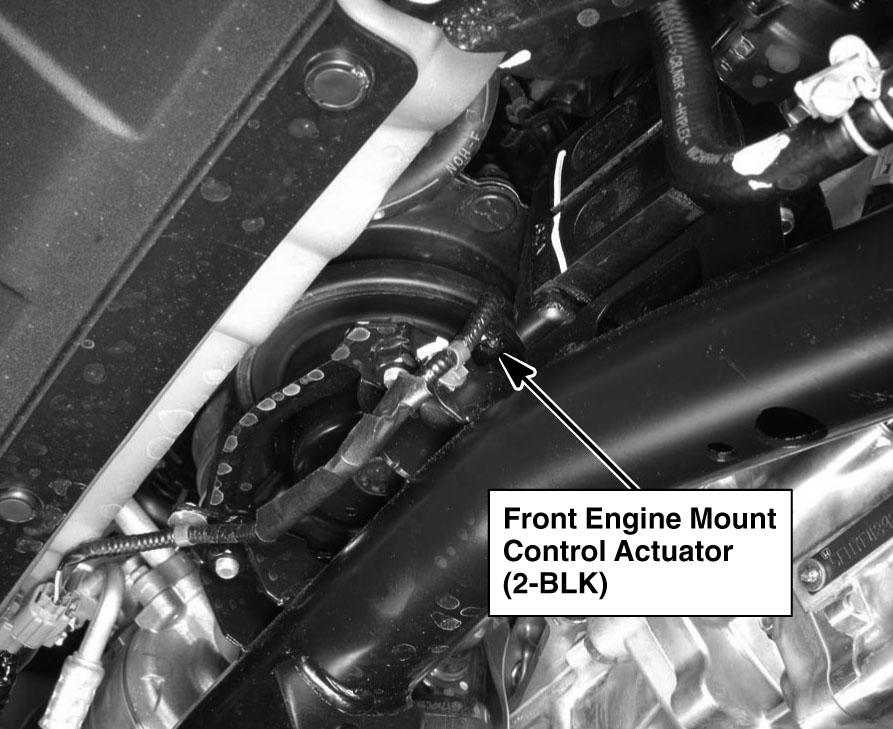

Fig 157: Under Middle Front Of Engine Compartment

G00473212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

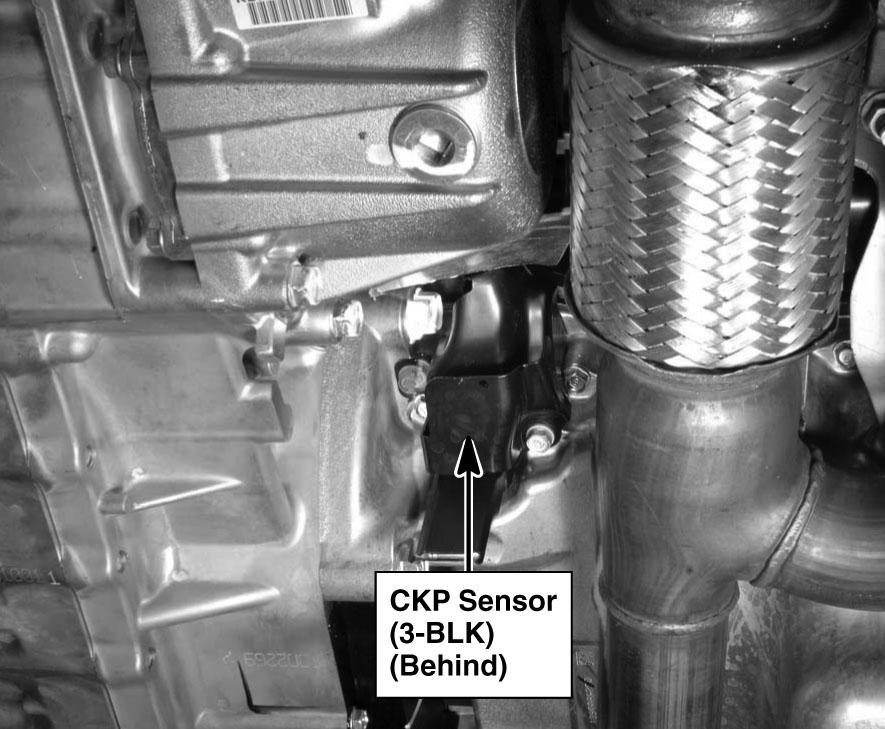

Fig 158: Under Middle Of Engine

G00473213

Courtesy of AMERICAN HONDA MOTOR CO., INC.

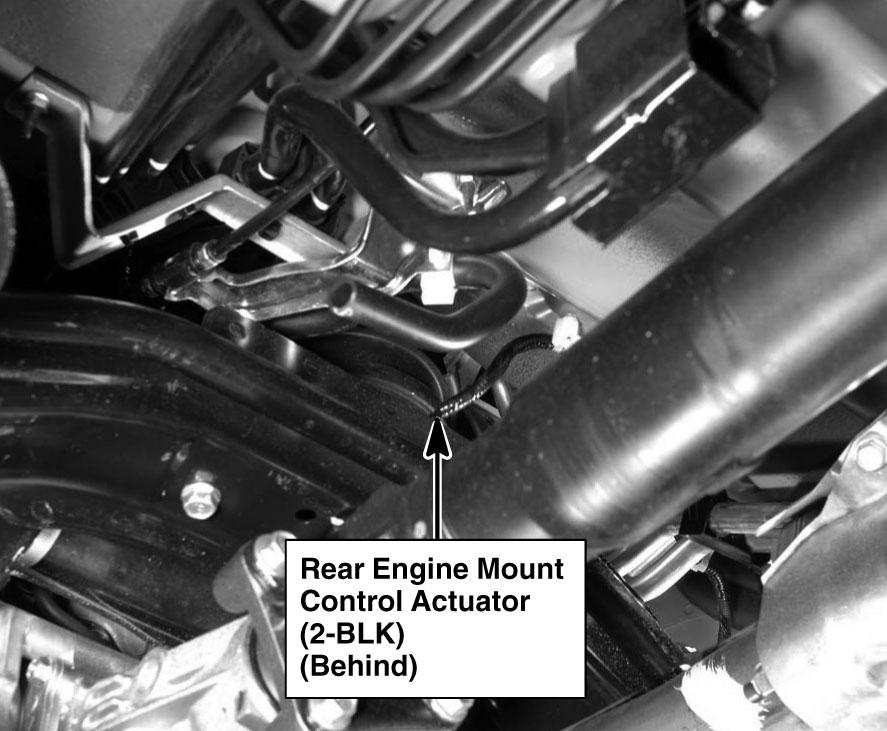

Fig 159: Under Middle Rear Of Engine Compartment

G00473214

Courtesy of AMERICAN HONDA MOTOR CO., INC.

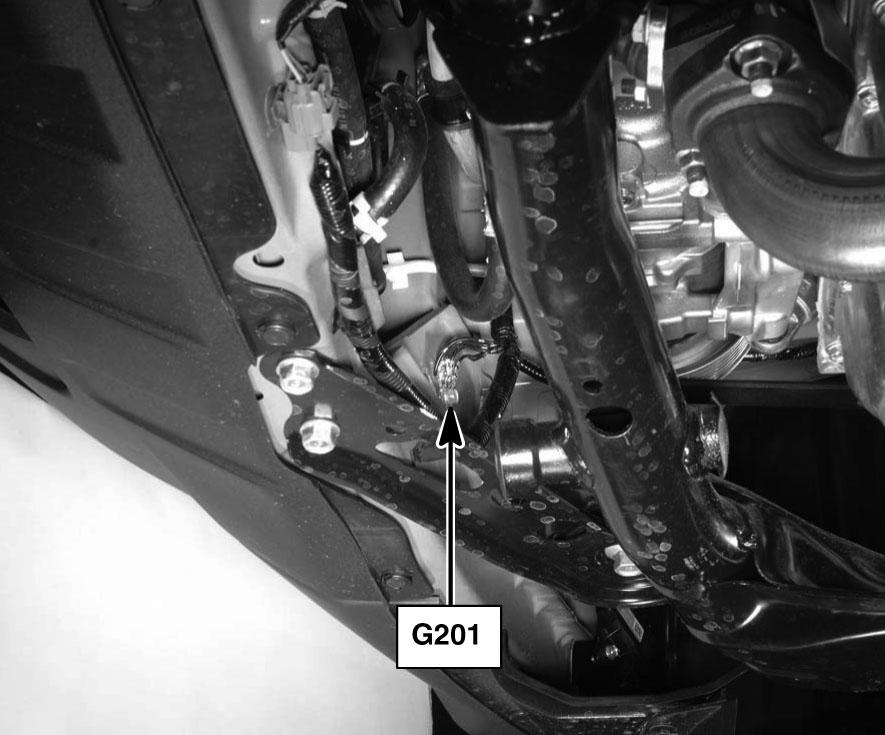

Fig 160: Under Right Front Of Engine Compartment

G00473215

Courtesy of AMERICAN HONDA MOTOR CO., INC.

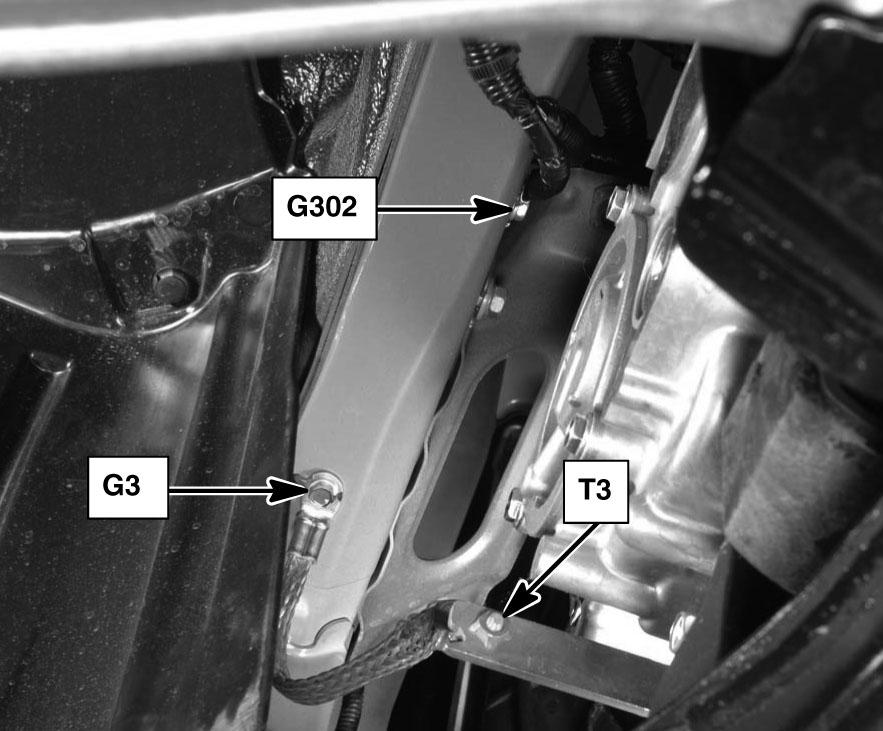

Fig 161: Under Left Front Of Engine Compartment

G00473216

Courtesy of AMERICAN HONDA MOTOR CO., INC.

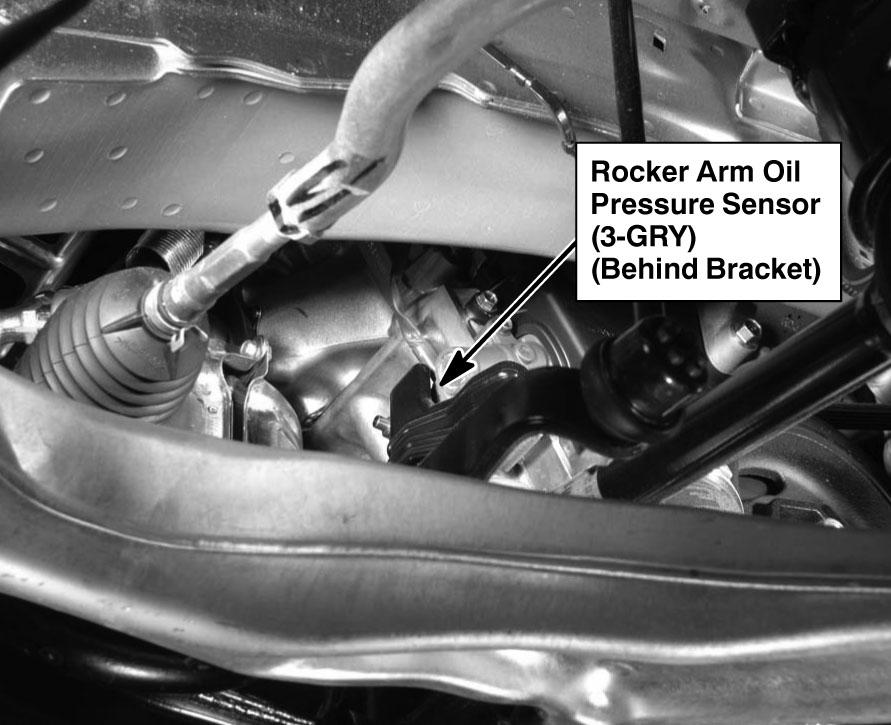

Fig 162: Under Left Front Of Engine

G00473217

Courtesy of AMERICAN HONDA MOTOR CO., INC.

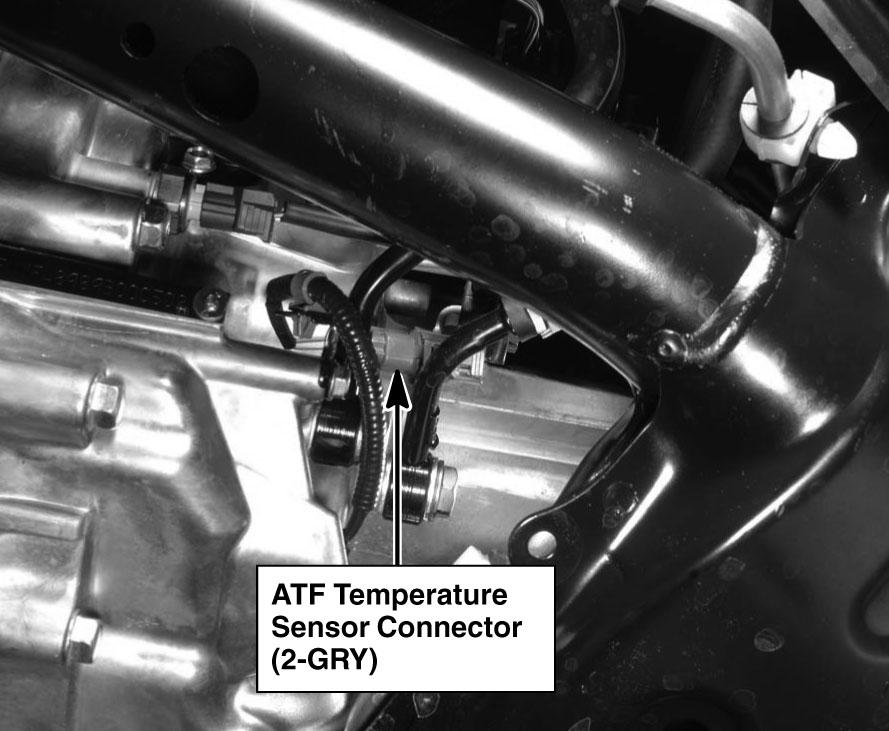

Fig 163: Under Automatic Transmission Housing

G00473218

Courtesy of AMERICAN HONDA MOTOR CO., INC.

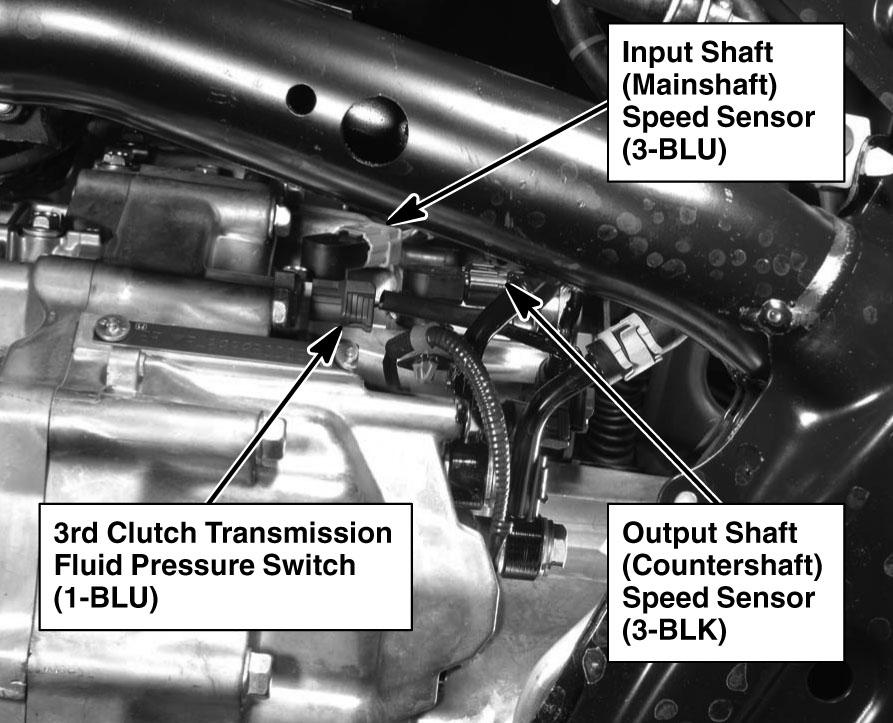

Fig 164: Under Automatic Transmission Housing

G00473219

Courtesy of AMERICAN HONDA MOTOR CO., INC.

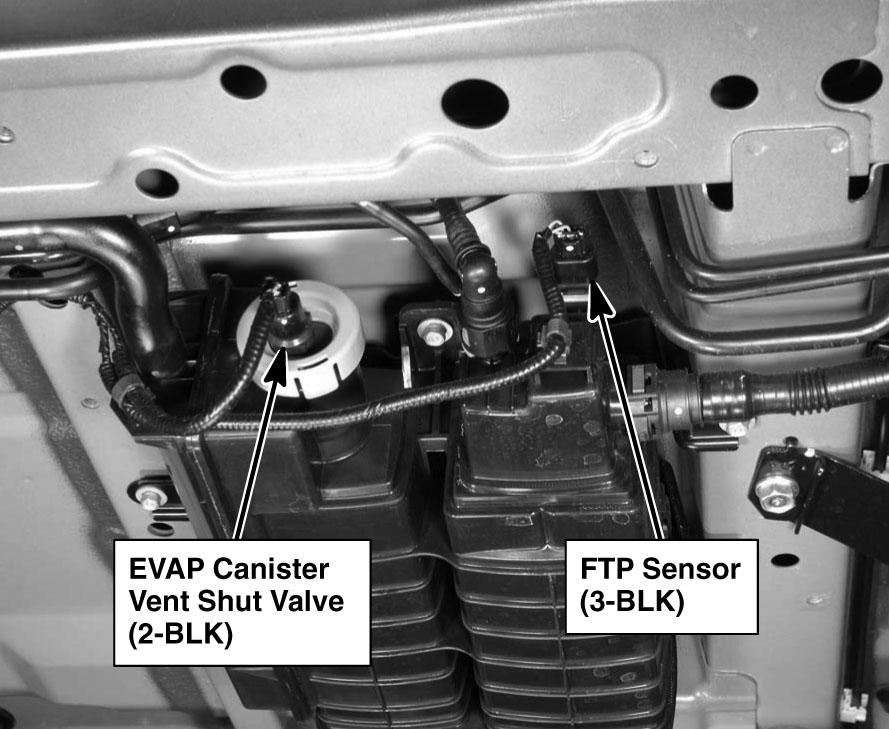

Fig 165: Under Left Rear Of Vehicle

G00473220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

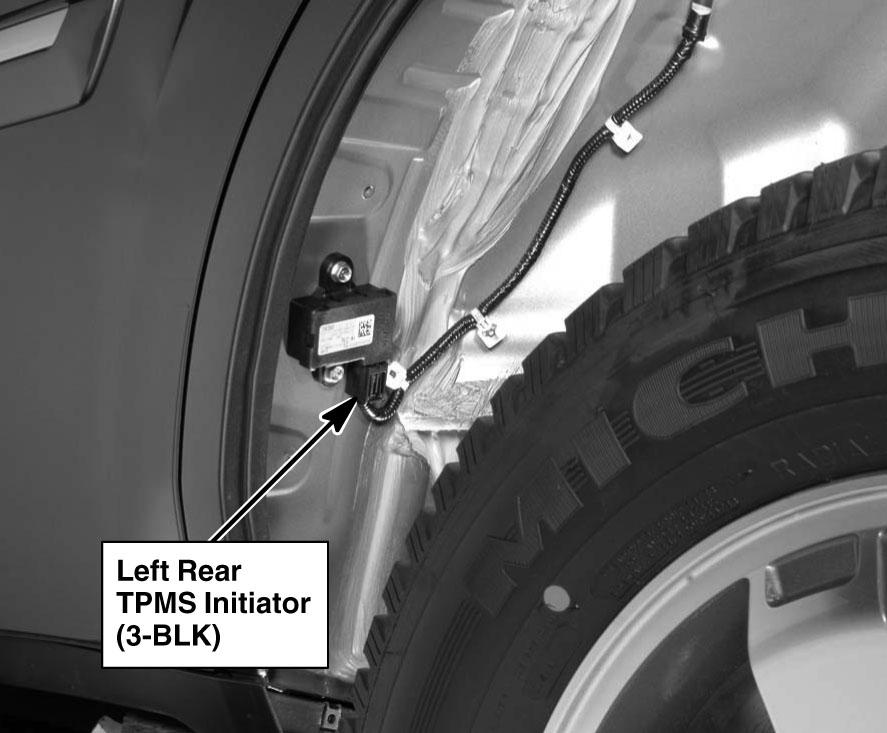

Fig 166: Left Rear Wheelwell (Right Similar)

G00473221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

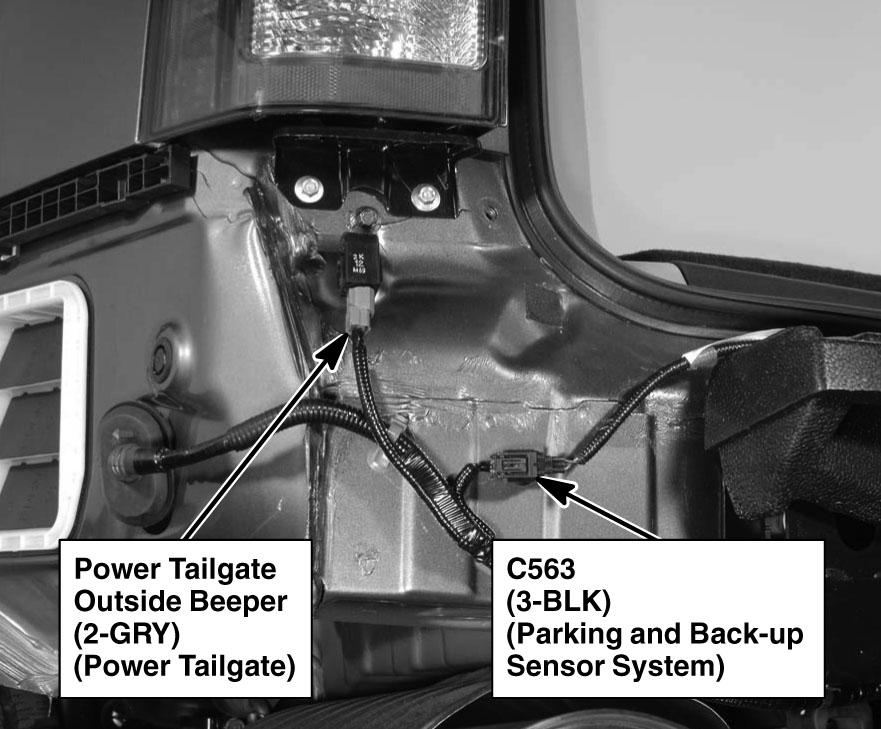

Fig 167: Behind Left Side Of Rear Bumper

G00473222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

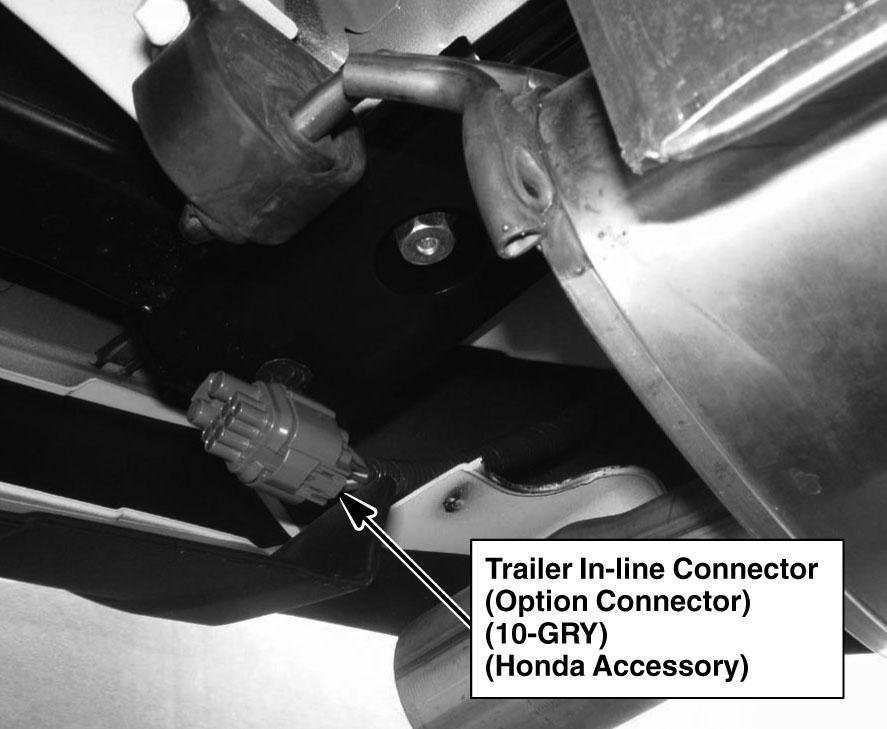

Fig 168: Under Left Side Of Rear Bumper

G00473223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

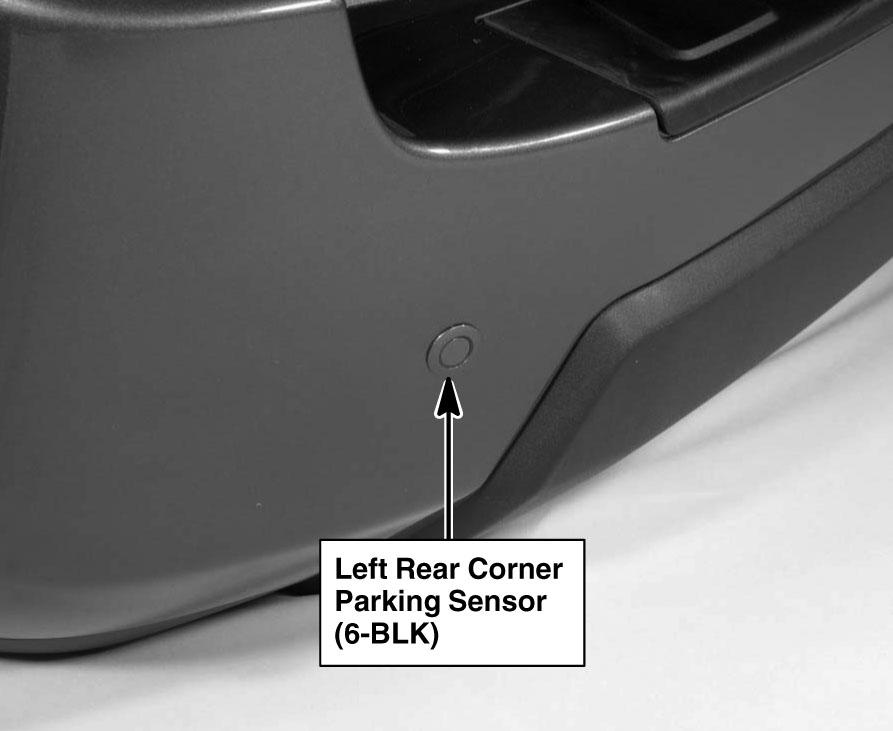

Fig 169: Left Side Of Rear Bumper (Right Similar)

G00473224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

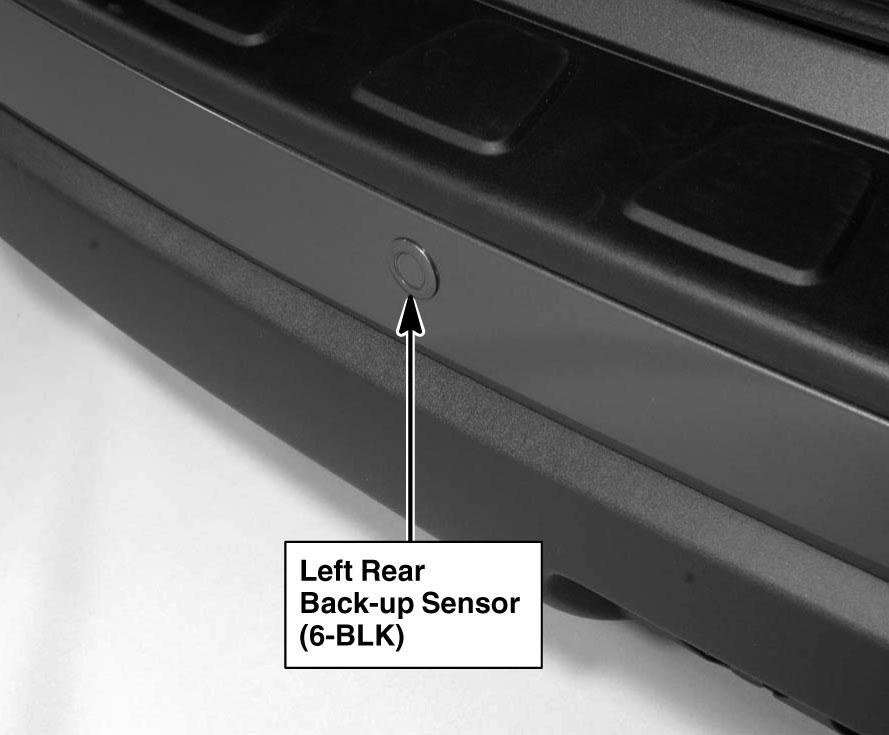

Fig 170: Left Side Of Rear Bumper (Right Similar)

G00473225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

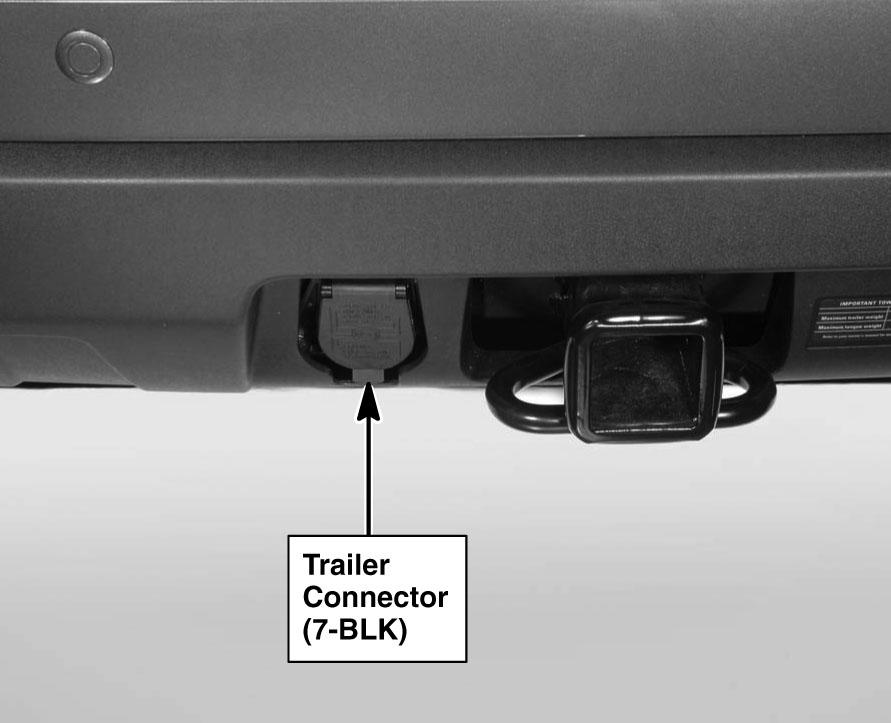

Fig 171: Middle Of Rear Bumper

G00473226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

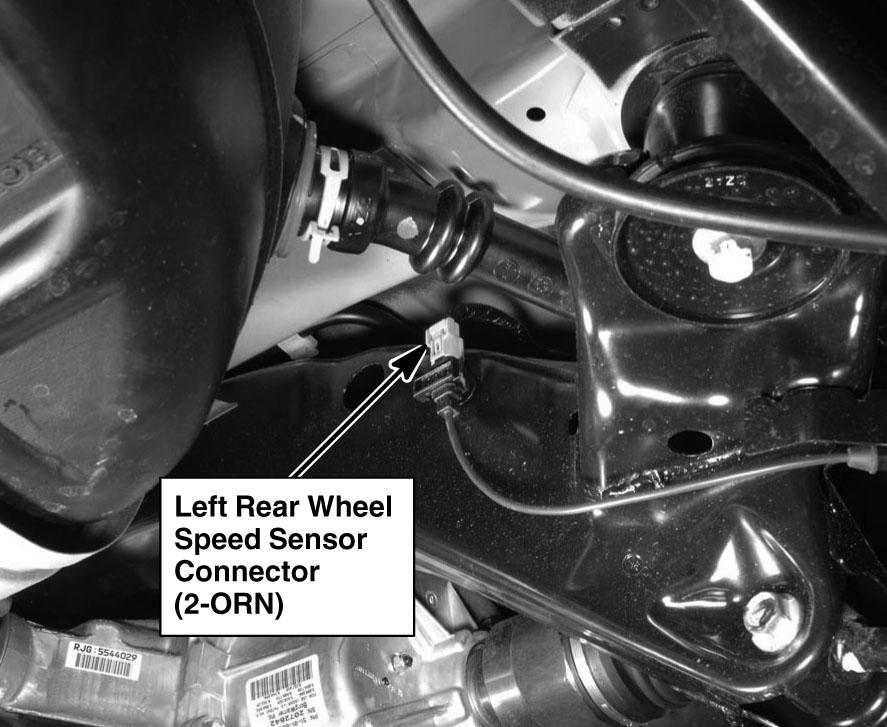

Fig 172: Under Left Rear Of Vehicle (Right Similar)

G00473227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

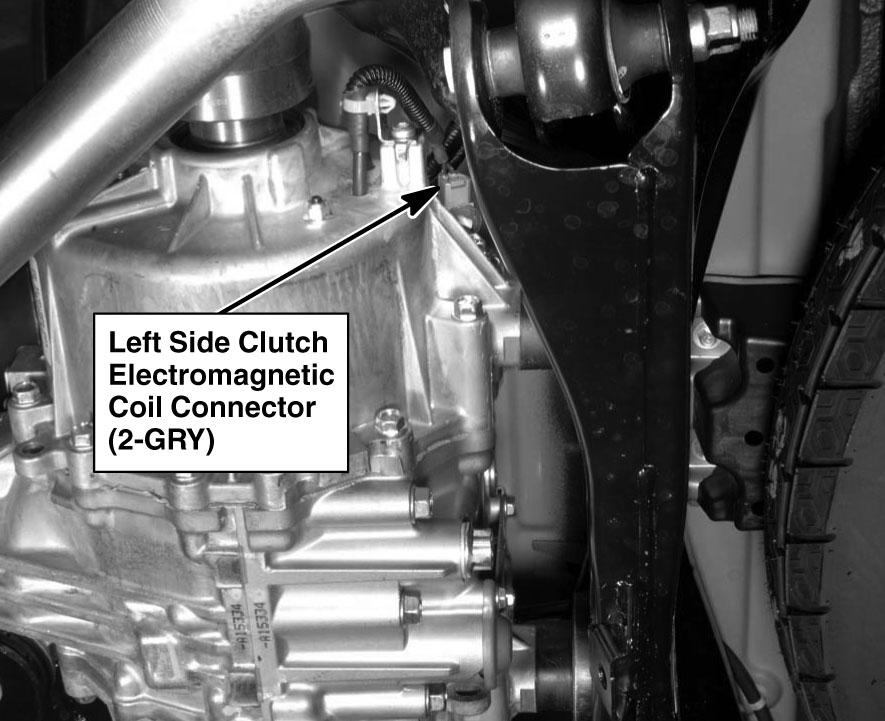

Fig 173: Rear Differential (4WD)

G00473228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

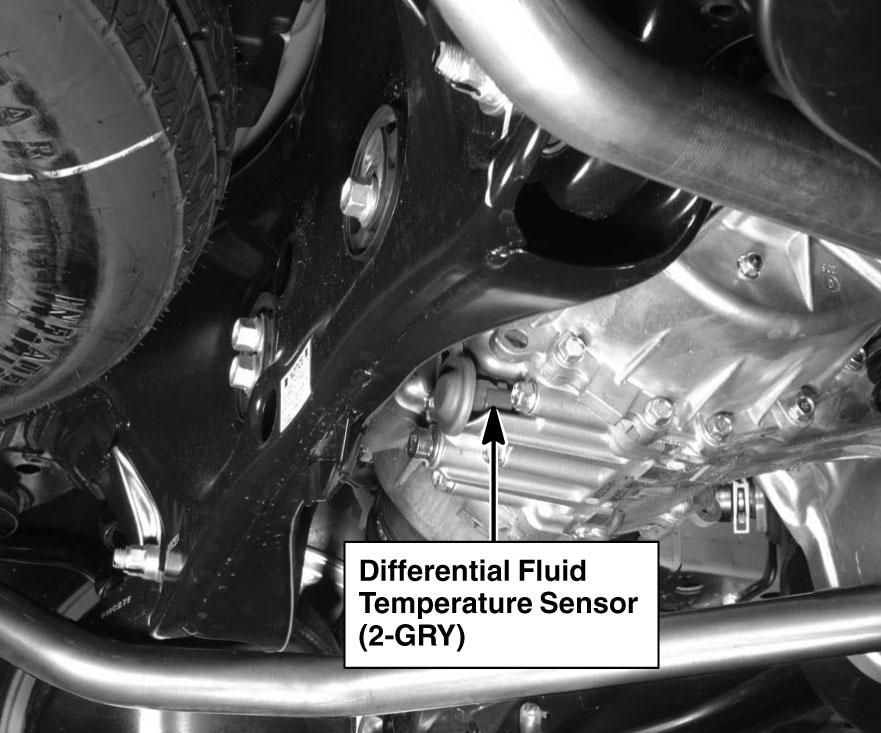

Fig 174: Rear Differential (4WD)

G00473229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

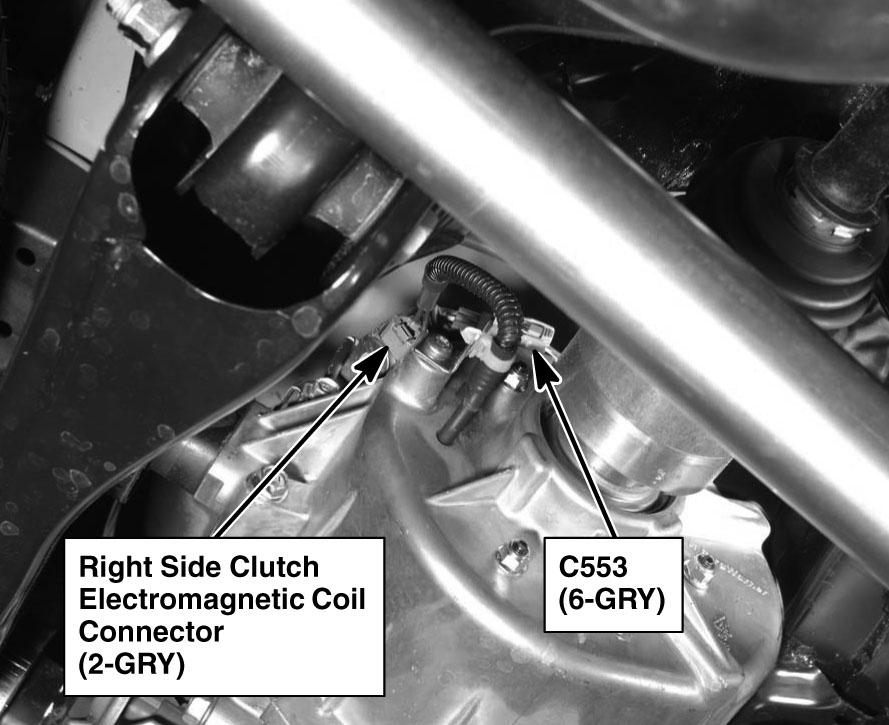

Fig 175: Rear Differential (4WD)

G00473230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

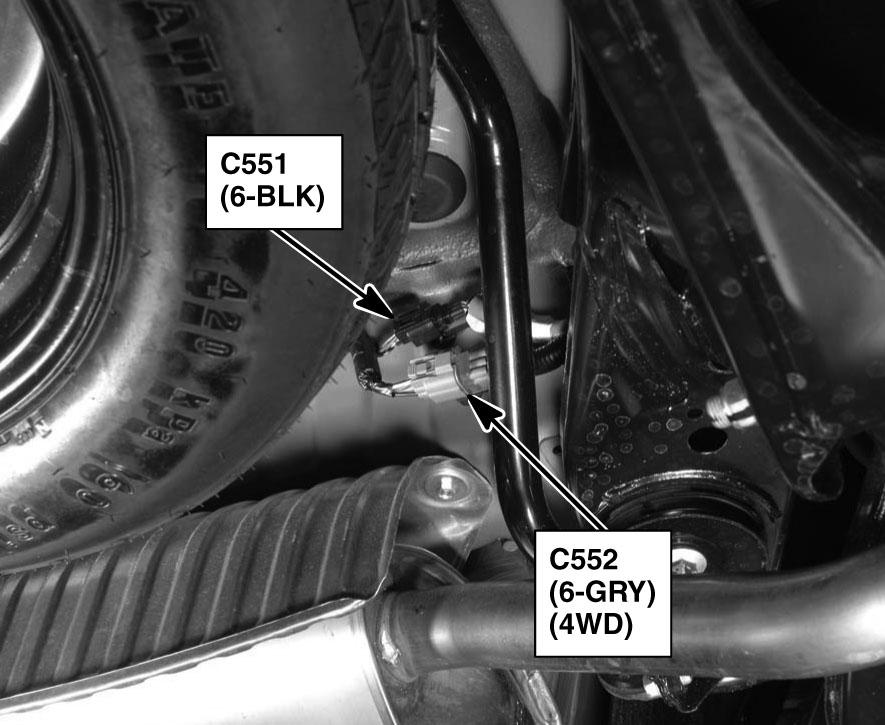

Fig 176: Under Middle Of Vehicle

G00473231

Courtesy of AMERICAN HONDA MOTOR CO., INC.
