Body Electrical
>>
Relays And Control Unit Locations
>>
Seat
Relays And Control Unit Locations: Seat

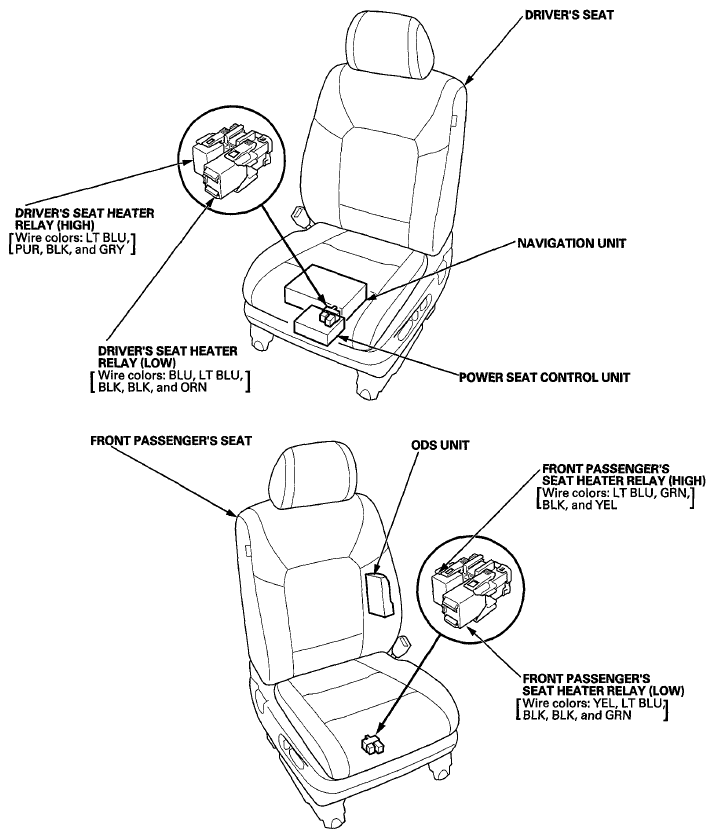

Fig 1: Identifying Relay And Control Unit Locations - Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Canada models

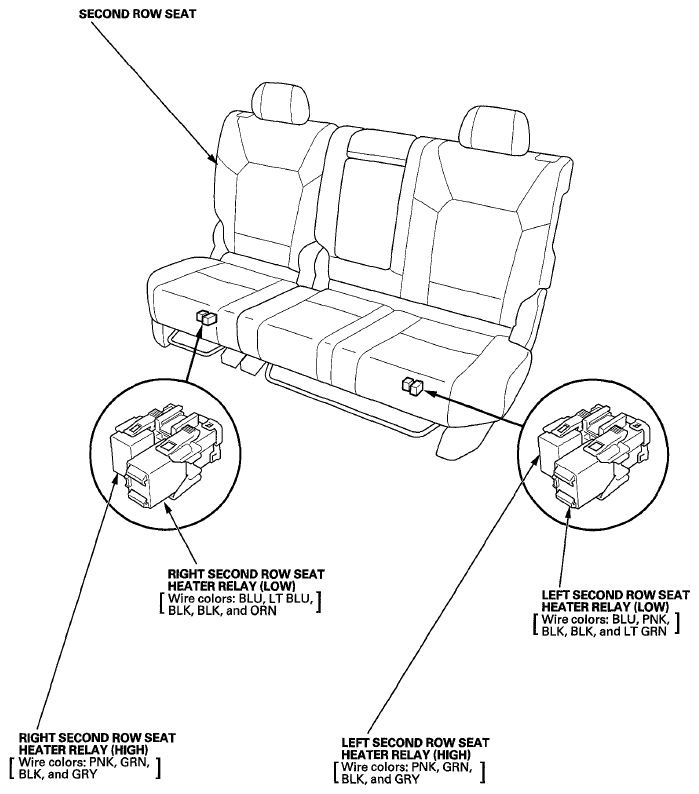

Fig 2: Identifying Relay And Control Unit Locations - Seat (Canada Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
