Recirculation Control Motor (View 271)

GRN
Behind Glove Box
On A/C Wire Harness

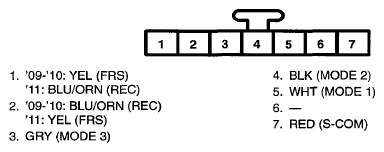

Fig 1: Recirculation Control Motor Connector Terminal (View 271)

G07763148
