Humidity/In-car Temperature Sensor (Climate Control) (View 183)
Humidity/In-car Temperature Sensor (Climate Control) (View 183)
WHT
Left Side of Dash
On Dashboard Wire Harness

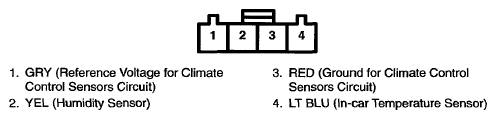

Fig 1: Humidity/In-Car Temperature Sensor (Climate Control) Connector Terminal (View 183)
