Gauge Control Module (View 353)

GRY
Left Side of Dash
On Dashboard Wire Harness

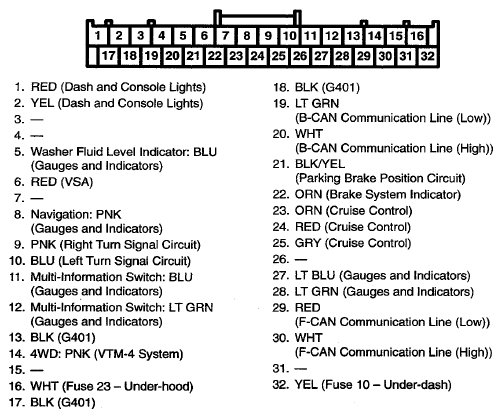

Fig 1: Gauge Control Module Connector Terminal (View 353)

G07763238
