Driver's Power Seat Slide Motor/Position Sensor (DPMS) (View 235)

• WHT
• Under Driver's Seat
• On Driver's Seat Wire Harness

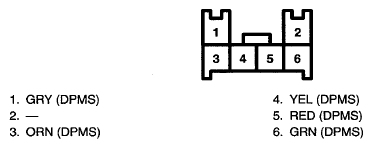

Fig 1: Driver's Power Seat Slide Motor/Position Sensor (DPMS) Connector Terminal (View 235)
