Driver's Power Seat Rear Up-Down Motor/Position Sensor (DPMS) (View 233)
Driver's Power Seat Rear Up-Down Motor/Position Sensor (DPMS) (View 233)
WHT
Under Driver's Seat
On Driver's Seat Wire Harness

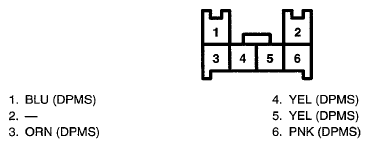

Fig 1: Driver's Power Seat Rear Up-Down Motor/Position Sensor (DPMS) Connector Terminal (View 233)
