OEM Connector End Views
>>
Connector End Views
>>
Driver's Power Seat Front Up-Down Motor/Position Sensor (DPMS) (View 231)
Driver's Power Seat Front Up-Down Motor/Position Sensor (DPMS) (View 231)
WHT
Under Driver's Seat
On Driver's Seat Wire Harness

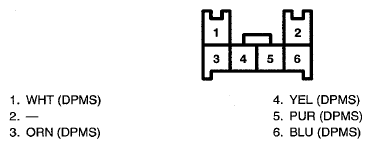

Fig 1: Driver's Power Seat Front Up-Down Motor/Position Sensor (DPMS) Connector Terminal (View 231)
