Lubricants and Fluids
For details of the lubrication points and type of lubricants to be applied, refer to the index and various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each article.

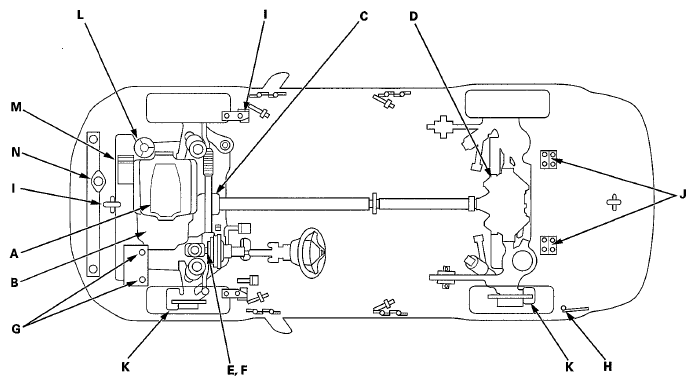

LUBRICATION POINTS REFERENCE TABLE
| Item | Lubrication Points | Lubricant |
|---|---|---|
| A | Engine | Honda Motor Oil: American Honda P/N 08798-9023 (5W-20), Honda Canada P/N CA66806 (5W-20) Look for the API certification seal on the oil container. Make sure it says "For Gasoline Engines." SAE viscosity: See Fig 1. |
| B | Automatic transmission | Honda Automatic Transmission Fluid (ATF-Z1): American Honda P/N 08200-9001, Honda Canada P/N CA66689 Always use Honda ATF-Z1. Using a non-Honda ATF can affect shift quality. |
| C | Transfer assembly (4WD) | Hypoid gear oil GL4 or GL5 Use a SAE 90 or SAE 80W-90 viscosity hypoid gear oil, API classified GL4 or GL5 only. Viscosity SAE 90: above 0°F (-18°C) SAE 80W-90: below 0°F (-18°C) |
| D | Rear differential (4WD) | Honda VTM-4 Differential Fluid: P/N 08200-9003 |
| E | Brake system (including VSA lines) | Honda DOT 3 Brake Fluid: P/N 08798-9008 Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system. |
| F G H I J |
Brake booster clevis pin Battery terminals Fuel fill door Hood hinges and hood latch Tailgate hinges |
Multipurpose grease |
| K | Caliper piston boot, caliper pins, and boots | Honda Silicone Grease: P/N 08C30-B0234M |
| L | Power steering system | Honda Power Steering Fluid: P/N 08206-9002 Always use Honda Power Steering Fluid. Using any other type of power steering fluid or automatic transmission fluid can cause increased wear and poor steering in cold weather. |
| M | Air conditioning compressor | Compressor oil: DENSO ND-OIL 8 (P/N 38897-PR7-A01 AH or 38899-PR7-A01) for refrigerant HFC-134a (R-134a) |
| N | Cooling system | Honda Long Life Antifreeze/Coolant Type 2: P/N OL999-9001 |
NOTE:
- Lubricate the following areas using the recommended lubricants and fluids.
- In corrosive areas, more frequent lubrication is necessary.
