Rearview Monitor Mirror
>>
Circuit Diagram
Circuit Diagram

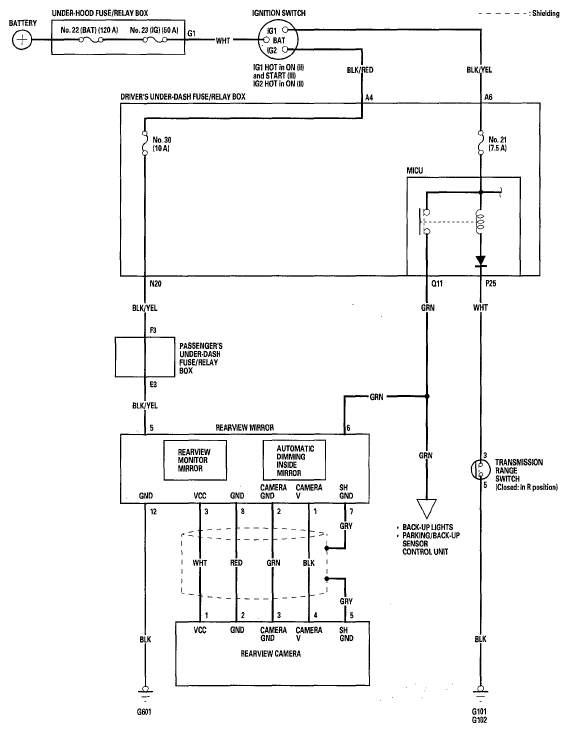

Fig 1: Rearview Monitor Mirror - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
