Right Rear Power Window Switch Connector End View (View 167)
Right Rear Power Window Switch Connector End View (View 167)
WHT
Right Rear Door
On Right Rear Door Wire Harness

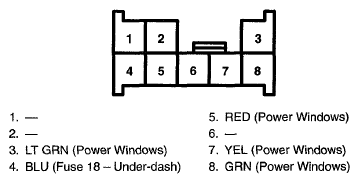

Fig 1: Right Rear Power Window Switch Connector Terminal (View 167)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
