Left Power Mirror Connector End View (View 220)

Driver's Door
On Driver's Door Wire Harness
without Side Turn Signals:
- LT BLU/WHT
Fig 1: Left Power Mirror Connector Terminal - Without Side Turn Signals (View 220)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Side Turn Signals:
- WHT

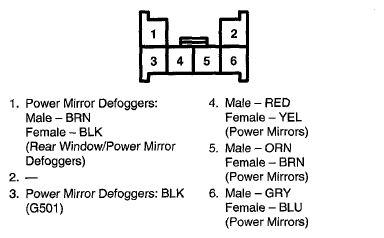

Fig 2: Left Power Mirror Connector Terminal - Side Turn Signals (View 220)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
