Hazard Warning Switch Connector End View (View 143)

WHT
Middle of Dash
On Dashboard Wire Harness

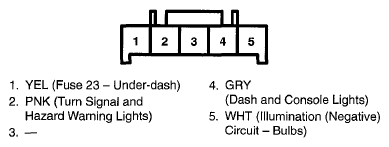

Fig 1: Hazard Warning Switch Connector Terminal (View 143)

G07760729

Courtesy of AMERICAN HONDA MOTOR CO., INC.
