Valve Inspection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the valves (see VALVE, SPRING, AND VALVE SEAL REMOVAL ).

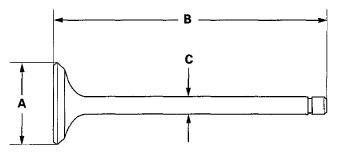

- Measure the valve in these areas.
Intake Valve Dimensions
A Standard (New): 35.90-36.10 mm (1.4134-1.4213 in)
B Standard (New): 116.55-117.15 mm (4.5886-4.6122 in)
C Standard (New): 5.485-5.495 mm (0.21594-0.21634 in)
C Service Limit: 5.455 mm (0.21476 in)
Exhaust Valve Dimensions
A Standard (New): 29.90-30.10 mm (1.1772-1.1850 in)
B Standard (New): 113.90-114.50 mm (4.4842-4.5079 in)
C Standard (New): 5.450-5.460 mm (0.21457-0.21496 in)
C Service Limit: 5.420 mm (0.21339 in)
