Intake Air Resonator Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air intake scoop (A).

Fig 1: Identifying Air Intake Scoop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the battery base (see step 10 on ENGINE REMOVAL ).
Remove the intake air resonator (A).

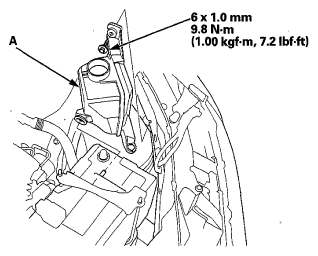

Fig 2: Intake Air Resonator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
