Check of Tilting Force

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Set the steering wheel in the straight ahead driving position, and loosen the lock lever fully.
Attach the spring scale (A) to the highest point of the steering wheel, and tilt the steering column to the lowest position.

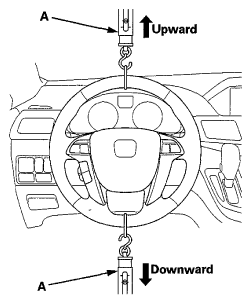

Fig 1: Checking Steering Tilting Force Using Spring Scale
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the spring scale straight up, and read the force required to move the steering column.
Attach the spring scale to the lowest point of the steering wheel.
Pull the spring scale straight down, and read the force required to move the steering column.
Tilting force (upward/downward):

Standard: 70 N (7.1 kgf, 15.7 lbf) max.
If the measurement is higher than specified, or if the tilt function feels rough, do the following:
1. Loosen the attaching bolts and nuts so they are finger tight.
2. Release the lock lever, and tilt and telescope the steering column several times.
3. Tilt the column down, then tighten the lock lever.
4. Tighten the attaching nuts, then tighten the attaching bolts.
Test the tilting force again. If the force is still higher than the specification, replace the steering column as an assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
