Parking Brake Pedal Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake pedal.
  2. Disconnect the parking brake switch connector (A) from the parking brake switch, and remove the harness clips (B).

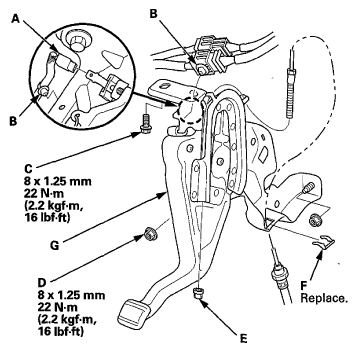

    Fig 1: Parking Brake Pedal With Torque Specifications
    G06969757Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the parking brake pedal bracket mounting bolt (C) and nuts (D).
  4. Remove the adjusting nut (E) and the cable clip (F).
  5. Disconnect the parking brake cable from the parking brake pedal assembly (G), and remove the parking brake pedal assembly.
  6. Remove the screw (A) from the parking brake switch (B) align the hole (C) with the screw by pressing the parking brake pedal.

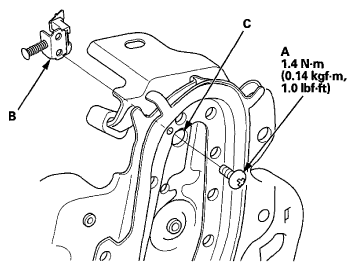

    Fig 2: Parking Brake Switch Screw With Torque Specifications
    G06969758Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the parking brake pedal assembly in the reverse order of removal, and note there items:
