Wiper Arm Replacement: Windshield

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

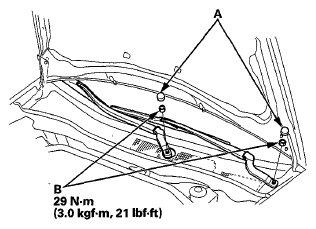

Open the hood. Remove the caps (A) and nuts (B).

Fig 1: Caps And Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

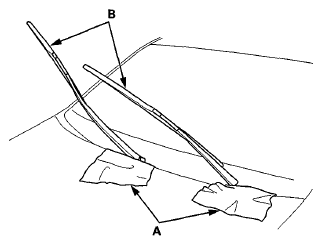

Close the hood, then spread protective cloths (A) on the hood to avoid scratching the hood edge

Fig 2: Identifying Protective Cloths On Hood And Wiper Arms
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the wiper arms (B) off the windshield, then remove the wiper arms.
Install the wiper arms in the reverse order of removal. After installation, adjust the wiper arms (see WIPER ARM/NOZZLE ADJUSTMENT ).
