BSI OFF Switch Test/Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Push out the BSI OFF switch (A) from the back of the dashboard, and disconnect the BSI OFF switch 6P connector (B).

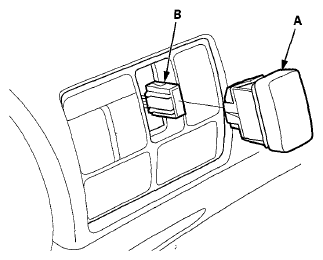

Fig 1: Identifying BSI OFF Switch And Connector With 6P Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
On the switch side, check for continuity between the BSI OFF switch 6P connector terminal in each switch position according to the table.

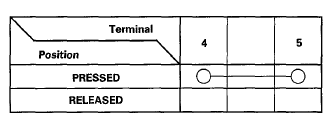

Fig 2: Checking Continuity Between BSI OFF Switch 6P Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying BSI OFF Switch 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the switch does not work as described in the table, replace the switch.
- If the switch tests OK, go to step 3.
On the switch side, check for continuity between the BSI OFF switch 6P connector terminals No. 1 and No. 2. There should be continuity at all times.

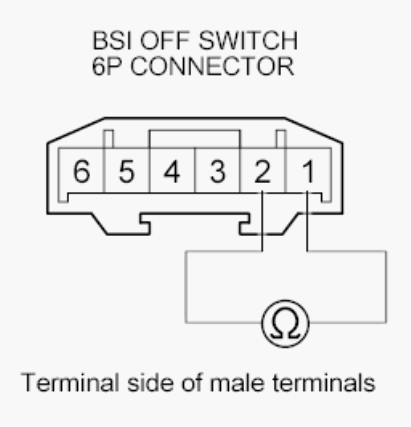

Fig 4: Checking For Continuity Between BSI OFF Switch 6P Connector Terminals No. 1 & No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the cover (A), and replace the bulb (B).

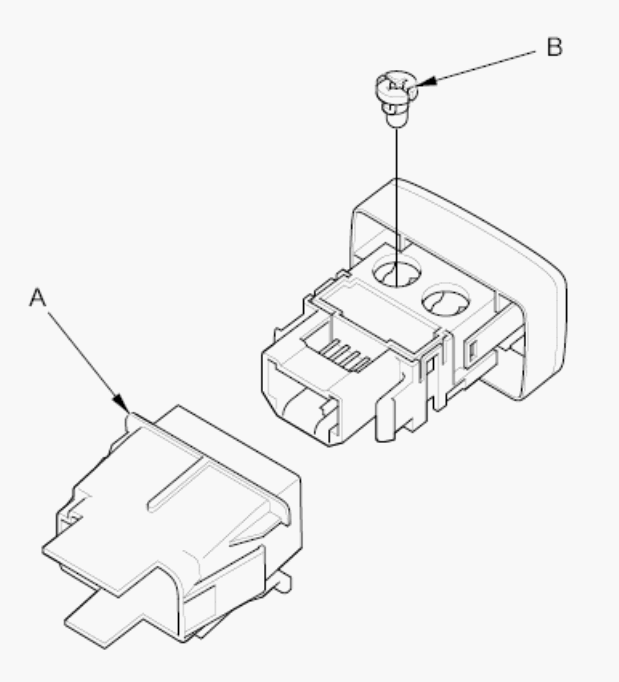

Fig 5: Identifying Cover (A) & Bulb (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the BSI OFF switch in the reverse order of removal.
