BSI Control Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Remove the BSI control unit (A).
    1. Disconnect the BSI control unit 16P connector (B) and detach the harness clip (C).
    2. Remove the bolt.

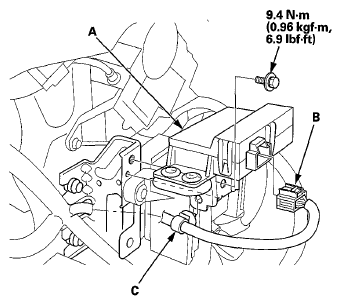

      Fig 1: Identifying BSI Control Unit, Connector And Harness Clip
      G06971782Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the BSI control unit in the reverse order of removal.
