Without Power Tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 4P connector (A) from the tailgate release actuator (B).

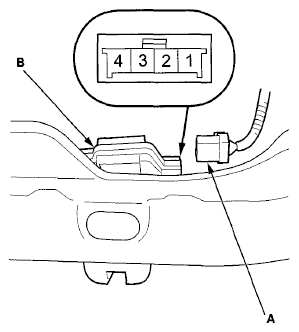

    Fig 1: Identifying Tailgate Release Actuator And Connector
    G06968711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

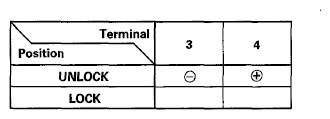

    Fig 2: Tailgate Release Actuator Connector Operation Reference Chart
    G06968712Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, the tailgate release actuator is faulty; replace the tailgate latch (see TAILGATE LATCH REPLACEMENT ).
