Sliding Door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left or right sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect sliding door latch remote control assembly connector B (3P) (A) from the actuator (B).

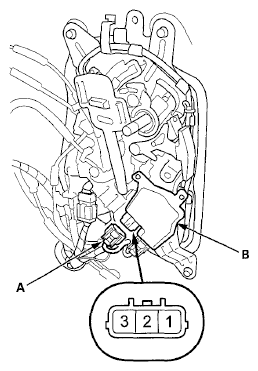

Fig 1: Identifying Sliding Door Latch Remote Control Assembly Connector B (3P) And Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Left sliding door

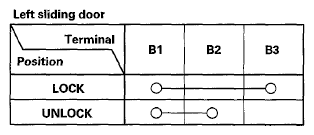

Fig 2: Left Sliding Door Latch Remote Control Assembly Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right sliding door

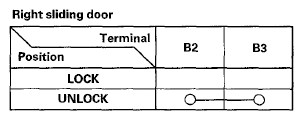

Fig 3: Right Sliding Door Latch Remote Control Assembly Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, the sliding door lock knob switch is faulty; replace the sliding door latch remote control assembly (see SLIDING DOOR LATCH REMOTE CONTROL ASSEMBLY REPLACEMENT ).
