Sliding Door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left or right sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect sliding door latch remote control assembly connector C (2P) (A) from the actuator (B).

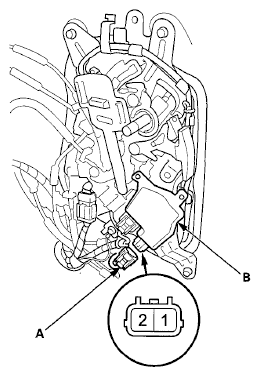

    Fig 1: Identifying Sliding Door Latch Remote Control Assembly Connector And Actuator
    G06968698Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

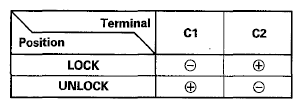

    Fig 2: Sliding Door Latch Remote Control Assembly Connector Operation Reference Chart
    G06968699Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, the actuator is faulty; replace the sliding door latch remote control assembly (see SLIDING DOOR LATCH REMOTE CONTROL ASSEMBLY REPLACEMENT ).
