Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).

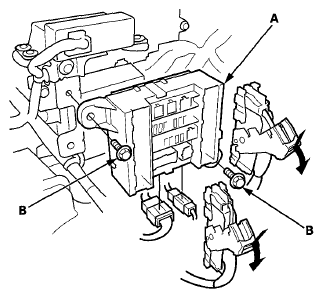

- Disconnect the connectors from the rear fuse box (A).
- Remove the mounting bolts (B), then remove the rear fuse box.
